Speedmaster®

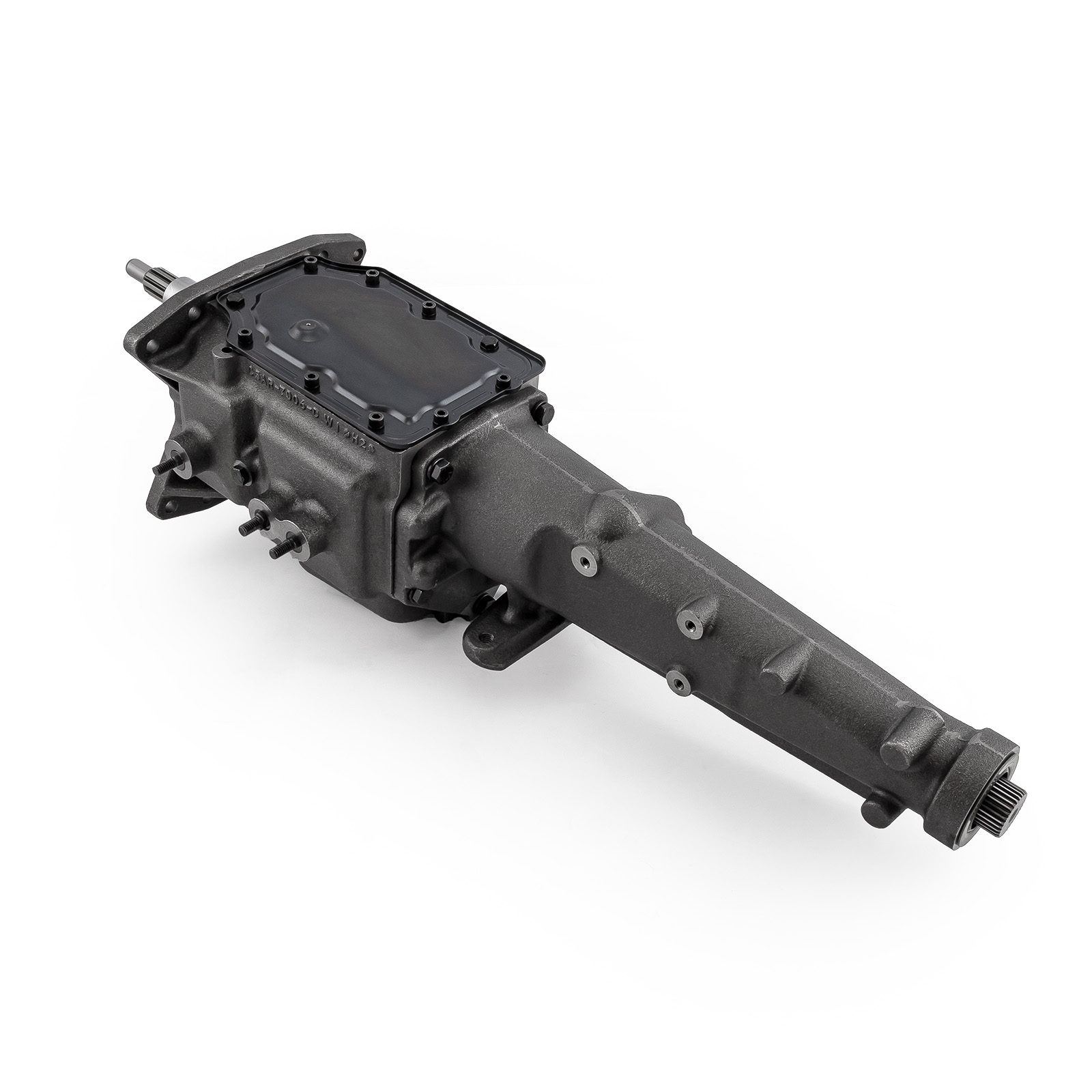

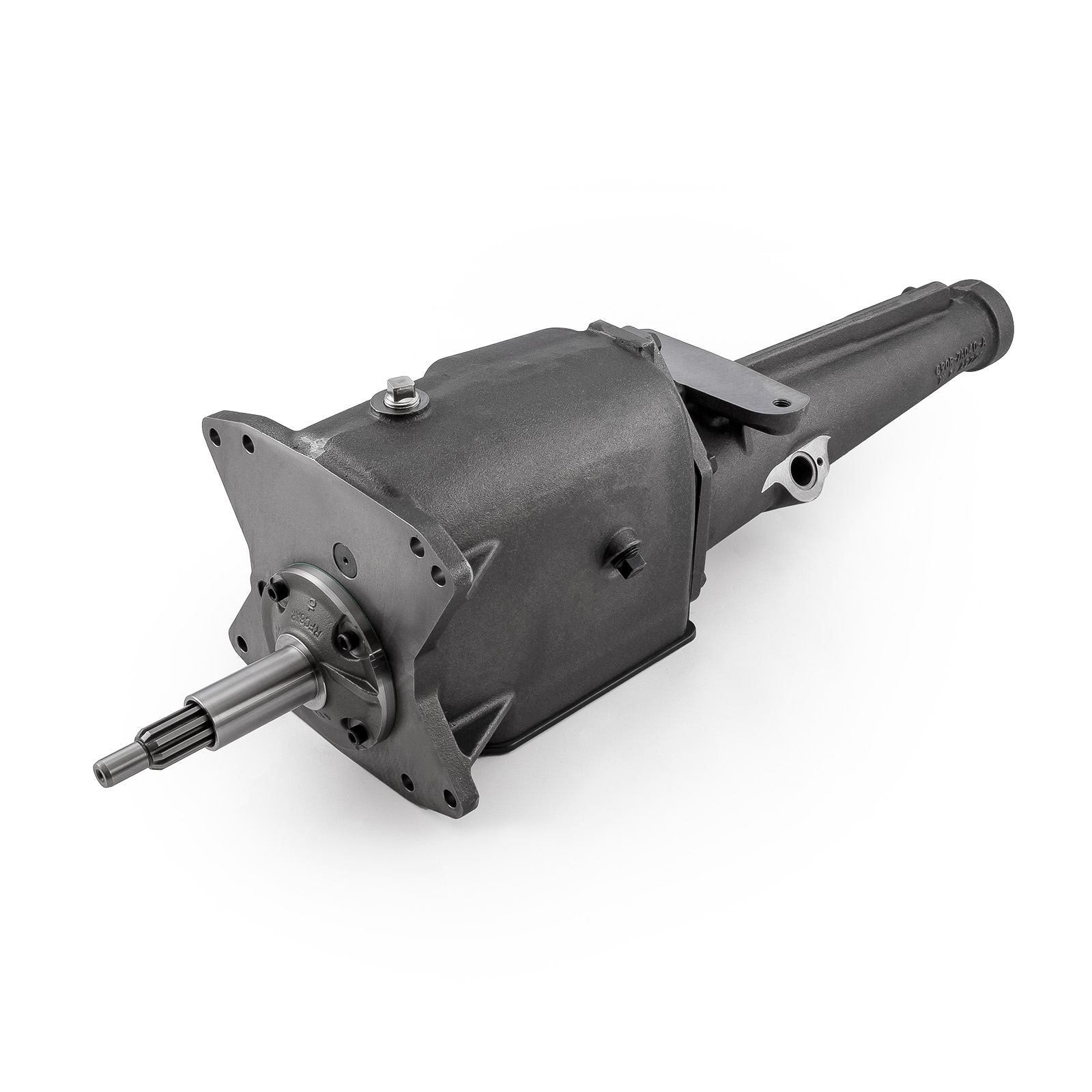

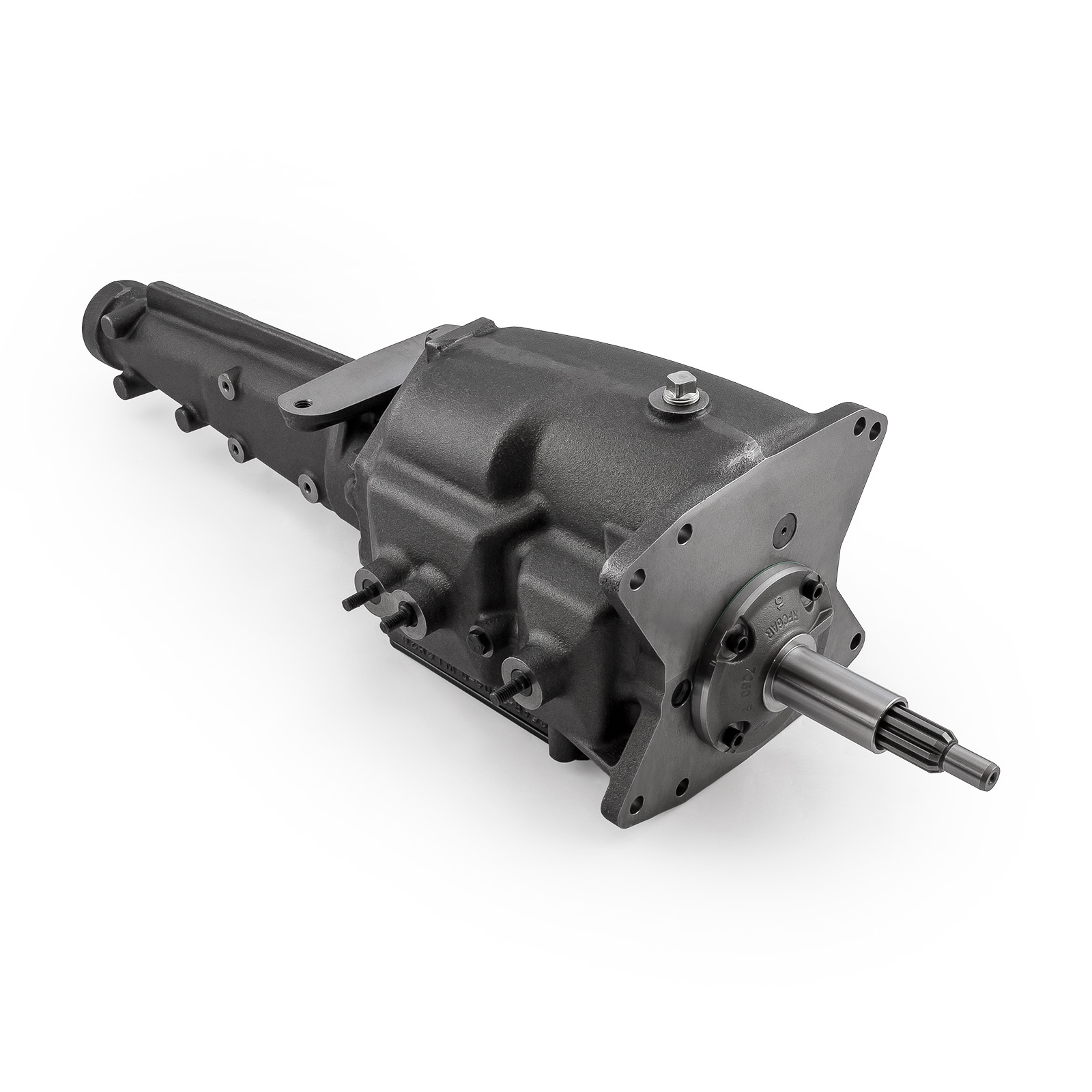

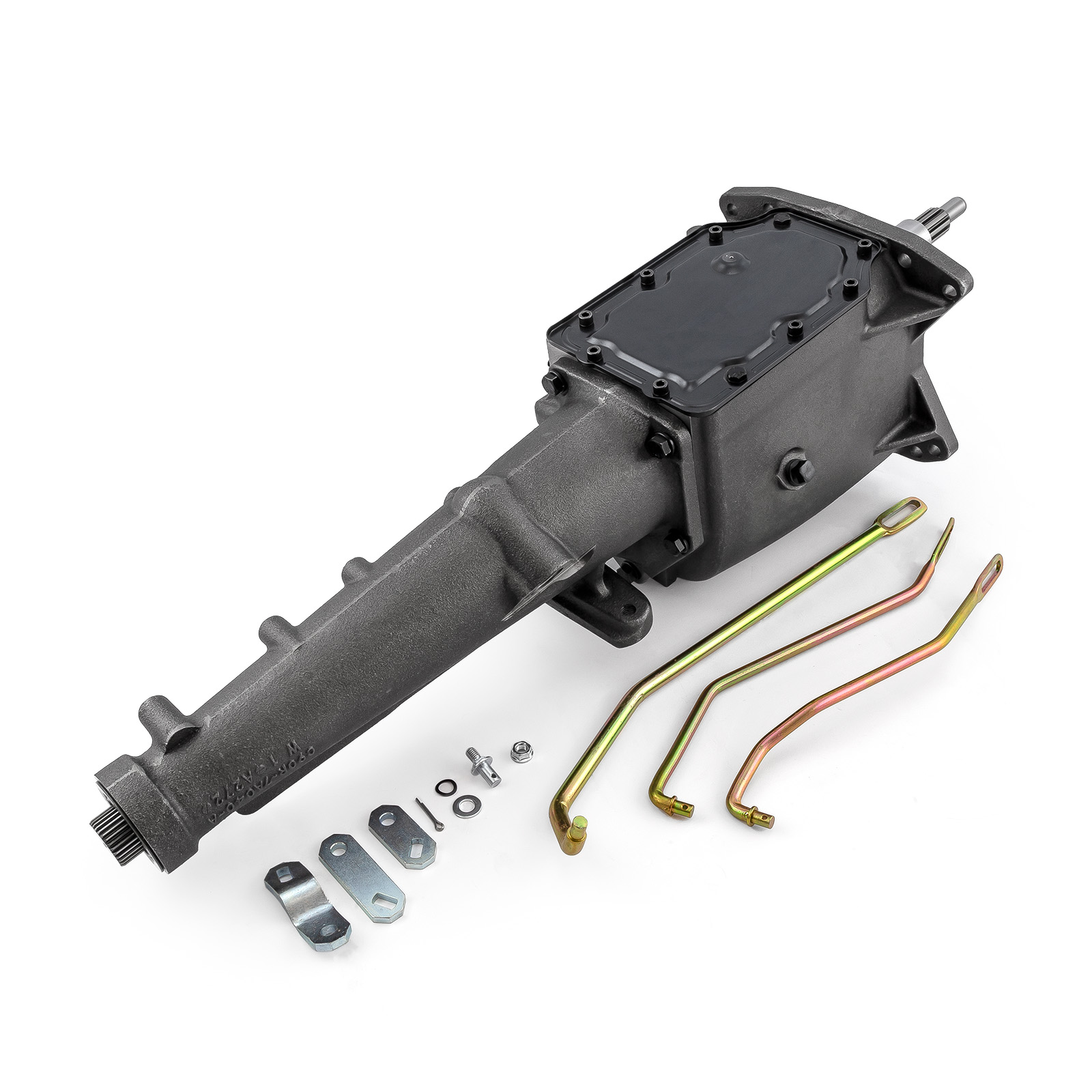

Ford 4 Speed Wide Ratio Cast Iron Toploader Gearbox Transmission [LONG]

No Reviews yet
MPN: PCE646.1003 UPC: 840136567608
Unavailable Extended Warranty Unavailable
US $3,250.00

In Stock - Ships within 24 hrs

Available: 34

Item Condition: Brand NewInfo (outlined)

  • Warranty:

    12-Month Limited Worldwide Warranty
Back

Overview

This Speedmaster manual transmission is built with all brand new components and case. Designed for engines producing up to 500hp, all components are hand fit and assembled in USA for the ultimate in precision fit and finish.
Back

Specs

Brand:Speedmaster
Part Number:PCE646.1003
Part Type:Manual Transmission

Number of Gears:4
Gear Ratio:Wide
Input Shaft Diameter (in.):1.0625 in
Input Spline Quantity:10
Output Shaft Spline Quantity:31
Output Shaft Spline Diameter (in):1.360 in.
Tailshaft Length:Long
Bellhousing Included:No
Yoke Style:Slip-on
Yoke Included:No
Shifter Included:No
Shifter Style Required:Long
First Gear Ratio:1:2.78
Second Gear Ratio:1:1.92
Third Gear Ratio:1:1.35
Fourth Gear Ratio:1:1.00
Case Material:Cast Iron
Quantity:Sold Individually.
