Speedmaster®

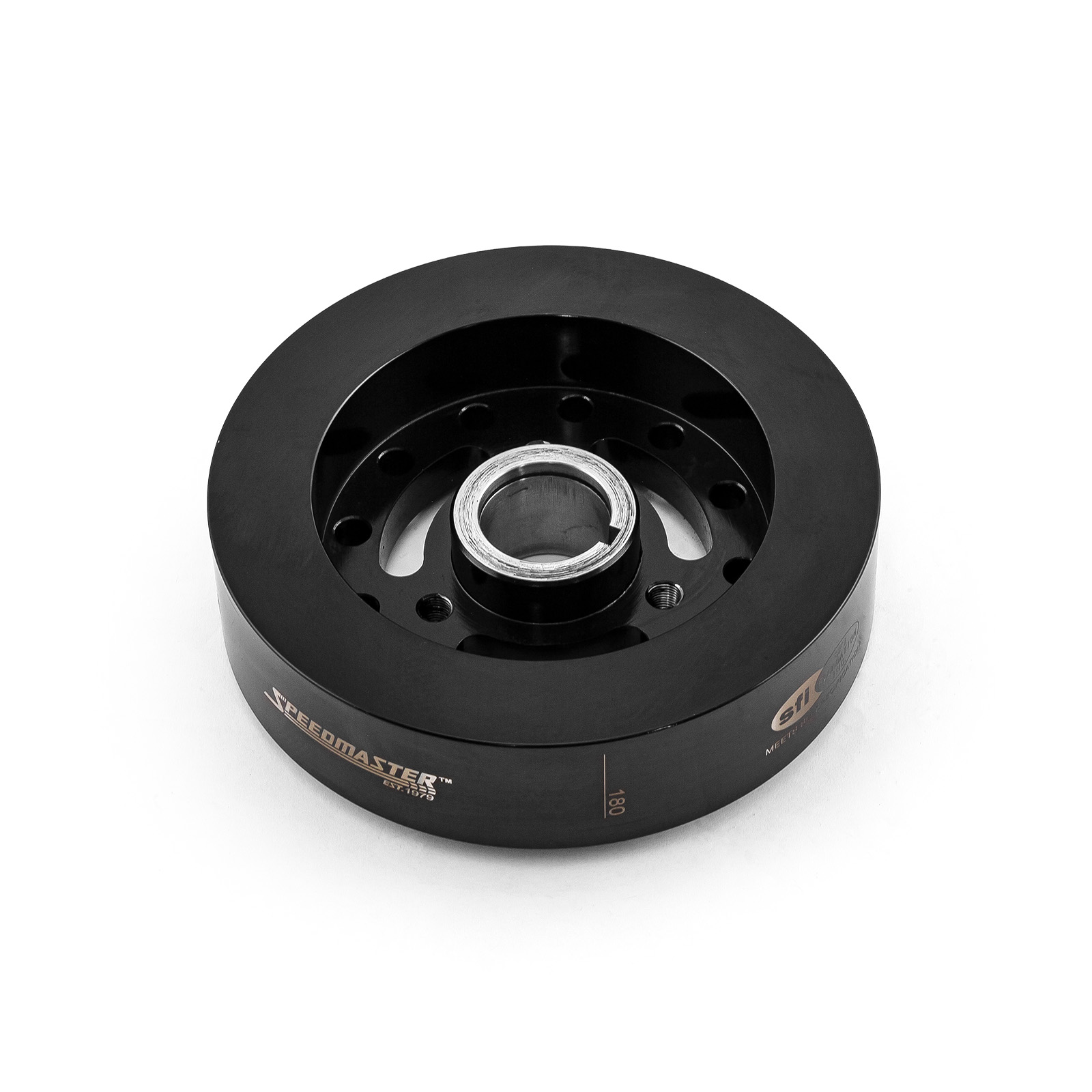

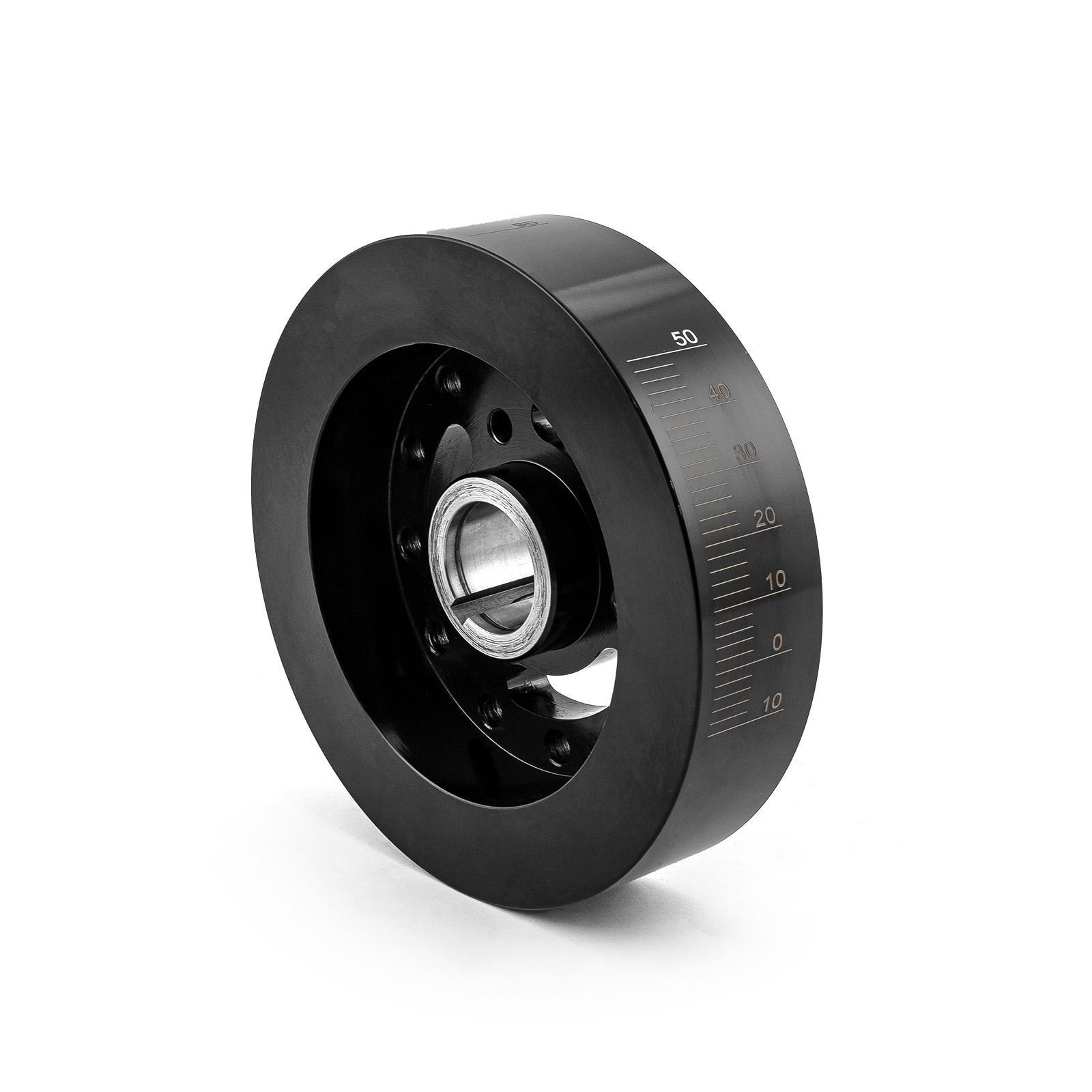

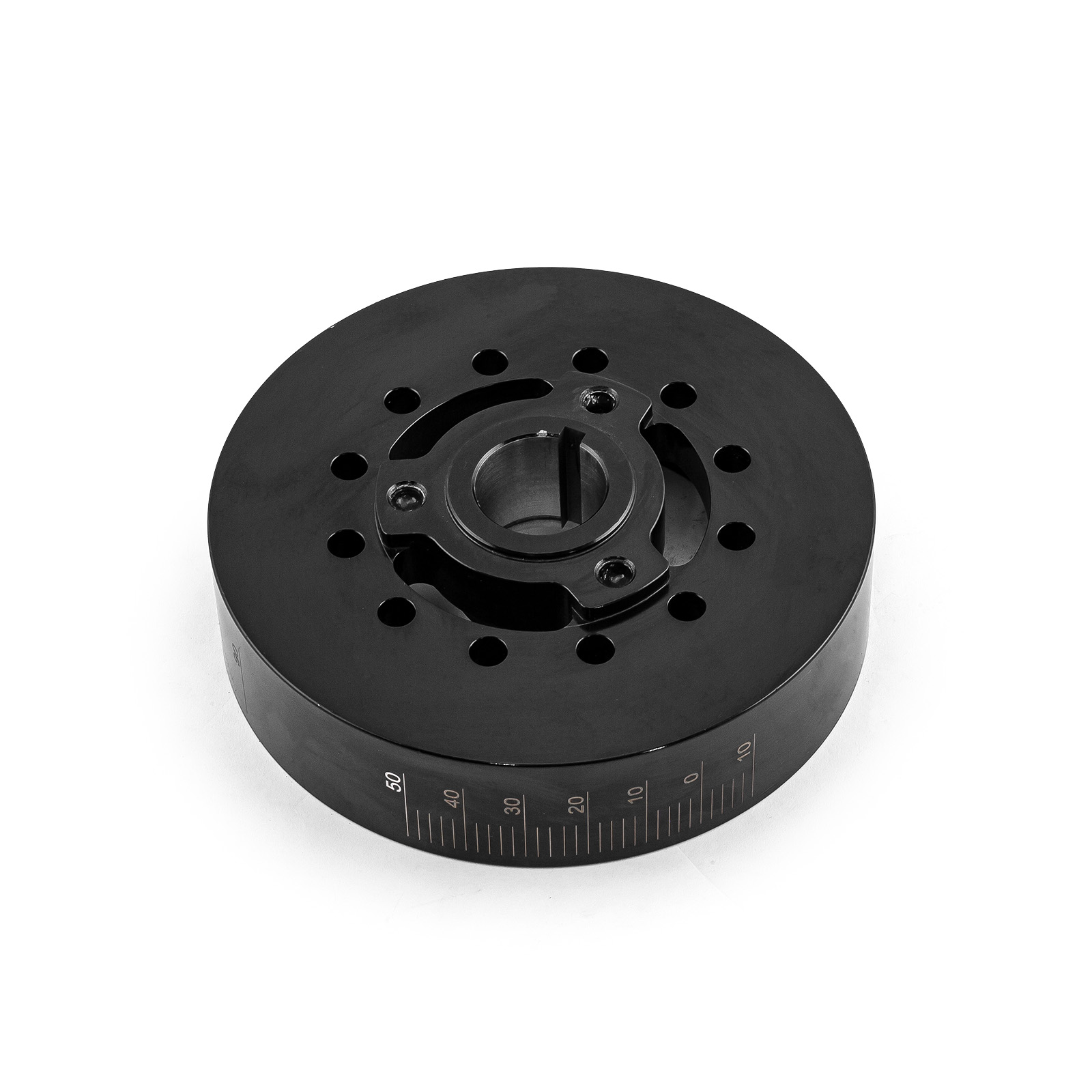

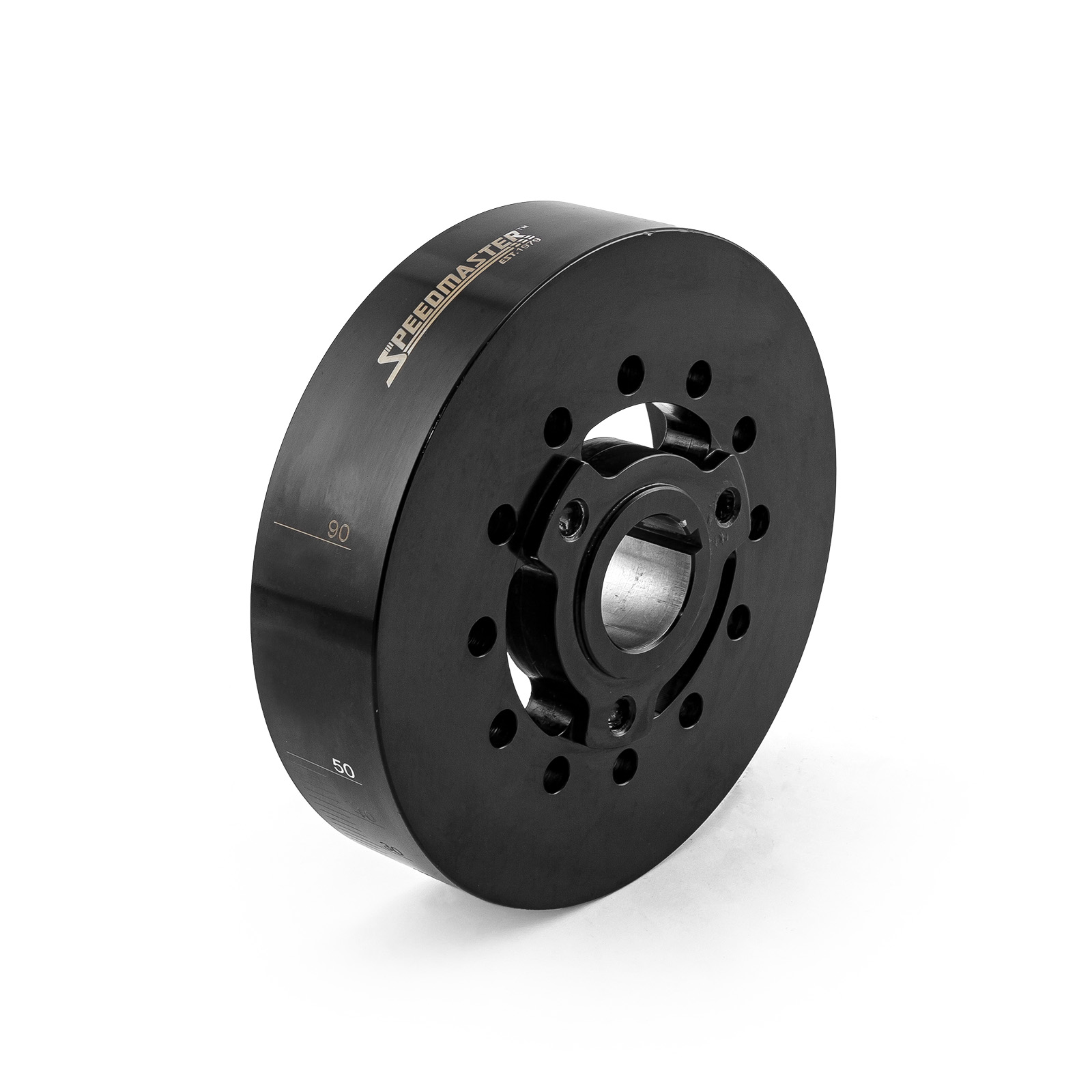

Ford FE 390 427 428 Internal Balanced Fluid Damper Harmonic Balancer SFI 18.1
Overview
Using only three parts--a laser-welded sealed housing, an internal inertia ring, and highly viscous silicone fluid between the two--these SFI-approved Fluid dampers can control all crankshaft vibration, not just a limited frequency range. As a result, you get reduced wear on the main bearings and timing gear, more stable valvetrain operation, and less chance of crank failure.
Specs
| Brand: | Speedmaster |
| Part Number: | PCE291.1074 |
| Part Type: | Harmonic Balancers |
| Product Line: | Fluid Series |
| Engine Balance: | Internal |
| SFI Rating: | SFI 18.1 |
| Degree Markings: | Yes |
| Degree Marking Range: | 50 BTDC to 10 ATDC |
| Outside Diameter (in): | 7.250 in. |
| Bolt Pattern (in): | 3.00 |
| Harmonic Balancer Material: | Steel |
| Harmonic Balancer Construction: | Fluid |
| Harmonic Balancer Finish: | Black painted |
| Mounting Hardware Included: | No |
| Quantity: | Sold individually. |
| Notes: | Additional timing/degree marks at 90, 180, and 270 degrees. |
Description
This damper is internal balanced; the term internal balanced damper"refers to the lack of any built in weight or offset in the casting. When identifying your existing damper, (balancer) you must look on the backside."This is not"visible"if the damper is"mounted on the engine."If your damper has no offset in the casting or weight, then you have an internal, (neutral)"style damper. If you do see the offset in the casting or a weight, you have what is classified as an external damper. They are perfectly balanced, hence the term neutral.
