Speedmaster®

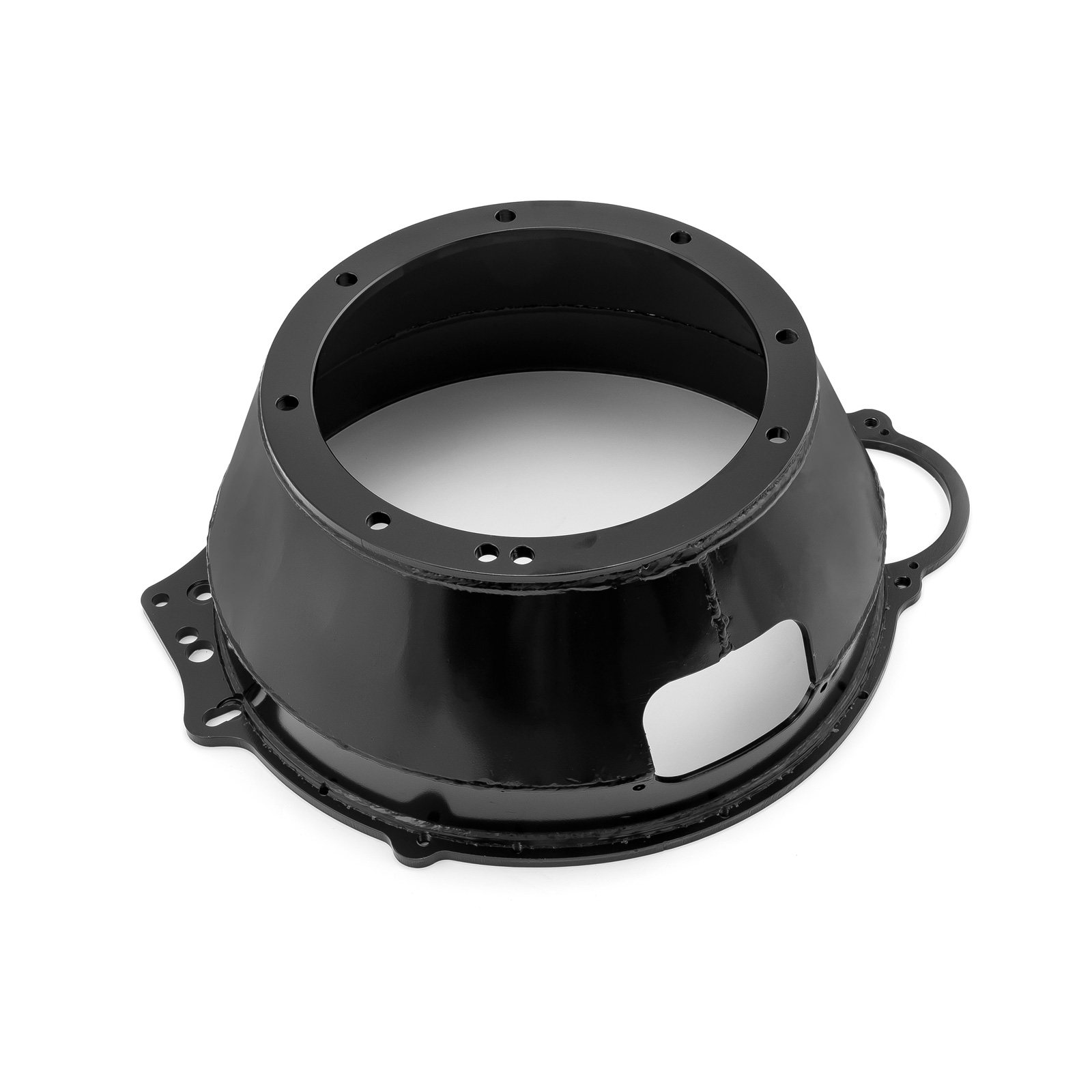

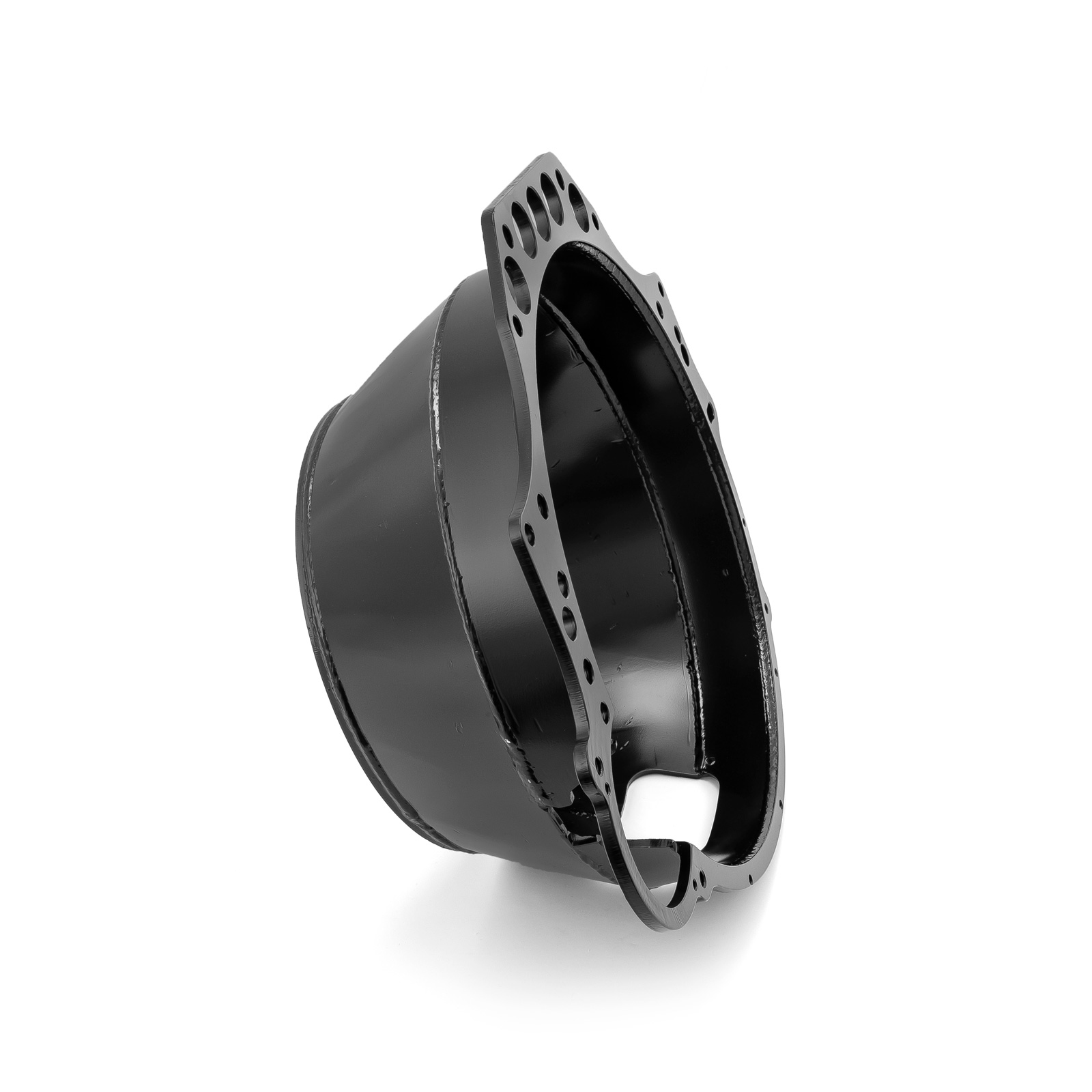

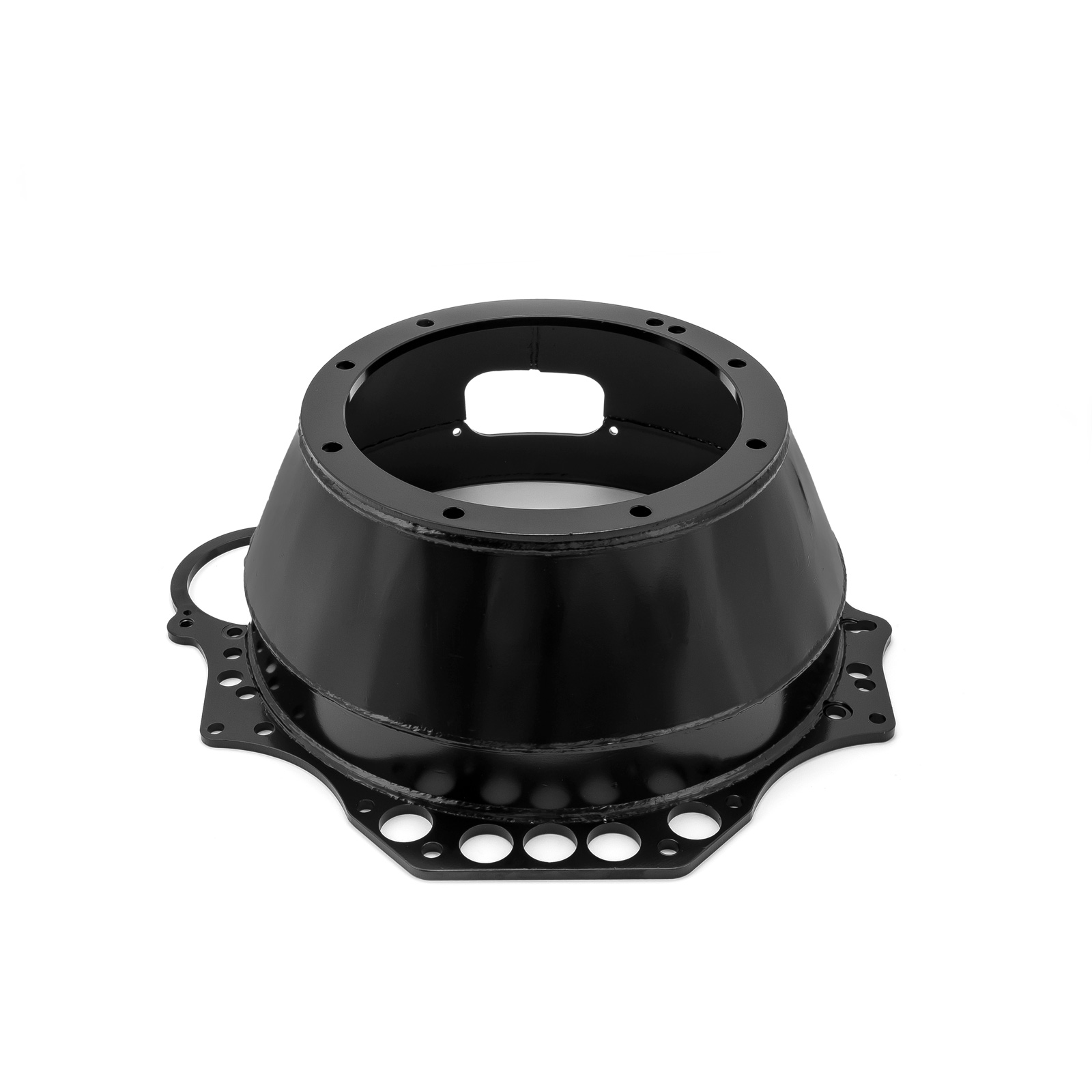

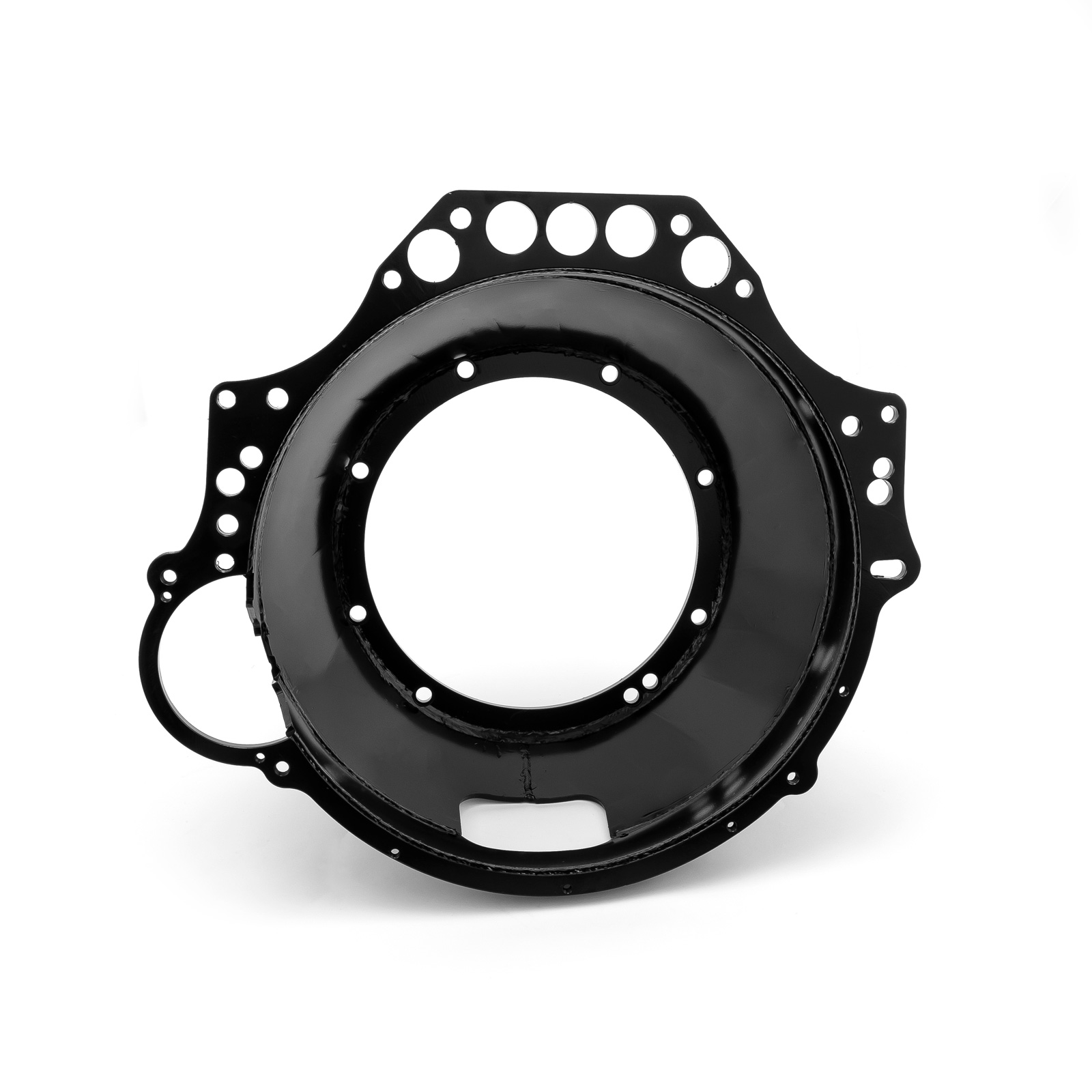

Chevy Ford SB to Powerglide TH400 Steel Bellhousing SFI 30.1 [& Reid Case]
![Speedmaster® PCE542.1003 Chevy Ford SB to Powerglide TH400 Steel Bellhousing SFI 30.1 [& Reid Case]](https://product-arena.s3.us-west-1.amazonaws.com/ProcompElectronics/PCE542/PCE542.1003/PCE542.1003.jpg?resizeid=225&resizeh=50&resizew=50)
![Speedmaster® PCE542.1003 Chevy Ford SB to Powerglide TH400 Steel Bellhousing SFI 30.1 [& Reid Case]](https://product-arena.s3.us-west-1.amazonaws.com/ProcompElectronics/PCE542/PCE542.1003/PCE542.1003_A.jpg?resizeid=225&resizeh=50&resizew=50)
![Speedmaster® PCE542.1003 Chevy Ford SB to Powerglide TH400 Steel Bellhousing SFI 30.1 [& Reid Case]](https://product-arena.s3.us-west-1.amazonaws.com/ProcompElectronics/PCE542/PCE542.1003/PCE542.1003_B.jpg?resizeid=225&resizeh=50&resizew=50)
![Speedmaster® PCE542.1003 Chevy Ford SB to Powerglide TH400 Steel Bellhousing SFI 30.1 [& Reid Case]](https://product-arena.s3.us-west-1.amazonaws.com/ProcompElectronics/PCE542/PCE542.1003/PCE542.1003_C.jpg?resizeid=225&resizeh=50&resizew=50)
Product Information
Overview
These bellhousings are designed for circle track, strip, and street applications. Built from high-grade steel, the cone is spun, not rolled or stamped, allowing these bellhousings to be the most dimensionally stable and accurate for today's high performance vehicles.This Bellhousing will only fit Speedmaster and Reid Cases Only.
Specs
| Brand: | Speedmaster |
| Part Number: | PCE542.1003 |
| Part Type: | Bellhousing |
| SFI-Approved: | Yes |
| Safety Rating: | SFI 30.1 |
| Block Plate Inlcuded: | No. |
| Bellhousing Diamater: | 7.1875in |
| Bellhousing Depth: | 6.497 in. |
| Bellhousing Type: | New |
| Clutch fork included: | No |
| Adjustable fork Pivot Recommended | No |
| Bellhousing Material: | Steel |
| Bellhousing Finish: | Black |
| Quantity: | Sold Individually |
| Notes: | for TH400 to SBF, SBC, and BBC applications. |
Description
Warranty Information
12-Month Limited Worldwide Warranty
Prop 65 Warning
This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
