Speedmaster®

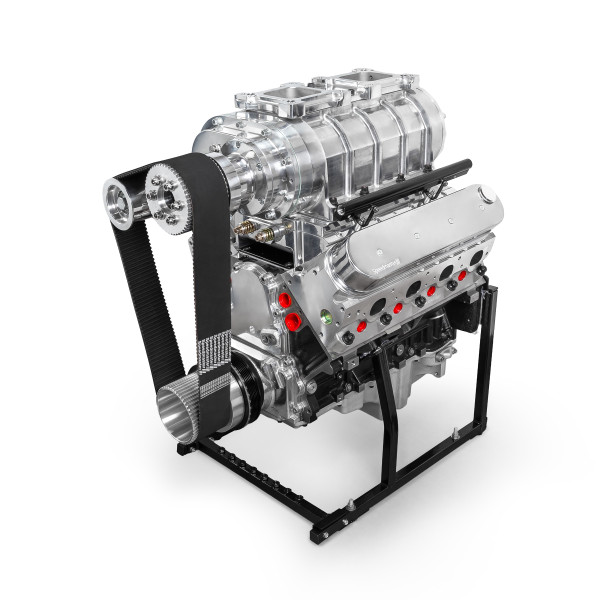

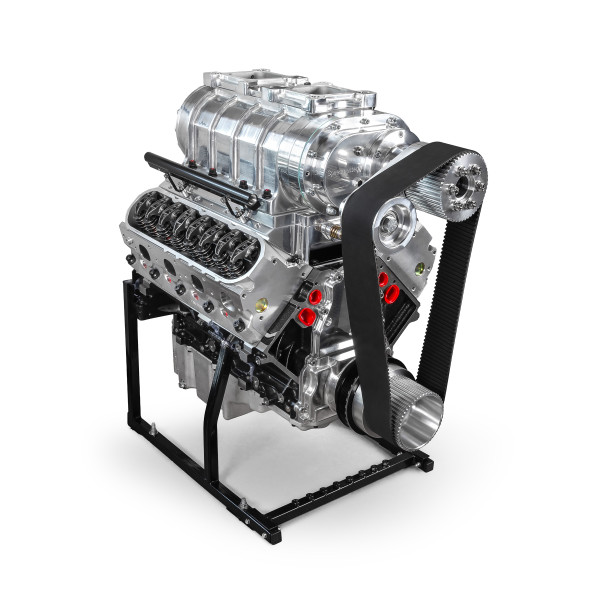

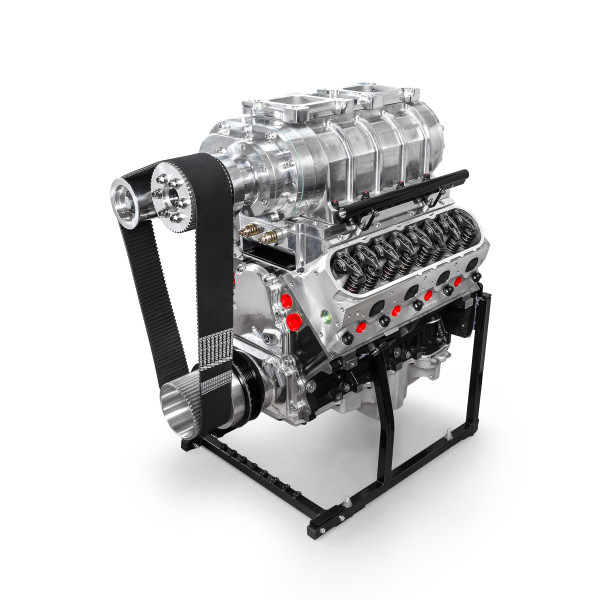

Chevy LS 402ci 1000HP LME-built Complete Crate Engine with 6-71 Supercharger
Overview
Harness four-digit horsepower potential with this LME-built, Speedmaster-equipped 402ci LS blown crate engine. Precision-machined, balanced, and blueprinted for high boost reliability, this package combines forged internals, CNC-ported heads, and a polished 6-71 supercharger for instant torque and massive power on demand.
Specs
| Brand: | Speedmaster |
| Part Number: | PCE284.1019 |
| Part Type: | Crate Engine |
| Engine Assembly Style: | Complete |
| Crate Engine Cylinder Head Material: | Aluminum (CNC-ported) |
| Assembled: | Yes |
| Engine Balance: | Internal |
| Intake Manifold Included: | Yes (CNC-machined billet LS3 blower intake) |
| Cylinder Heads Included: | Yes (CNC-ported LS3/L92 style heads) |
| Carburetor Included: | No (requires EFI or carb setup compatible with blower) |
| Throttle Body Included: | No (blower-specific top plate) |
| Distributor Included: | n/a (coil-near-plug ignition) |
| Oil Pan Included: | Yes (LS swap wet sump pan) |
| Valve Covers Included: | Yes (polished aluminum) |
| Timing Cover Included: | Yes (polished front 2-piece with cam sensor port) |
| Water Pump Included: | Not included (requires compatible LS water pump) |
| Harmonic Balancer Included: | Yes (SFI 18.1 rated, 10% underdrive) |
| Flexplate Included: | No |
| Flywheel Included: | No |
| Air Cleaner Included: | No |
| Spark Plugs Included: | Yes |
| Spark Plug Wires Included: | No |
| Computer Included: | No |
| Wiring Harness Included: | No |
| Rear Main Seal Style: | 1-piece |
| Quantity: | Sold individually. |
| Notes: | Fully assembled 402ci LS-based crate engine built by Late Model Engines with Speedmaster performance components. Features a polished 6-71 roots-style blower, CNC-ported aluminum heads, forged rotating assembly, and premium valvetrain. Dyno-tested to 768 HP at just 7 psi on pump gas (93 octane) and capable of 1000 HP when run on methanol. |
Description
Performance Testing & Results

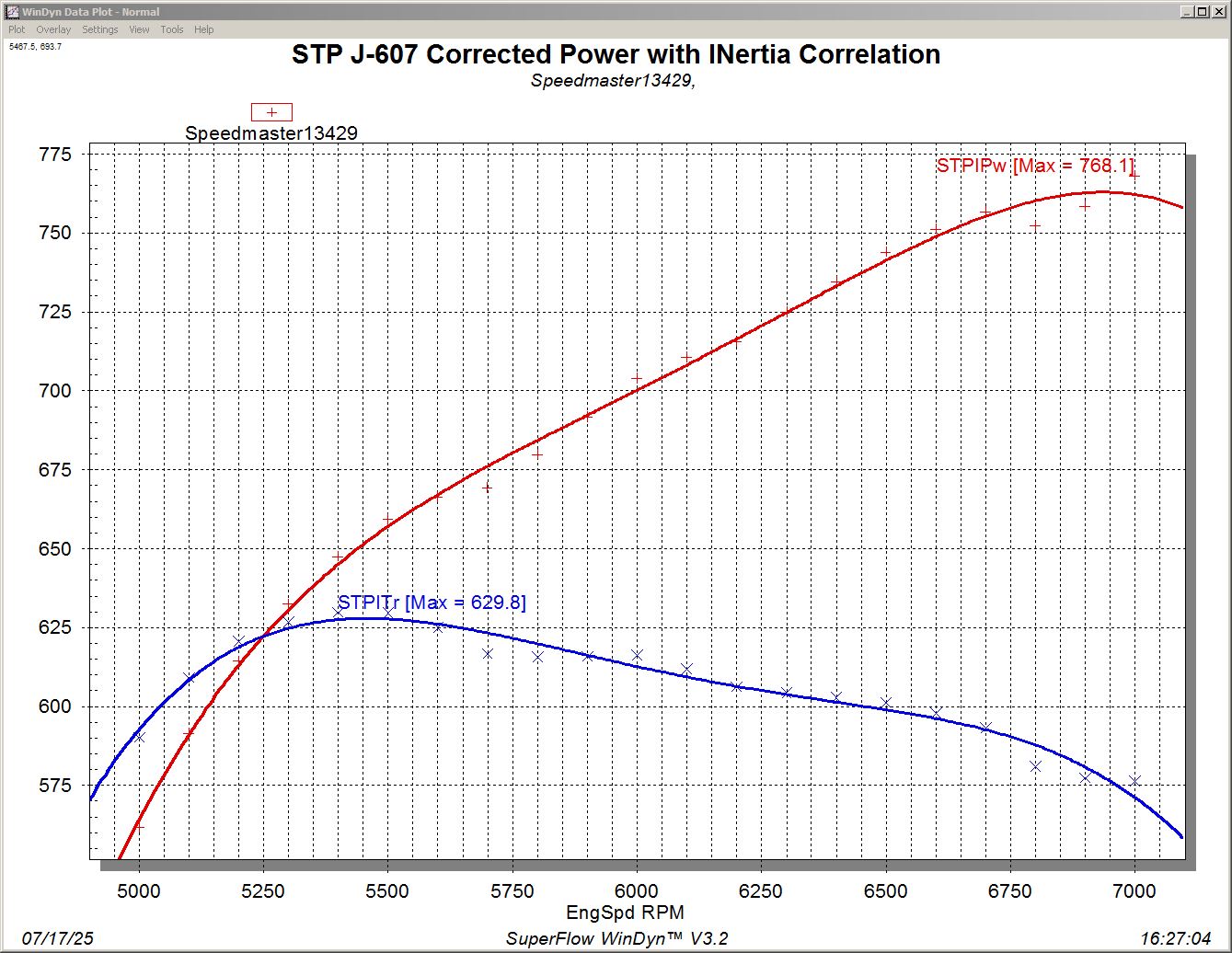

This engine has been fully dyno-tested and documented for both pump gas and methanol configurations.
Pump Gas (93 Octane) - 7 psi Boost:
Horsepower: 768 HP @ 6900 RPM
Torque: 629 lb-ft @ 5300 RPM
Dyno Video
Key Highlights
- 402 cubic inches from a 4.005" bore x 4.000" stroke
- Built by Late Model Engines (LME) - industry leader in high-performance LS builds
- Speedmaster 6-71 roots blower for instant boost and torque delivery
- Dyno-proven: 768 HP @ 7 psi on pump gas (93 octane) - 1000 HP on methanol
- Forged rotating assembly: 4340 steel crankshaft, I-beam connecting rods, Wiseco forged pistons with coated skirts
- CNC-ported aluminum heads LS3/L92 architecture with premium competition valve job
- High-performance valvetrain: Johnson tie-bar hydraulic roller lifters, CHE trunnion upgrade, double valve springs set for high-lift cams
- Custom hydraulic roller camshaft optimized for boosted street/strip use
- SFI 18.1-rated harmonic balancer with blower drive integration
- Complete long-block - ready for accessories and installation
Why Choose This Engine?
- Complete performance - built, tested, and ready to install
- Proven performance - near 800 HP on pump gas at low boost
- Race-proven machining - LME's proprietary processes ensure power and reliability
- Show-stopping looks - polished blower, billet drive, and CNC intake
- Massive power potential - pump gas or methanol-ready
- Longevity under boost - forged rotating assembly, premium bearings, and high-lift valvetrain components
- Boost-ready internals - supports higher boost levels for future upgrades
What's Included
A complete premium build from block to blower:
- Fully machined, balanced, and blueprinted 402ci LS Gen IV 6-bolt main block
- Forged crankshaft, rods, and pistons engineered for high boost
- CNC-ported aluminum heads matched to blower application
- Polished 6-71 roots-style supercharger system with billet intake
- LS swap wet sump oil pan
- Dyno break-in, performance verification, and documentation included
Applications
- Pro-touring builds needing instant torque and drivability
- Classic muscle cars upgrading to modern LS power with vintage blower style
- High-end restomods and custom hot rods
- Street/strip vehicles aiming for four-digit horsepower

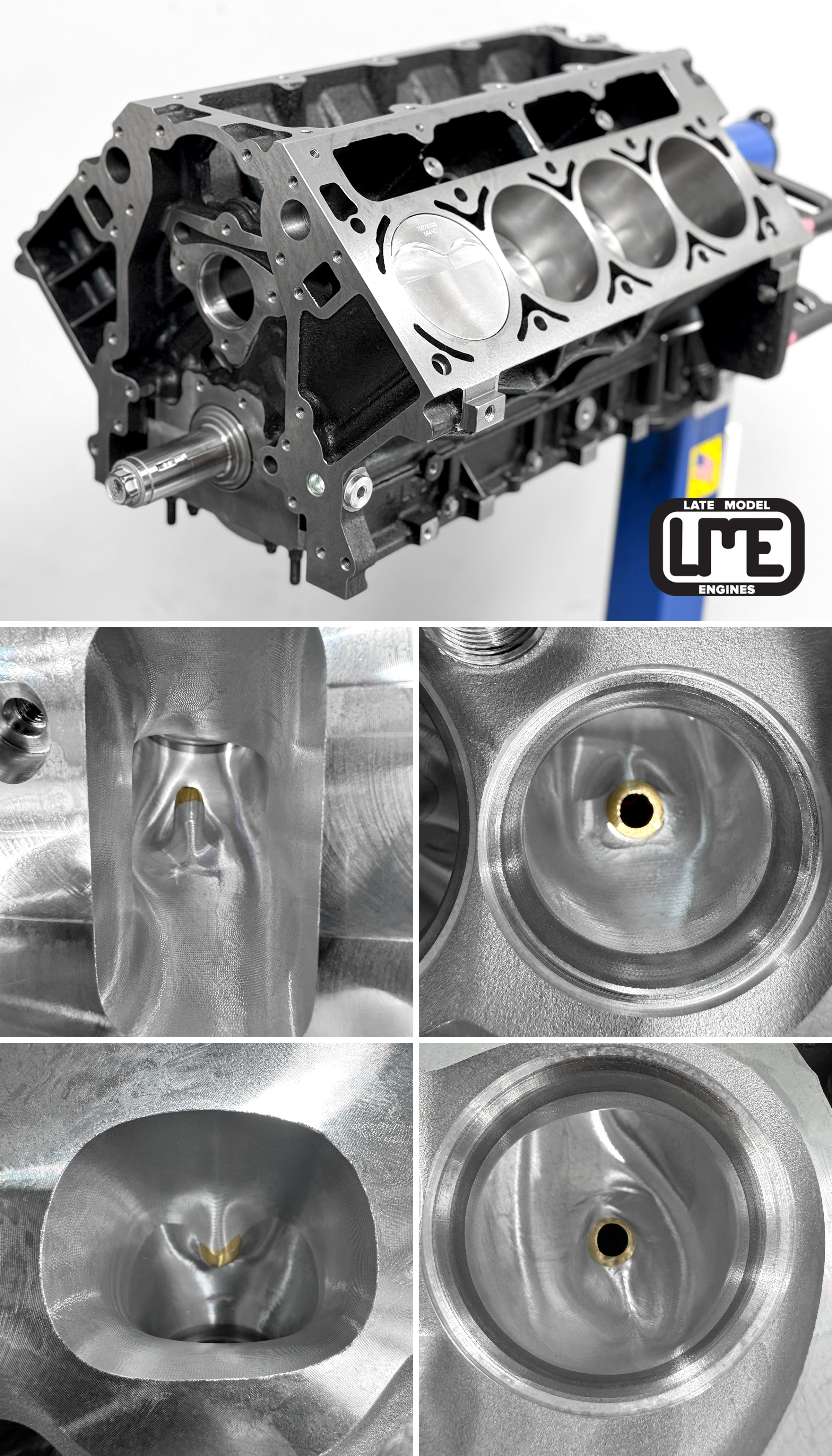

Precision CNC Machining - Built by LME
Every LME-built engine undergoes meticulous CNC machining to ensure exact tolerances and maximum performance.
- Fully CNC-ported intake and exhaust runners for optimal airflow
- Hand-blended combustion chambers for improved efficiency and detonation resistance
- Diamond-honed cylinder bores with torque plates for perfect ring seal
- Precision decking, line honing, and balancing for long-term durability
Brand Information
In 1979, the company was founded with Pete's Performance, which was a small speed workshop. It began by building engines for customers as a hobby, and it has now grown to include selling, assembling, manufacturing and racing high performance engine parts. Over the years, the company has grown into a worldwide high performance powerhouse. Growing from a one-man bricks-and-mortar business; to now a supply chain in which entails more than 400+ people all across the world. Today, Pete's Performance has evolved into the internationally known Speedmaster: which has distribution centres and offices is Sydney, Los Angeles and Shanghai.
