Speedmaster®

Universal Pc92 12V High Output External Male E-Core Ignition Coil - Red

PROMOTION
Promo

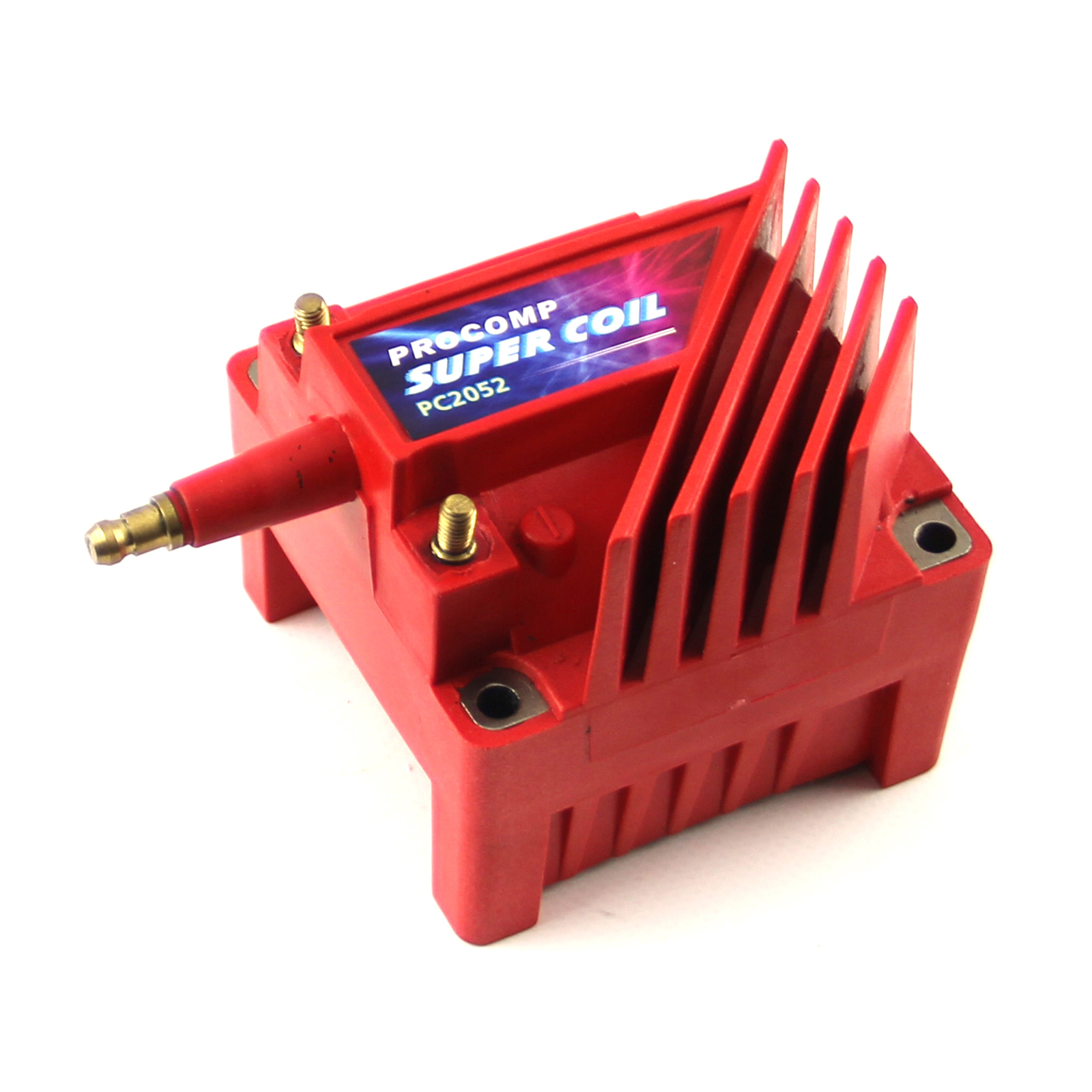

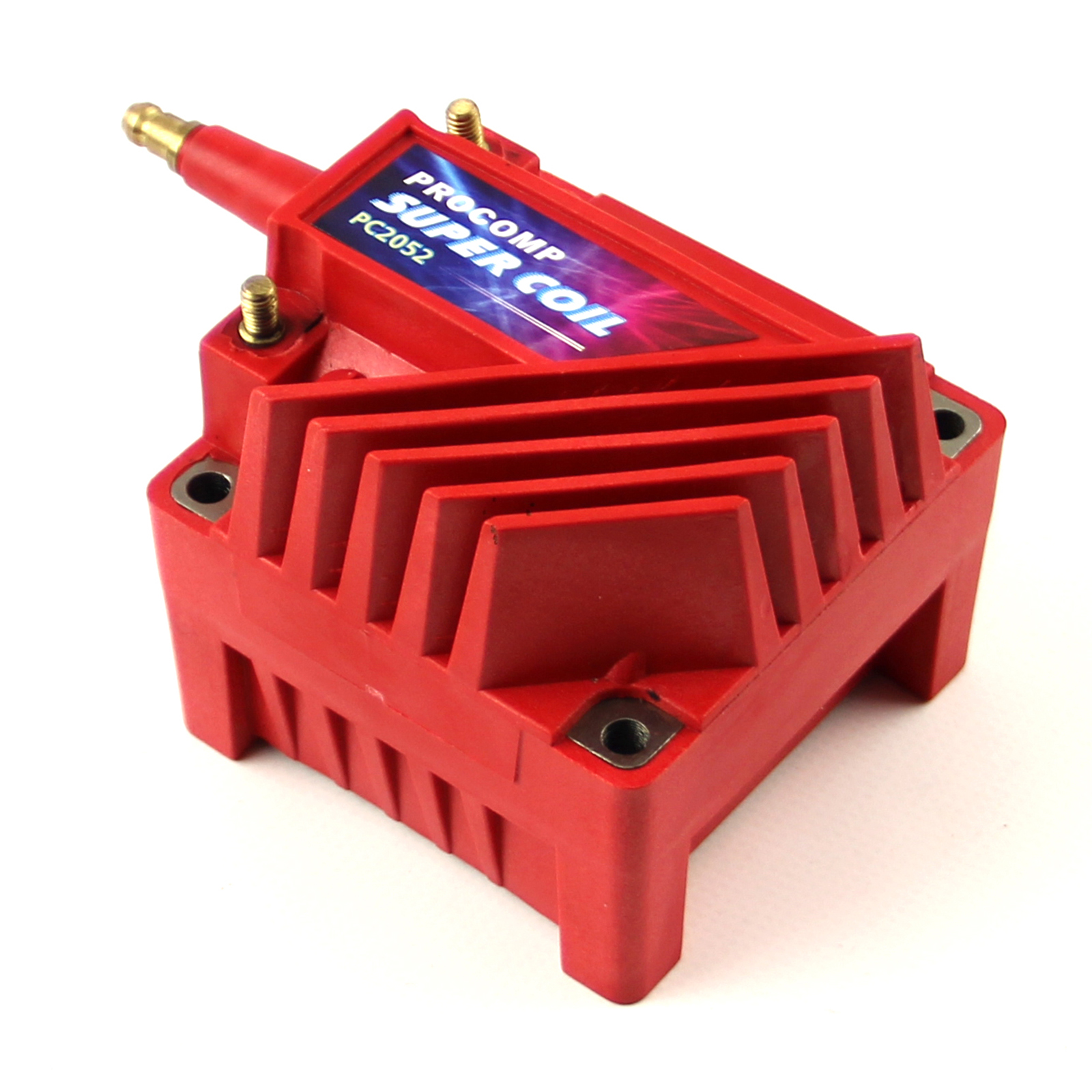

Speedmaster® PCE382.1020 Universal Pc92 12V High Output External Male E-Core Ignition Coil - Red
Speedmaster® PCE382.1020 Universal Pc92 12V High Output External Male E-Core Ignition Coil - Red
US $17.95 US $35.90
You Save US $17.95 (50%)
Single Points Earn 18 Points
Free shipping on orders over $150

30-Day Money-Back Guarantee

10M+ Items Shipped Worldwide

This Promo is for an Open-Box item

  • The same warranty as a brand new item.
  • All components included as a brand new item.
  • A new brown box.

Available for a limited time and in limited quantities. If you prefer to purchase a brand-new version of this product, please visit our authorised resellers such as Jegs or others.

MPN PCE382.1020 UPC840136549949

Product Information

Specs

Brand:Speedmaster
Part Number:PCE382.1020
Part Type:Ignition Coil
Coil Wire Attachment:Male/HEI
Coil Style:E-core
Primary Resistance:0.700 ohms
Coil Internal Construction:Epoxy
Coil Color:Red
Maximum Voltage:45,000 V
Turns Ratio:85:1
Secondary Resistance:3.50K ohms
Inductance:6.9 mH
Peak Current:220 mA
Spark Duration:200 uS
Mounting Bracket Included:No
Coil Wire Included:No
Ballast Resistor Included:No
Coil Shape:Square
Quantity:Sold individually.

Description

Speedmaster PC92 coil produces up to 70% more spark energy than stock coils with outstanding reliability. This unit is recommended for street, strip, circle track and drag racing. Internally the coil also has large gauge wire windings for maximum spark current and voltage with better heat dissipation at high rpm. High voltage arcing is minimized through screw on connectors and a high tension tower. Ideal for use with capacitive discharge (CD) ignition systems and all of Speedmaster range of High Output Ignitions.
