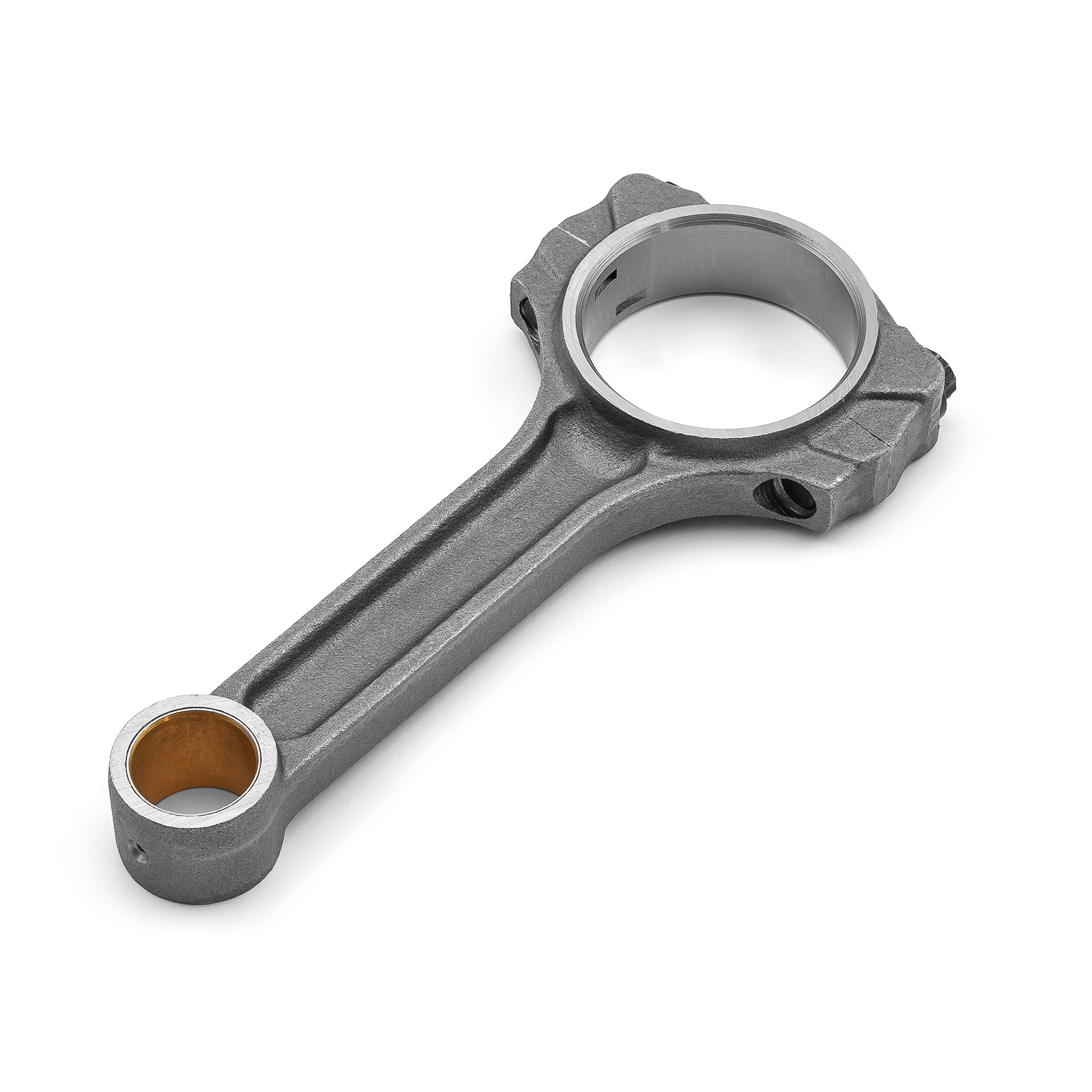

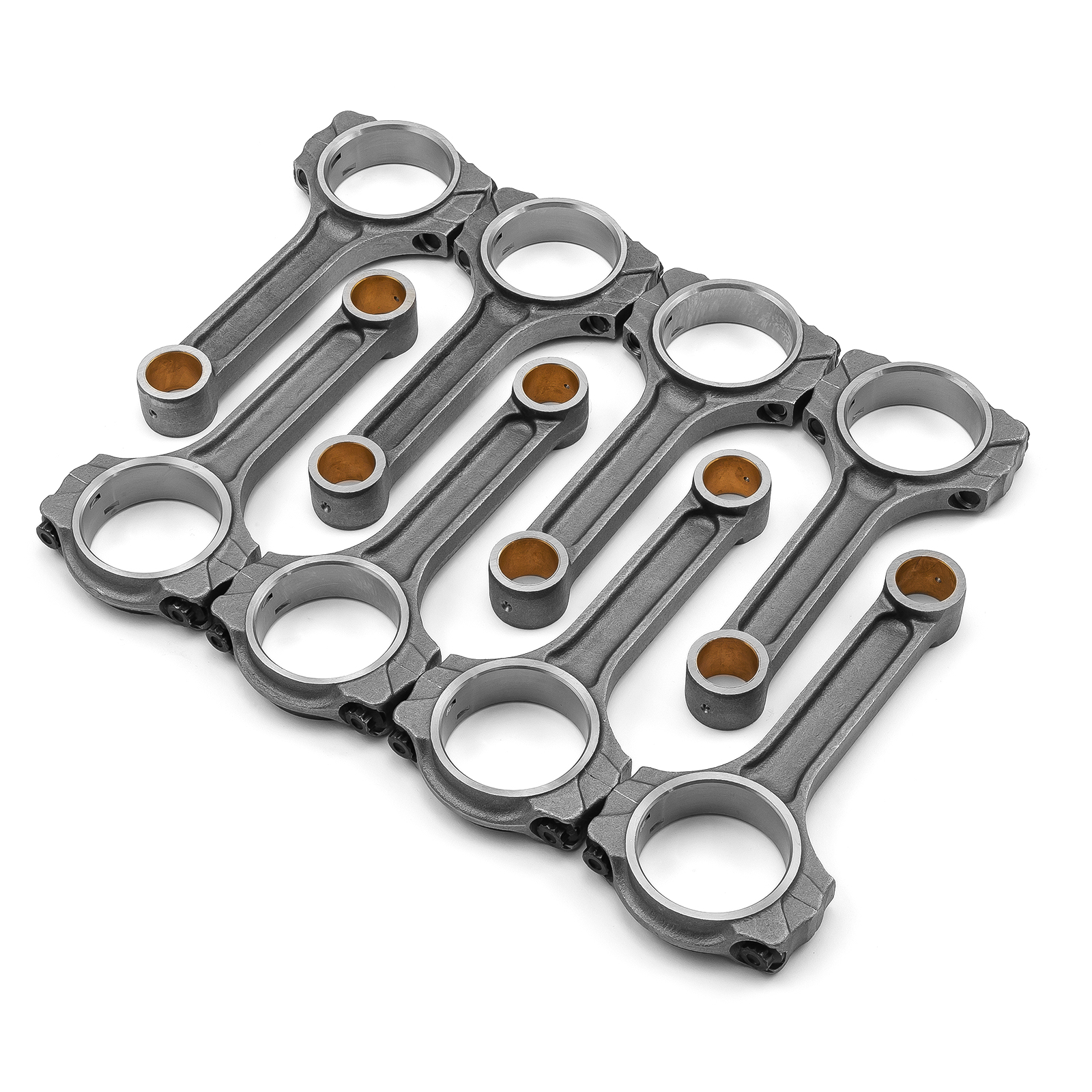

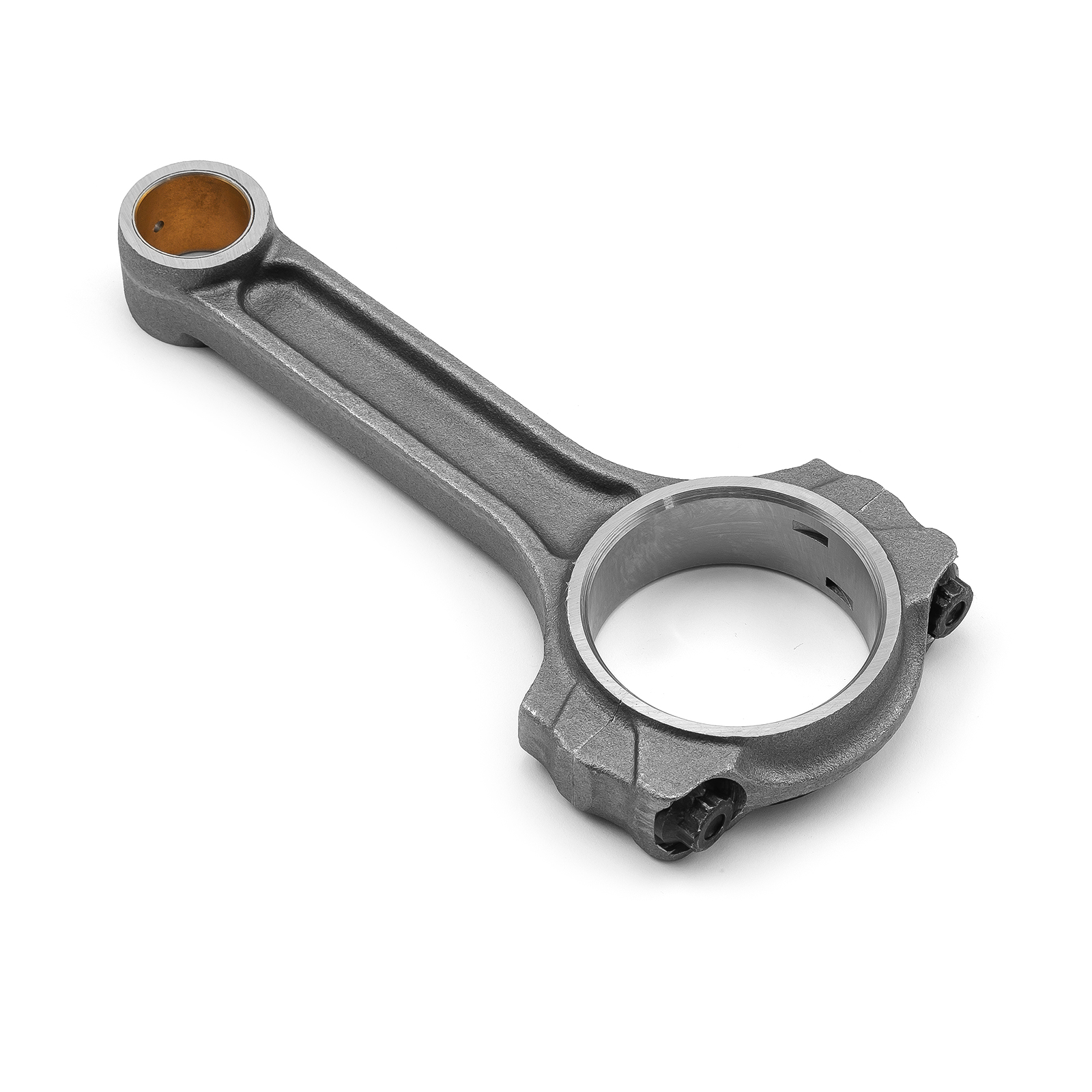

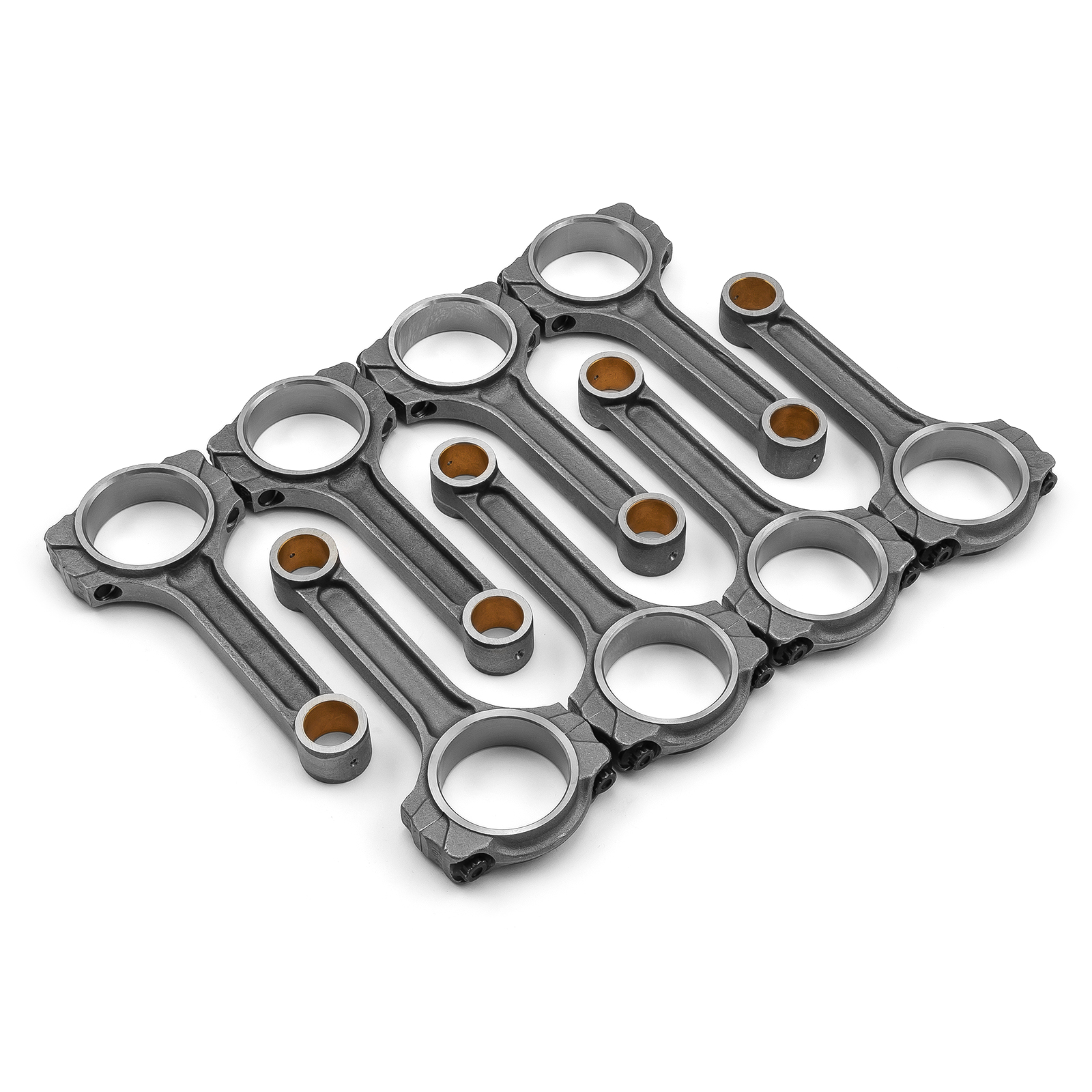

I Beam 6.000" 2.100" .927" Bronze Bush 5140 Connecting Rods Suits: Chevy SBC 350

No Reviews yet
MPN: PCE274.1127 UPC: 840136528388
Available Extended Warranty Eligible
US $220.00 US $244.50
You Save US $24.50 (10%)Single Points Earn 220 Points Info (outlined)

In Stock - Ships within 24 hrs

Available: 37

Item Condition: Brand NewInfo (outlined)

  • Warranty:

    12-Month Limited Worldwide Warranty


Part Number:PCE274.1127
Part Type:Connecting Rods
Connecting Rod Length Center to Center (in):6.000 in.
Connecting Rod Beam Style:I-beam Street
Connecting Rod Material:5140 Chromoly Steel
Connecting Rod Finish:Shot-peened
Wrist Pin Style:Floating
Clearanced for Stroker:No
Cap Retention Style:Through-bolt
Connecting Rod Bolt Brand:PCE
Connecting Rod Bolt Diameter:3/8 in.
Connecting Rod Bolt Material:Chromoly steel
Fastener Yield Strength (psi):200,000 psi
Connecting Rod Bolt Head Style:12-point
Approximate Connecting Rod Weight (g):610g
Rod Journal Diameter (in):2.100 in.
Big End Bore Diameter (in):2.180 in.
Pin End Bore Diameter (in):0.927 in.
Big End Width (in):0.945 in.
Advertised Horsepower Rating (hp):500 hp
Advertised RPM Rating:6,000 rpm
Weight Matched Set:Yes
Quantity:Sold as a set of 8.
Tool:Stroker Combinations


These PCE I-beam connecting rods incorporate all of the best features possible for an I-beam rod, including some strength adders found in H-beam designs. PCE I-beam connecting rods are profiled with clearance for long stroke applications. These connecting rods feature a one-rib cap design for added strength and bearing support, polished beams to eliminate stress risers. PCE cap screw bolts to greatly increase strength and horsepower capabilities.

PCE I Beam Street connecting rods are manufactured from high quality 5140 chromoly steel. The rods are x-rayed and ultrasonically tested with all surfaces shot peened and stress relieved.
