Speedmaster®

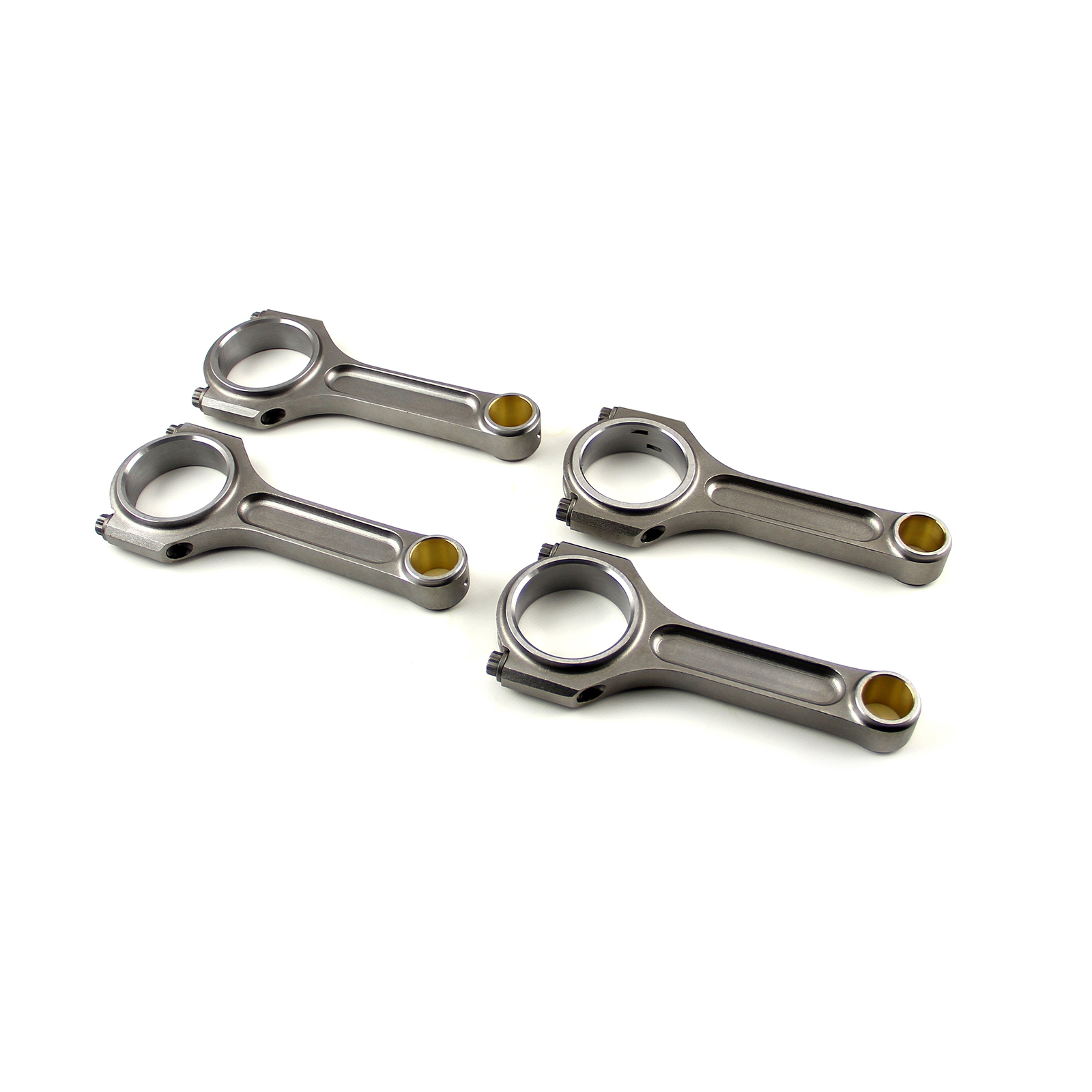

I Beam Race 5.950" .866" 4340 Connecting Rods Suits: Honda H22 H23

No Reviews yet
MPN: PCE274.1113 UPC: 840136528265
Available Extended Warranty Eligible
US $165.70 US $220.90
You Save US $55.20 (25%)Single Points Earn 166 Points Info (outlined)

In Stock - Ships within 24 hrs

Available: 21

Item Condition: Brand NewInfo (outlined)

  • Warranty:

    12-Month Limited Worldwide Warranty

Specs

Brand:PCE
Part Number:PCE274.1113
Part Type:Connecting Rods

Connecting Rod Length Center to Center (in):5.950 in.
Connecting Rod Beam Style:I-beam Race
Connecting Rod Material:4340 Chromoly Steel
Connecting Rod Finish:Shot-peened
Wrist Pin Style:Floating
Clearanced for Stroker:Yes
Cap Retention Style:Through-bolt
Connecting Rod Bolt Brand:PCE
Connecting Rod Bolt Diameter:3/8 in.
Connecting Rod Bolt Material:Chromoly steel
Fastener Yield Strength (psi):160,000 psi
Connecting Rod Bolt Head Style:12-point
Approximate Connecting Rod Weight (g):616g
Rod Journal Diameter (in):1.890 in.
Big End Bore Diameter (in):1.970 in.
Pin End Bore Diameter (in):0.866 in.
Big End Width (in):0.935 in.
Advertised Horsepower Rating (hp):800+ hp
Advertised RPM Rating:8,200 rpm
Weight Matched Set:Yes
Remanufactured:No
Magnafluxed:Yes
Quantity:Sold as a set of 4.
Tool:Stroker Combinations

Description

PCE I-beam connecting rods incorporate all of the best features possible for an I-beam rod, including some strength adders found in H-beam designs. PCE I-beam connecting rods are profiled with clearance for long stroke applications. These connecting rods feature a one-rib cap design for added strength and bearing support, polished beams to eliminate stress risers. PCE cap screw bolts to greatly increase strength and horsepower capabilities.

PCE I Beam Tace connecting rods are manufactured from aircraft 4340 chromoly steel and designed to be the most reliable in the racing industry. The rods are x-rayed and ultrasonically tested with all surfaces shot peened and stress relieved. Perfect for engines producing 1000+ HP
