Speedmaster®

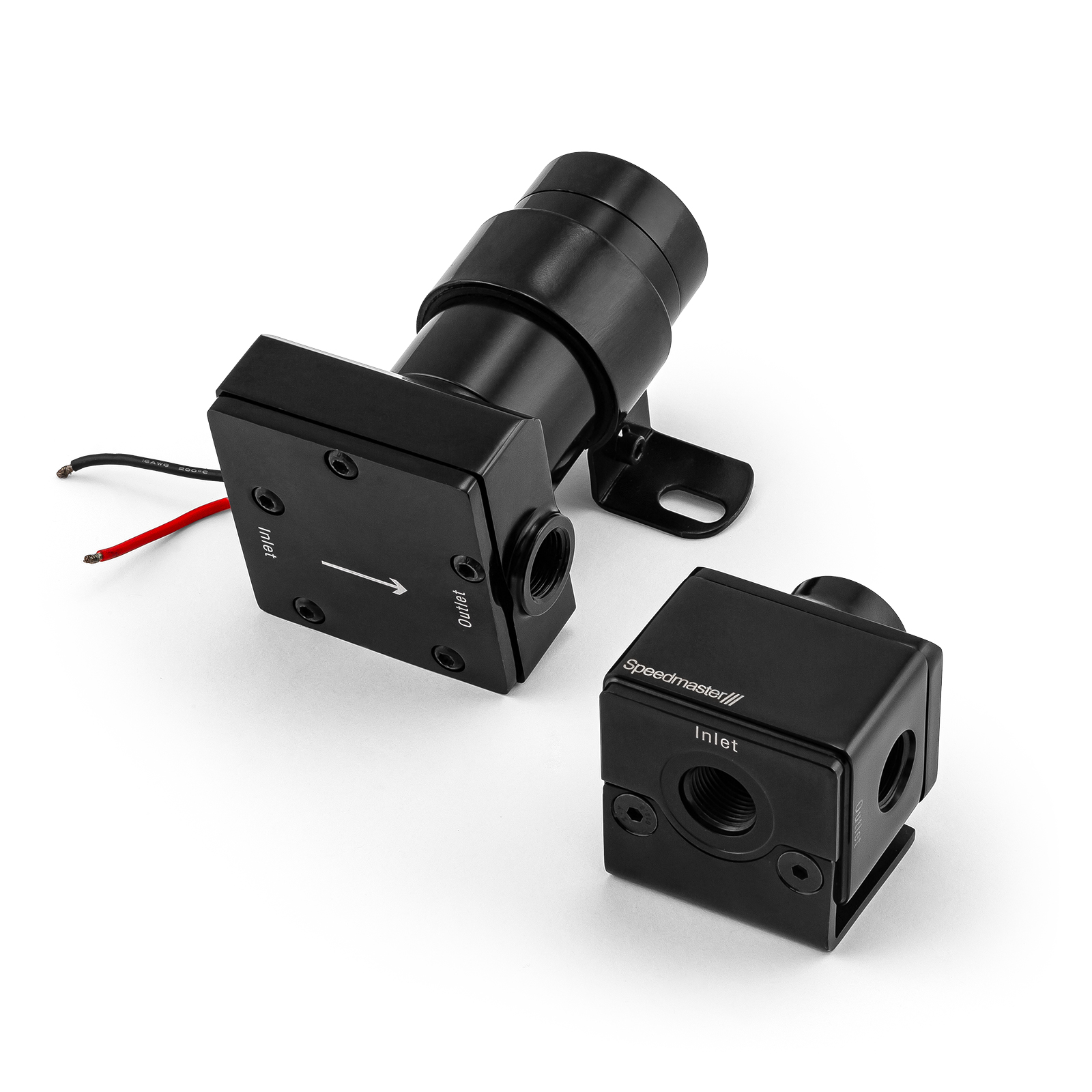

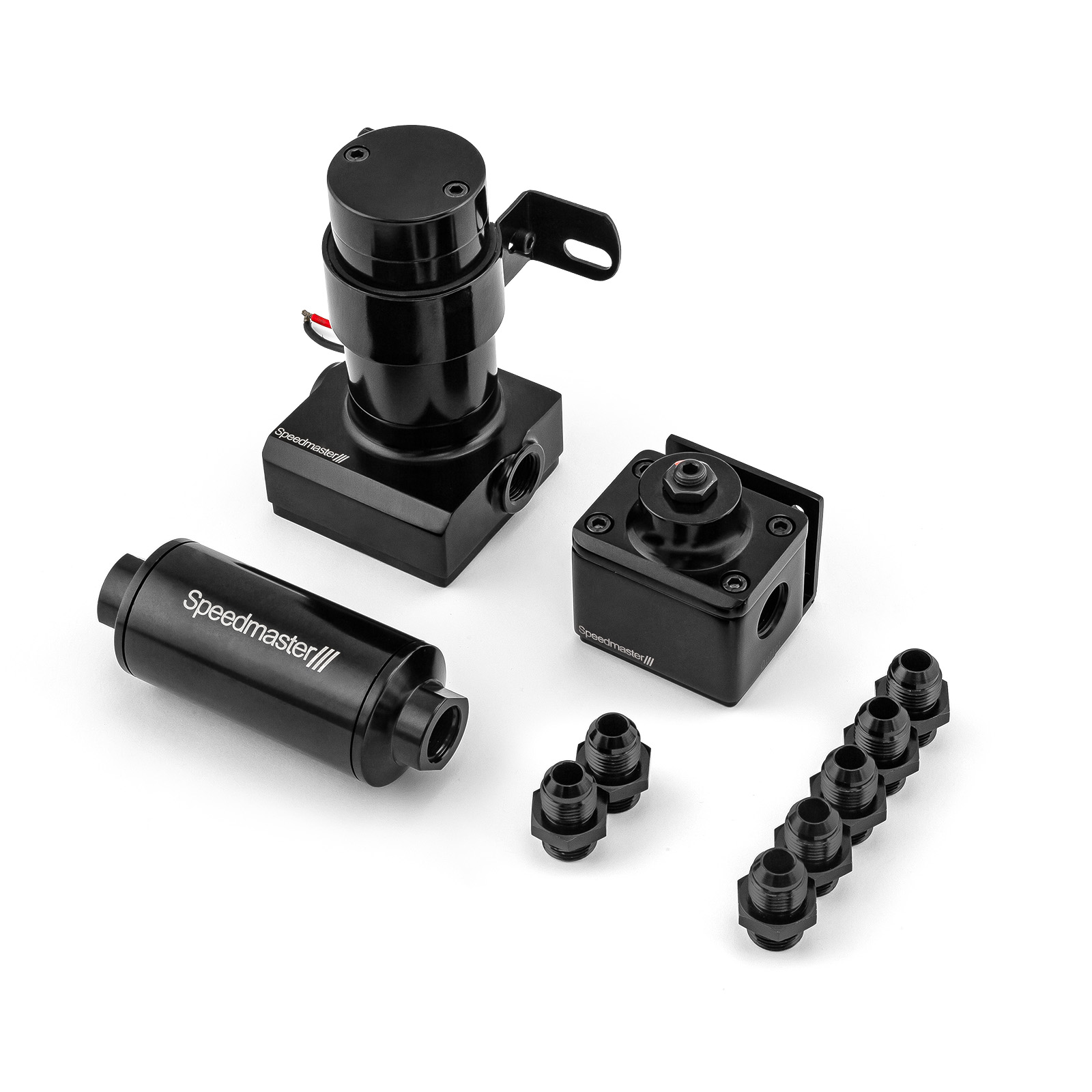

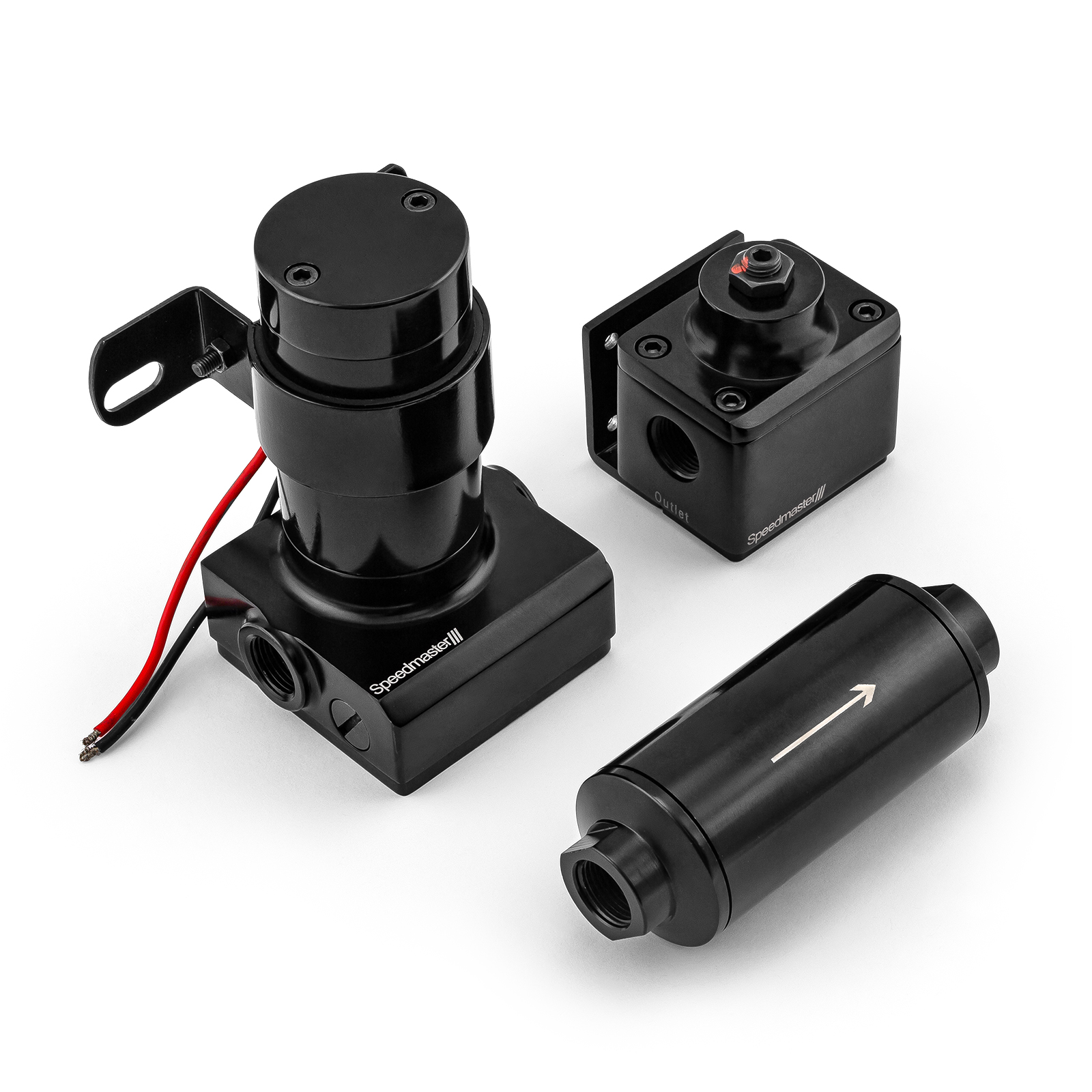

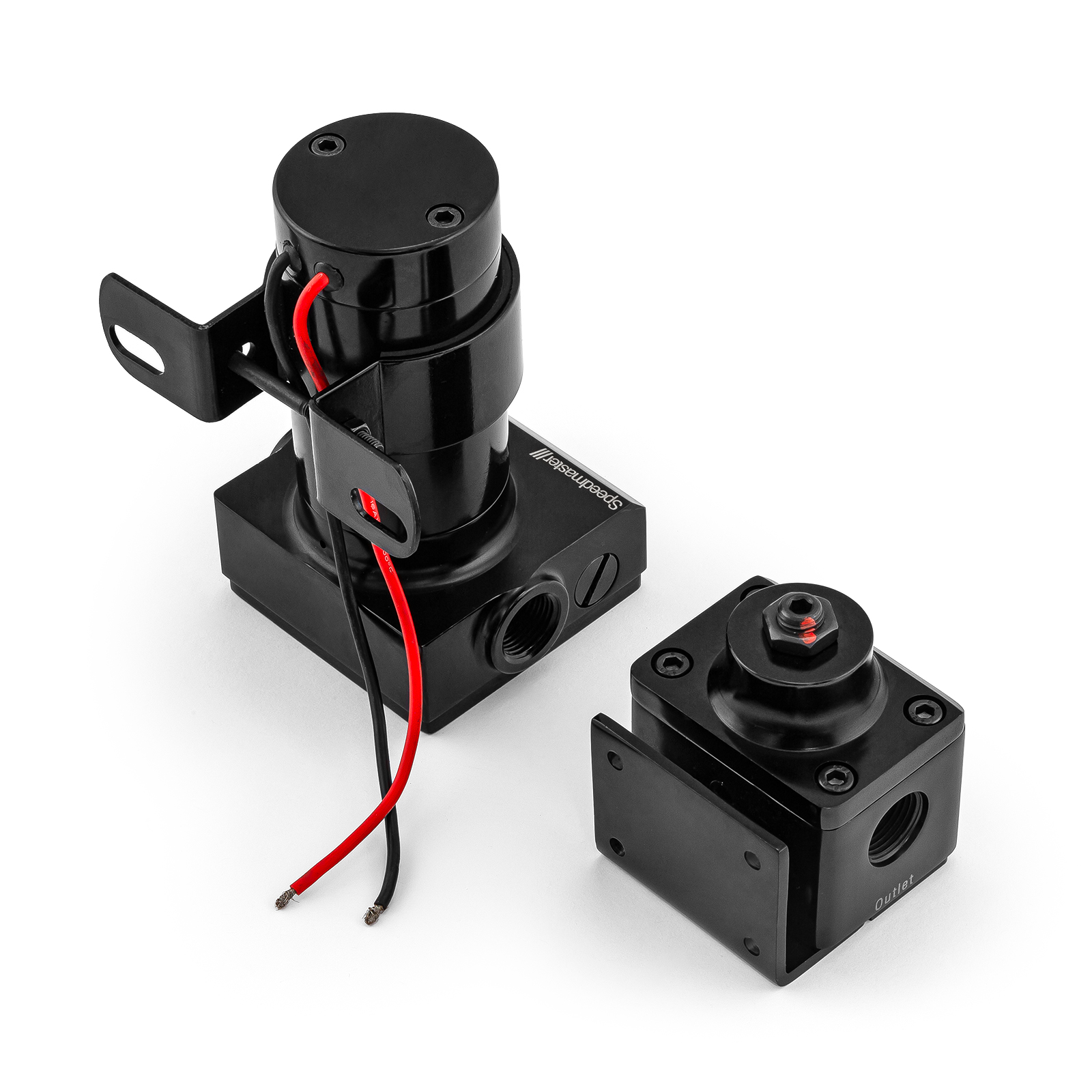

140 Gph @ 14 PSI Universal Billet Electric Fuel Pump Kit with Regulator & Filter
Overview
Speedmaster electric fuel pumps feature an improved design for street and strip applications, with billet lower housing for enhanced fuel flow. These pumps have a 140 gph flow rate, only draw 4 amps, and have a maximum pressure of 14 psi with an externally accessible pressure relief valve compatible with alcohol or methanol fuels.
Specs
| Brand: | Speedmaster |
| Part Number: | 1-145-002-01 |
| Part Type: | Fuel Pumps, Electric External |
| UPC: | 840136571872 |
| Fuel Pump Type: | Electric External |
| Free Flow Rate: | 140 gph |
| Maximum Pressure (psi): | 14 psi |
| Fuel Pump Voltage: | 12 V |
| Fuel Pressure Regulator Included: | Yes |
| Filter Included: | Yes |
| Sending Unit Included: | No |
| Inlet Quantity: | One |
| Inlet Attachment: | Female Threads |
| Inlet Size: | 3/8 in. NPT |
| Outlet Quantity: | One |
| Outlet Attachment: | Female Threads |
| Outlet Size: | 3/8 in. NPT |
| Gasket Included: | No |
| Mounting Bracket Included: | Yes |
| Mounting Hardware Included: | No |
| Pulley Included: | No |
| Quantity: | Sold as a kit. |
| Notes: |
