Chrysler 727 TorqueFlite Transmission Performance Complete Planetary Gear Set

Speedmaster® PCE550.1010 Chrysler 727 TorqueFlite Transmission Performance Complete Planetary Gear Set
Speedmaster® PCE550.1010 Chrysler 727 TorqueFlite Transmission Performance Complete Planetary Gear Set
Speedmaster® PCE550.1010 Chrysler 727 TorqueFlite Transmission Performance Complete Planetary Gear Set
Speedmaster® PCE550.1010 Chrysler 727 TorqueFlite Transmission Performance Complete Planetary Gear Set
US $1,402.50
Single Points Earn 1403 Points
Free Shipping— Lower 48 States

30-Day Money-Back Guarantee

10M+ Items Shipped Worldwide

MPN PCE550.1010 UPC840136567356

Product Information

Overview

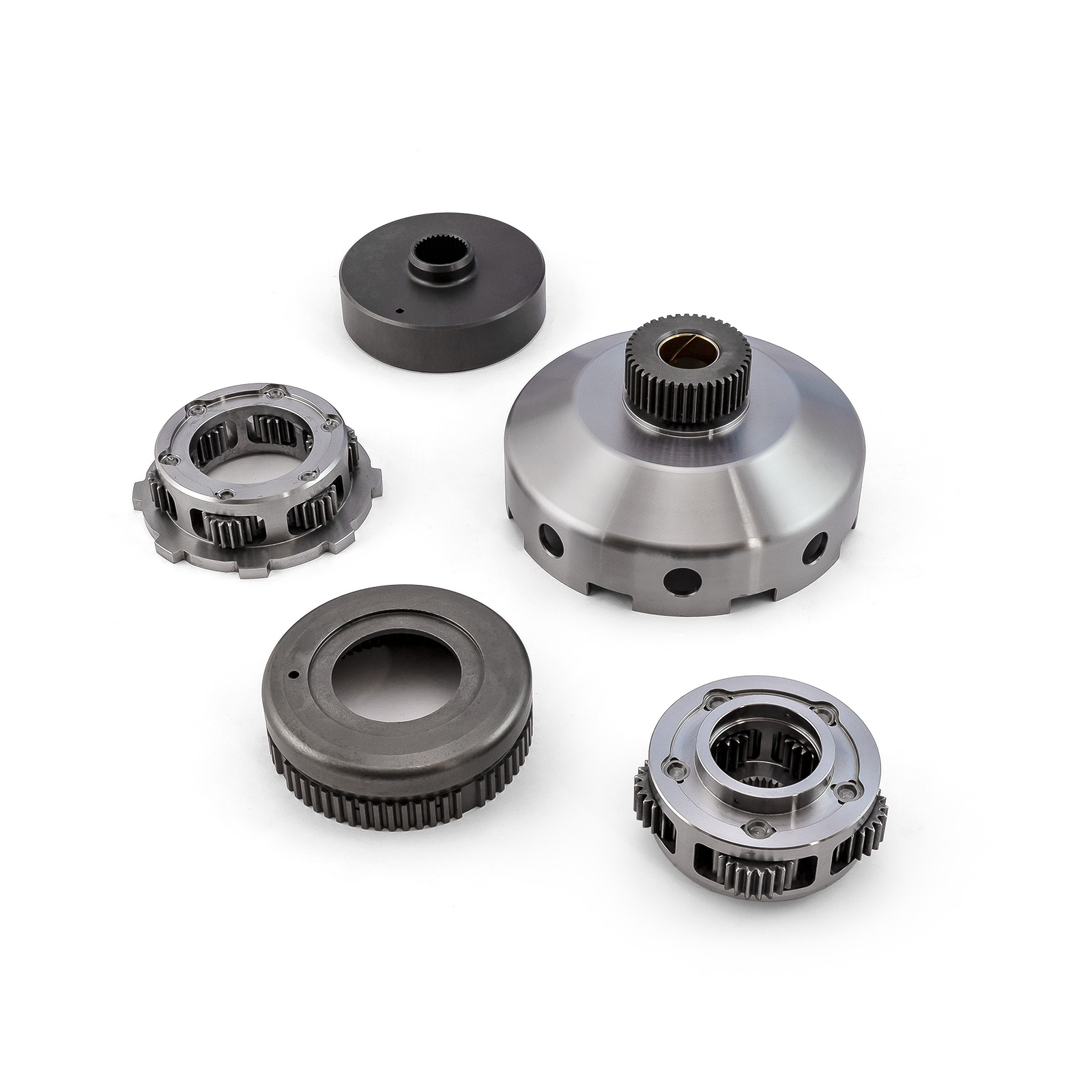

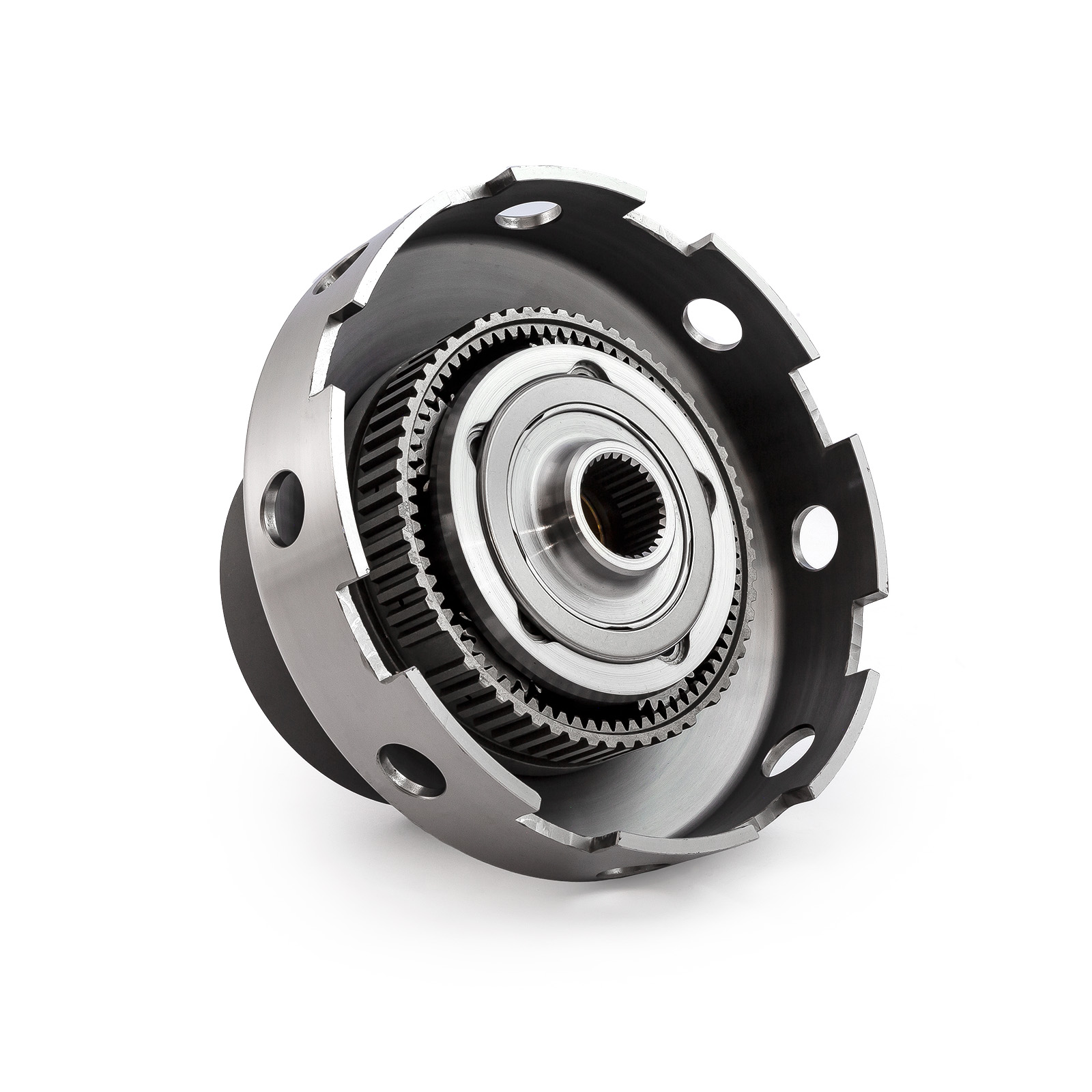

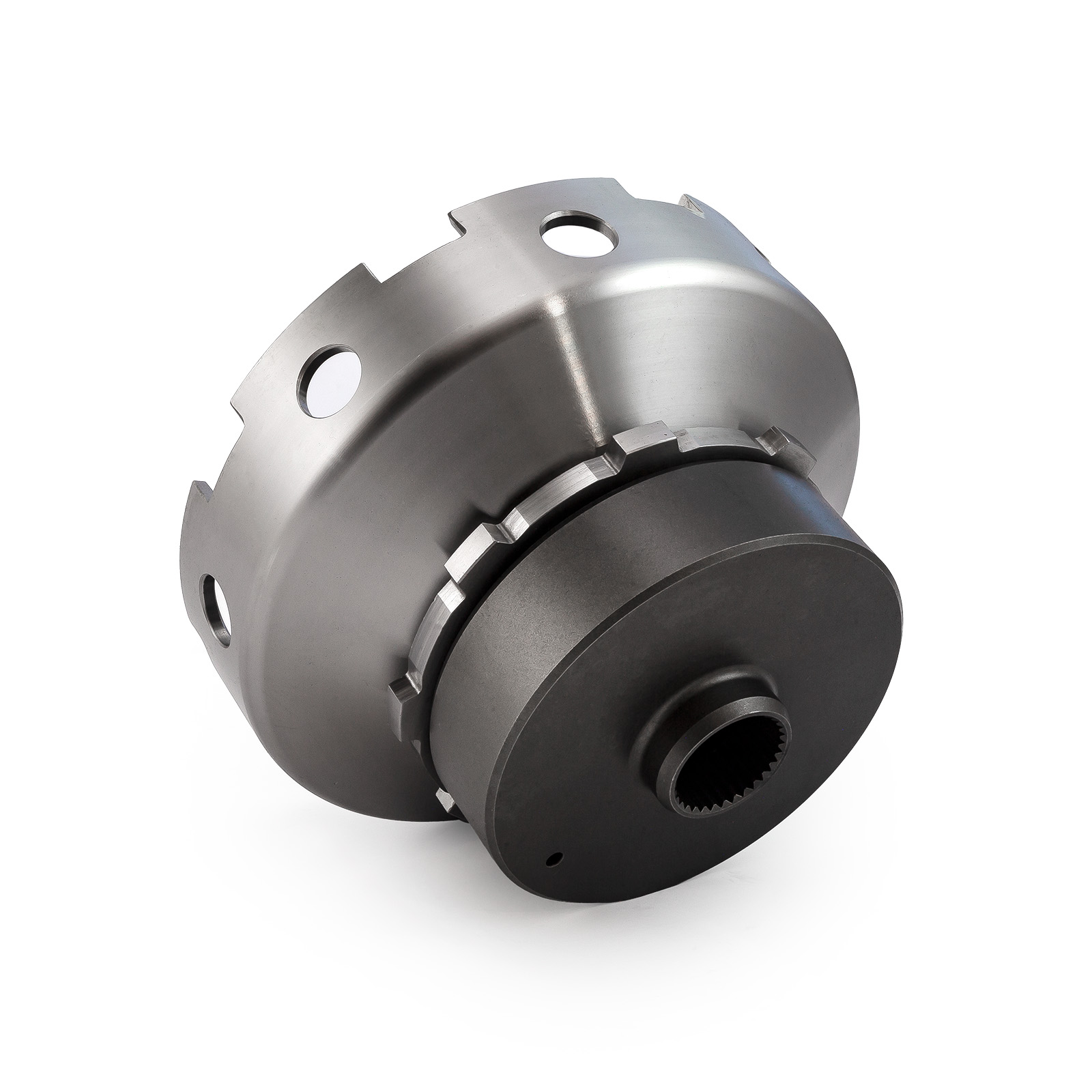

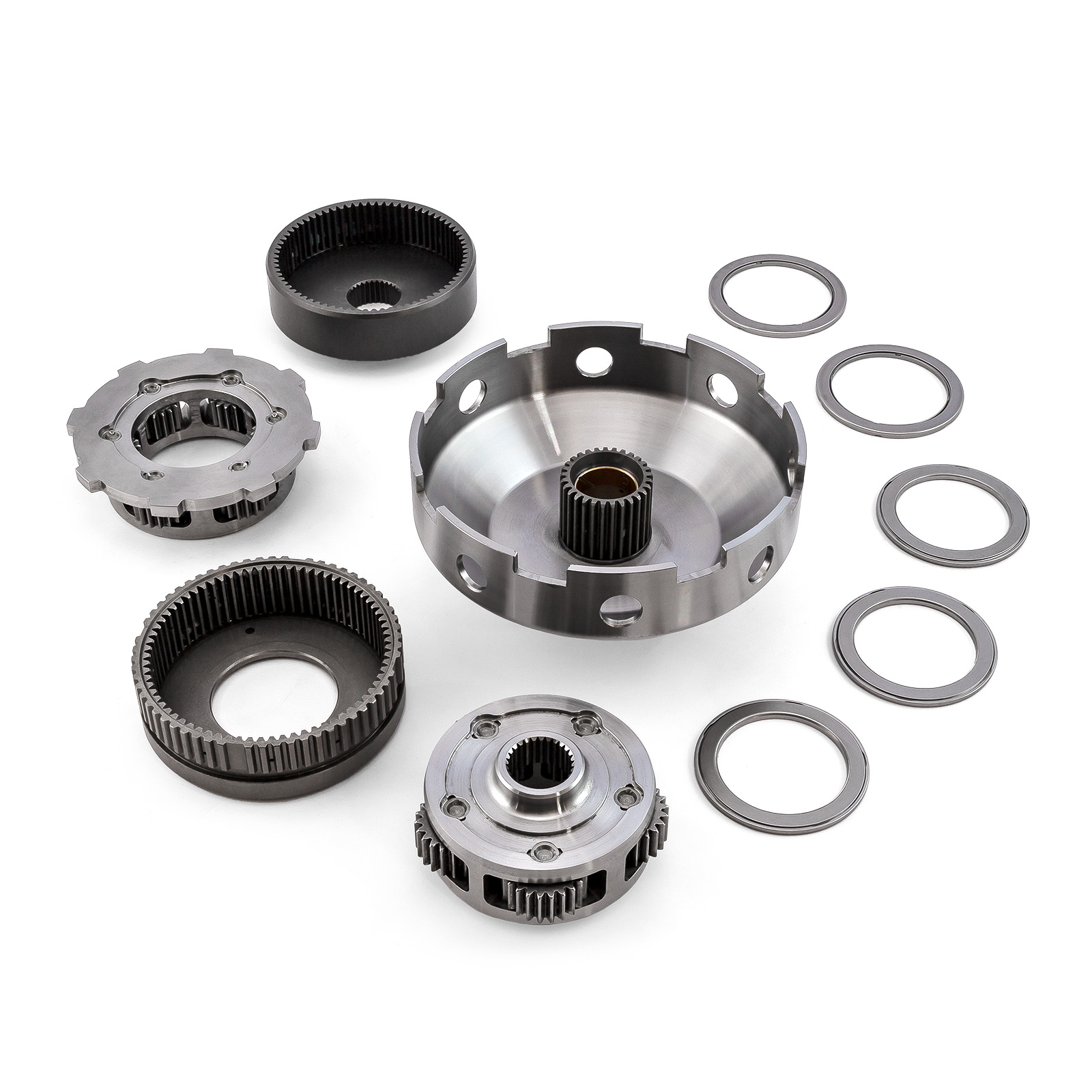

Speedmaster planetary gears are cut with a straight tooth instead of the helical cut tooth. This offers strength and no thrusting while torque is applied. The 6-pinion front planetary carrier is made from K1045 billet steel. The 5-pinion front planetary is constructed from K1045 billet steel.

Specs

Brand:Speedmaster
Part Number:PCE550.1010
Part Type:Automatic Transmission Gear

Gear Set Type:Planetary
Gear Set Material:8260 Steel
Gear Type:Straight Cut
Front Planetary Gear Spline:28
Front Planetary Gear Ratio:2.2
Front Planetary Pinion Gear Quantity:5
Rear Planetary Gear Ratio:1.45
Rear Planetary Pinion Gear Quantity:6
Thrust Bearings Included:Yes
Quantity:Sold as a kit.
Notes:Includes lightened driving shell with sun gear installed.
