Speedmaster®

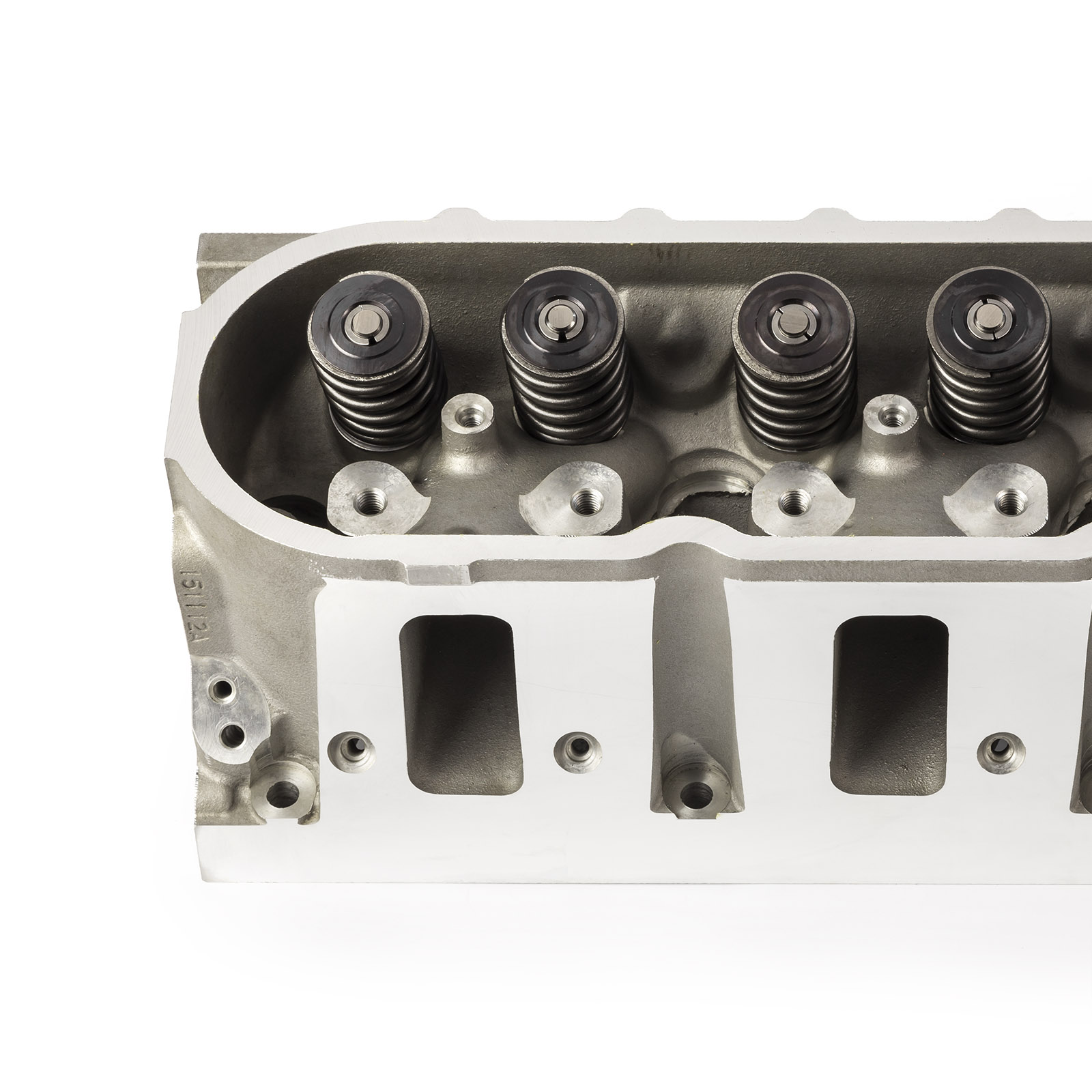

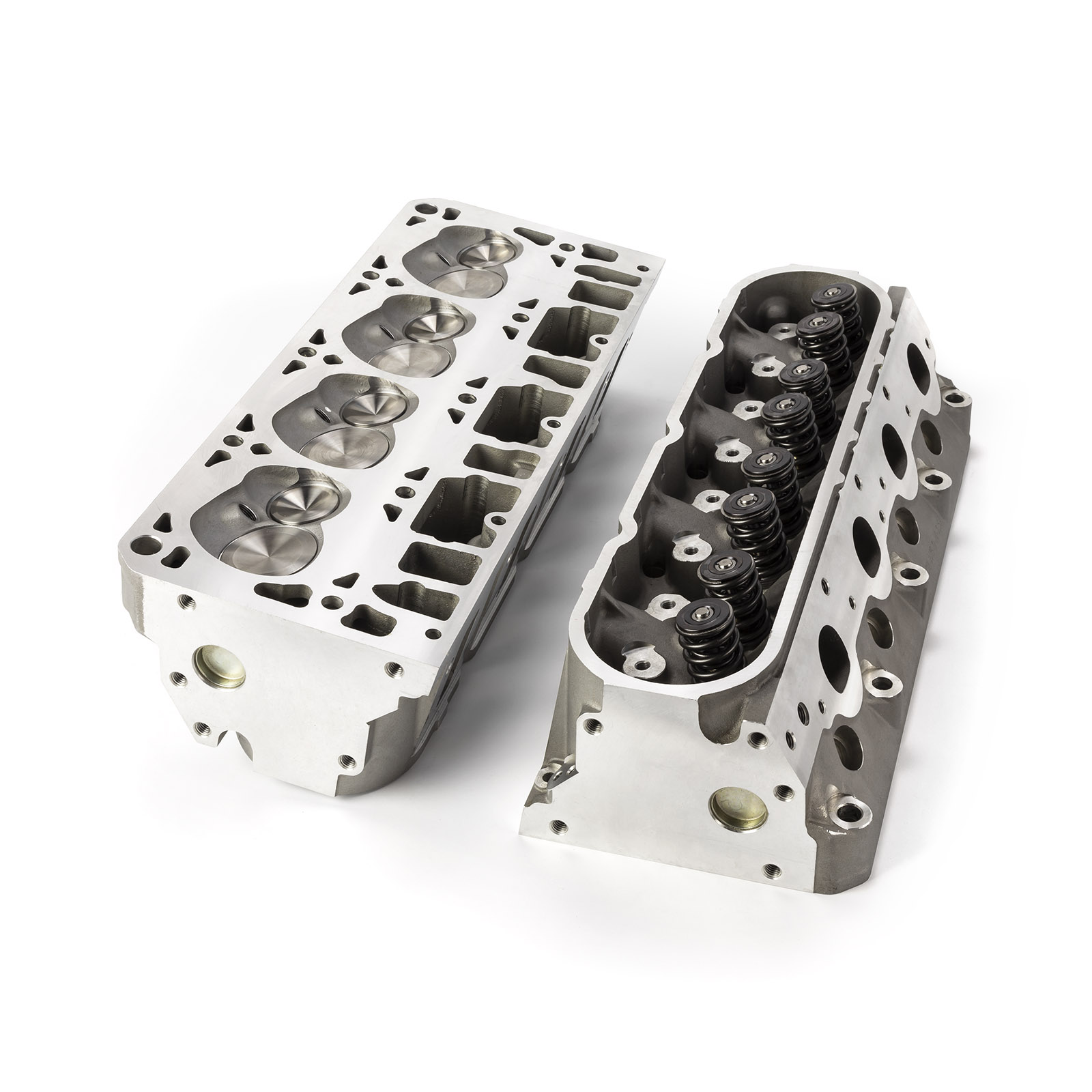

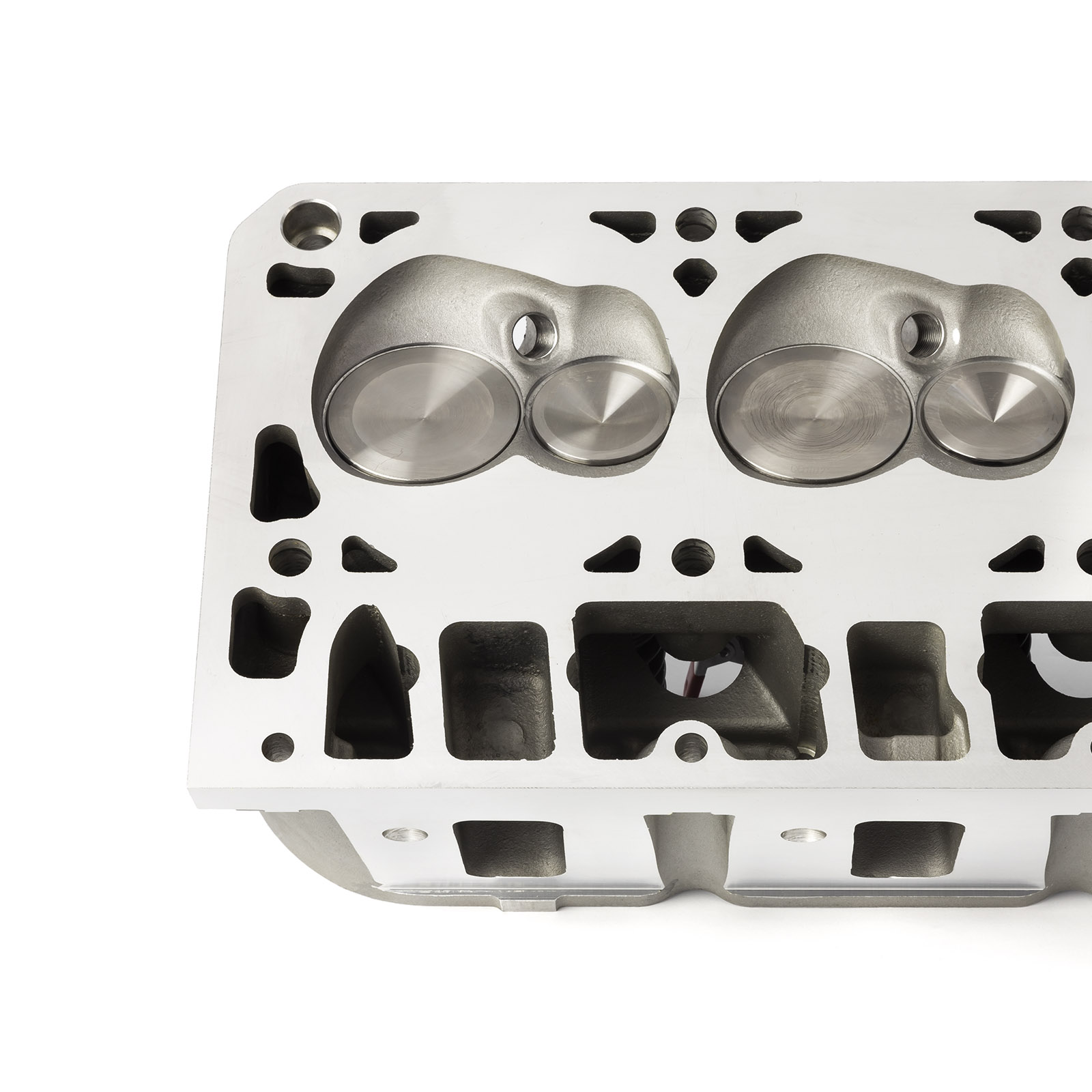

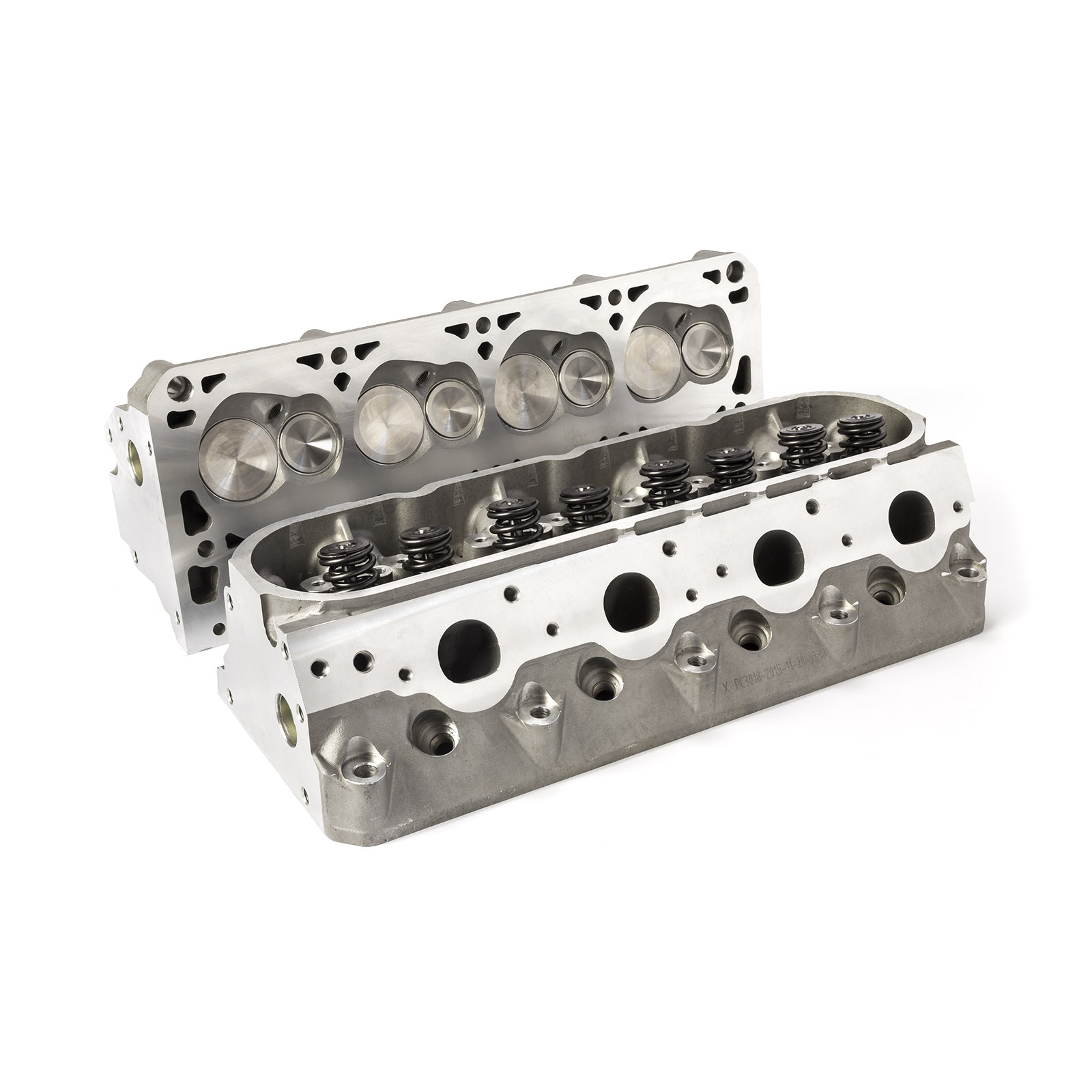

Chevy GM LS3 L92 L76 250cc 64cc Hydraulic Roller Assembled Cylinder Heads
Promo
Product Information
Overview
Speedmaster LS-series cylinder heads are rapidly expanding. The LS (Gen3/4) platform has many design benefits over the earlier SBC engine designs, most notably the cylinder heads. Although the GM heads are good pieces, We have developed a superior line of heads for modern performance enthusiasts. Like all Speedmaster cylinder heads, the LS-series heads are produced using our "Gravity Casting" process. This process ensures a more uniform and robust casting, laying a strong platform to build on.
Specs
| Brand: | Speedmaster |
| Part Number: | PCE281.2091 |
| Part Type: | Cylinder Head [Assembled] |
| Product Line: | Hydraulic Roller Tappet |
| Cylinder Head Style: | Assembled |
| Cylinder Head Material: | Aluminum |
| Cylinder Head Finish: | Natural |
| Combustion Chamber Volume (cc): | 64 cc |
| CNC-Machined Combustion Chamber: | No |
| Intake Runner Volume (cc): | 250 cc |
| Exhaust Runner Volume (cc): | n/a |
| CNC-Machined Intake Runner: | No |
| CNC-Machined Exhaust Runner: | No |
| Intake Port Shape: | Rectangular |
| Intake Port Location: | Standard |
| Exhaust Port Shape: | Oval |
| Exhaust Port Location: | Standard |
| Spark Plug Style: | OEM |
| Comp. Valve Job: | No |
| Intake Valves Included: | Yes |
| Intake Valve Diameter (in): | 2.165 in. |
| Exhaust Valves Included: | Yes |
| Exhaust Valve Diameter (in): | 1.600 in. |
| Valve Springs Included: | Yes |
| Maximum Valve Lift (in): | 0.625 in. |
| Outside Diameter of Outer Spring (in): | 1.290 in. |
| Damper Spring Included: | Yes |
| Number of Springs Per Valve: | Dual |
| Retainers Included: | Yes |
| Retainer Material: | Chromoly steel |
| Locks Included: | Yes |
| Lock Style: | 7 degree |
| Valve Stem Seals Included: | Yes |
| Valve Stem Seal Style: | Positive stop |
| Rocker Arm Studs Included: | N/A |
| Rocker Arms Included: | No |
| Rocker Arm Nuts Included: | No |
| Guideplates Included: | N/A |
| Valve Cover Mounting Style: | Perimeter Bolt |
| Accessory Bolt Holes Drilled: | Yes |
| Intake Valve Angle: | 15 deg. |
| Exhaust Valve Angle: | 15 deg. |
| Valve Guides Included: | Yes |
| Valve Guide Material: | Steel |
| Valve Seats Machined: | Yes |
| Valve Seat Machine Style: | 3-angle |
| Valve Seat Material: | Ductile iron |
| Steam Holes Drilled: | N/A |
| Oiling Style: | Through pushrod |
| Machined for O-Ring: | No |
| Heat Crossover: | No |
| Quantity: | Sold as a pair. |
Description
Assembly Specifications
Max Lift: .625"
Coil Bind: 1.180"
Intake Install: 140lbs @ 1.8
Exhaust Install: 140lbs @ 1.8
Open Seat Pressure: 335lbs @ .600 lift
