Speedmaster®
140 Gph @ 14 PSI Billet Universal Electric Fuel Pump [Blue]
Promo
![Speedmaster® PCE145.1019.03 140 Gph @ 14 PSI Billet Universal Electric Fuel Pump [Blue]](https://product-arena.s3-us-west-1.amazonaws.com/ProcompElectronics/PCE145%20-%20Fuel%20Pumps%2C%20Electric%20External/PCE145.1036/PCE145.1036.jpg?resizeid=224&resizeh=600&resizew=600)
![Speedmaster® PCE145.1019.03 140 Gph @ 14 PSI Billet Universal Electric Fuel Pump [Blue]](https://product-arena.s3-us-west-1.amazonaws.com/ProcompElectronics/PCE145%20-%20Fuel%20Pumps%2C%20Electric%20External/PCE145.1036/PCE145.1036_A.jpg?resizeid=224&resizeh=600&resizew=600)
![Speedmaster® PCE145.1019.03 140 Gph @ 14 PSI Billet Universal Electric Fuel Pump [Blue]](https://product-arena.s3-us-west-1.amazonaws.com/ProcompElectronics/PCE145%20-%20Fuel%20Pumps%2C%20Electric%20External/PCE145.1036/PCE145.1036_B.jpg?resizeid=224&resizeh=600&resizew=600)
![Speedmaster® PCE145.1019.03 140 Gph @ 14 PSI Billet Universal Electric Fuel Pump [Blue]](https://product-arena.s3-us-west-1.amazonaws.com/ProcompElectronics/PCE145%20-%20Fuel%20Pumps%2C%20Electric%20External/PCE145.1036/PCE145.1036_C.jpg?resizeid=224&resizeh=600&resizew=600)
Product Information
Overview

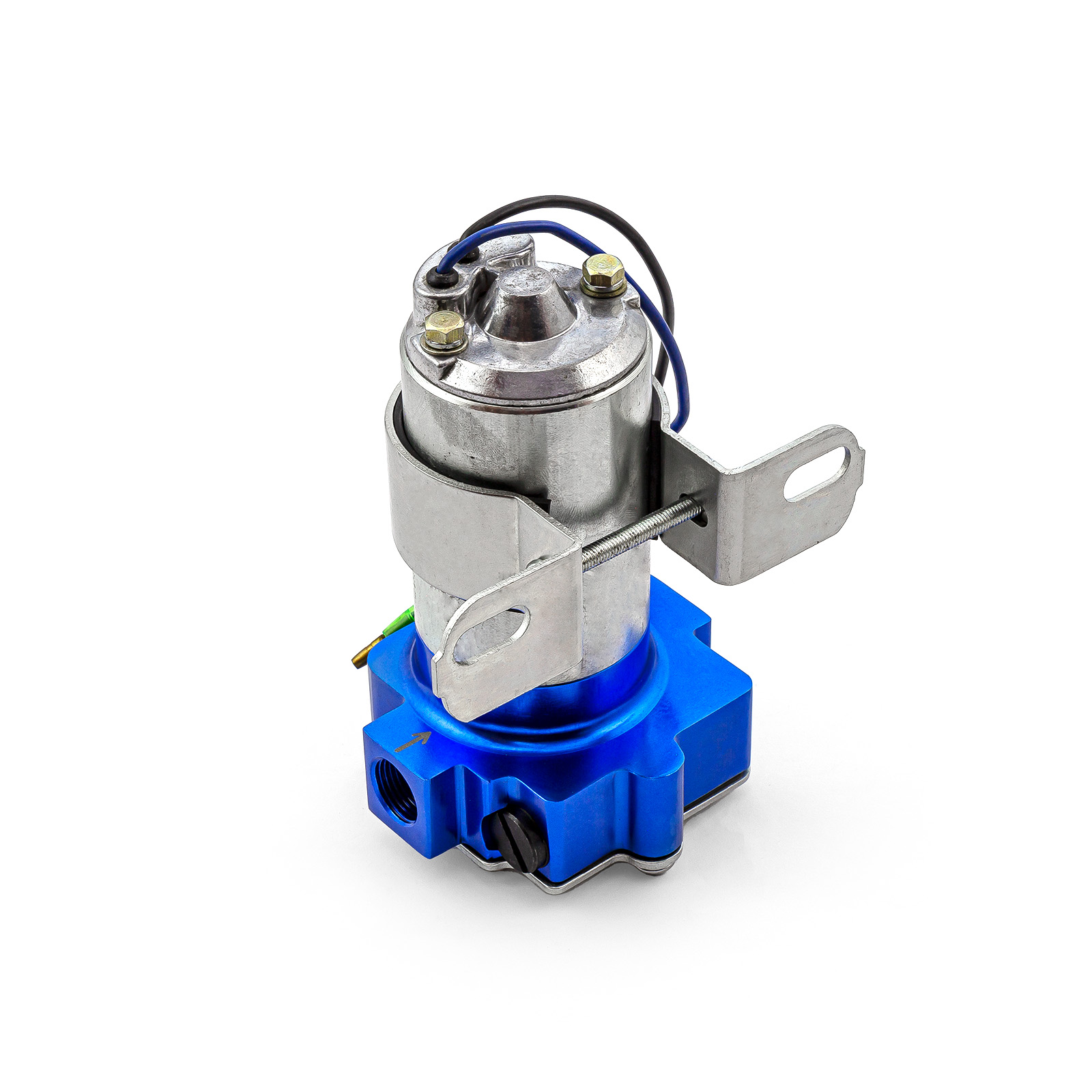

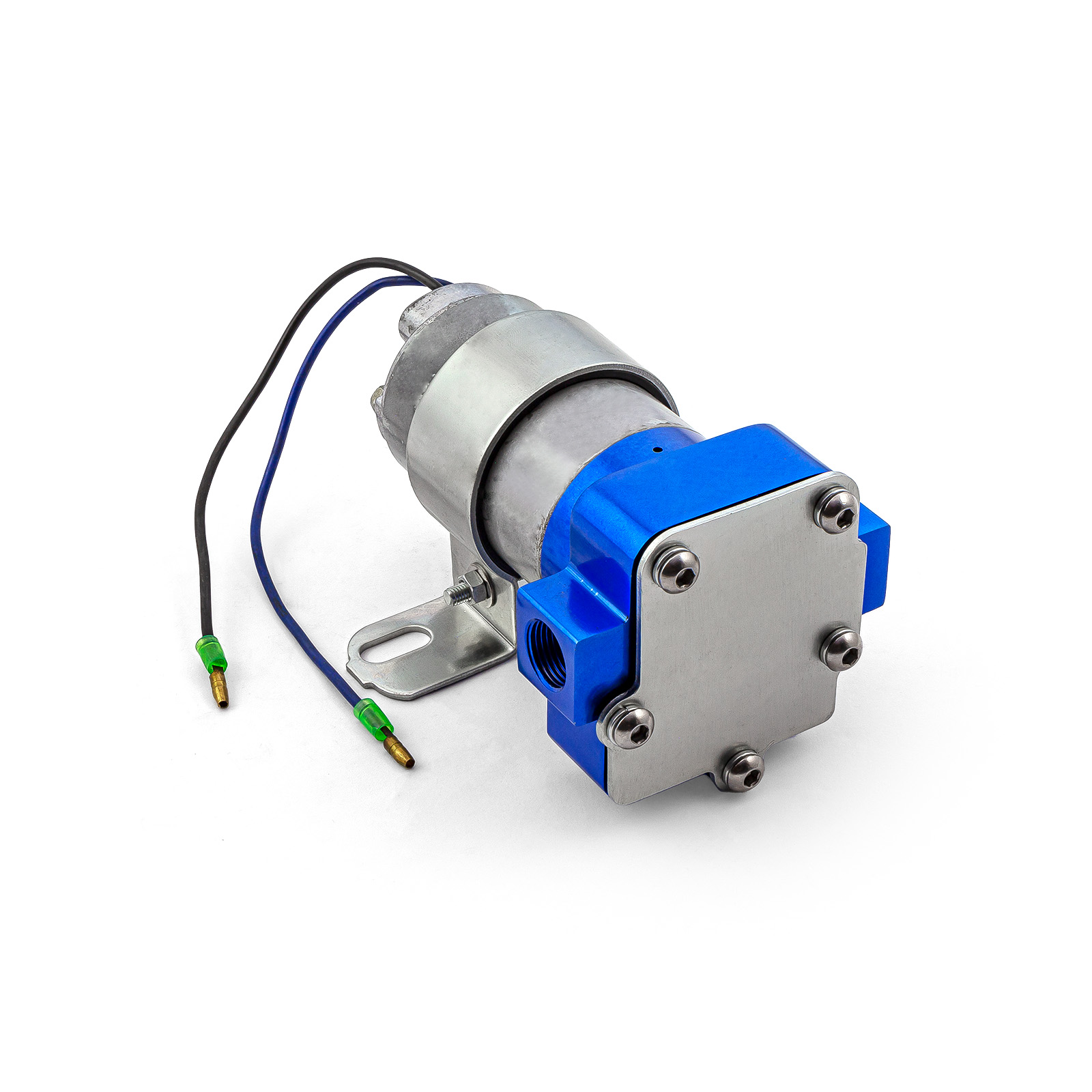

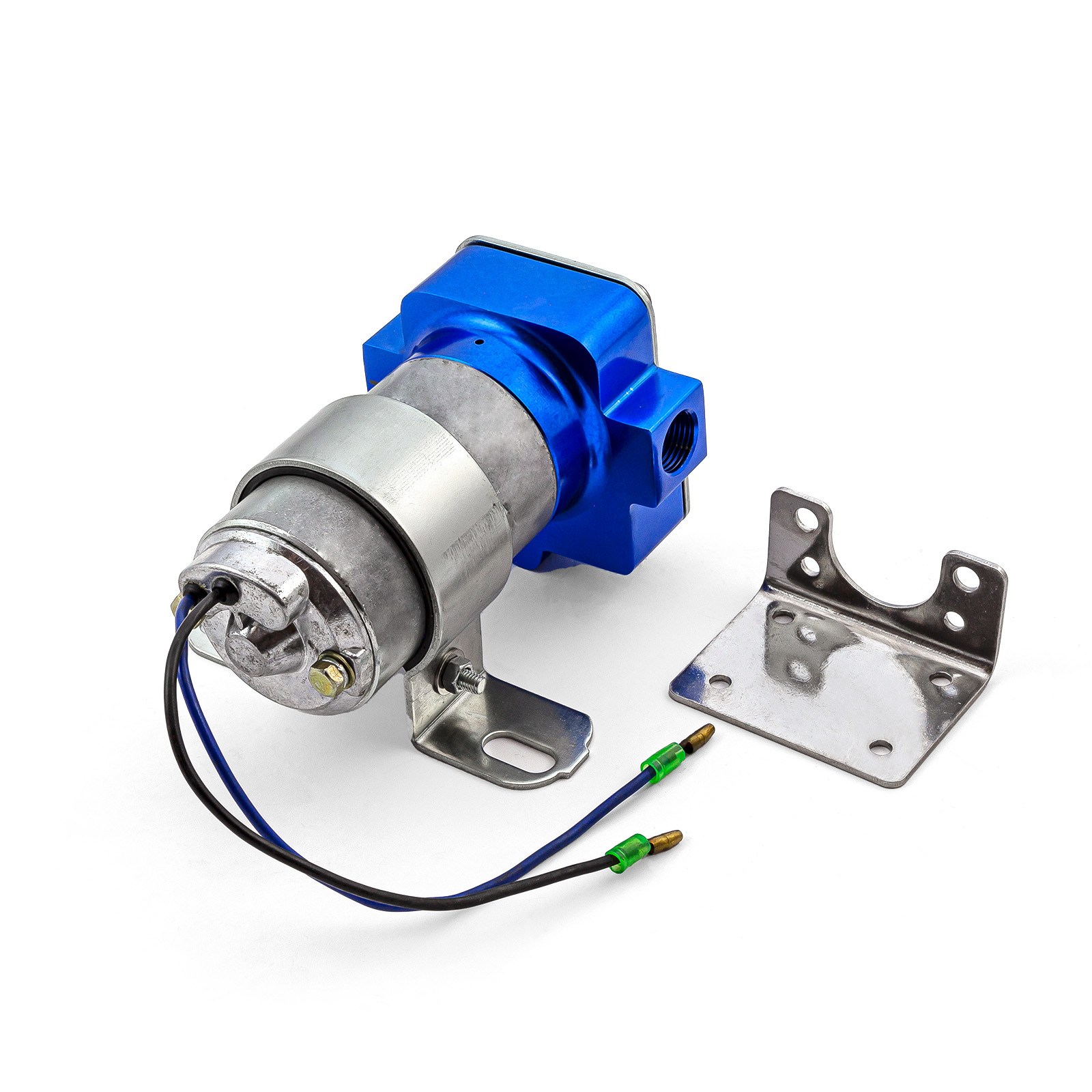

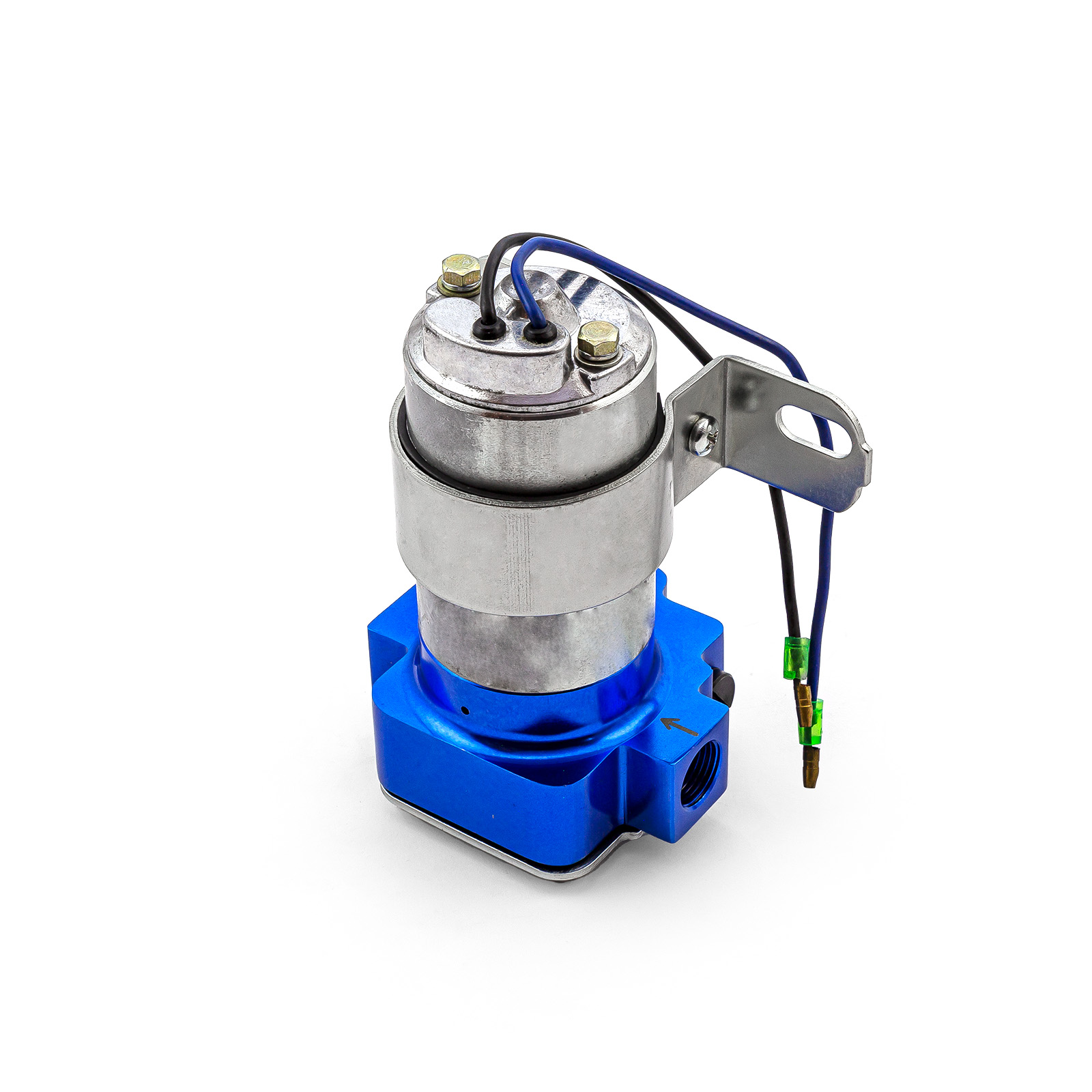

Speedmaster electric fuel pumps feature an improved design for street and strip applications, a new lower housing casting for enhanced fuel flow. These pumps have a 140 gph flow rate, only draw 4 amps, and have a maximum pressure of 14 psi with an externally accessible pressure relief valve. They weigh only 3 lbs., and include a mounting bracket. These Speedmaster electric fuel pump is compatible with alcohol or methanol fuels.
Specs
| Brand: | Speedmaster |
| Part Number: | PCE145.1019.03 |
| Part Type: | Fuel Pump, Electric External |
| Free Flow Rate: | 140 gph |
| Maximum Pressure (psi): | 14 psi |
| Inlet Quantity: | One |
| Inlet Attachment: | Female threads |
| Inlet Size: | 3/8 in. NPT |
| Outlet Quantity: | One |
| Outlet Attachment: | Female threads |
| Outlet Size: | 3/8 in. NPT |
| Quantity: | Sold individually. |
| Notes: | This pump flows 120 gph at 9 psi. |
Warranty Information
12-Month Limited Worldwide Warranty
