Speedmaster®

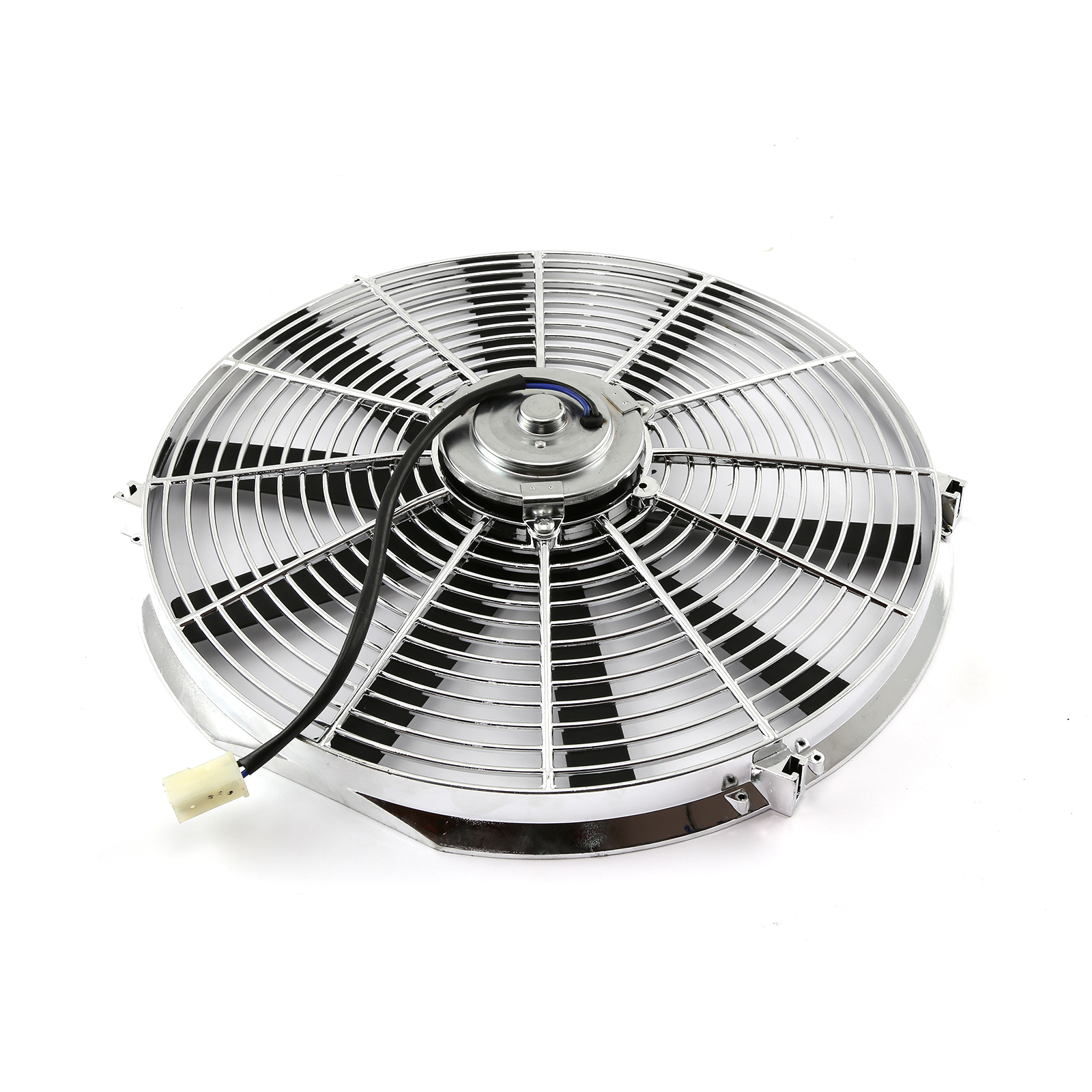

16" Reversable 12V Radiator Electric Thermo Fan Chrome
Product Information
Specs
| Brand: | Speedmaster |
| Part Number: | PCE185.1012 |
| Part Type: | Fans, Electric |
| Maximum Fan CFM: | 2,010 cfm |
| Fan Quantity: | Single |
| Fan Diameter (in): | 16.000 in. |
| Height (in): | 16.500 in. |
| Width (in): | 16.875 |
| Thickness (in): | 3.500 in. |
| Number of Blades: | 10 blades |
| Blade Shape: | Straight |
| Maximum Fan RPM: | 2,270 rpm |
| Blade Material: | Plastic |
| Blade Color: | Black |
| Shroud Material: | Plastic |
| Shroud Color: | Chrome |
| Amp Draw: | 8.50 amps |
| Air Conditioning Relay Included: | No |
| Mounting Brackets Included: | Yes |
| Mounting Hardware Included: | No |
| Quantity: | Sold individually. |
Description
Speedmaster high performance reversible electric cooling fans are ideal for OEM or high performance applications. Configured as a puller from the factory, it mounts on the inside and pulls the air through the radiator. Blades and polarity of the wiring can be reversed and it becomes a pusher mounted pushing air through the radiator. These fans will keep your engine cooler at lower driving speeds. Speedmaster reversible fans ride on dual ball bearings instead of bushings, which means higher efficiency and less heat. They also free up more usable horsepower to the rear wheels, and increases fuel economy.
