Speedmaster®

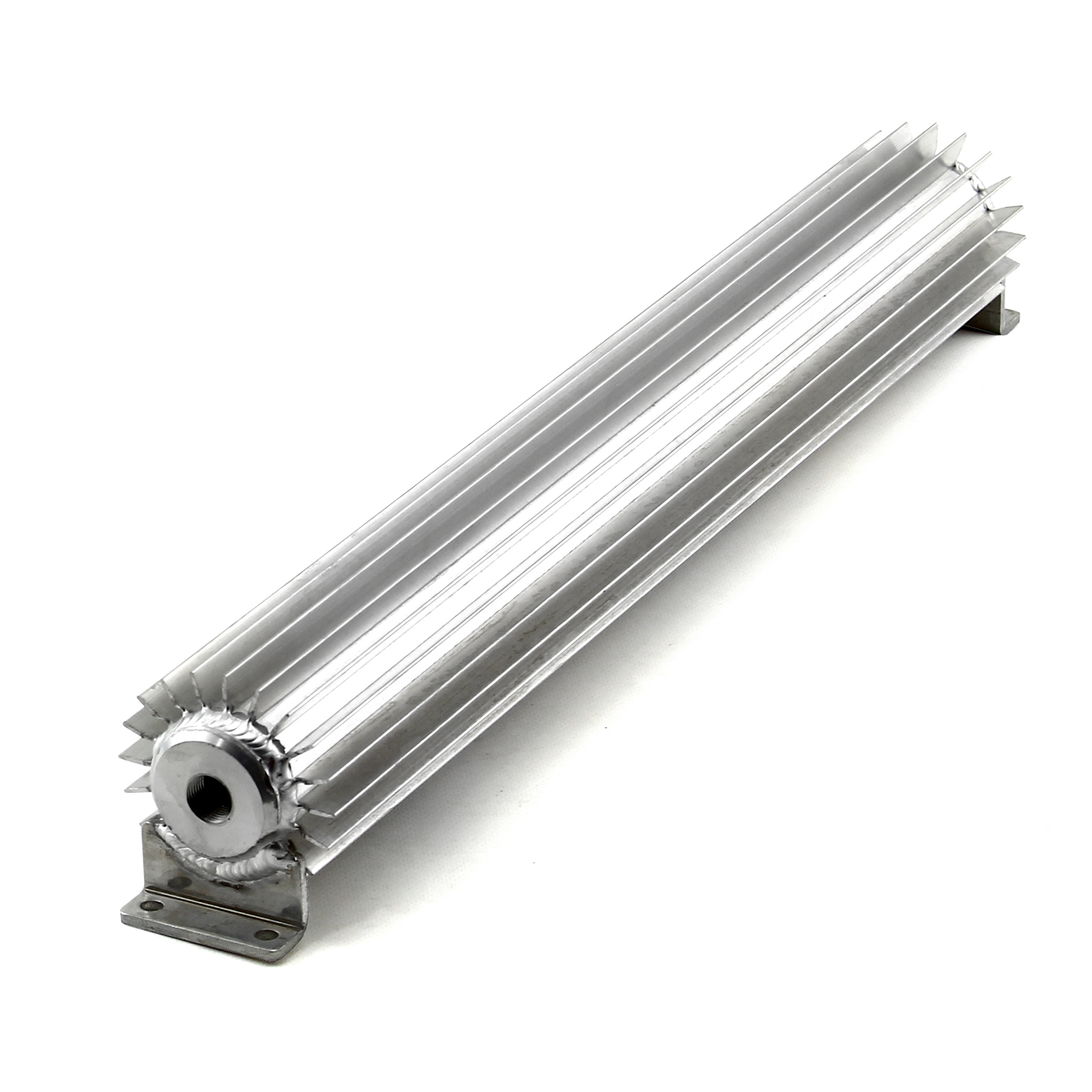

20" Silver Anodized Single Pass Transmission Oil Cooler With Fittings
Product Information
Specs
| Brand: | Speedmaster |
| Part Number: | PCE186.1010 |
| Part Type: | Fluid Cooler |
| Cooler Construction: | Heat sink |
| Overall Height (in): | 3.000 in. |
| Overall Width (in): | 20.000 in. |
| Overall Thickness (in): | 3.250 in. |
| Cooler Material: | Aluminum |
| Cooler Finish: | Silver anodized |
| Inlet Size: | 3/8 in. NPT |
| Inlet Attachment: | Female threads |
| Outlet Size: | 3/8 in. NPT |
| Outlet Attachment: | Female threads |
| Quantity: | Sold individually. |
| Notes: | Includes 3/8 in. hose barb fittings. |
Description
The internal and external cooling fins in these new Speedmaster heat sink transmission coolers provide maximum cooling efficiency without relying on direct airflow. Their compact diameter means that they can be mounted in a variety of locations, such as on the frame rail next to the transmission, directly under the radiator, under the floorboards, etc. Their rugged aluminum extrusion features welded ends for long service life, in even the toughest environments. These coolers are offered in several lengths with 3/8 in. inlets.
