Speedmaster®

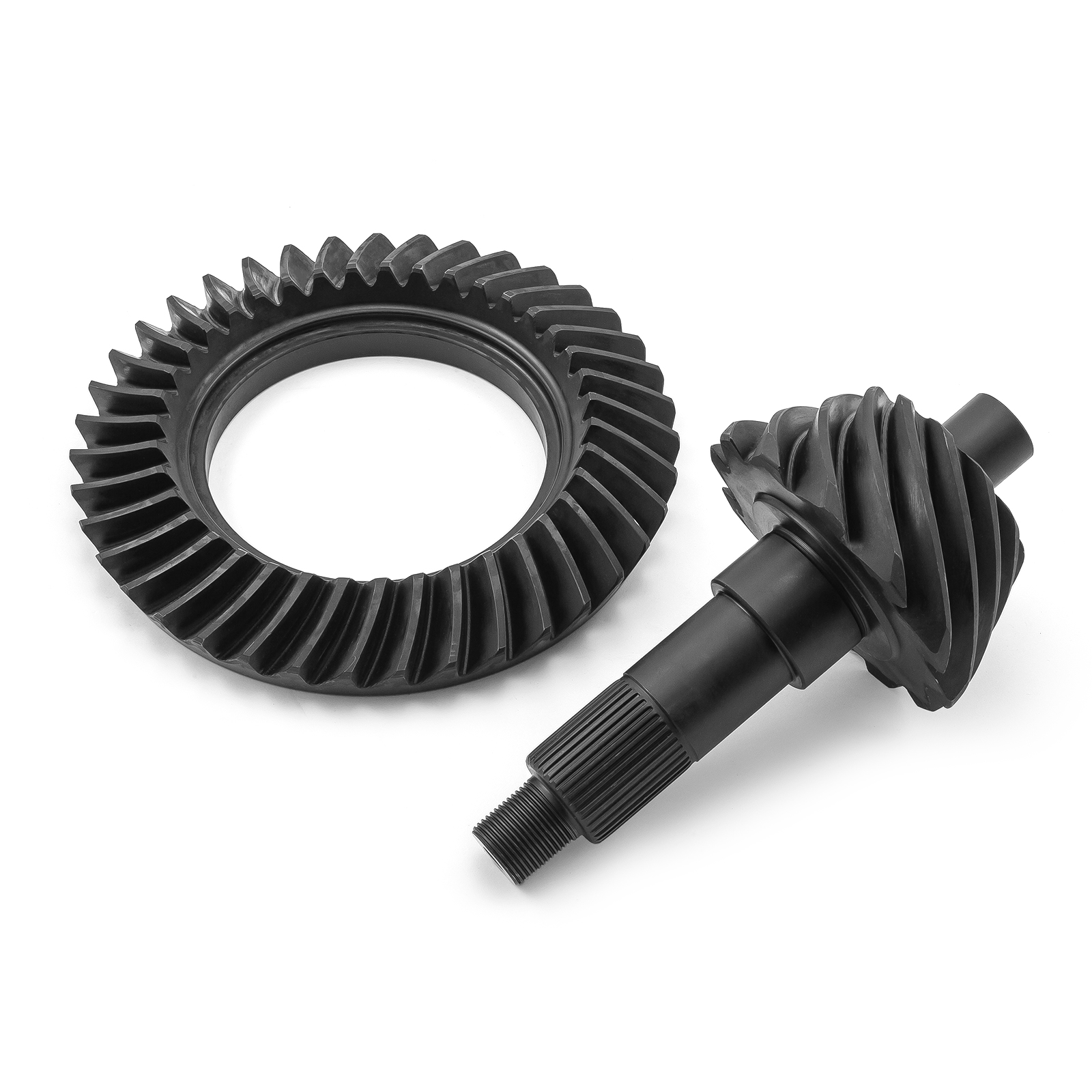

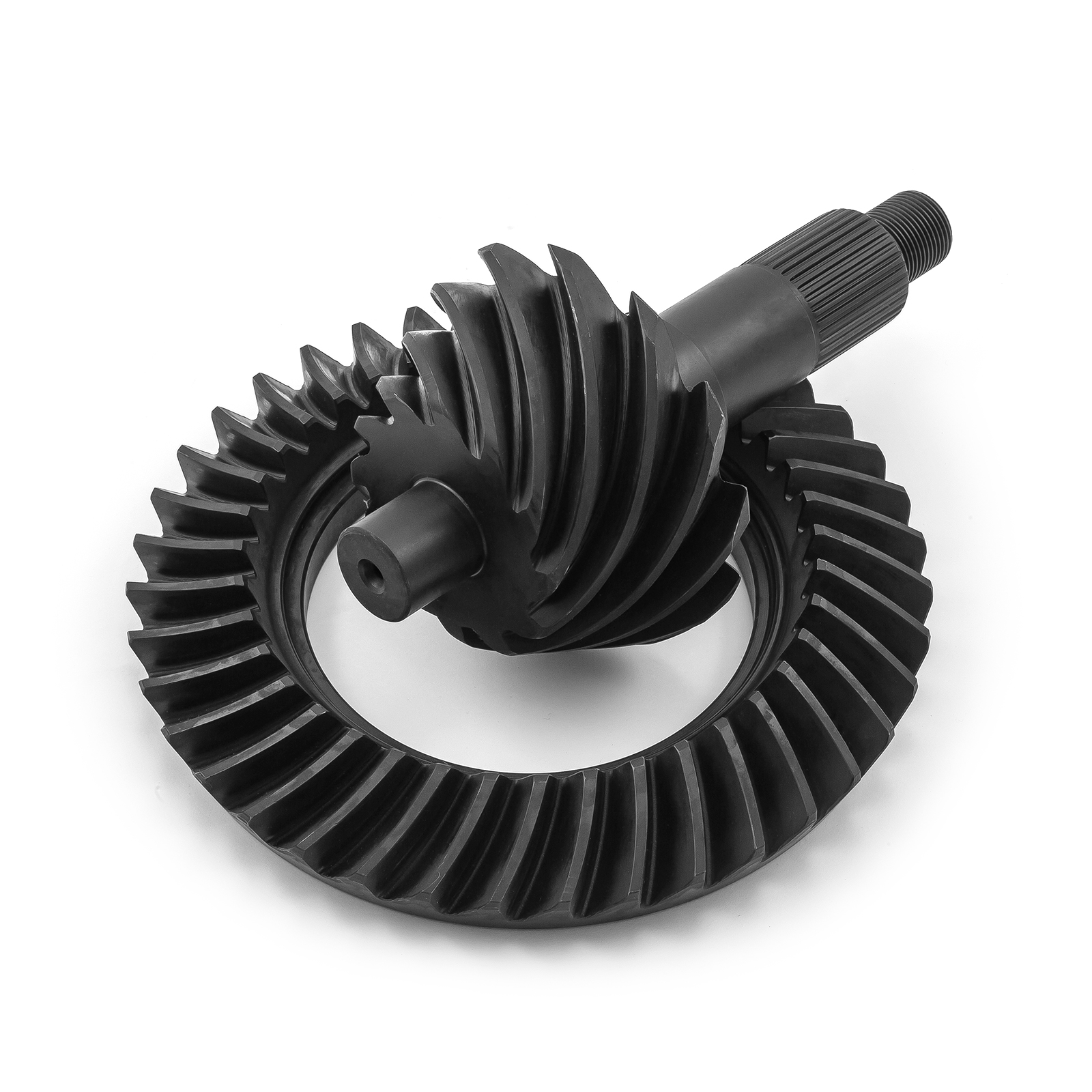

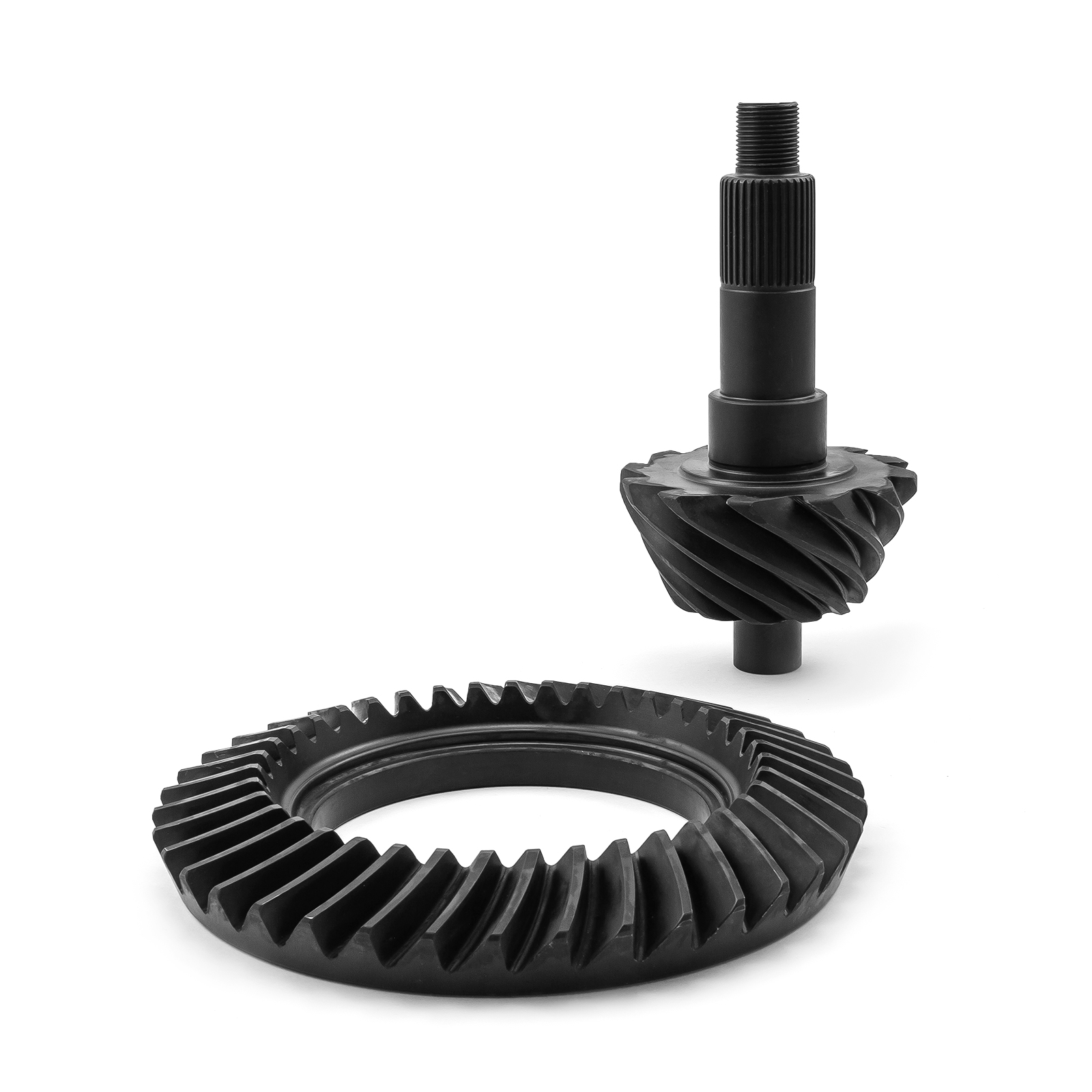

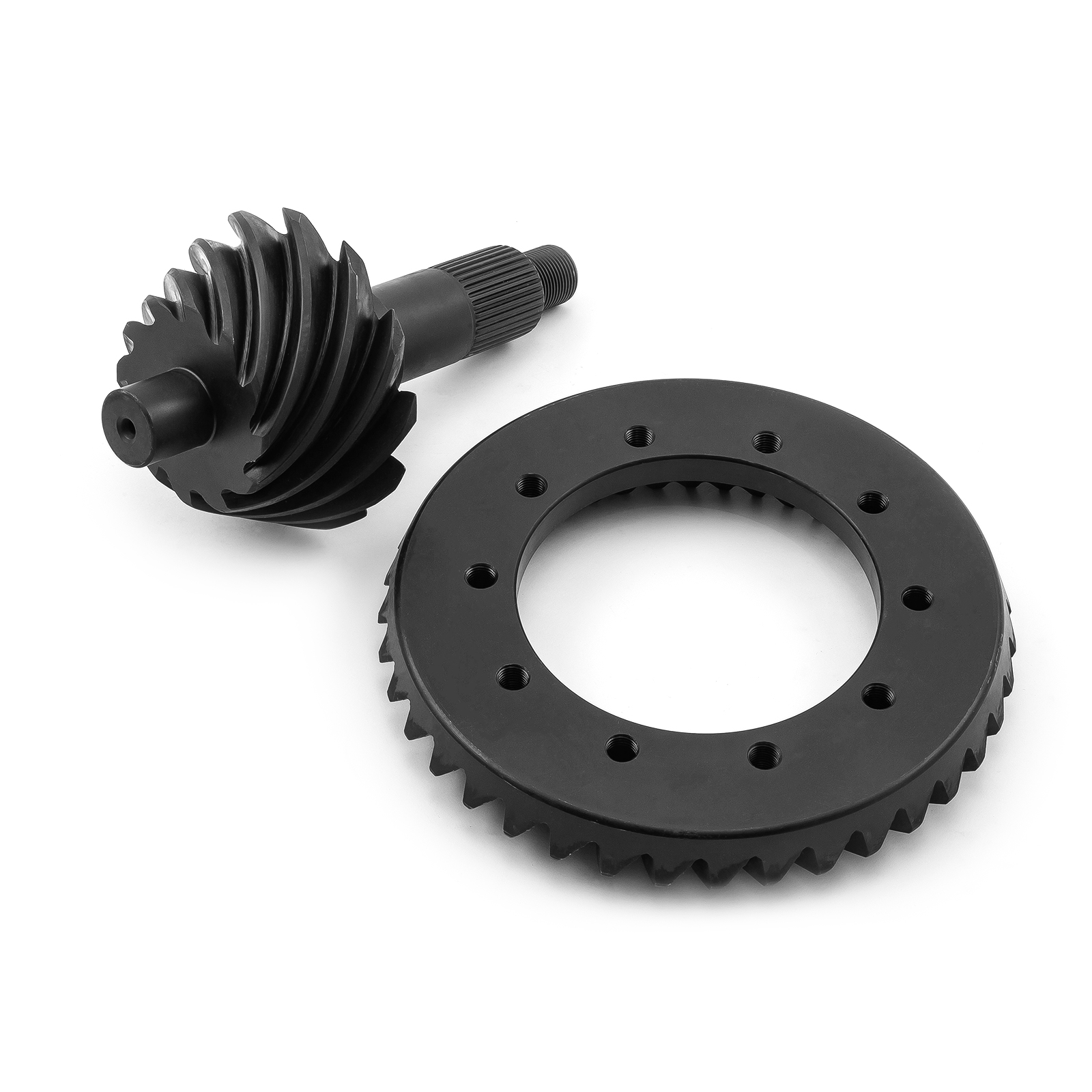

Ford 9" 35 Spline 4.11:1 Ratio Ring and Pinion Gears Set 8620
Overview
The Speedmaster TDS ring and pinion sets are engineered manufactured and tested for maximum performance.
Specs
Brand: | Speedmaster |
Part Number: | PCE211.1044 |
Part Type: | Ring and Pinion Gears |
Ring and Pinion Material: | 8620 Steel |
Ring and Pinion Ratio: | 4.11:1 |
Cover Bolts: | 10 |
Ring Gear Bolts: | 10 |
Pinion Spline Count: | 35 |
Carrier Series: | STD |
Ring Gear Rotation: | STD |
Ring Gear Teeth: | 37 |
Pinion Gear Teeth: | 9 |
Ring Gear Diameter (in): | 9.000 in. |
Pinion Shaft Diameter (in): | 1.501 in. |
Installation Kit Included: | No |
Quantity: | Sold as a set. |
Notes: | Street use only. |
Calculator | Gear Ratio Calculator |
Description
These ring and pinion sets are CNC-cut from 8620 steel for outstanding durability, factory-lapped for a precise fit, and Rockwell-tested for hardness. Available in many different ratios to fit a variety of differentials.
