Speedmaster®

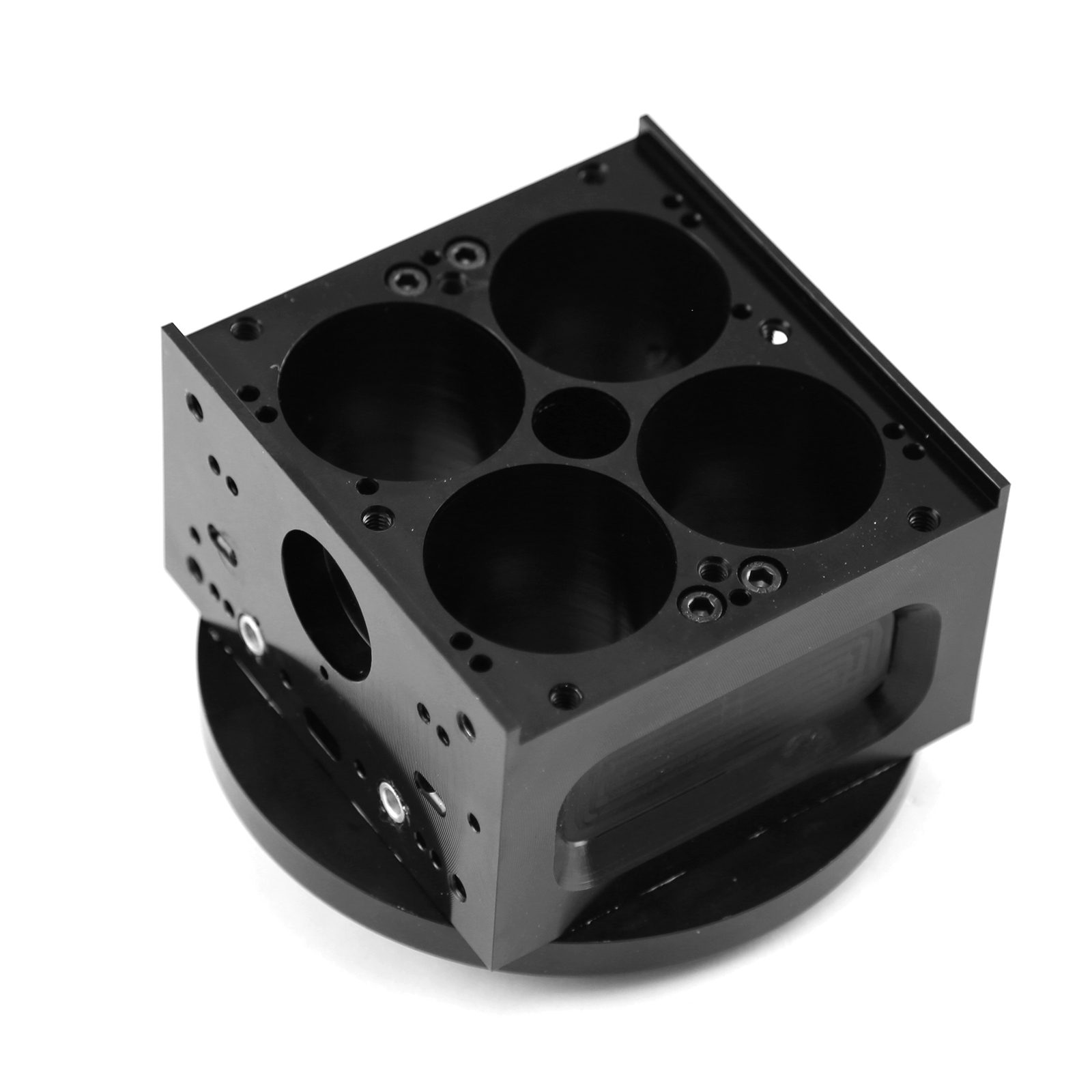

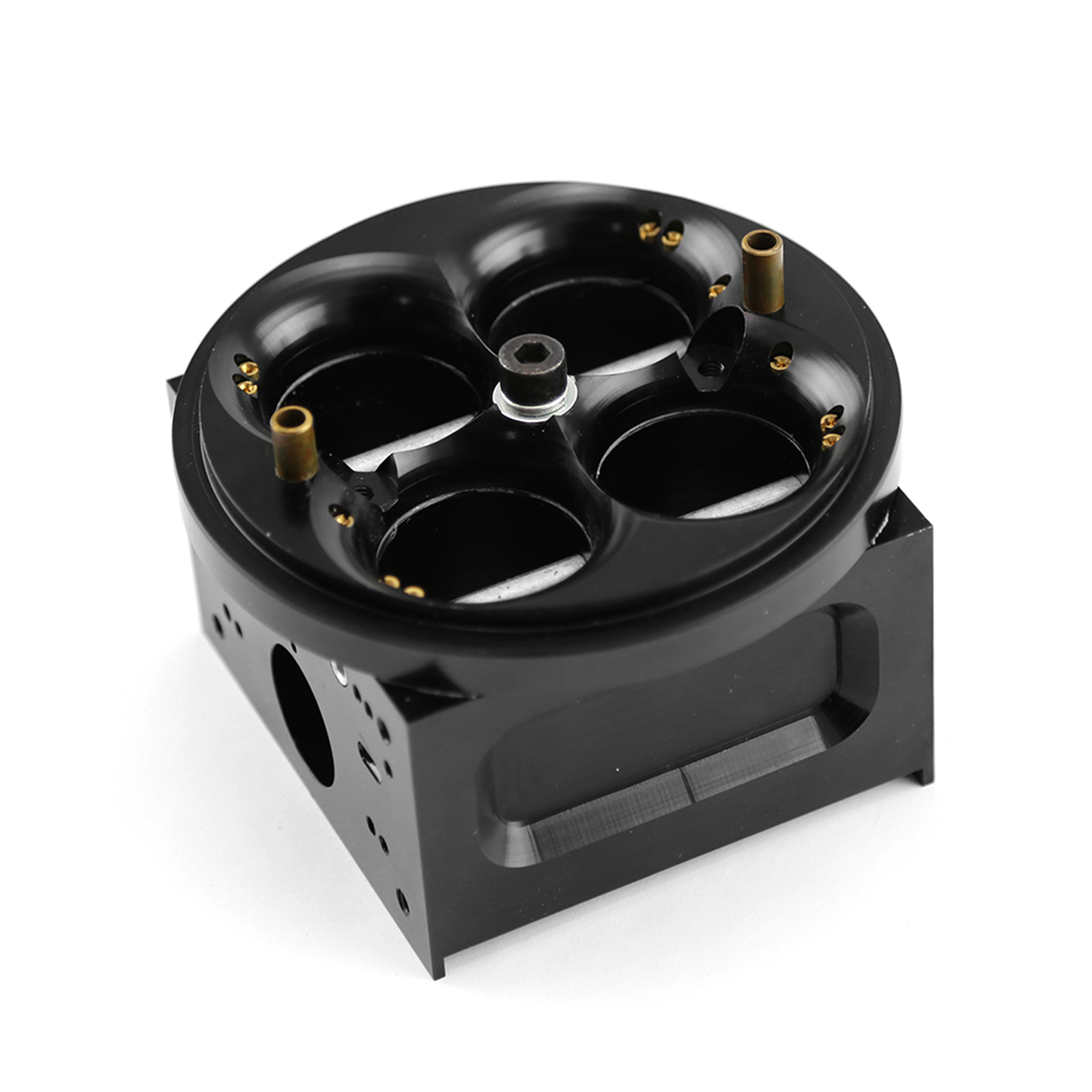

4 Barrel Billet Aluminum Carburetor Main Body - 4150 Double Pumper [Black]
Promo
![Speedmaster® PCE116.1006.02 4 Barrel Billet Aluminum Carburetor Main Body - 4150 Double Pumper [Black]](https://product-arena.s3.amazonaws.com/ProcompElectronics/PCE116%20-%20Carburetor%20Main%20Bodies/PCE116.1007/PCE116.1007.jpg?resizeid=224&resizeh=600&resizew=600)
![Speedmaster® PCE116.1006.02 4 Barrel Billet Aluminum Carburetor Main Body - 4150 Double Pumper [Black]](https://product-arena.s3.amazonaws.com/ProcompElectronics/PCE116%20-%20Carburetor%20Main%20Bodies/PCE116.1007/PCE116.1007_A.jpg?resizeid=224&resizeh=600&resizew=600)
Product Information
Overview
This Speedmaster design features tubes instead of discharge nozzles that provide a more consistent fuel flow. Want to upgrade your street carburetor to a high performance race carb but don't have the means to do a complete carb swap? If you can turn a screwdriver, you can get 25 to 50 HP from these Proform main bodies. With no air horn, choke tower, or choke control to restrict airflow, they deliver extra power easily and affordably.
Specs
| Brand: | Speedmaster |
| Part Number: | PCE116.1006.02 |
| Part Type: | Carburetor Main Body |
| Main Body Material: | Billet Aluminum |
| Main Body Finish: | Anodized |
| Booster Type: | Down-leg |
| Main Body Gasket Included: | No |
| Accelerator Pump Discharge Nozzle Included: | N/A-Tube Design |
| Air Bleeds Included: | Yes |
| Air Bleed Material: | Brass |
| Primary Outer Air Bleed Sizes Included: | 73 |
| Primary Inner Air Bleed Sizes Included: | 36 |
| Secondary Outer Air Bleed Sizes Included: | 73 |
| Secondary Inner Air Bleed Sizes Included: | 36 |
| Quantity: | Sold individually. |
| Notes: | This carb does not have a passage to operate vaccum. |
Warranty Information
12-Month Limited Worldwide Warranty
Prop 65 Warning
This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
