Speedmaster®

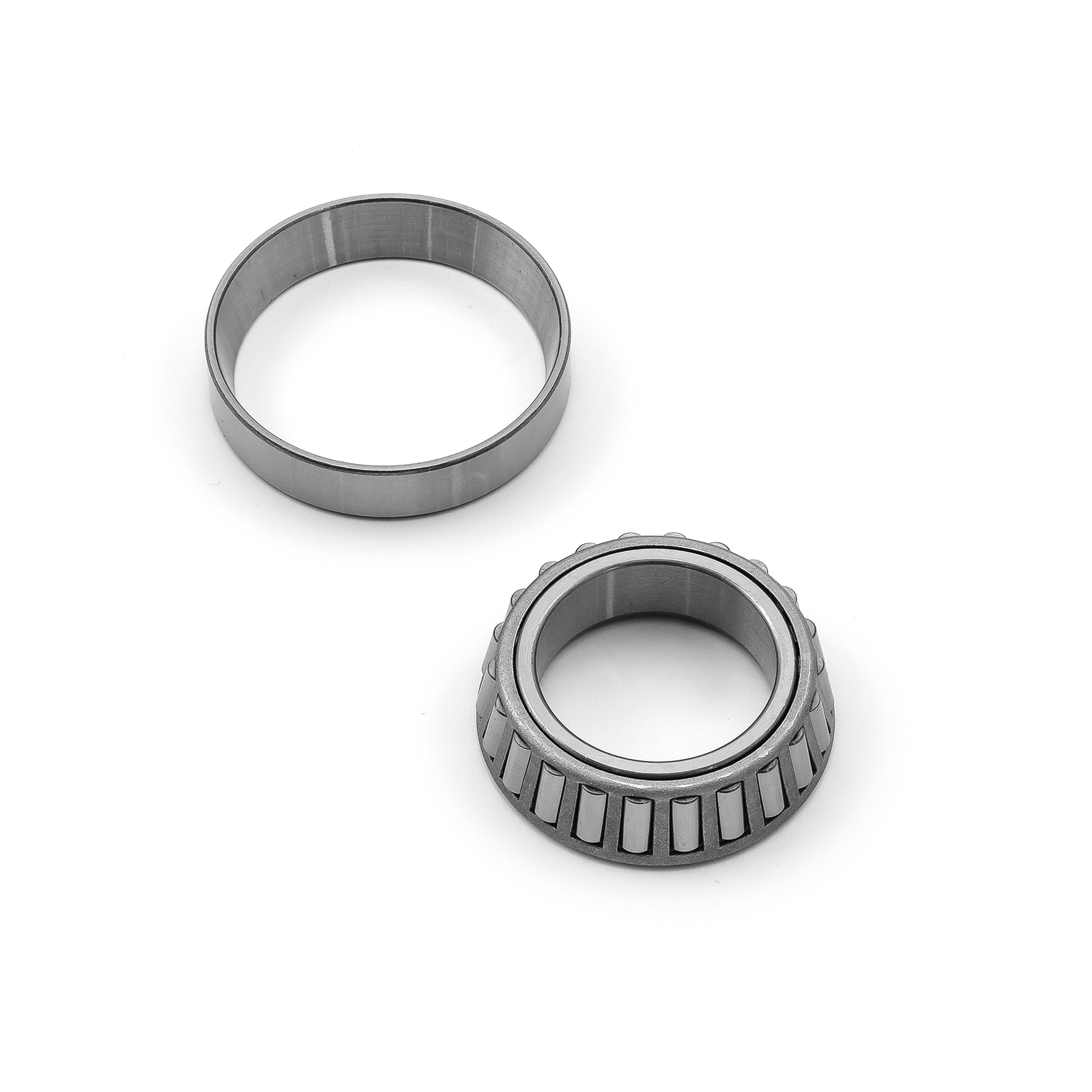

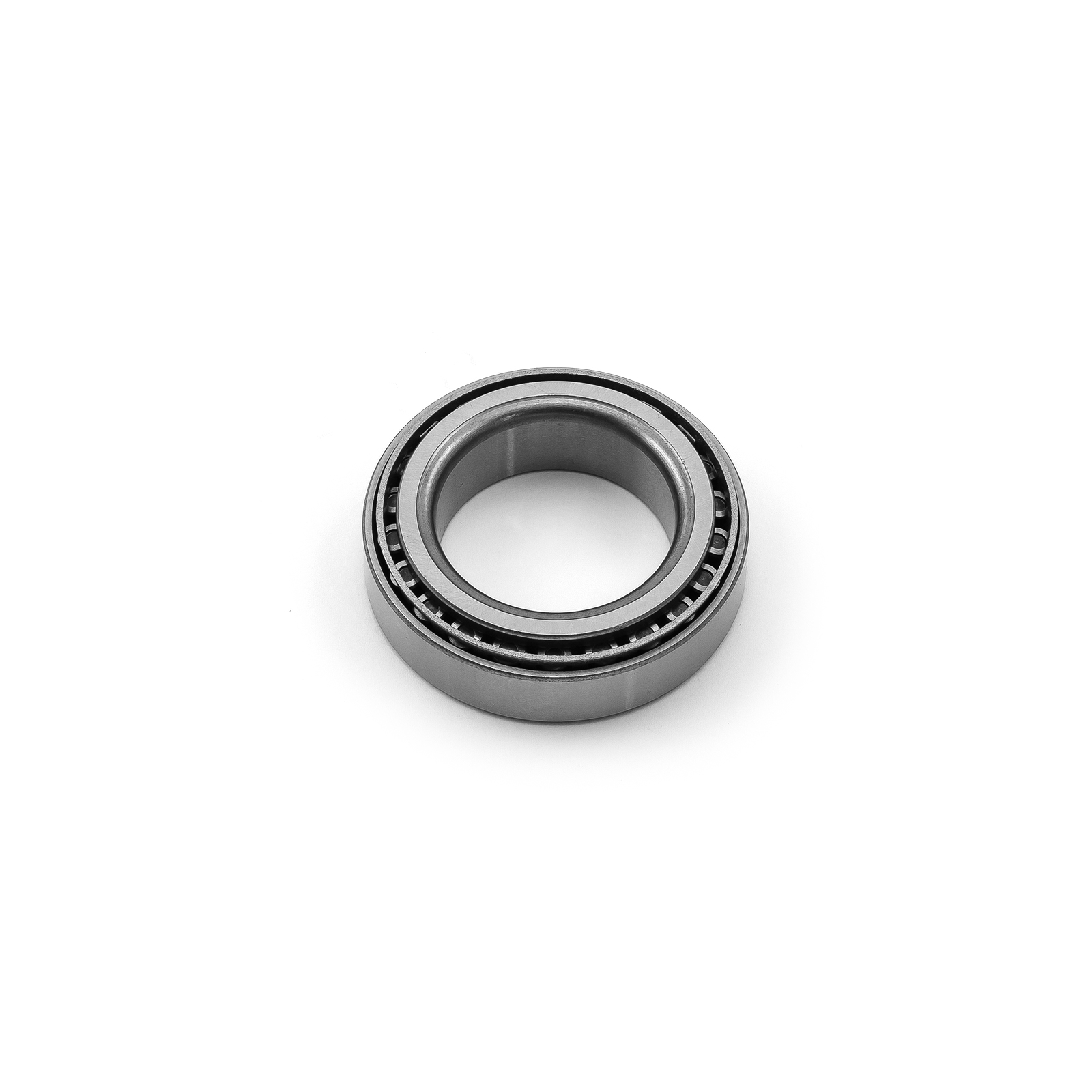

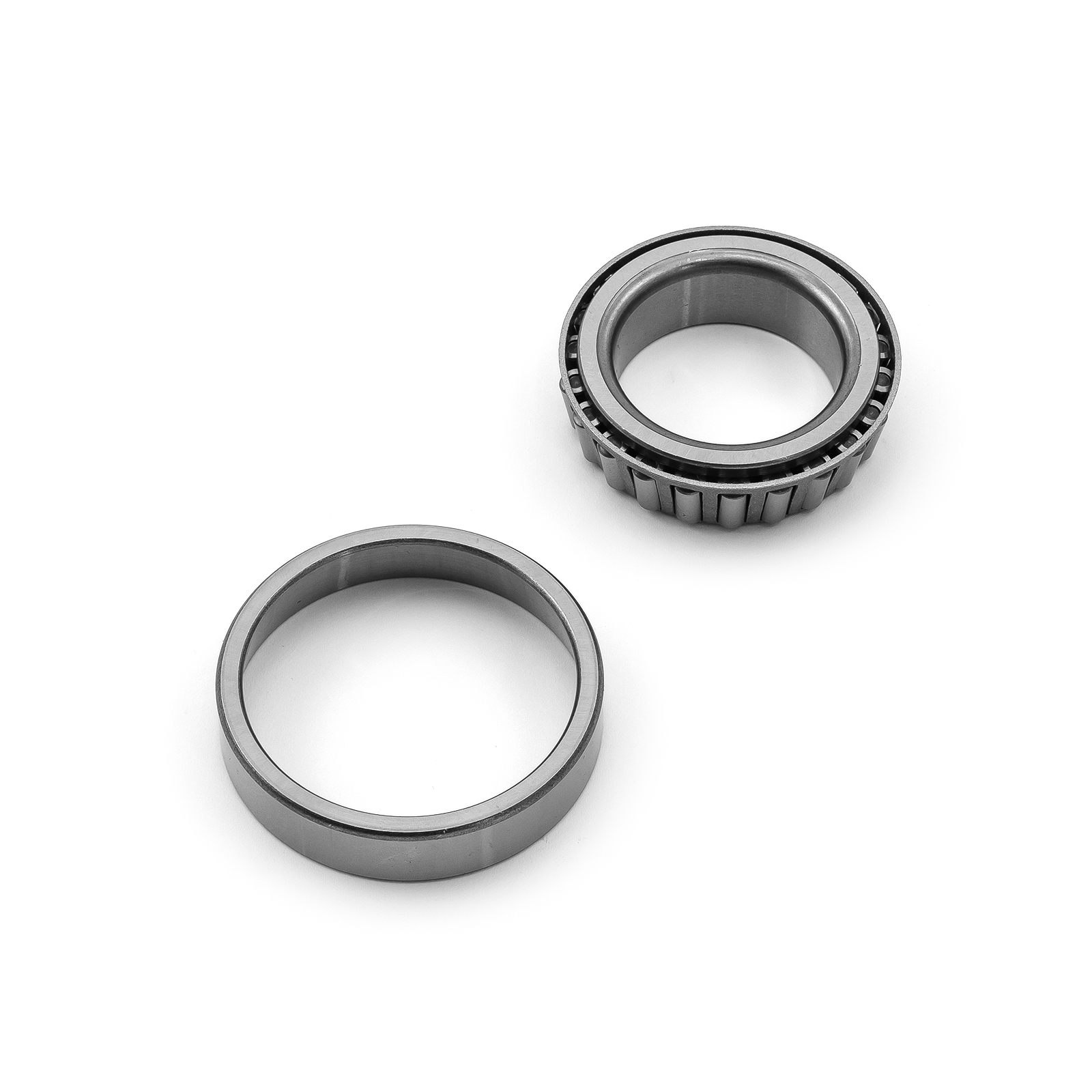

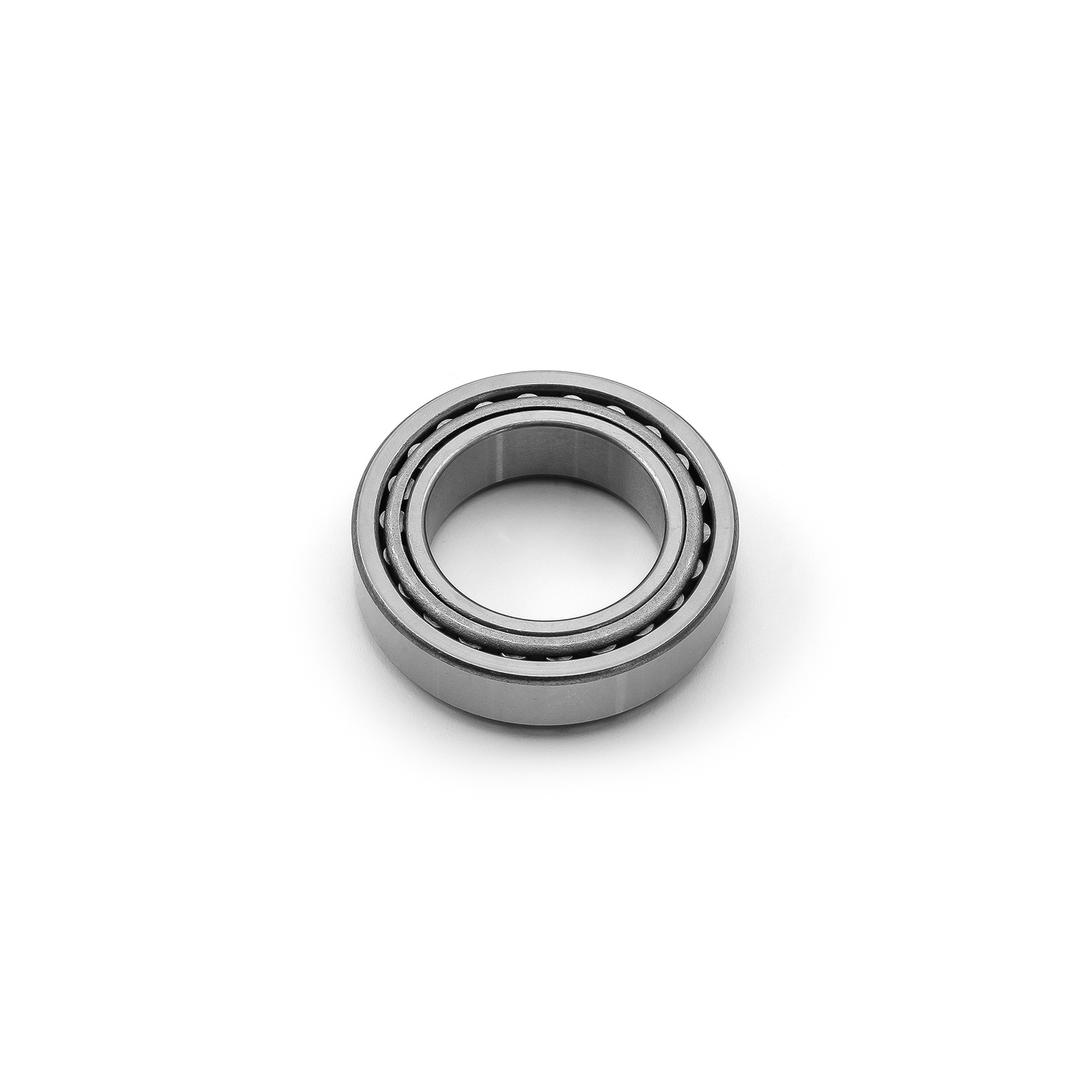

Ford 9" Carrier Bearing 2.891" / 1.7812" [Lm102949 Lm102910]
Promo
![Speedmaster® PCE203.1001 Ford 9" Carrier Bearing 2.891" / 1.7812" [Lm102949 Lm102910]](https://product-arena.s3.us-west-1.amazonaws.com/ProcompElectronics/PCE203%20-%20Differential%20Carrier%20Bearings/PCE203.1001/PCE203.1001.jpg?resizeid=224&resizeh=600&resizew=600)
![Speedmaster® PCE203.1001 Ford 9" Carrier Bearing 2.891" / 1.7812" [Lm102949 Lm102910]](https://product-arena.s3.us-west-1.amazonaws.com/ProcompElectronics/PCE203%20-%20Differential%20Carrier%20Bearings/PCE203.1001/PCE203.1001_A.jpg?resizeid=224&resizeh=600&resizew=600)
![Speedmaster® PCE203.1001 Ford 9" Carrier Bearing 2.891" / 1.7812" [Lm102949 Lm102910]](https://product-arena.s3.us-west-1.amazonaws.com/ProcompElectronics/PCE203%20-%20Differential%20Carrier%20Bearings/PCE203.1001/PCE203.1001_B.jpg?resizeid=224&resizeh=600&resizew=600)
![Speedmaster® PCE203.1001 Ford 9" Carrier Bearing 2.891" / 1.7812" [Lm102949 Lm102910]](https://product-arena.s3.us-west-1.amazonaws.com/ProcompElectronics/PCE203%20-%20Differential%20Carrier%20Bearings/PCE203.1001/PCE203.1001_C.jpg?resizeid=224&resizeh=600&resizew=600)
Product Information
Overview
Speedmaster bearings are engineered with precision to provide superior quality, efficiency, and friction management.
Specs
| Brand: | Speedmaster |
| Part Number: | PCE203.1001 |
| Part Type: | Differential Carrier Bearing |
| Outer Diameter (in.): | 2.8910 in. |
| Inner Diameter (in.): | 1.7812 in. |
| Width (in.): | 0.7700 in. |
| Material: | Heat treated steel |
| Quantity: | Sold Individually |
| Notes: | Use with 2.891 inch Ford 9" cases. |
Description
Speedmaster carrier bearing used when installing a Ford 9" 31 spline carrier into a small bearing style Ford 9" gear case. The Speedmaster bearing can also fit a case that was originally designed to be used with a 28 spline carrier (OD: 2.891", ID: 1.780"). This bearing is also used with all new 9-Plus 8" Ford traction lock and limited slip units.
Warranty Information
12-Month Limited Worldwide Warranty
