Speedmaster®

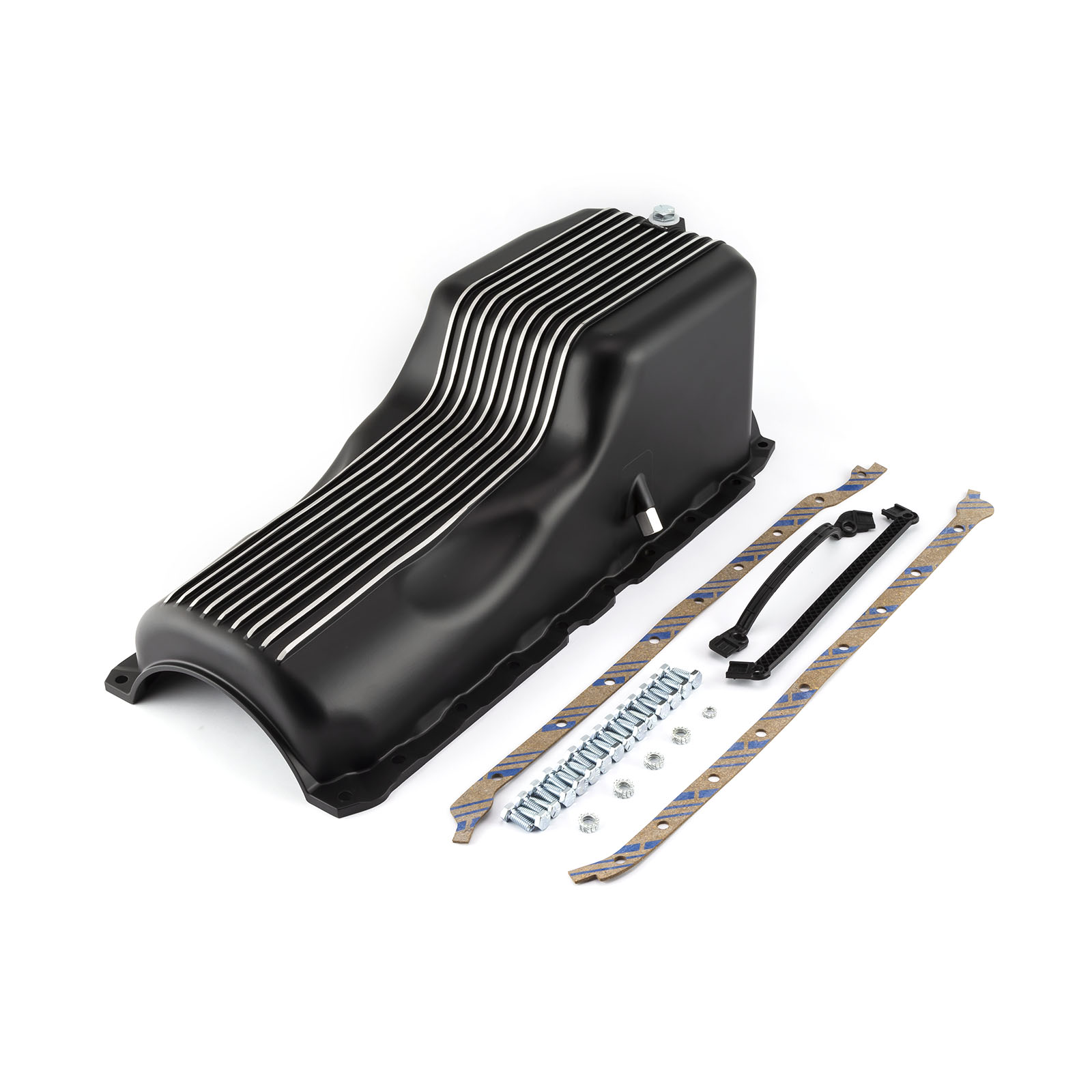

Chevy BBC 454 2Pc Rms 1965 1990 Black Finned Aluminum Oil Pan and Gasket Kit
Overview
The oil pan serves as the reservoir for the engine's oil. It is designed to hold the amount of oil that is needed to lubricate the engine when it is running, plus a reserve. The oil pan helps to cool the oil thru its contact with the outside air. Dress up your oil system with a oil pan from PCE.
Specs
| Brand: | Speedmaster |
| Part Number: | PCE300.1090.03 |
| Part Type: | Oil Pans, Individual |
| Rear Main Seal Style: | 2-piece |
| Dipstick Location: | US Passenger side |
| Sump Location: | Rear |
| Stroker Clearanced: | No |
| Maximum Stroke with OE Rod: | 4.000 in. |
| Sump Style: | Wet |
| Oil Pan Capacity: | 6 quarts |
| Oil Pan Depth (in): | 7.500 in. |
| Oil Pan Material: | Aluminium |
| Oil Pan Finish: | Black |
| Baffled: | No |
| Dipstick Provision: | Yes |
| Windage Tray Included: | No |
| Pickup Included: | No |
| Crank Scraper Included: | No |
| Gaskets Included: | Yes |
| Hardware Included: | Yes |
| Quantity: | Sold individually. |
