Speedmaster®

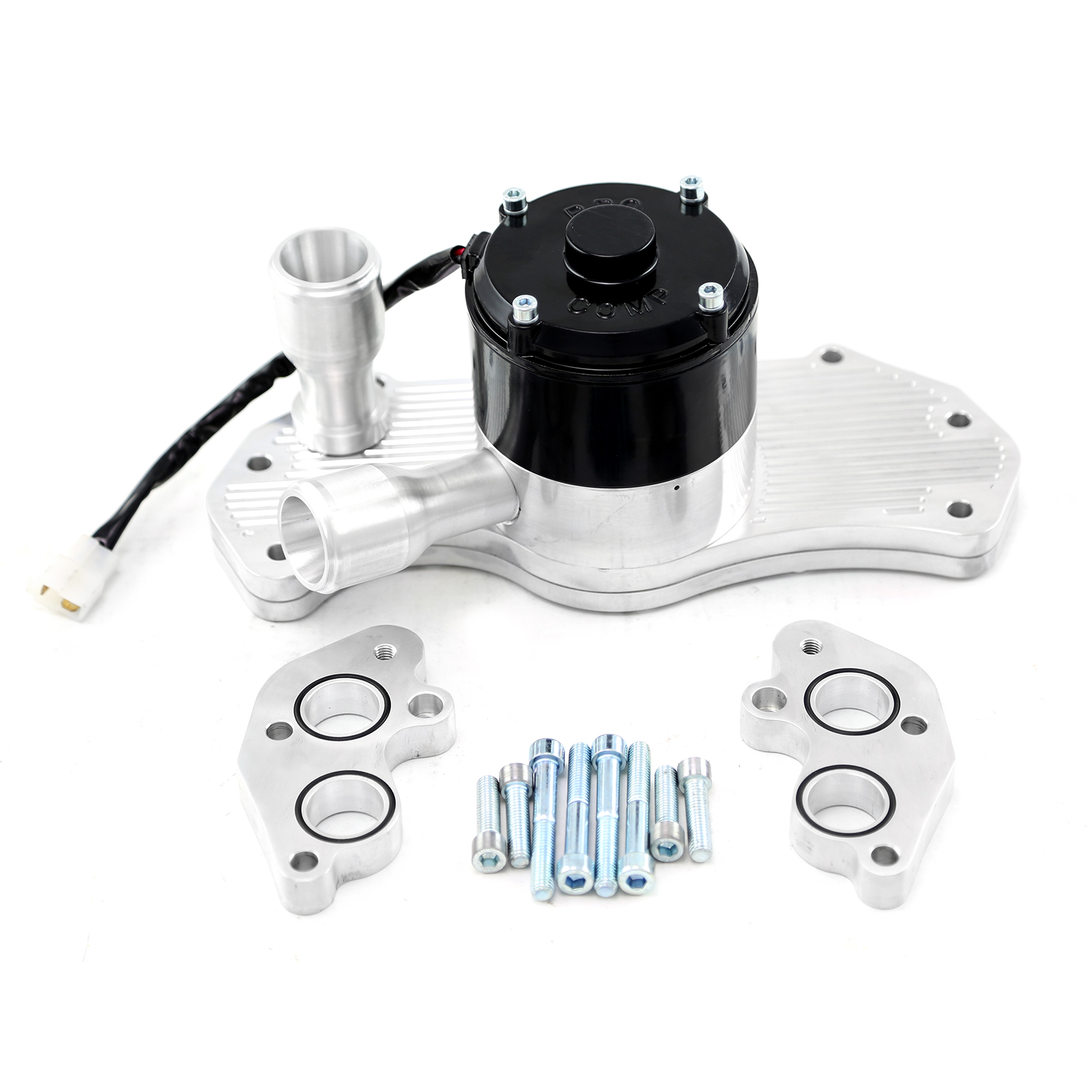

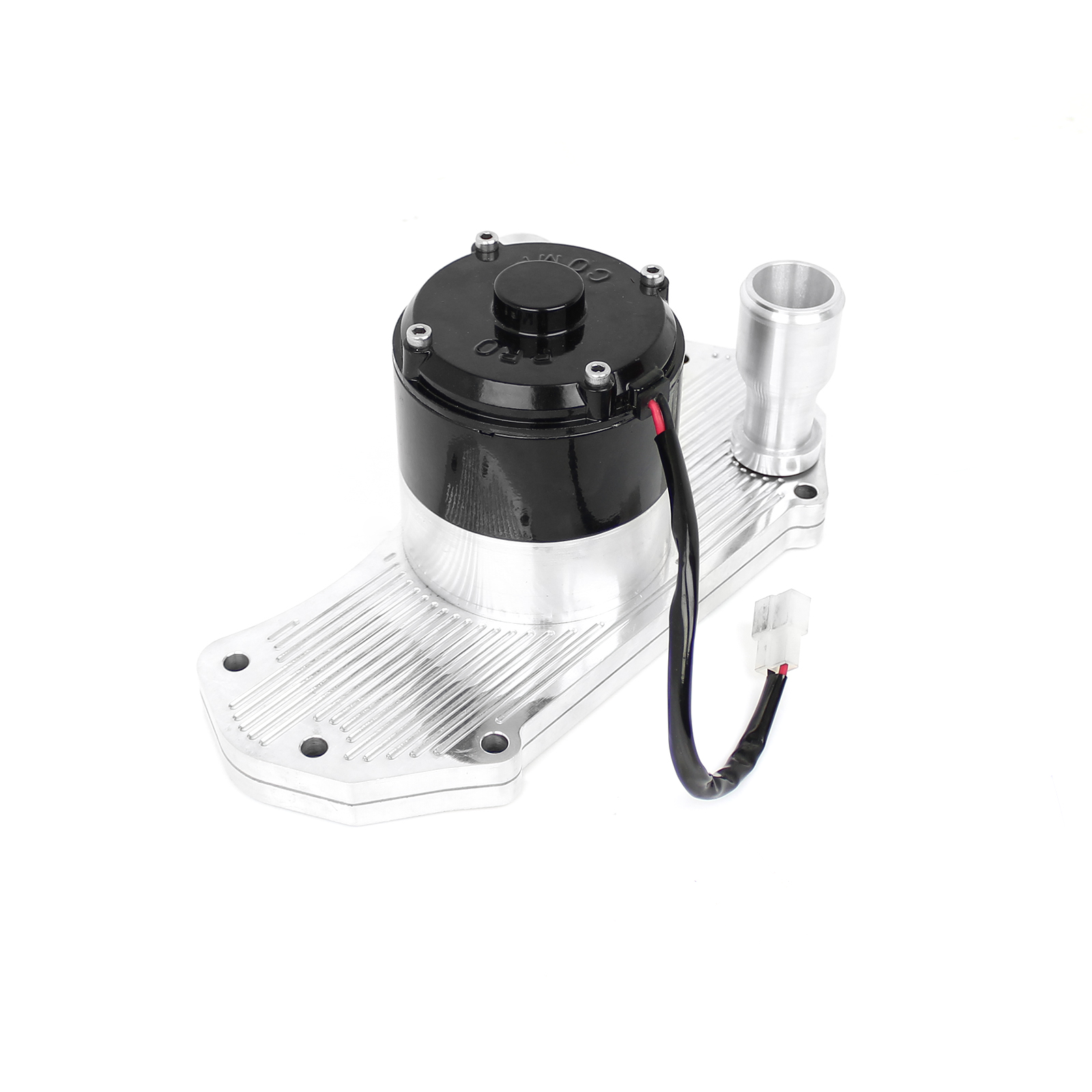

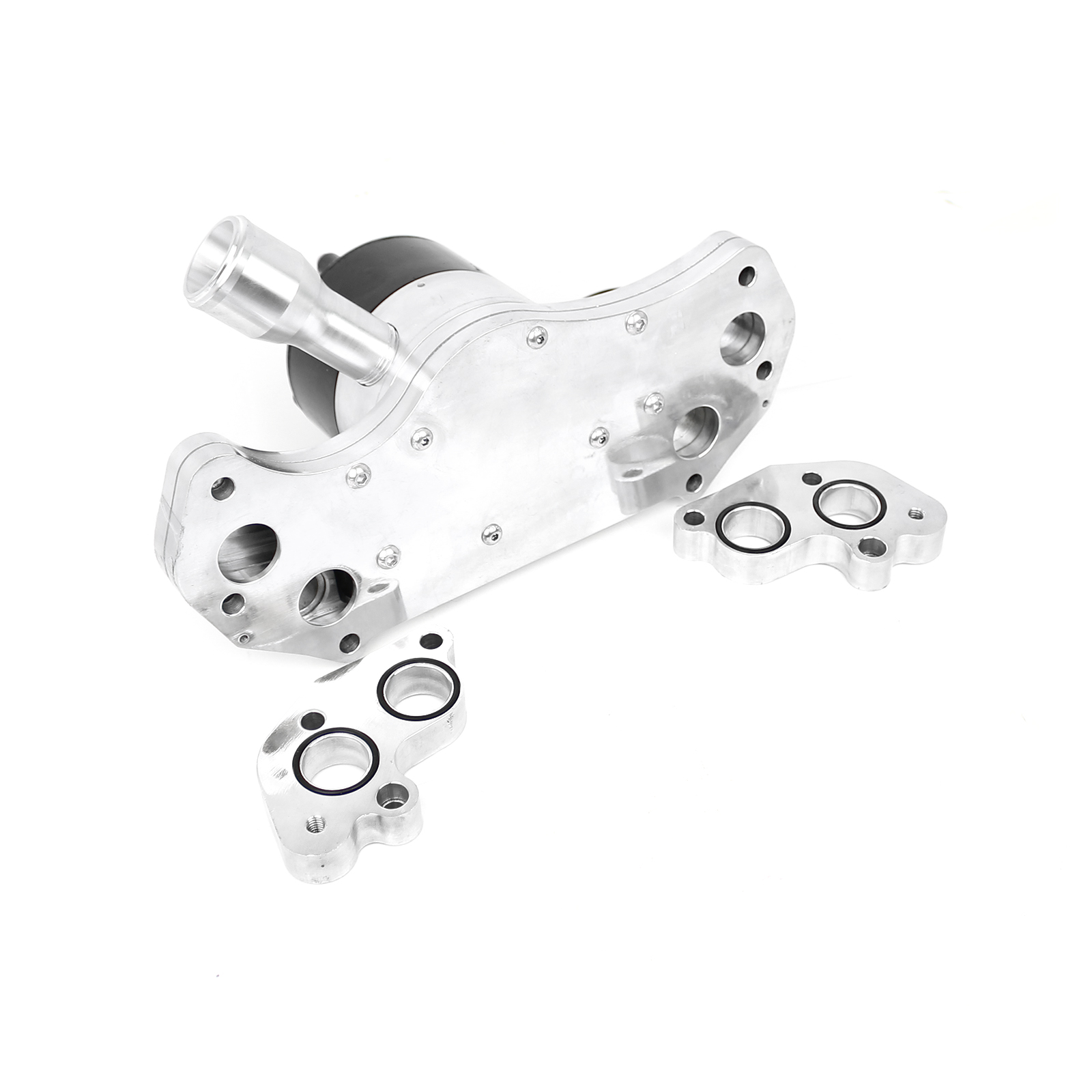

Chevy LS1 40+ Gpm Slimline Electric Water Pump Polished
Product Information
Specs
| Brand: | Speedmaster |
| Part Number: | PCE194.1016 |
| Part Type: | Water Pumps, Electrical |
| Pump Material: | Aluminum |
| Pump Finish: | Chrome |
| Flow Rate @ 12 Volts (gpm): | 40 GPM |
| Hose Adapter Required: | Yes |
| Hose Adapter Included: | Yes |
| Hose Adapter Thread Size: | 1 in. NPT |
| Inlet Hose Size: | 1 3/4 in. |
| Inlet Hose Attachment: | Nipple |
| Overall Depth (in): | 6.500 in. |
| Amp Draw: | 6.80 amps |
| Weight: | 5.500 lbs. |
| Quantity: | Sold individually. |
Description
Speedmaster electric water pumps eliminate unnecessary weight and impeller drag experienced at high RPM. These durable but light weight aluminum pumps push up to 5. gallons of water per minute of coolant circulation, Speedmaster electric water pumps give you the flow that you need, without costing you horsepower. CNC-machined from Billet aluminum, these lightweight pumps have a direct-drive 12 V motor, spinning a redesigned impeller on a stainless steel shaft. Speedmaster pumps draw just 6.8 amps. Because they don't run off of your crank, they won't eat up race-winning horsepower. Other features include availability in several colors, superior RFI suppression, and a removable center section for cam adjustment or replacement.
Warranty Information
Prop 65 Warning
Installation Guide
Our AI assistant generates a step-by-step guide for this product — covering installation, maintenance, and troubleshooting.
This AI-generated guide is for general reference only and does not constitute official Speedmaster product documentation. Always verify fitment, torque specifications, and safety requirements before installation.
