Speedmaster®

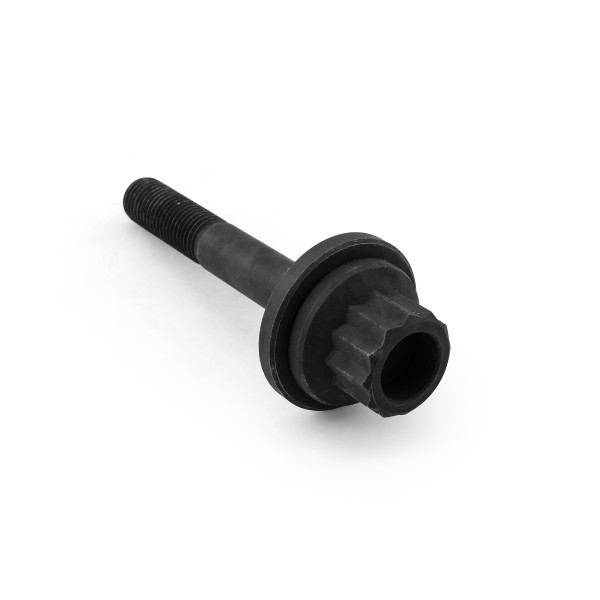

Chevy LS1 LS2 LS3 LS6 Harmonic Damper Balancer Bolt 234-2503
Product Information
Specs
| Brand: | Speedmaster |
| Part Number: | PCE292.1004 |
| Part Type: | Harmonic Balancer Bolt |
| Thread Size: | 16mm x 2.0 |
| Underhead Length (in): | 4.330 in. |
| Head Style: | 12-point |
| Washer Included: | Yes |
| Fastener Yield Strength (psi): | 200,000 psi |
| Fastener Material: | Chromoly |
| Fastener Finish: | Black oxide |
| Quantity: | Sold individually. |
Description

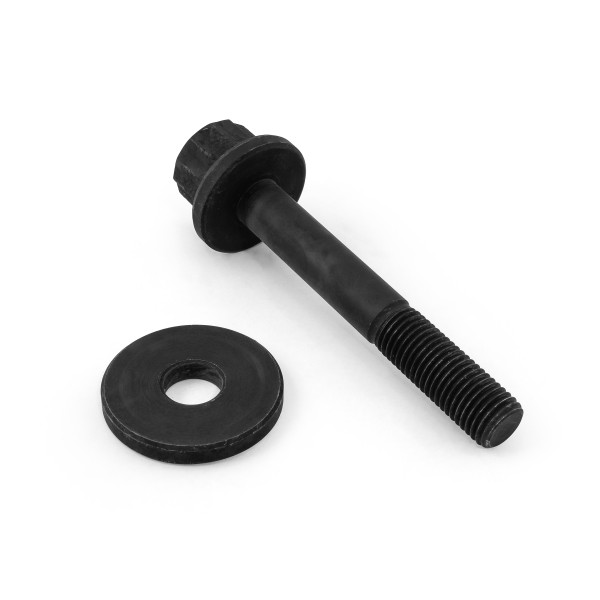

As the crankshaft flexes, the damper absorbs incredible amounts of energy. These damper bolt kits from Speedmaster will ensure that your balancer is locked into position. They feature a 1/4 in. thick wide-area washer and an extra-tall, 12-point head that accepts a deep socket to eliminate the fear of stripping the head.
Warranty Information
12-Month Limited Worldwide Warranty
Prop 65 Warning
This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
