Speedmaster®
Chevy SBC 350 Hyd FT 210cc Angle Plug Cylinder Head Top End Engine Combo Kit
Specs
Brand: | PCE |
Part Number: | PCE435.1062 |
Part Type: | Cylinder Head Combos |
Camshaft Included: | No |
Intake Manifold Included: | Yes |
Fuel Delivery Style: | Carbureted |
Intake Material: | Aluminum |
Intake Finish: | Satin |
Carburetor Quantity: | One |
Intake Style: | Dual plane |
Intake Basic Operating RPM Range: | Idle-5500 |
Intake Manifold Height: | 4.050 in. |
Intake Manifold Model (descriptive): | PCE - Holeshot Series |
Carburetor Flange: | Square bore |
Timing Chain and Gears Included: | No |
Lifters Included: | No |
Gaskets Included: | Yes(Head and Intake Only) |
Cylinder Head Style: | Assembled Angle Plug |
Cylinder Head Material: | Aluminum |
Cylinder Head Finish: | Natural |
Combustion Chamber Volume (cc): | 64 cc |
CNC-Machined Combustion Chamber: | No |
Intake Runner Volume (cc): | 210 cc |
CNC-Machined Intake Runner: | No |
CNC-Machined Exhaust Runner: | No |
Intake Port Shape: | Square |
Intake Port Location: | Standard |
Exhaust Port Shape: | Square |
Exhaust Port Location: | Standard |
Spark Plug Style: | Stock |
Comp. Valve Job: | No |
Intake Valves Included: | Yes |
Intake Valve Diameter (in): | 2.020 in. |
Exhaust Valves Included: | Yes |
Exhaust Valve Diameter (in): | 1.600 in. |
Intake Valve Angle: | 23 deg. |
Exhaust Valve Angle: | 23 deg. |
Valve Springs Included: | Yes |
Outside Diameter of Outer Spring (in): | 1.450 in. |
Damper Spring Included: | Yes |
Number of Springs Per Valve: | Dual |
Retainers Included: | Yes |
Retainer Material: | Chromoly steel |
Locks Included: | Yes |
Lock Style: | 10 degree |
Valve Stem Seals Included: | Yes |
Valve Stem Seal Style: | Positive stop |
Rocker Arms Included: | Yes (Aluminum) |
Rocker Arm Studs Included: | Yes |
Rocker Arm Nuts Included: | Yes |
Rocker Arm Nut Thread Size: | 7/16-24 in. |
Guideplates Included: | n/a |
Pushrods Included: | n/a |
Valve Covers Included: | Yes |
Valve Cover Material: | Fabricated Aluminum |
Valve Cover Finish: | Natural |
Valve Cover Mounting Style: | Perimeter Bolt |
Accessory Bolt Holes Drilled: | n/a |
Valve Guides Included: | Yes |
Valve Guide Material: | Bronze |
Valve Seats Machined: | Yes |
Valve Seat Machine Style: | 3-angle |
Valve Seat Material: | Ductile iron |
Steam Holes Drilled: | n/a |
Oiling Style: | Through pushrod |
Machined for O-Ring: | No |
Heat Crossover: | No |
Cylinder Head Bolts Included: | No |
Quantity: | Sold as a kit. |
Calculator: | CFM Calculator |
Calculator | Compression Calculator |
Notes: | Designed for use with hydraulic flat tappet camshafts less than .600 in. lift. Requires use of hardened pushrods. The valve and seat combination, used in these heads, is not recommended for use with mechanical roller camshaft. The rockers will be slightly different than what is pictured. They will be in aluminum. |
Description
Don't spend hours figuring out which pieces and parts you need to get what you want from your engine. PCE has already done the work for you; our Top-End engine kits will save you the time and hassle of mixing and matching components yourself. These kits are specifically designed to deliver the performance you want, at a better price than purchasing the parts separately.

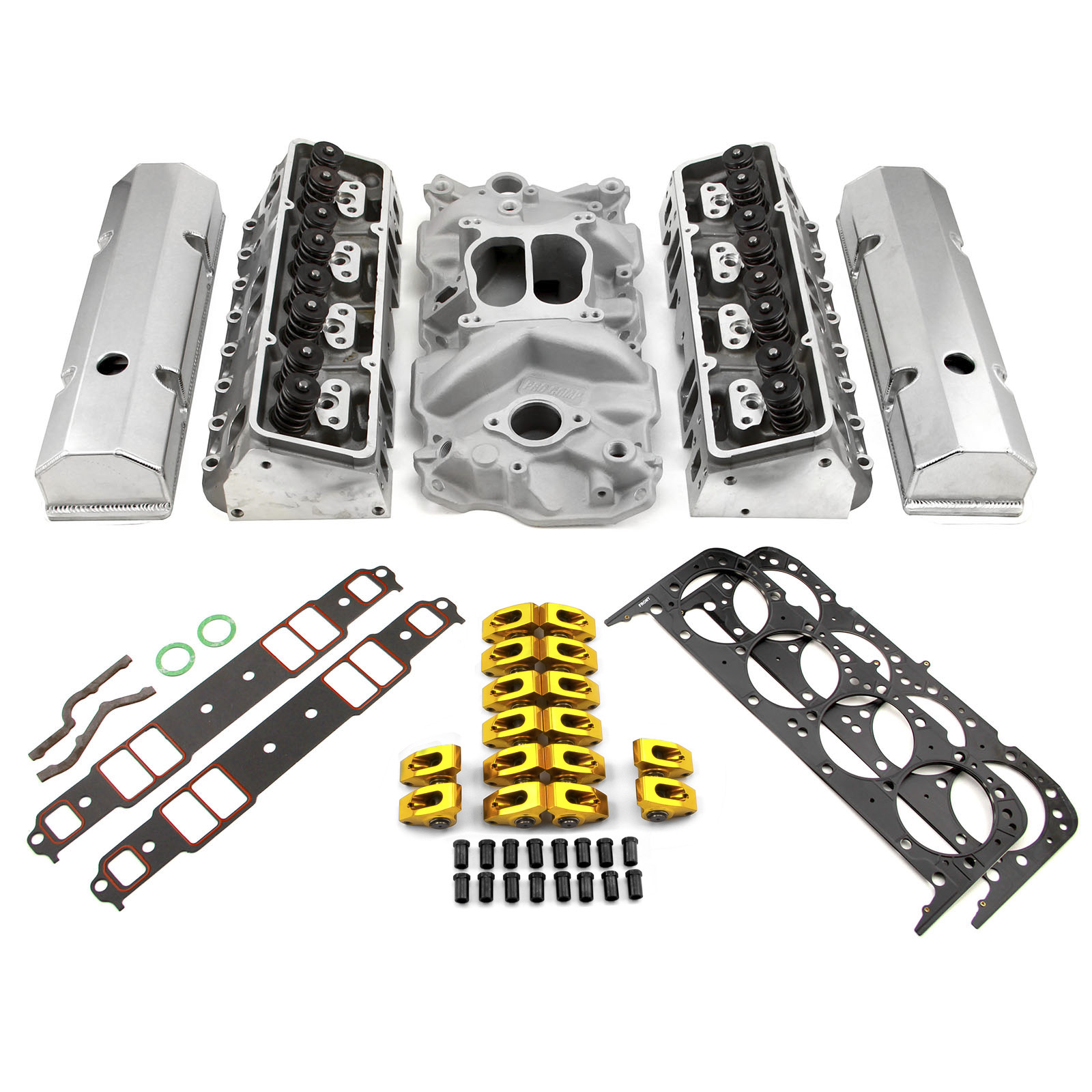

Kits include:
Fully assembled aluminum cylinder heads
Intake manifold (Dual Plane)
Rocker Arms
Intake Gaskets
MLS Head Gaskets
Fabricated Valve Covers
