Speedmaster®

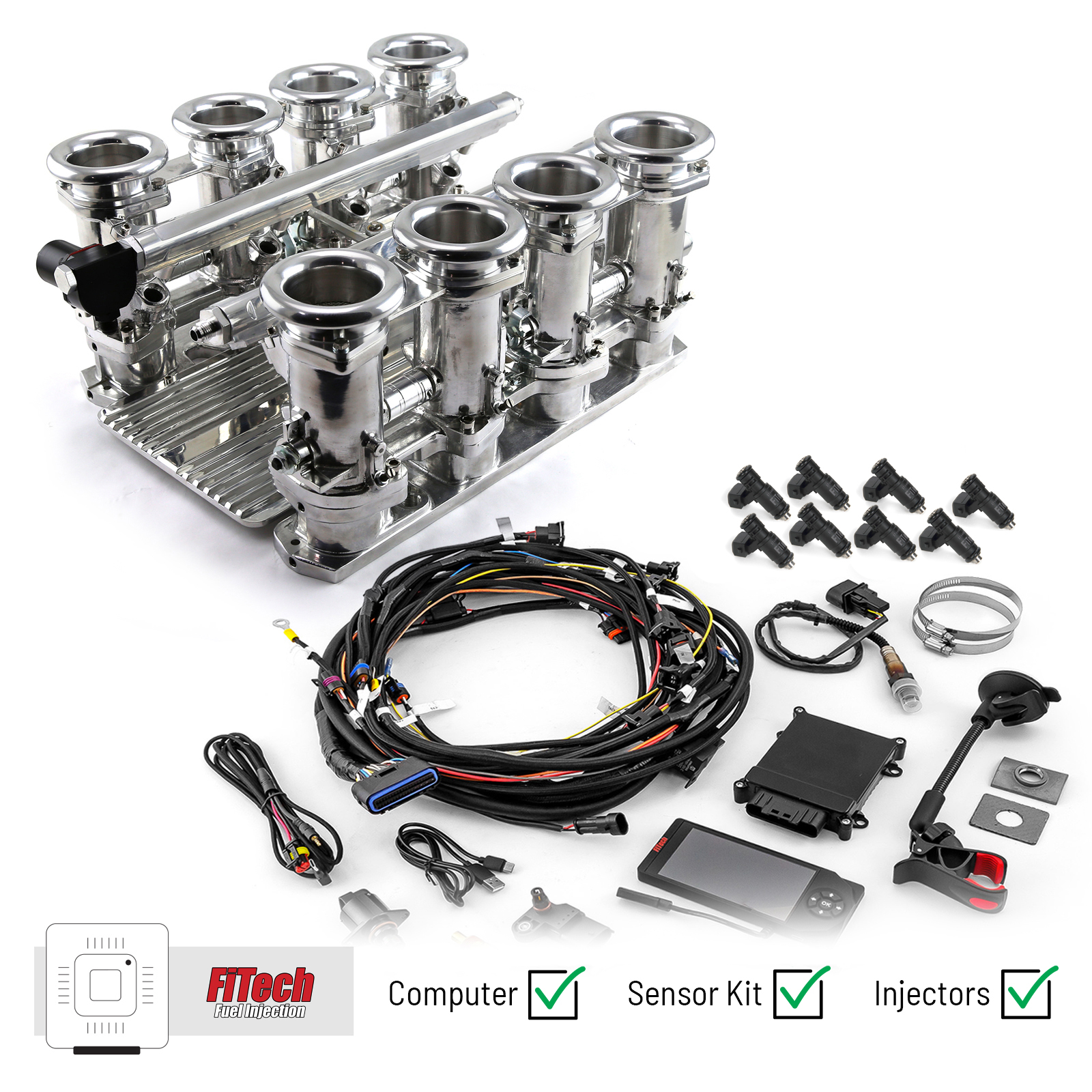

Chrysler HEMI 6.1L Downdraft + FiTech Ultra EFI Fuel Injection System [Polished]
Overview

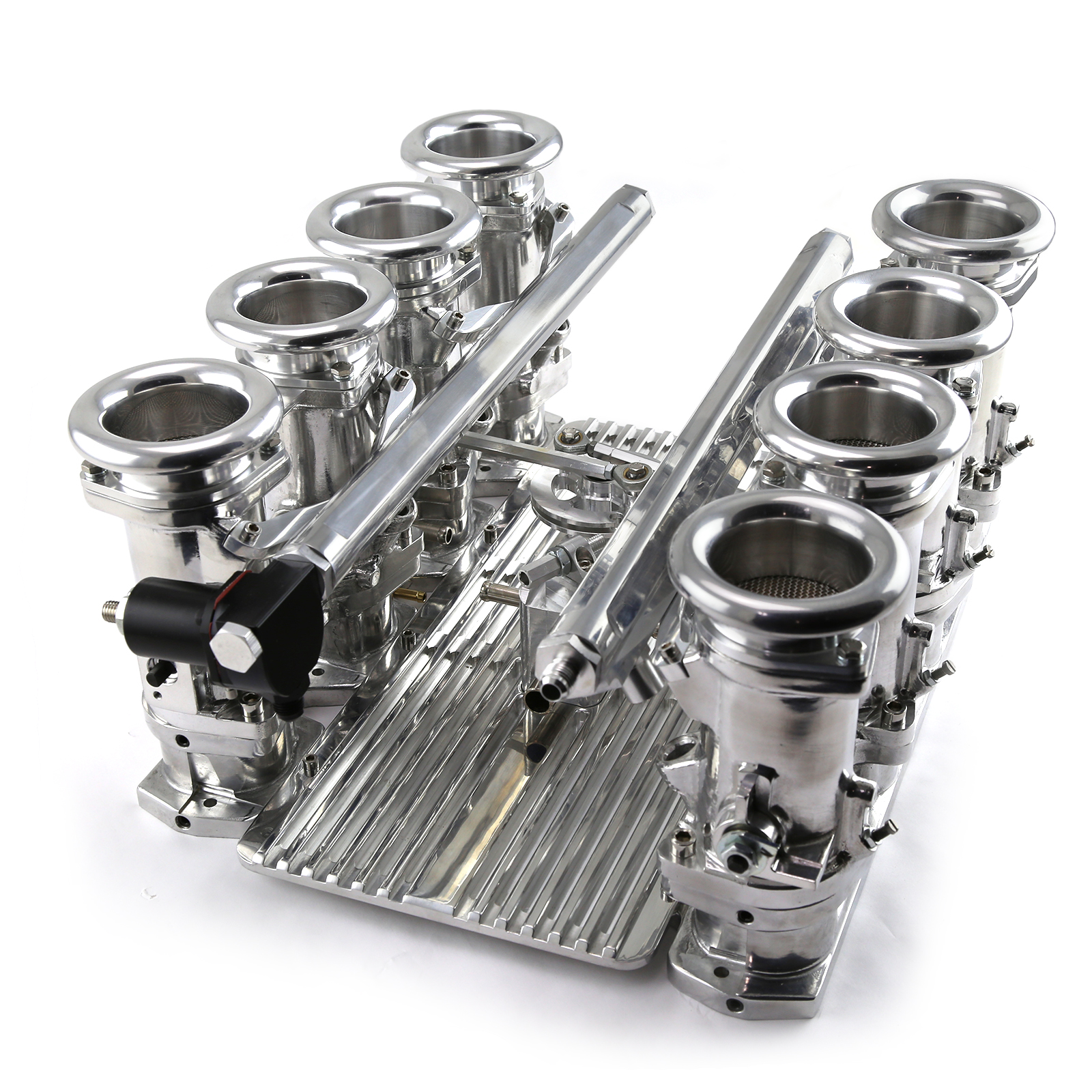

Discover the zenith of fuel injection innovation with our enhanced Downdraft 8 Stack EFI Intake Manifold System, now impeccably paired with FiTech's sophisticated computer technology. This upgraded combination elevates the standard in electronic fuel injection, offering an unmatched solution for a wide spectrum of vehicles, from everyday use to high-powered performance.
Specs
| Brand: | Speedmaster |
| Part Number: | 1-135-004-02 |
| Part Type: | Fuel Injection Systems |
| Engine Block Style: | Stock/OEM standard deck |
| Injection Style: | 8 Throttle body |
| Basic Operating RPM Range: | Idle-7,000 |
| Intake Trumpets: | Intake Trumpets Included |
| EGR: | No |
| Injectors Included: | Yes |
| Fuel Rails Included: | Yes |
| Throttle Body Included: | 8 Pieces |
| Base Material: | Aluminum Casting |
| Base Finish: | Polished |
| Assembled: | Assembled |
| Quantity: | Sold as a Kit |
| Notes: | Includes FiTech Ultra EFI Management System and harness. Additionally, the kit comes with a comprehensive sensor kit and a set of injectors.. |
Description
Engineered for peak efficiency and power, our system features a downdraft manifold designed for extraordinary throttle response and smooth engine operation across a diverse RPM range. FiTech's advanced EFI technology integration ensures the system intuitively adapts to your engine, striking a perfect balance of power and efficiency.
Key Features:
- Seamless integration with FiTech’s self-tuning EFI technology, suitable for a range of applications from amateur to professional.
- Durable construction with CNC machined, heat-treated 601 Cast aluminum.
- Precision-engineered butterflies, each meticulously machined for its bore, mounted on centerless ground brass shafts with split screws for exceptional reliability.
- O-ring seals on lower mounting faces for guaranteed leak-proof performance.

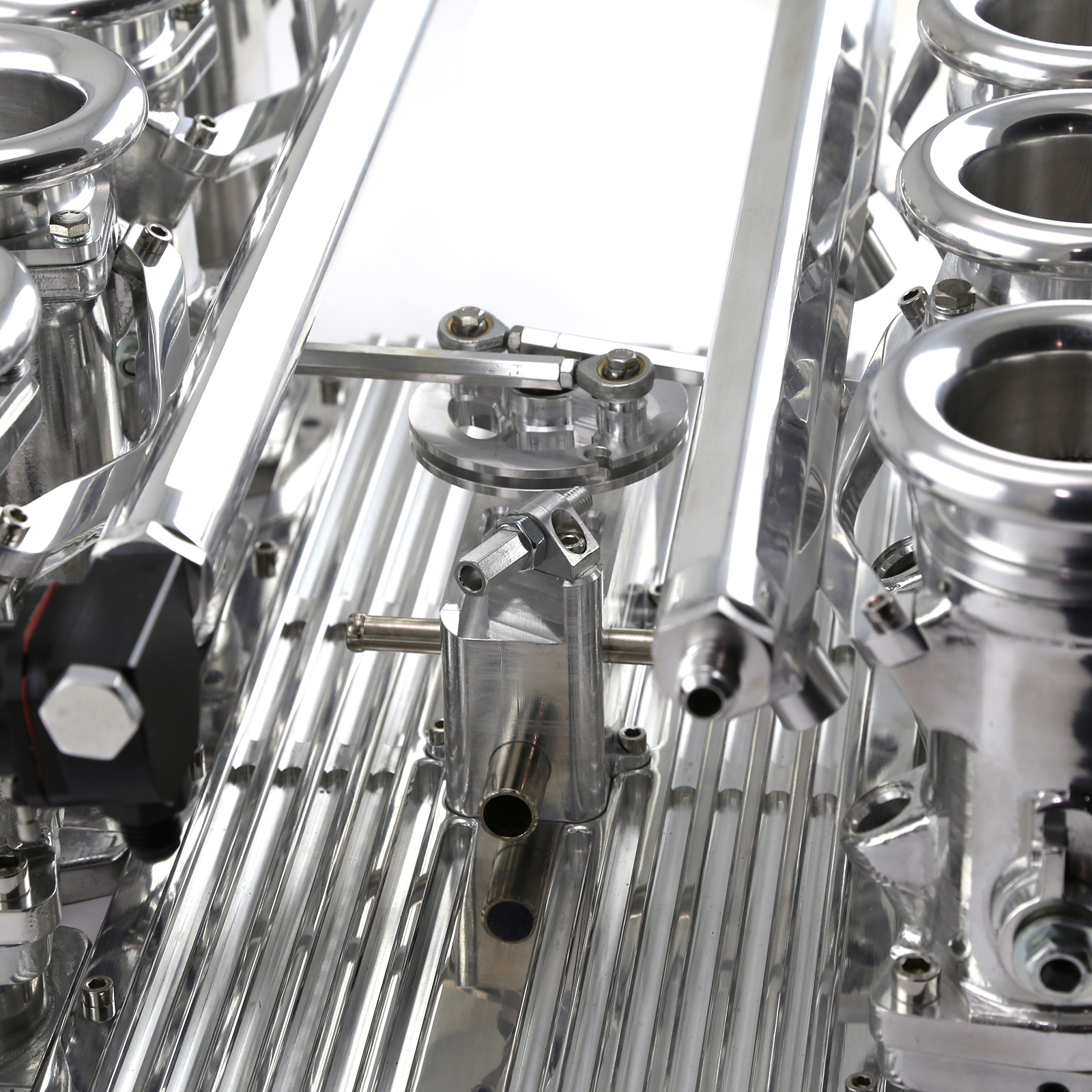

- Customizable bell crank with an indexable eccentric cable pulley, fine-tuning the balance between low-speed drivability and full throttle efficiency.
- Complete linkage set, including throttle stops, idle controls, lever arms, and joiner/balancer.
Inclusions and Compatibility:
- Includes the necessary high-impedance injectors capable of supporting up to 800 horsepower, streamlining the installation process.
- Features EV1 injector plugs, ensuring compatibility and performance.
- Utilizes GM sensors for TPS, IAC, and CTS, and Bosch sensors for TMAP and O2, guaranteeing high-quality and reliable readings.
- Designed to accommodate a wide range of engines, from standard rebuilt motors to custom-built racing engines.
Our Downdraft 8 Stack EFI Intake Manifold System, integrated with FiTech’s advanced computer technology and enhanced with top-tier sensors and injectors, offers a sophisticated, efficient, and powerful solution for electronic fuel injection. Elevate your vehicle's performance with this state-of-the-art EFI system, a testament to the pinnacle of engine technology.
