Speedmaster®

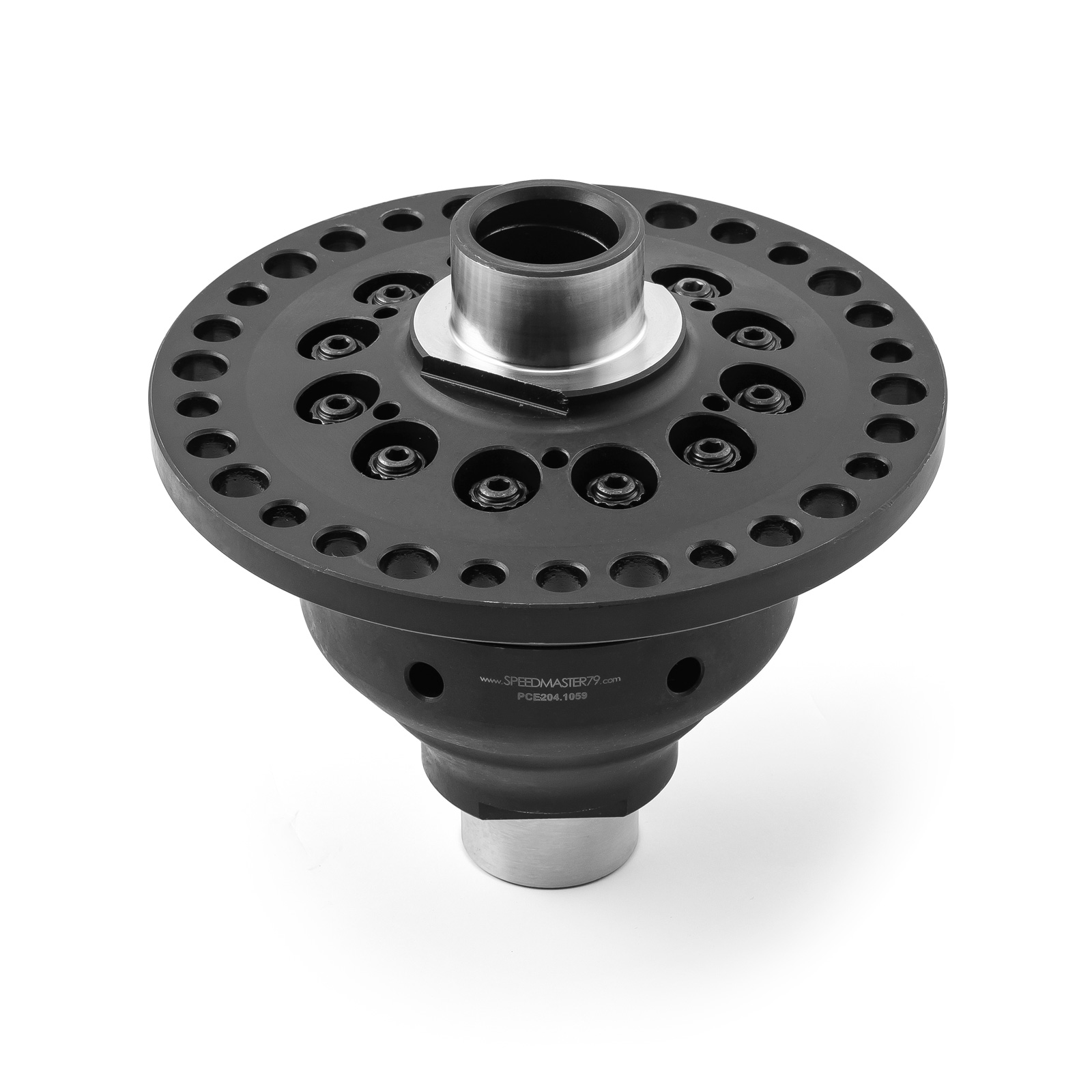

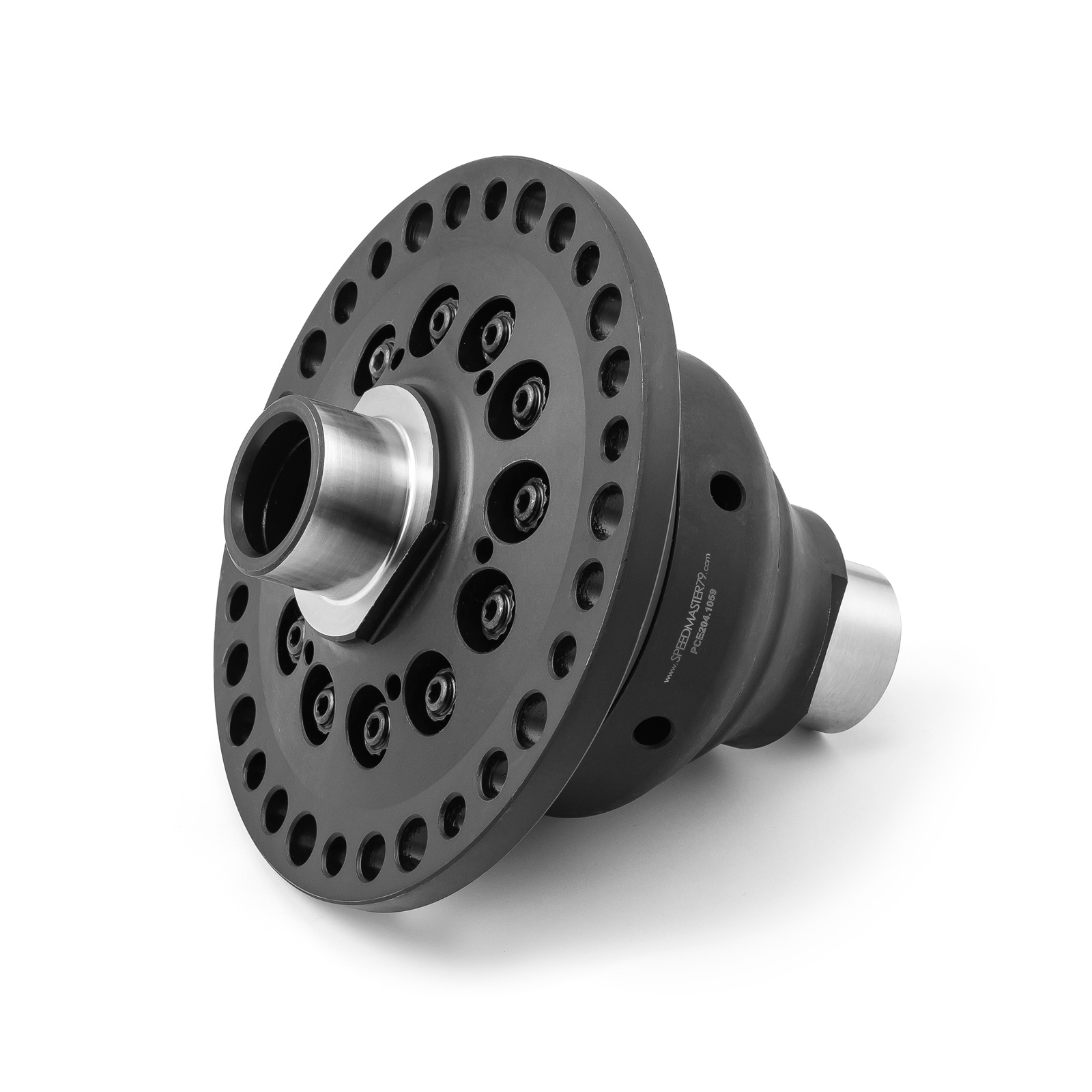

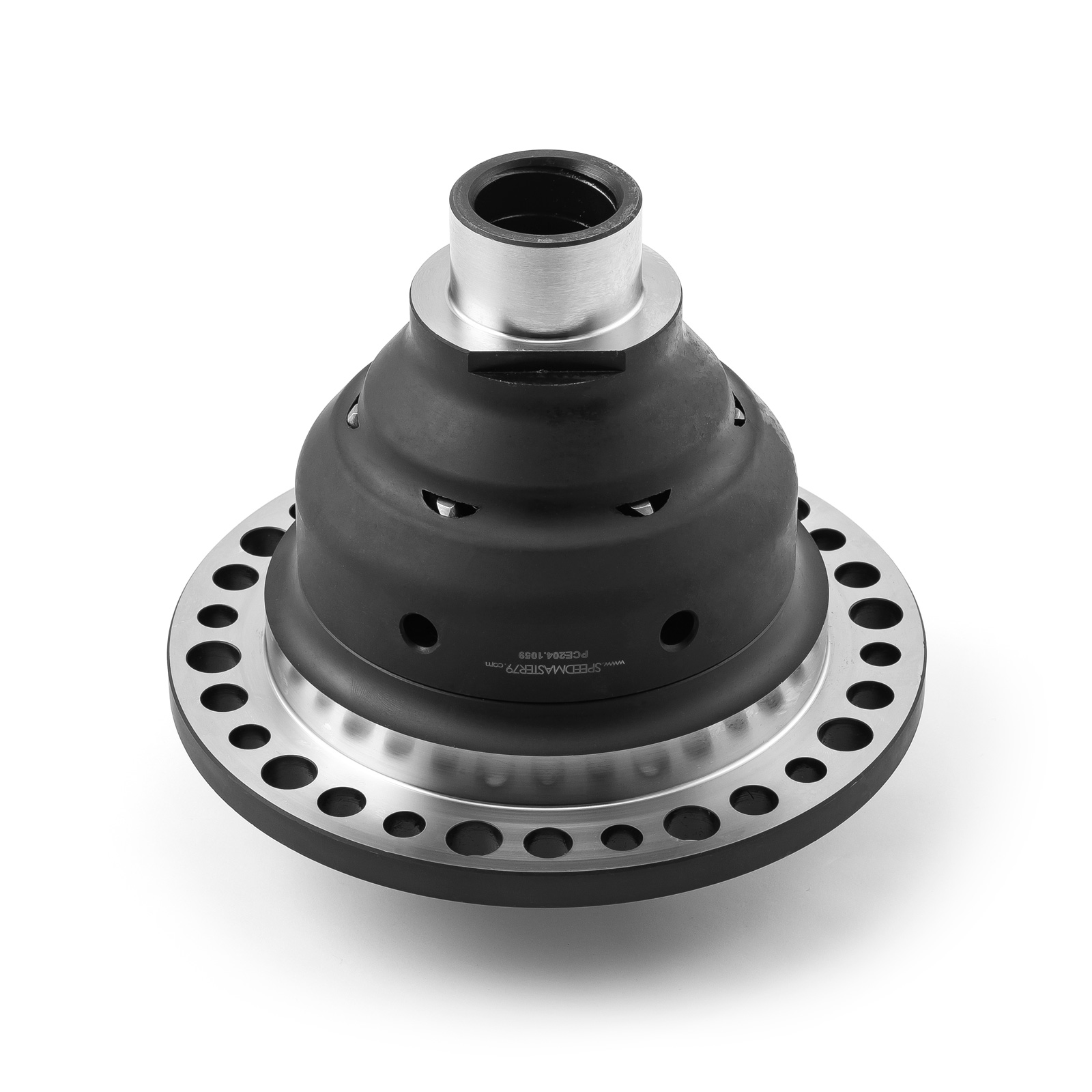

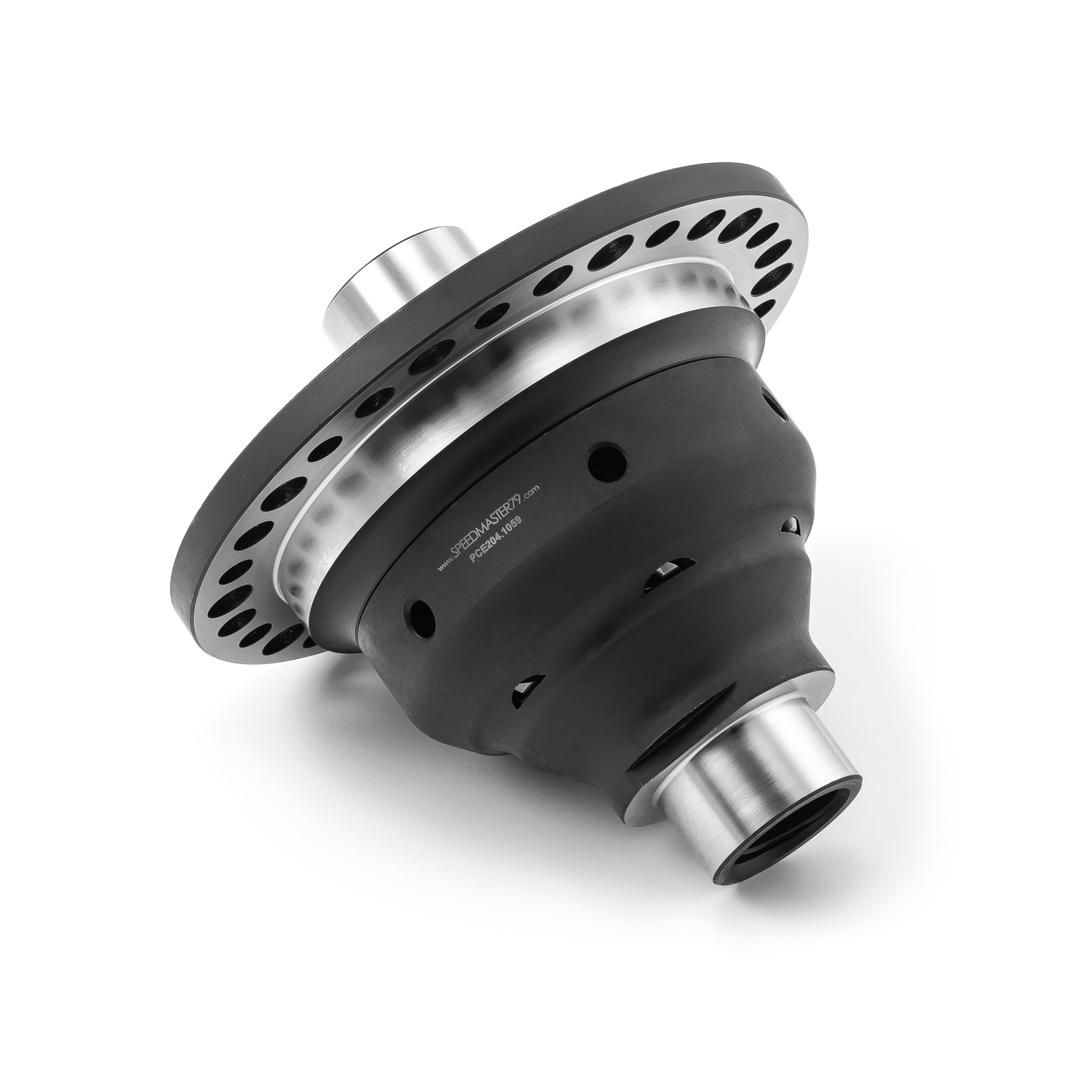

DANA 44 19 Spline 3.73 and Down Jeep / Jaguar Limited Slip Differential
Overview
The Torque Worm is a torque biasing 6 pinion gear type limited slip unit. This is a preloaded unit allowing for a faster reacting unit. Unlike our competitors that only use 3 or 4 pinion gears.
Specs
| Brand: | Speedmaster |
| Part Number: | PCE204.1059 |
| Part Type: | Differential Carriers |
| Aftermarket Carrier Style: | Helical Gear |
| Ring Gear Bolts: | 10 |
| Cover Bolts: | 10 |
| Axle Shaft Spline Quantity: | 32 |
| Manufacturer of Axle: | Speedmaster TDS |
| Carrier Material: | Steel |
| Quantity: | Sold individually. |
| Notes: | For 3.73" and down ratios. Use the following: Bearing Part Number: 25590 / Race Part Number: 25523 |
Description
The Torque Worm is a torque biasing 6 pinion gear type limited slip unit. This is a preloaded unit allowing for a faster reacting unit. Unlike our competitors that only use 3 or 4 pinion gears. The use of 6 pinion gears means the stress on gears is spread over a greater surface area, reducing the load on all internal components. The internal components are made from EN36 Material as used in racing such as V8 SUPERCAR. The outer cases made from 8620 Chrome-Nickel-Moly steel and the case hardened for long life and improved strength. The Torque Work unit is available in 28, 31 and 35 spline counts.
Application:
1965-1970 Jeep CJ5 & CJ6
1957-1966 Ford F100 Pickup
1961-1988 Jaguar XKE XJS XK6
Checker Cab & Limousine
Sunbeam Tiger
International Scout 800
2018+ Mahindra Roxor
