Speedmaster®

Ford 302 351C Cleveland 460 - El Rayo DNA® - Distributor Ignition Kit

2 Reviews
MPN: 1-385-004 UPC: 840136502746
Available Extended Warranty Eligible
US $199.00

In Stock - Ships within 24 hrs

Available: 12

Overview

Speedmaster El Rayo distributors are a completely self contained high performance, high output ignition ideal for your hot rod! The "spark plug" type terminals offer secure wire attachment. Under the brass terminals of the cap and rotor is an extremely accurate magnetic pickup that never requires adjustment along with an easy to adjust mechanical advance mechanism.

Specs

Brand:Speedmaster
Part Number:1-385-004
Part Type:Ignition System Combo Kits
Product Line:El Rayo
Advance Type:Mechanical
Ignition Box Included:No
Rev Limiter:No
Ignition Coil Included:Yes
Coil Style:E-core
Distributor Included:Yes
Wiring Harness Included:Yes
Spark Plug Wires Included:No
Spark Plugs Included:No
Quantity:Sold as a kit.

Description

Speedmaster El Rayo ignition system are designed for the enthusiast that is serious about performance but needs the small cap size due to space considerations when installed. They are precision CNC machined from billet 6061-T6 aluminum to exacting tolerances. The "spark plug" type terminals o er secure wire attachment. Under the brass terminals of the cap and rotor is an extremely accurate magnetic pickup that never requires adjustment along with an easy to adjust mechanical advance mechanism. The heavy duty 1/2" steel shaft is guided in a long sintered bushing as well as a sealed ball bearing at the top to precisely locate the reluctor. This combination yields stable timing and spark delivery at any RPM.

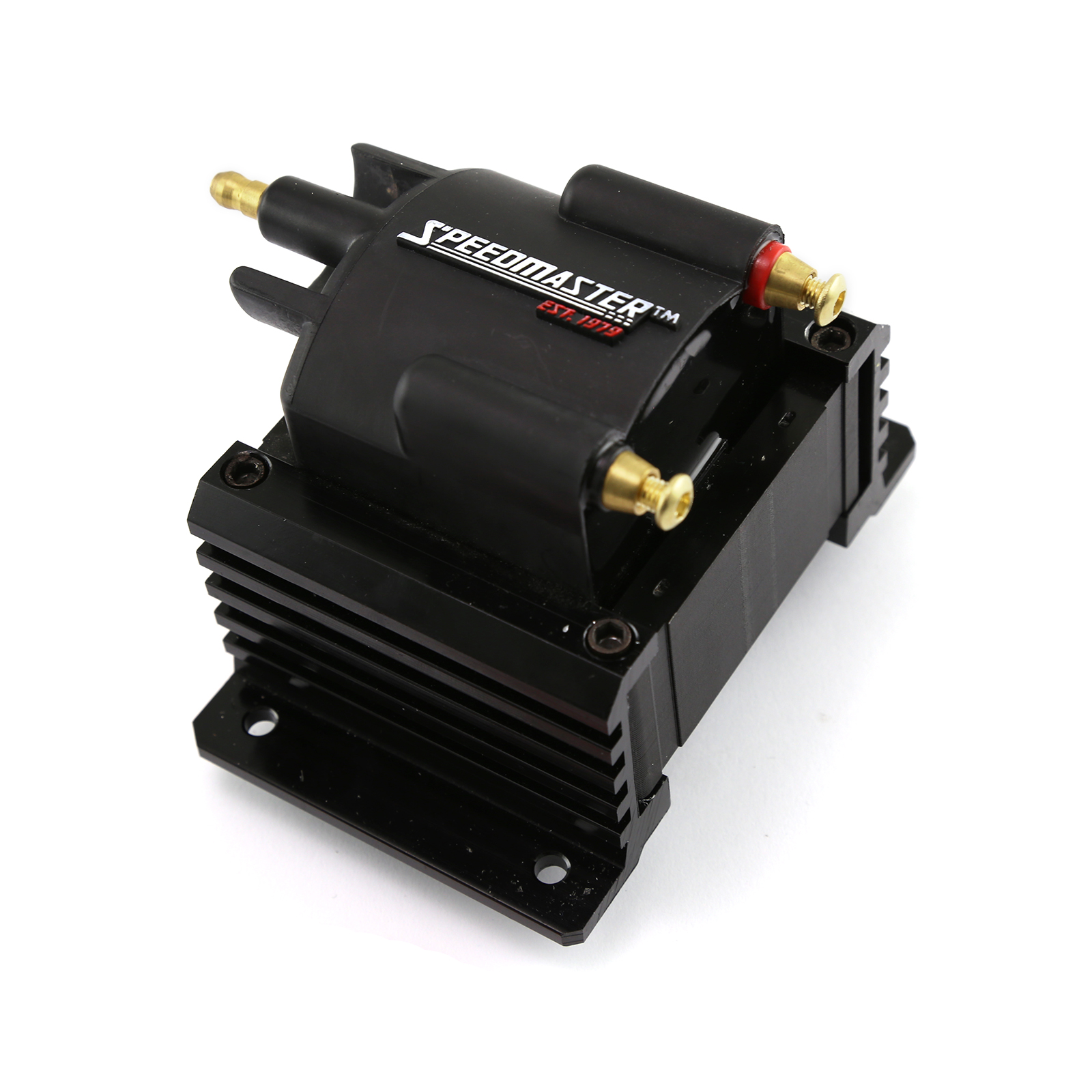

Speedmaster El Rayo high output coil features a very e cient design where less loss occurs during the transfer of electricity due to the closed core of the coil. Another bene t is that the coils run extremely cool, even at high racing rpm, thanks to the e cient design and huge laminations.

Features:
- E cient E-core winding design produces more voltage and current
- 85:1 turns ratio and lower primary resistance produce high voltage output
- Windings are encased in red epoxy and secured with extruded brackets
- Spark plug style terminal and threaded brass primary studs
- Supplied with rubber shock mounts
