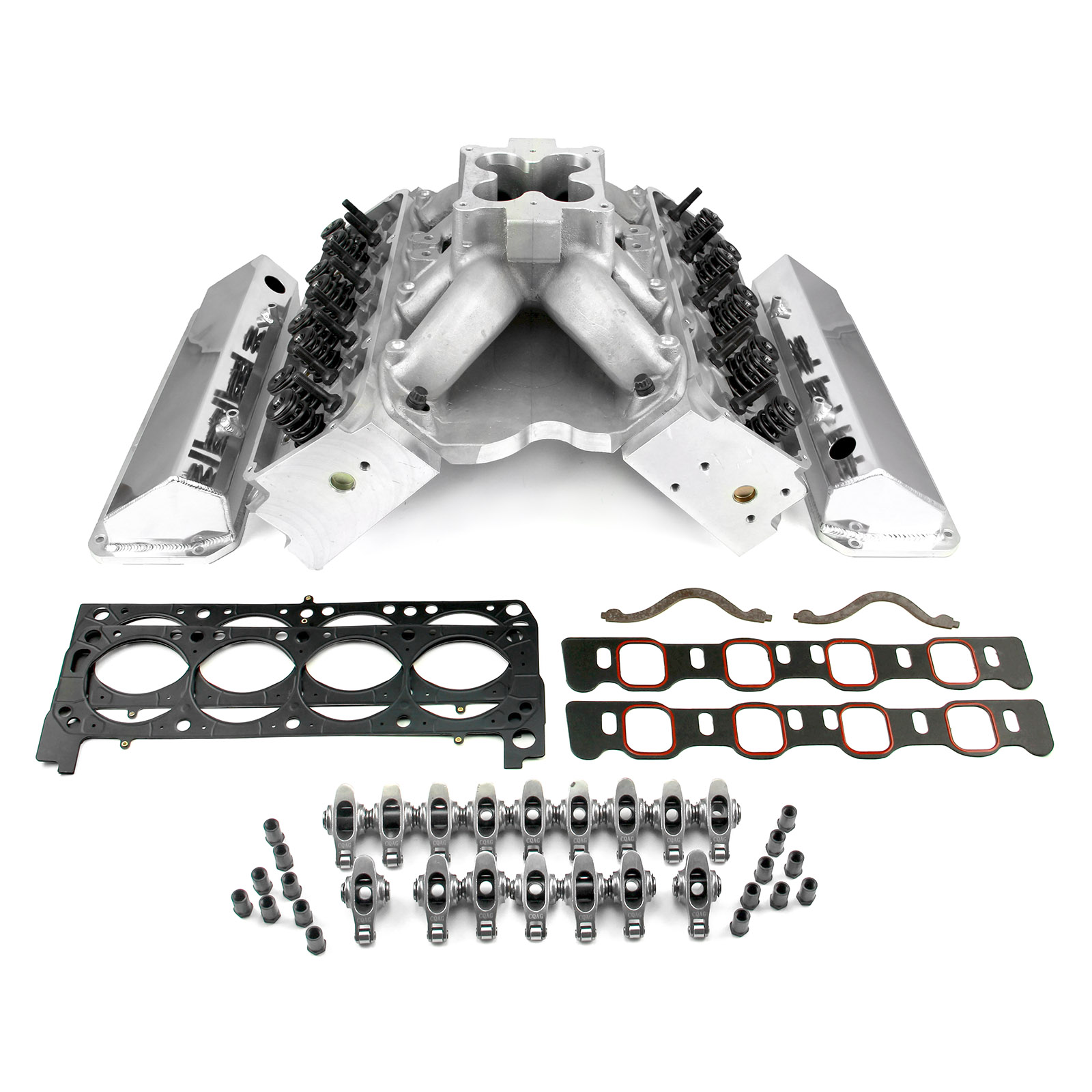

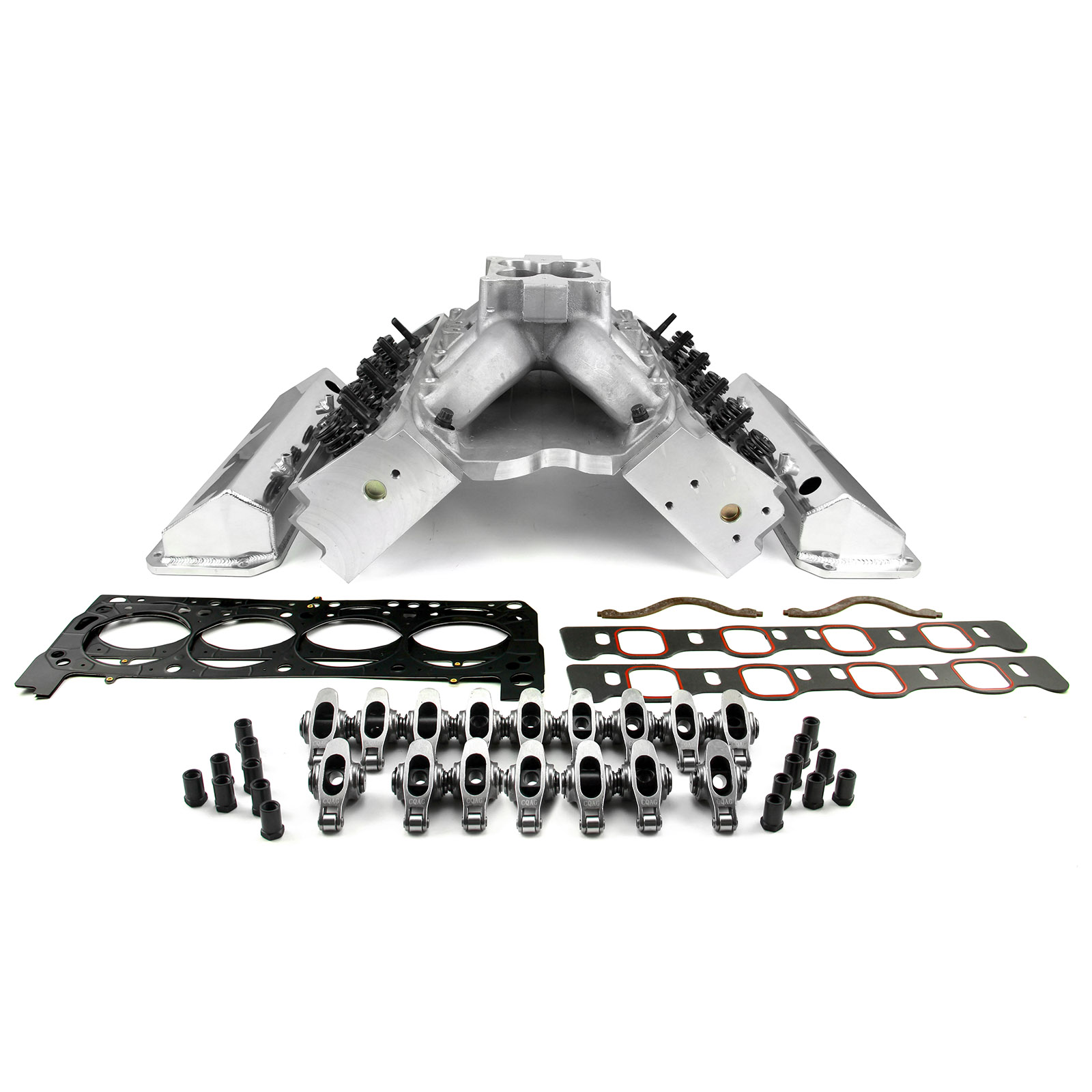

Ford 351W 9.5 Deck Fusion Manifold Hyd FT Cylinder Head Top End Engine Combo Kit

No Reviews yet
MPN: PCE435.1057 UPC: 840136553946
Available Extended Warranty Eligible
US $1,335.00 US $2,225.00
You Save US $890.00 (40%)Single Points Earn 1335 Points Info (outlined)

Build to Order


Part Number:PCE435.1057
Part Type: Cylinder Head Combos
Camshaft Included:No
Intake Manifold Included:Yes(2 Piece)
Fuel Delivery Style:Carbureted
Intake Material:Aluminum
Intake Finish:Satin
Carburetor Quantity:One
Intake Style: Single plane Fusion
Intake Basic Operating RPM Range: 3500-7,500
Intake Manifold Height: 7.500 in.
Intake Manifold Model (descriptive): PCE - Fusion Series
Carburetor Flange: 4500 Series
Timing Chain and Gears Included:No
Lifters Included:No
Gaskets Included:Yes(Head and Intake Only)
Cylinder Head Style: Assembled
Cylinder Head Material:Aluminum
Cylinder Head Finish:Natural
Combustion Chamber Volume (cc):64 cc
CNC-Machined Combustion Chamber:No
Intake Runner Volume (cc):220 cc
CNC-Machined Intake Runner:No
CNC-Machined Exhaust Runner:No
Intake Port Shape: Square
Intake Port Location:3v Raised
Exhaust Port Shape: Square
Exhaust Port Location:Standard
Spark Plug Style:Stock
Comp. Valve Job:No
Intake Valves Included:Yes
Intake Valve Diameter (in):2.190 in.
Exhaust Valves Included:Yes
Exhaust Valve Diameter (in): 1.710 in.
Valve Springs Included:Yes
Damper Spring Included:Yes
Number of Springs Per Valve:Dual
Retainers Included:Yes
Retainer Material:Chromoly steel
Locks Included:Yes
Lock Style:10 degree
Valve Stem Seals Included:Yes
Valve Stem Seal Style:Positive stop
Rocker Arms Included:Yes (Stainless)
Rocker Arm Studs Included:Yes
Rocker Arm Nuts Included:Yes
Rocker Arm Nut Thread Size: 7/16-24 in.
Guideplates Included: Yes
Guideplate Pushrod Size:5/16 in.
Pushrods Included:No
Valve Covers Included:Yes
Valve Cover Material:Fabricated Aluminum
Valve Cover Finish:Polished
Valve Cover Mounting Style:Perimeter Bolt
Accessory Bolt Holes Drilled:n/a
Valve Guides Included:Yes
Valve Guide Material:Bronze
Valve Seats Machined:Yes
Valve Seat Machine Style:3-angle
Valve Seat Material:Ductile iron
Steam Holes Drilled:n/a
Oiling Style:Through pushrod
Machined for O-Ring:No
Heat Crossover:No
Cylinder Head Bolts Included:No
Quantity:Sold as a kit.
Calculator:CFM Calculator
CalculatorCompression Calculator
Notes:Designed for use with hydraulic flat tappet camshafts less than .600 in. lift. Requires use of hardened pushrods.This kit is designed to use our 351C heads with your Windsor block.
