Speedmaster®

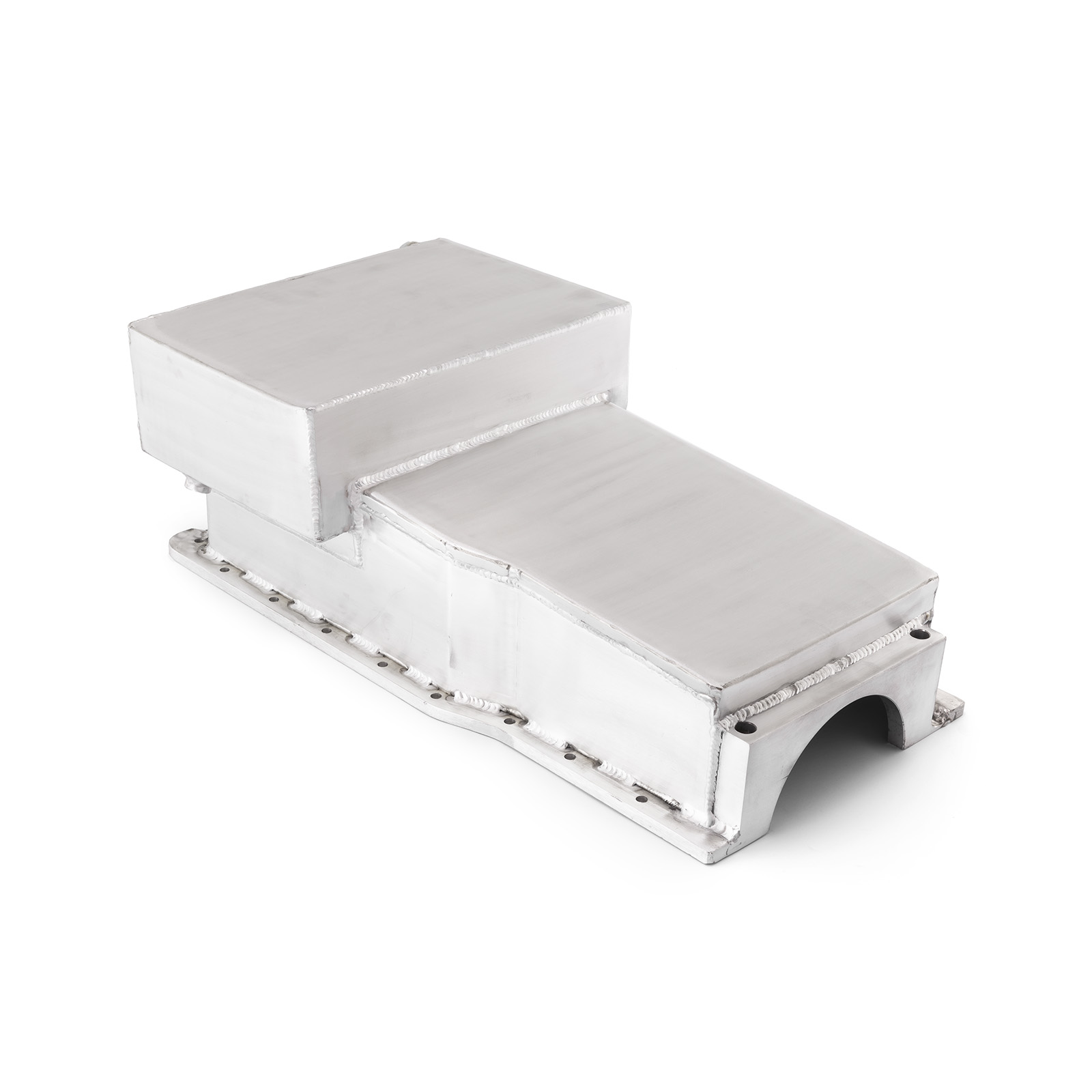

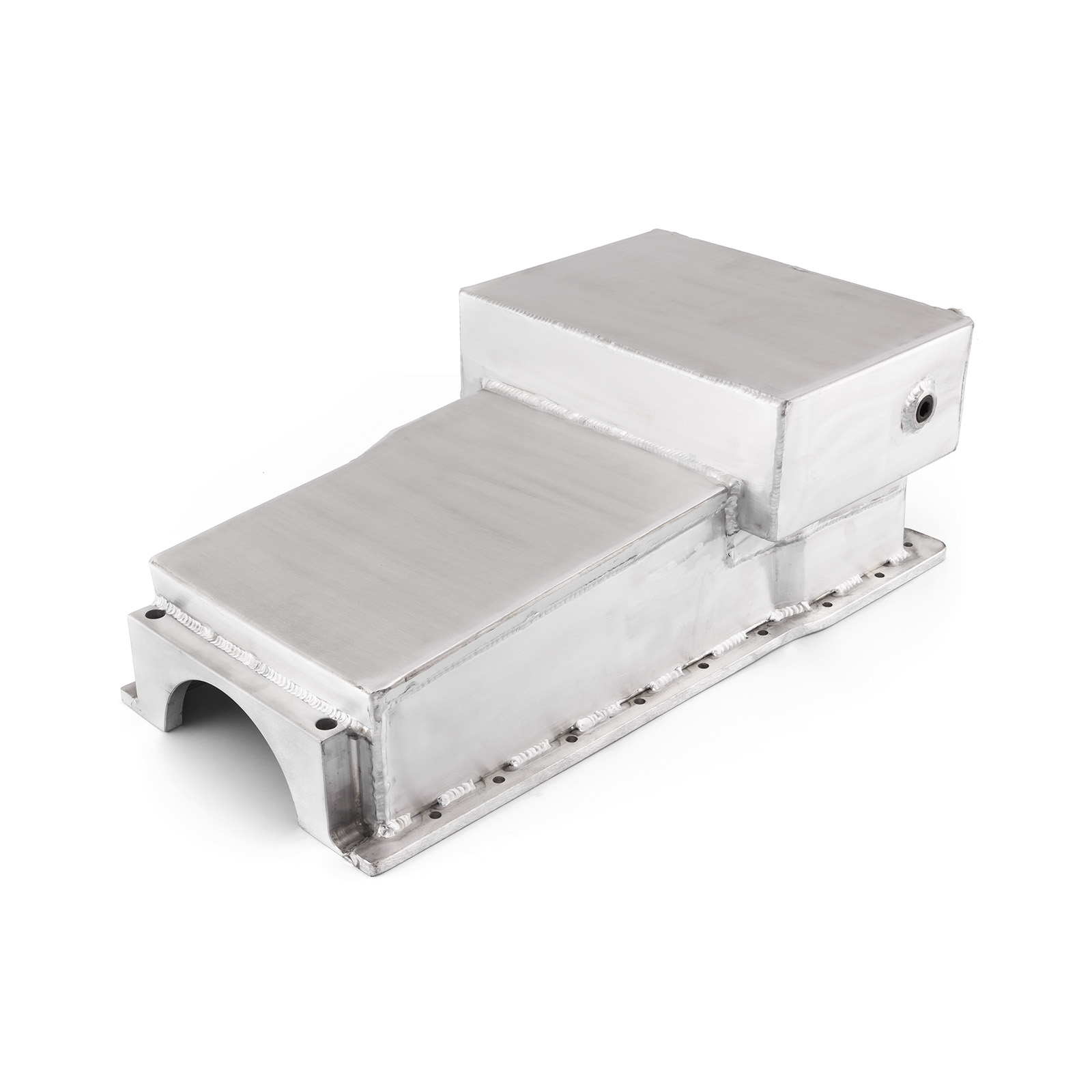

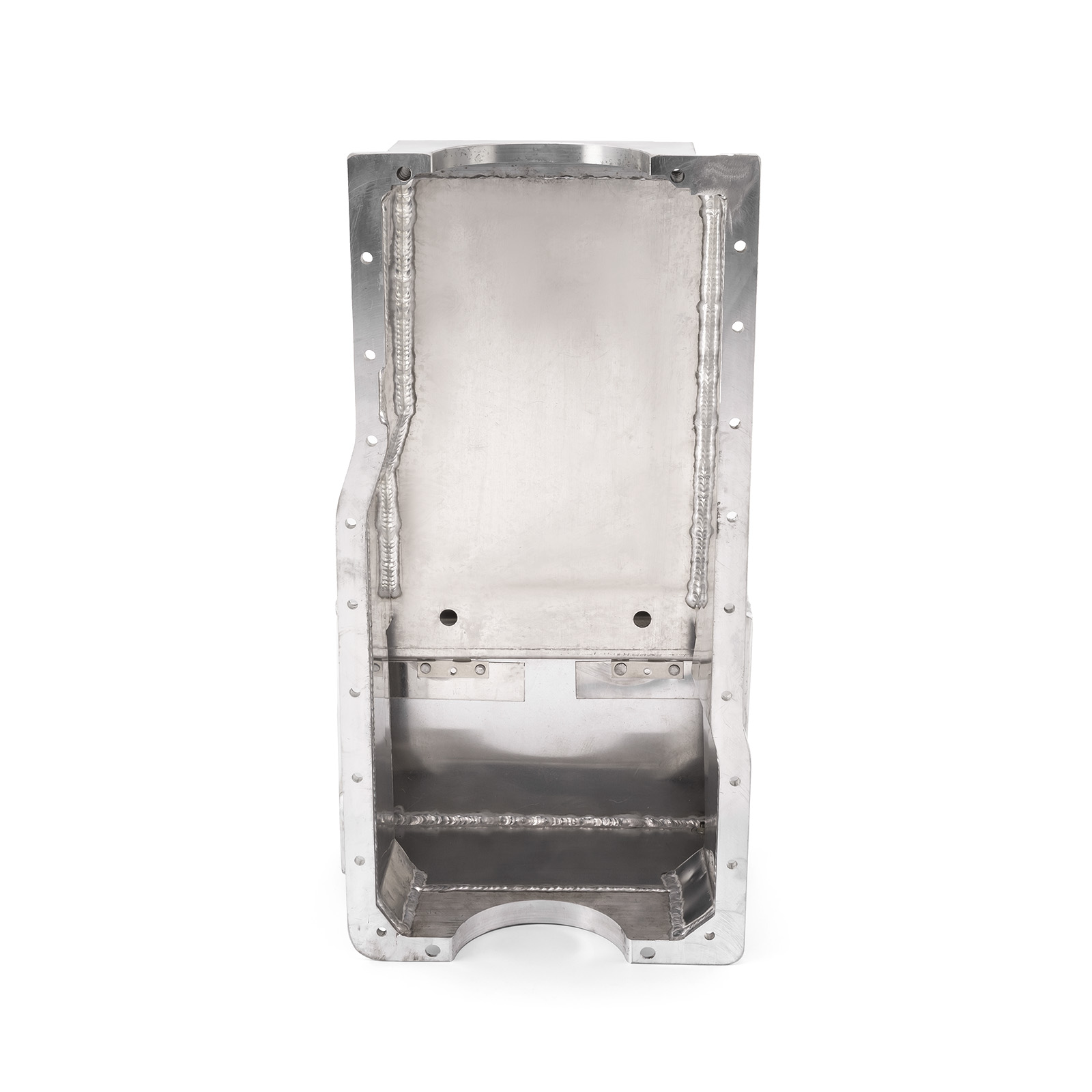

Ford 351W Windsor 7Qt Fabricated Drag Front Sump Oil Pan SVO & DART Block
Product Information
Overview
The oil pan serves as the reservoir for the engine's oil. It is designed to hold the amount of oil that is needed to lubricate the engine when it is running, plus a reserve.The oil pan helps to cool the oil thru its contact with the outside air. Dress up your oil system with a oil pan from PCE.
Specs
| Brand: | Speedmaster |
| Part Number: | PCE300.1076.01 |
| Part Type: | Oil Pans, Individual |
| Sump Location: | Front |
| Stroker Clearanced: | Yes |
| Maximum Stroke with OE Rod: | 4.000 in. |
| Sump Style: | Wet |
| Oil Pan Capacity: | 7 quarts |
| Oil Pan Depth (in): | 8.000 in. |
| Oil Pan Material: | Aluminium |
| Oil Pan Finish: | Natural |
| Baffled: | Yes |
| Dipstick Provision: | No |
| Windage Tray Included: | Yes |
| Pickup Included: | No |
| Gaskets Included: | No |
| Hardware Included: | No |
| Quantity: | Sold individually. |
| Notes: | Use pick up Part # PCE302.1009 This pan will fit SVO and DART blocks with (5) 4-Bolt Mains. |
Warranty Information
12-Month Limited Worldwide Warranty
Prop 65 Warning
This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
