Speedmaster®

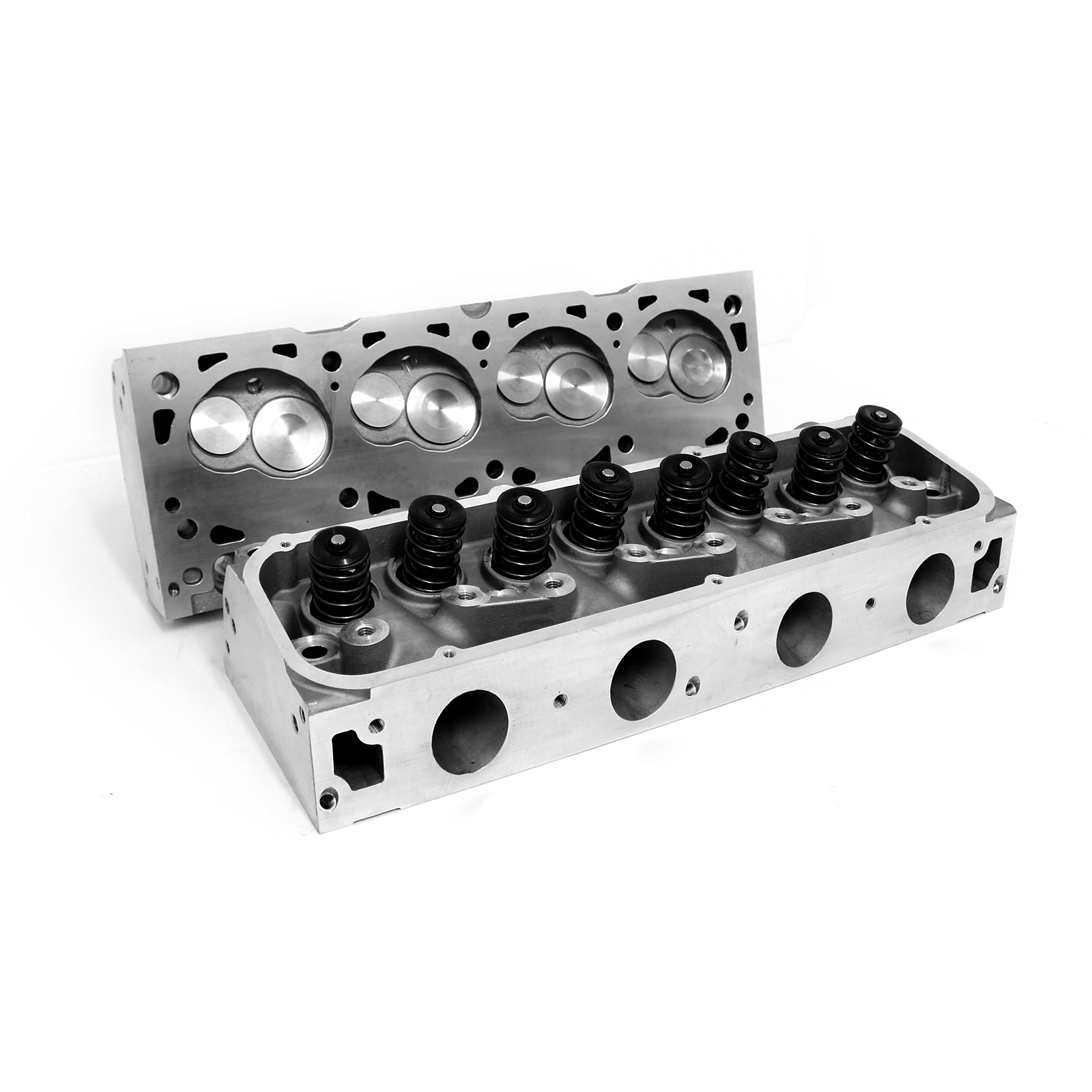

Ford 429 460 275cc 95cc Hydraulic Flat Assembled Cylinder Heads
Specs
| Brand: | Speedmaster |
| Part Number: | PCE281.2075 |
| Part Type: | Cylinder Heads |
| Cylinder Head Style: | Assembled |
| Cylinder Head Material: | Aluminum |
| Cylinder Head Finish: | Natural |
| Combustion Chamber Volume (cc): | 95 cc |
| CNC-Machined Combustion Chamber: | No |
| Intake Runner Volume (cc): | 275 cc |
| Exhaust Runner Volume (cc): | 90cc |
| CNC-Machined Intake Runner: | No |
| CNC-Machined Exhaust Runner: | No |
| Intake Port Shape: | Round |
| Intake Port Location: | Standard |
| Exhaust Port Shape: | Square |
| Exhaust Port Location: | Standard |
| Spark Plug Style: | Standard |
| Comp. Valve Job: | No |
| Intake Valves Included: | Yes |
| Intake Valve Diameter (in): | 2.190 in. |
| Exhaust Valves Included: | Yes |
| Exhaust Valve Diameter (in): | 1.710 in. |
| Valve Springs Included: | Yes |
| Maximum Valve Lift (in): | 0.600 in. |
| Outside Diameter of Outer Spring (in): | 1.550 in. |
| Damper Spring Included: | Yes |
| Number of Springs Per Valve: | Dual |
| Retainers Included: | Yes |
| Retainer Material: | Chromoly steel |
| Locks Included: | Yes |
| Lock Style: | 10 degree |
| Valve Stem Seals Included: | Yes |
| Valve Stem Seal Style: | Positive stop |
| Rocker Arm Studs Included: | No |
| Rocker Arms Included: | No |
| Rocker Arm Nuts Included: | No |
| Guideplates Included: | No |
| Valve Cover Mounting Style: | Perimeter Bolt |
| Accessory Bolt Holes Drilled: | Yes |
| Intake Valve Angle: | Std |
| Exhaust Valve Angle: | Std |
| Valve Guides Included: | Yes |
| Valve Guide Material: | Bronze |
| Valve Seats Machined: | Yes |
| Valve Seat Machine Style: | 3-angle |
| Valve Seat Material: | Ductile iron |
| Steam Holes Drilled: | No |
| Oiling Style: | Through pushrod |
| Machined for O-Ring: | No |
| Heat Crossover: | No |
| Quantity: | Sold as an assembled pair. |
| Calculator | Compression Calculator |
Description
Assembly Specifications
Max Lift: .600
Coil Bind: .900
Intake Install: 130lbs @ 1.9
Exhaust Install: 130lbs @ 1.9
Closed Sear Pressure: 130lbs
Open Seat Pressure: 300lbs
One of the best upgrades to your Big Block Ford engine is the replacement of your cast iron head to a better performing and lighter aluminum head. How great is it that you can now do it at a price that's affordable. Our line of Big Block Ford performance heads have proven themselves time and time again both on the track and on the dyno, not to mention countless features in performance magazine articles. We offer Big block ford cylinder heads for a wide range of displacement applications. With bigger displacement engines becoming more common, the need for more airflow is necessary. If you are looking to build a 400-700 horsepower engine then you should consider Speedmaster Aluminum cylinder heads. Like the rest of our performance heads we use our "’Gravity Die Cast"“ process. This casting process creates a much more uniform and robust cylinder head. They also offer a smaller cross section to increase the incoming air"•s velocity resulting in improved drivability, power and economy. We have them available in as cast for the mild street applications and in Fully CNC machined for the serious enthusiast. Speedmaster CNC ported cylinder heads are machined on a dedicated 5 axis CNC machining centers to ensure accuracy and cost effectiveness. Combustion chamber, exhaust and intake ports are fully CNC machined for better flow. CNC combustion chambers offer superior control over flame travel and quench area. CNC ported heads eliminate human error and variation from port to port.
Intake / Exhaust Gaskets
Our Big Block Ford cylinder heads are designed to use Ford Cobra Jet manifolds and headers. Due to the diameter of the intake ports, you can"t use a standard Ford 460 intake manifold gasket. We recommend that you use Speedmaster" PCE349.1009 intake gaskets. If you prefer Fel-Pro, use their pn#1231 gaskets.
For the exhaust side, use speedmaster" PCE355.1009 or Fel-Pro pn# 1420. The Fel-Pro pn# 1420 is a paper gasket.
Head Gaskets
These heads use the same head gaskets as an OEM Ford Cobra Jet head. Because we don"t currently make our own head gaskets for this family of engines (385 series), we recommend that you use Fel-Pro pn# 1018 on engines under 4.500" bore.
Check back often as we are currently developing a MLS head gasket to meet the needs of serious Ford performance junkies.
Head Bolts / Studs
As you are probably aware, the factory head bolts are 9 / 16" diameter on BBF engines. The torque value on 9 / 16" head bolts or head studs is 145lbs with high pressure moly lube. Start with 70lbs and tighten the head down in 25lb increments until you reach 145lbs.
The part number for the Ford 460 Speedmaster" Head Stud Kit is PCE279.1015. Fel-Pro makes both head bolt kits and head stud kits, their part number for the head bolt kit is 155 - 4203 and the stud kit is 255 - 3701 SPARK PLUGS
Spark Plugs
Our Big Block Ford cylinder heads require the use of a 14mm thread 5 / 8" hex, .750" reach spark plugs. Below you will find a list of some plugs that fit and work with our heads:
NGK - BCPR6ES, R5671A-7, R5671A-8
Autolite - 3923, 3924, AR3933, AR3934
Champion - RC12YC, RC10YC4, RC9YC3
Remember that you need a COLDER plug when you make more power. i.e N2O, turbo and supercharging
