Speedmaster®

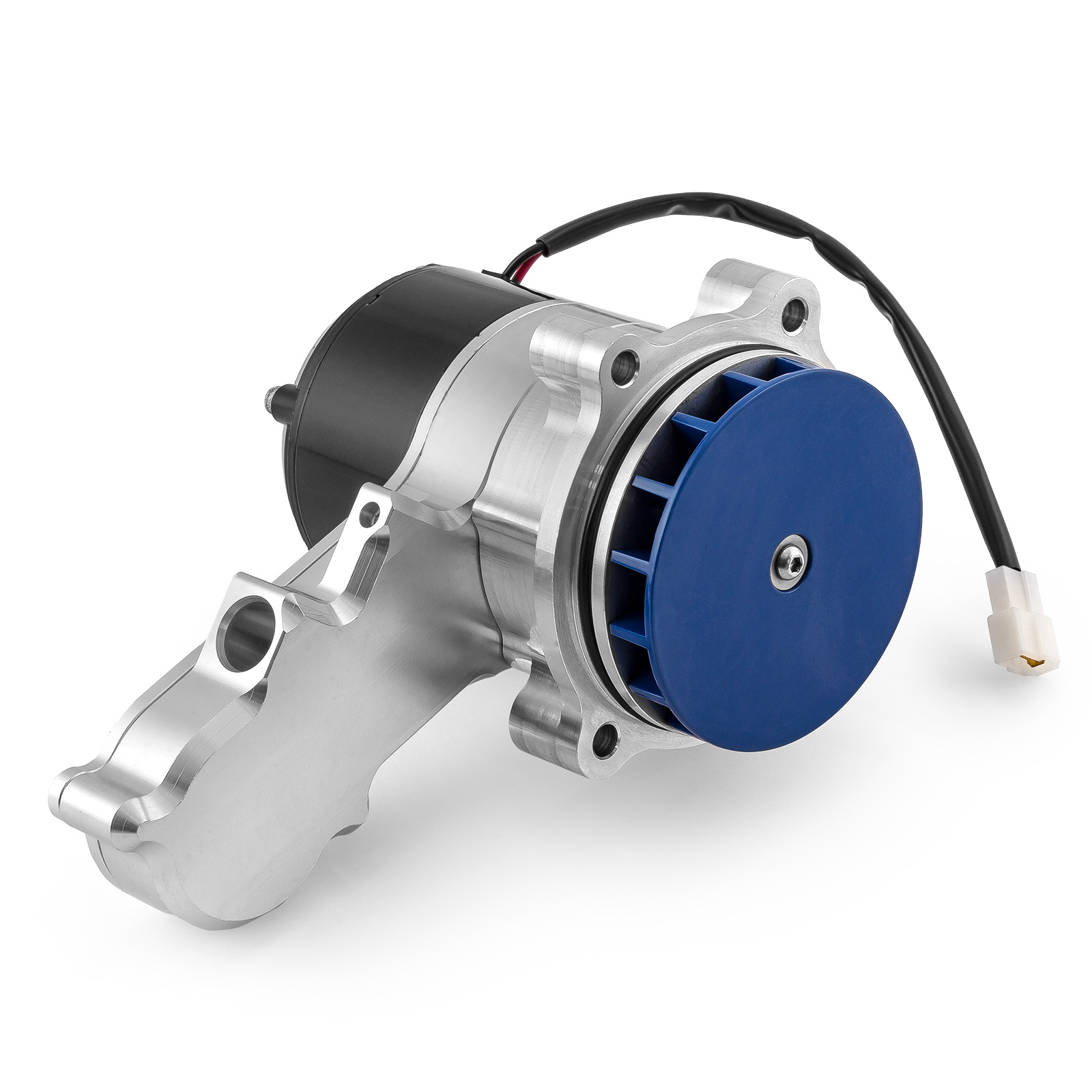

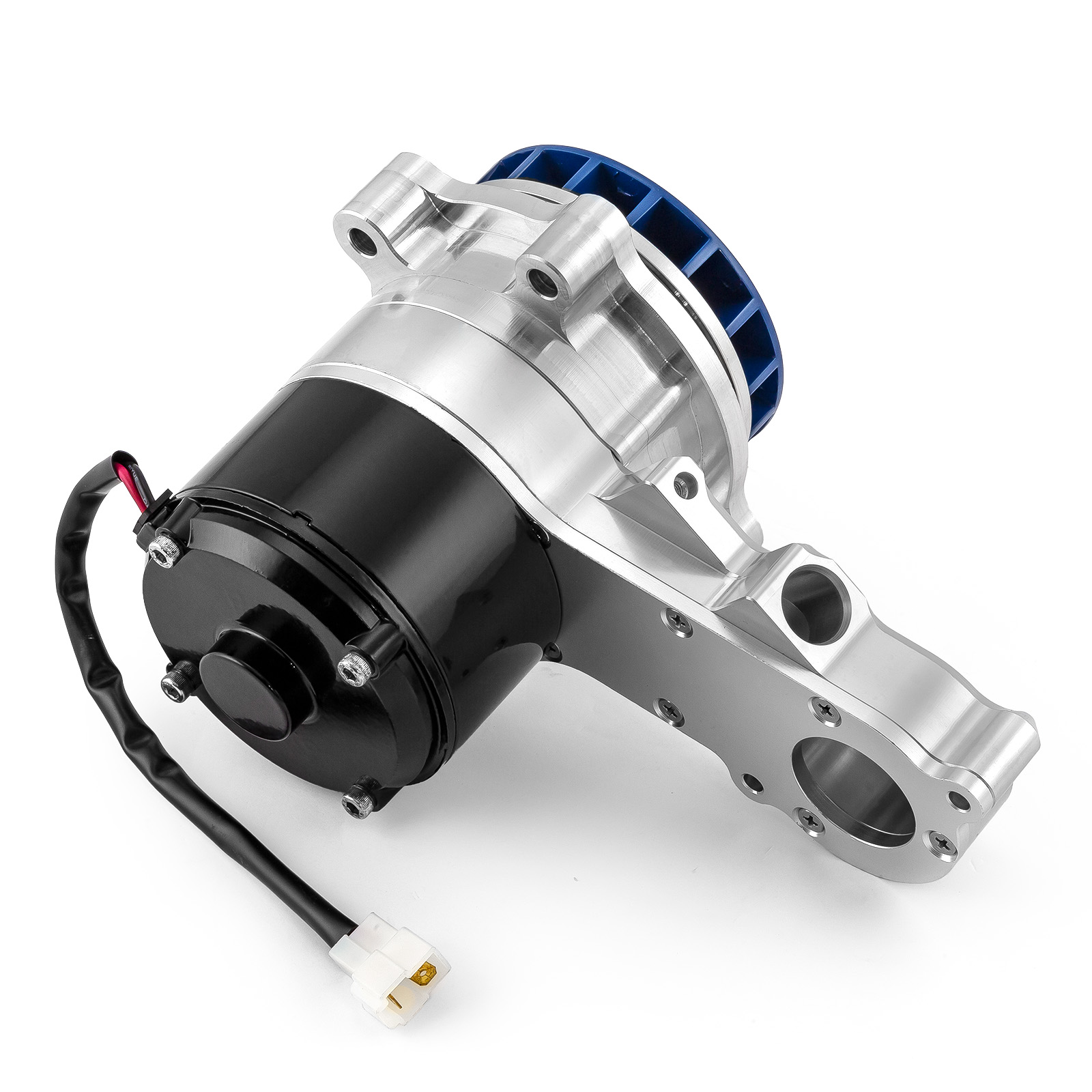

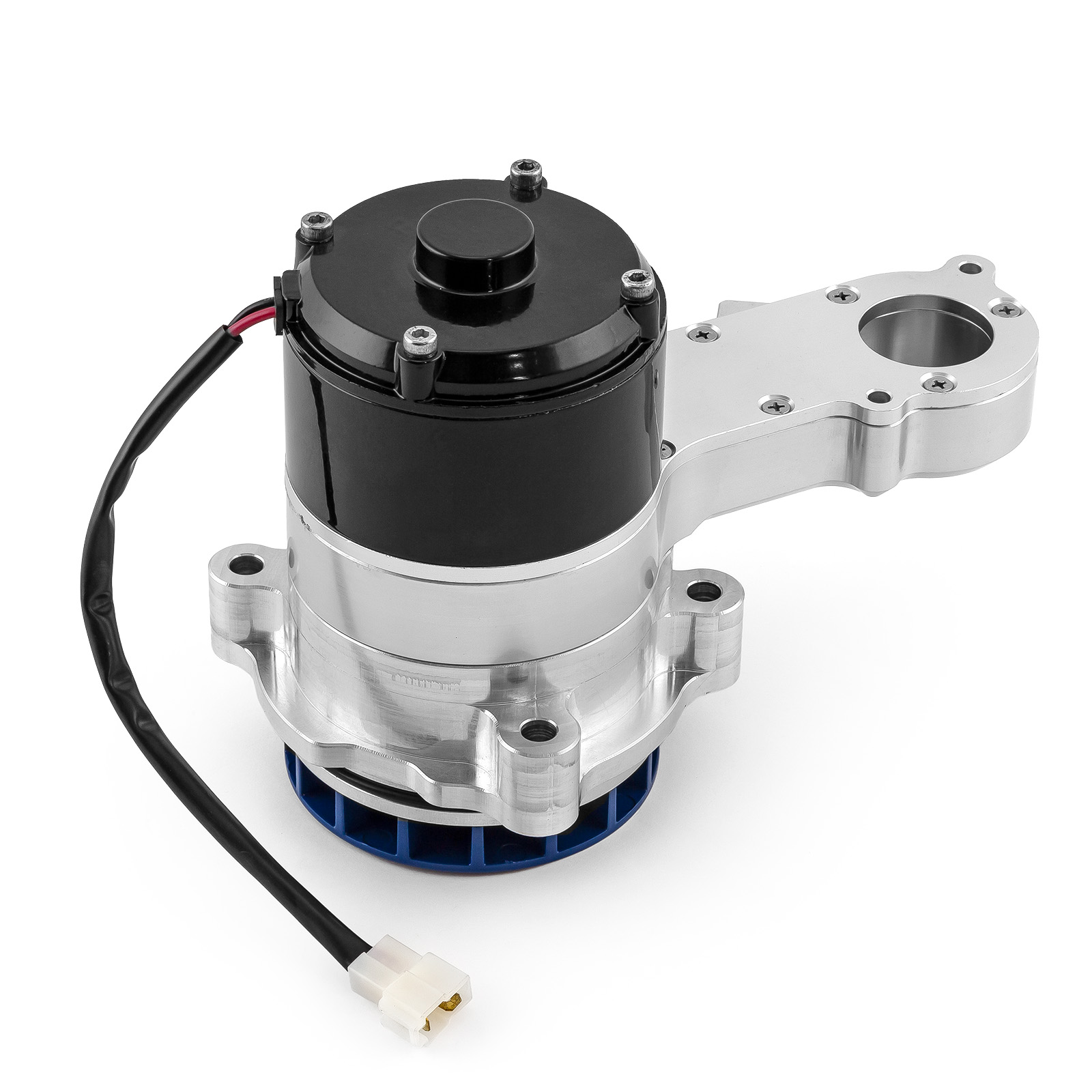

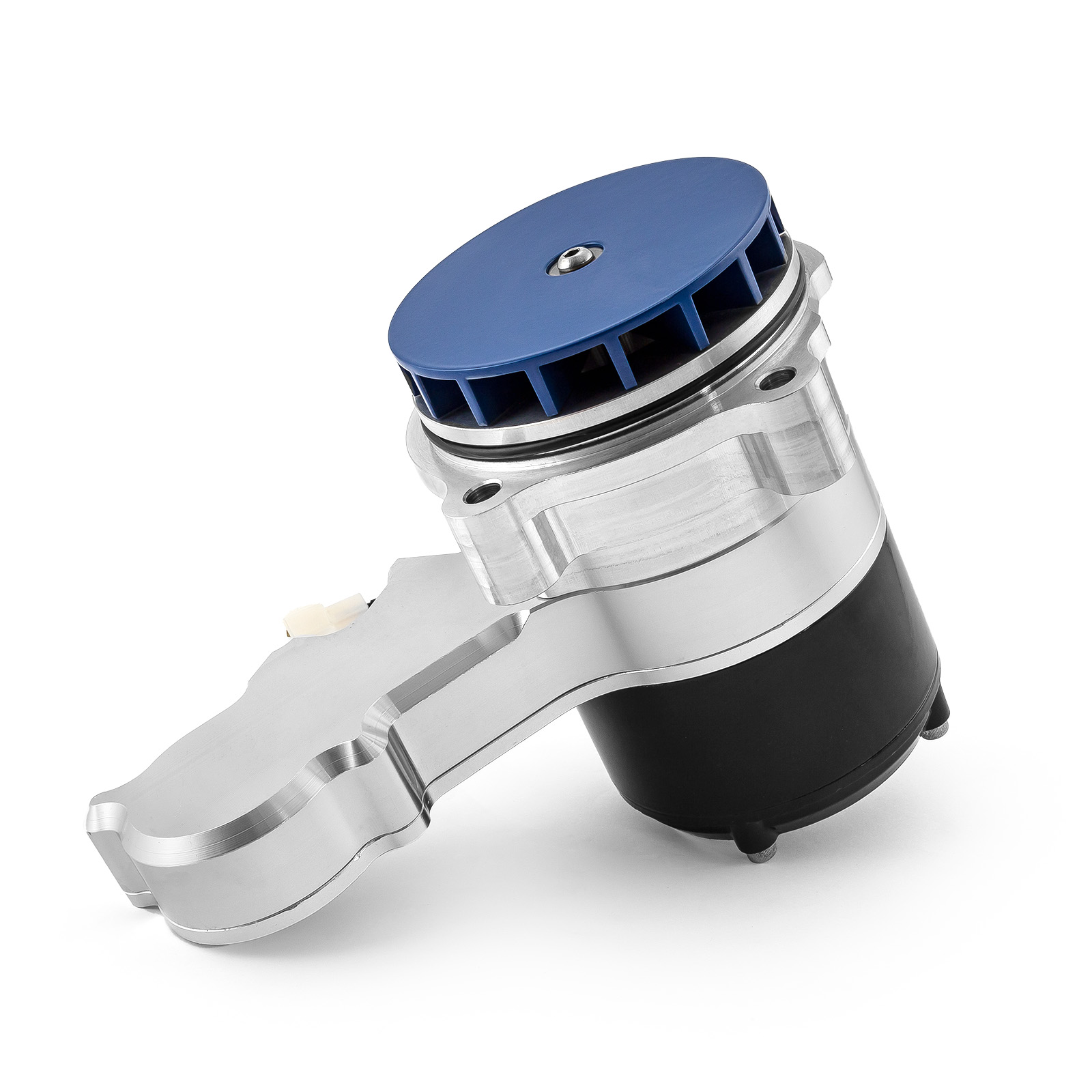

Ford 5.0L Coyote Billet Aluminum Electric Water Pump
Product Information
Specs
| Brand: | Speedmaster |
| Part Number: | PCE194.1028 |
| Part Type: | Water Pumps, Electrical |
| Pump Material: | Aluminum |
| Pump Finish: | Black/ Natural |
| Flow Rate @ 12 Volts (gpm): | 55 GPM |
| Hose Adapter Required: | No |
| Hose Adapter Included: | No |
| Hose Adapter Thread Size: | N/A |
| Inlet Hose Size: | N/A |
| Inlet Hose Attachment: | N/A |
| Overall Depth (in): | 5.200 in. |
| Amp Draw: | 11 amps |
| Weight: | 7.200 lbs. |
| Quantity: | Sold individually. |
| Notes: | Accepts all stock connections. |
Description
Speedmaster electric water pumps eliminate unnecessary weight and impeller drag experienced at high RPM. These durable but light weight aluminum pumps push up to 60 gallons of water per minute of coolant circulation, Speedmaster electric water pumps give you the flow that you need, without costing you horsepower. CNC-machined from T-6 aluminum, these lightweight pumps have a direct-drive 12 V motor, spinning a redesigned impeller on a stainless steel shaft. Speedmaster pumps draw just 5.8 amps. Because they don't run off of your crank, they won't eat up race-winning horsepower. Other features include availability in several colors, superior RFI suppression, and a removable center section for cam adjustment or replacement.
