Speedmaster®

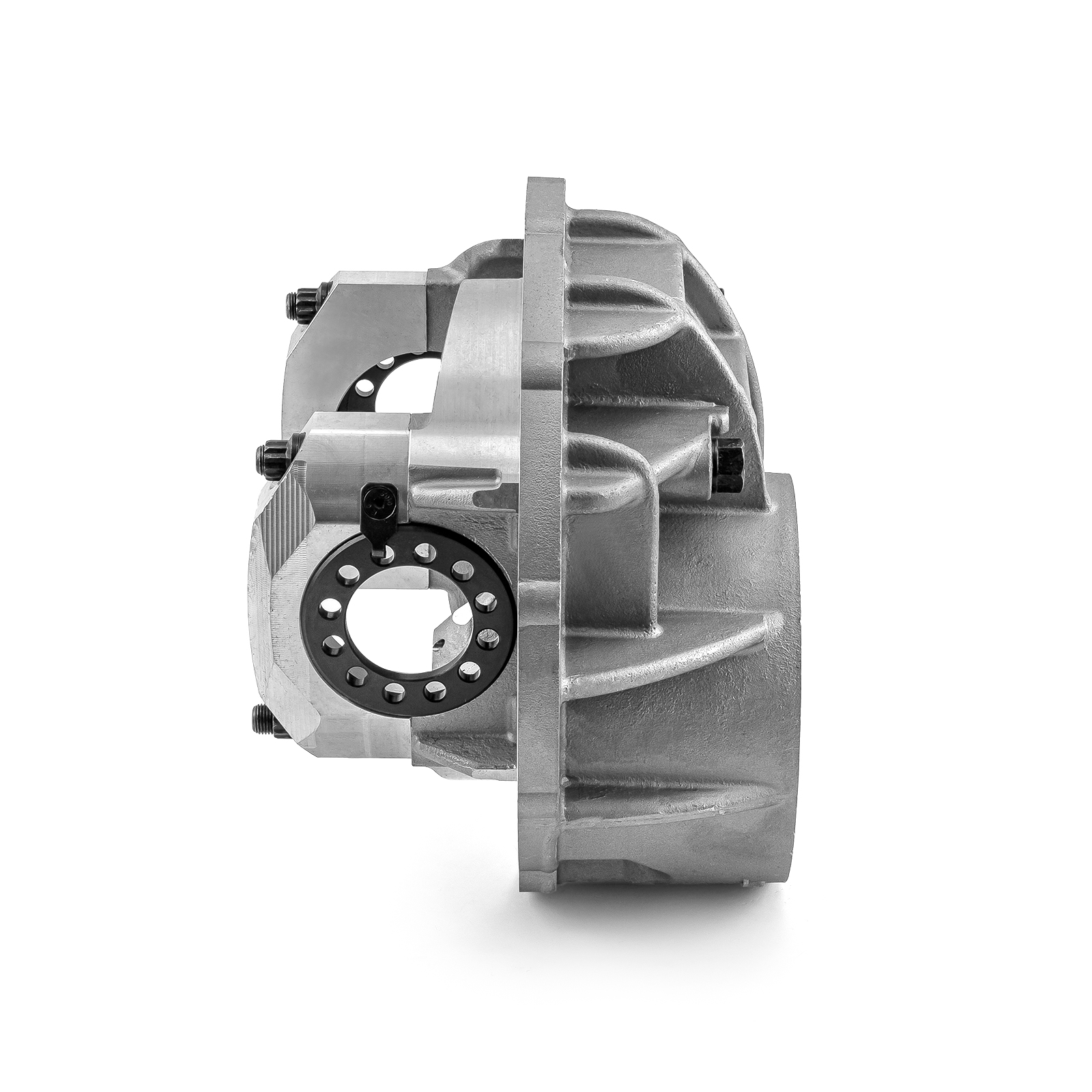

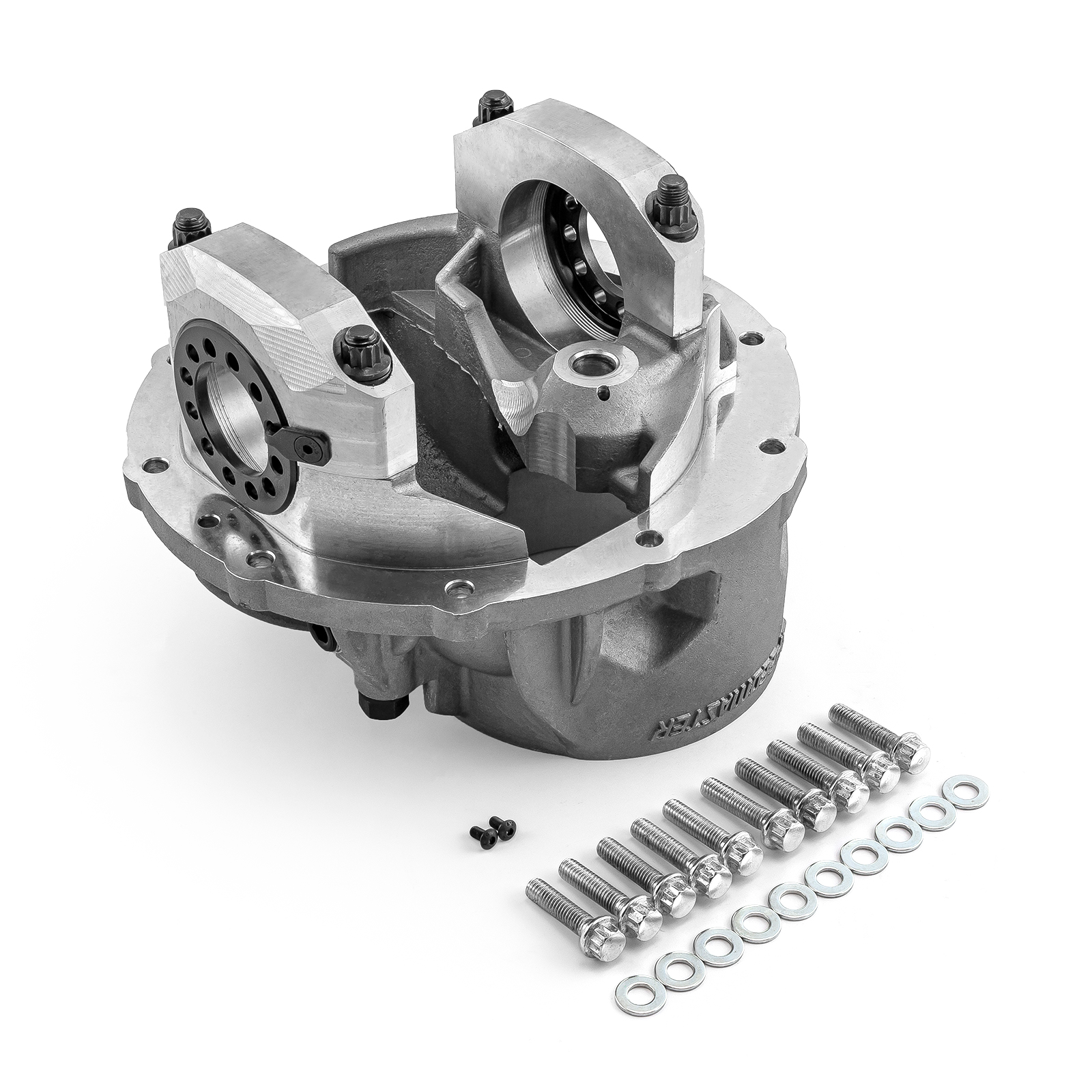

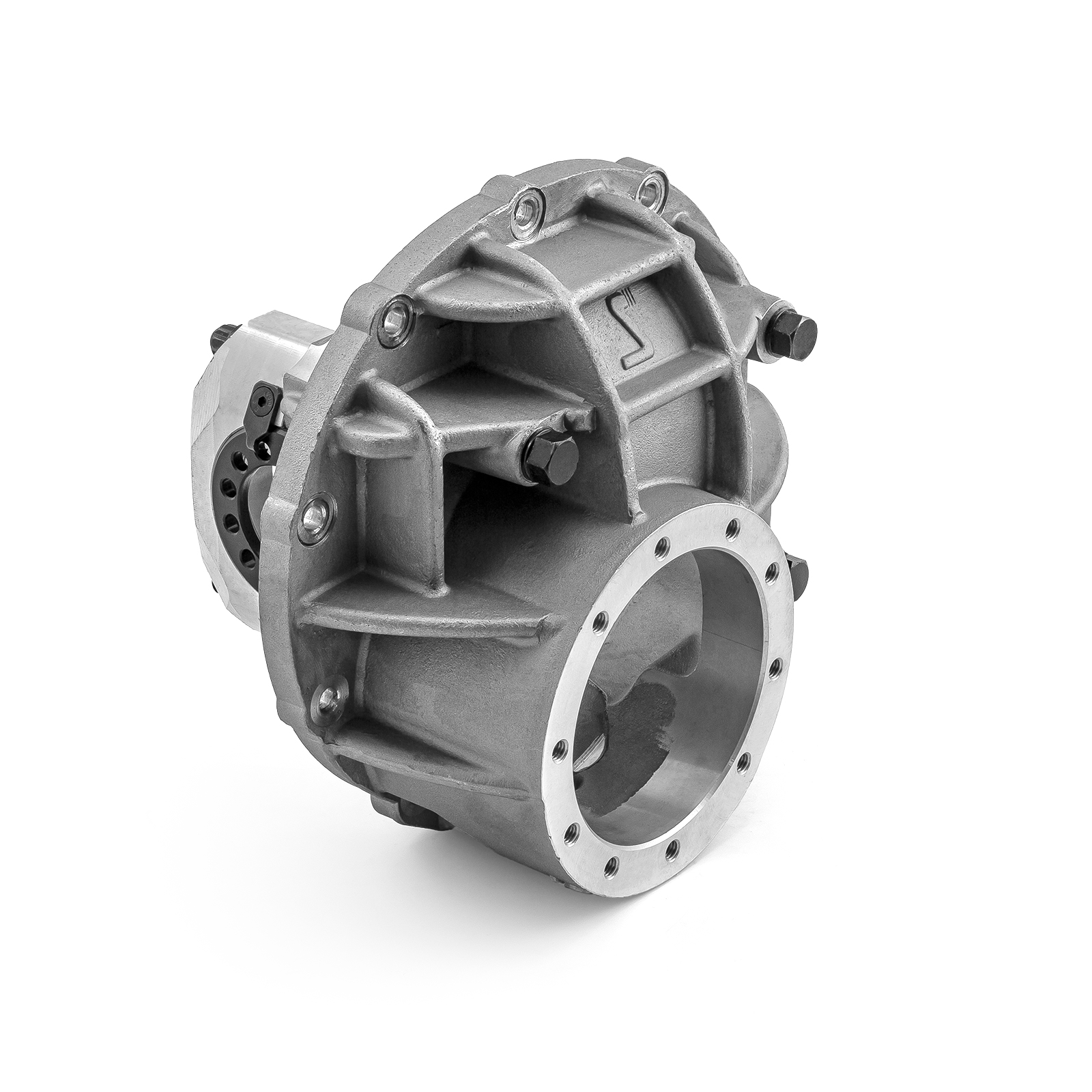

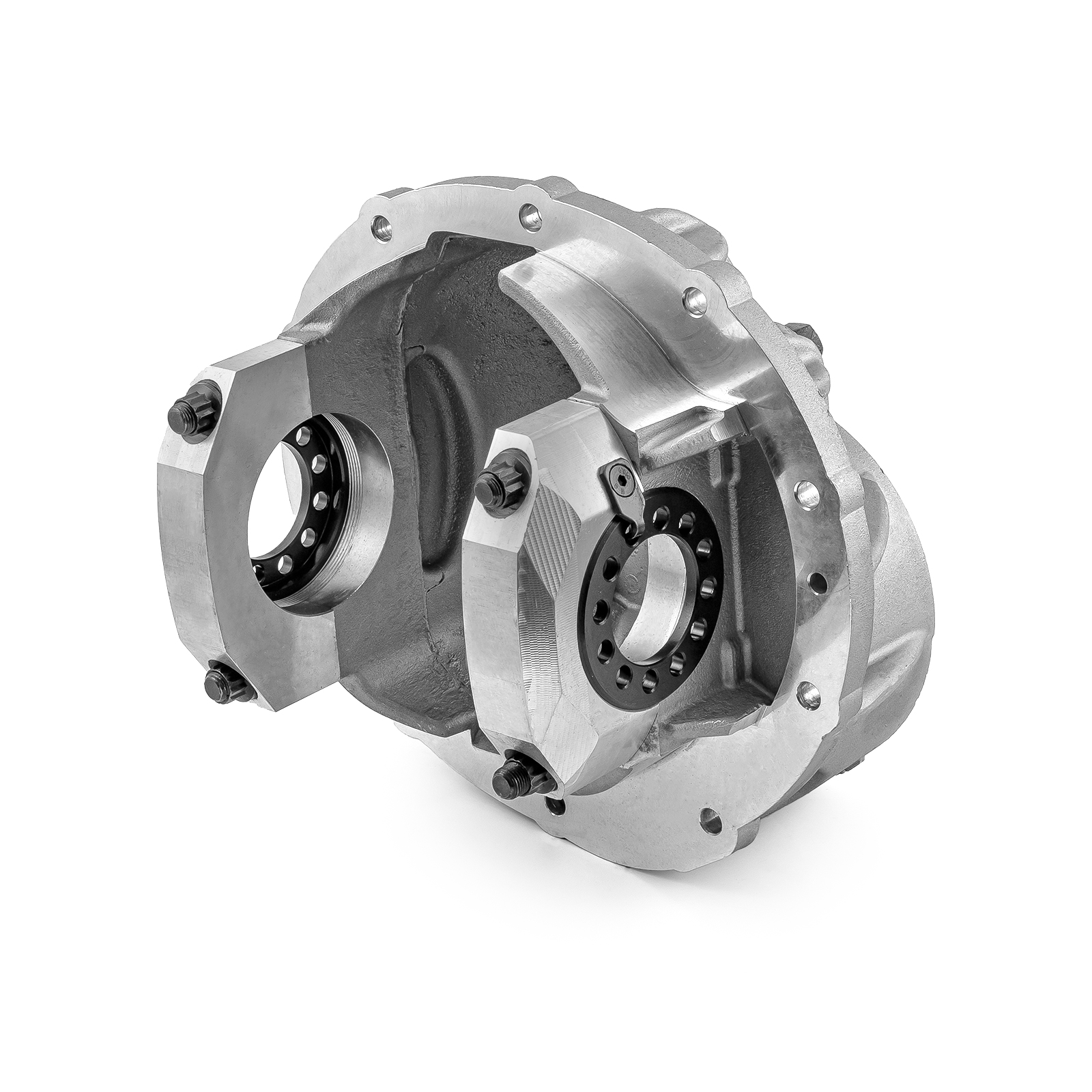

Ford 9" 3.25" HD Standard Nose Aluminum Case Drop Out
Product Information
Overview
Speedmaster Aluminum Dropouts are in improvement from the past. Current technology has made aluminum products stronger and more durable. Our aluminum cases are made from 356 T6 aluminum, our bearing caps are from one-piece billet, with a through bolt design and extra material is added to the bearing caps. This results in 50% less deflection that can occur with other units on the market.
Specs
| Brand: | Speedmaster |
| Part Number: | 1-214-001 |
| Part Type: | Third Member Case Only |
| Case Style: | Ford 9" |
| Case Material: | Aluminum |
| Main Caps Included: | Yes |
| Main Cap Material: | 7075-T6 Billet Aluminum |
| Main Cap Retention Style: | Thru Bolt |
| Carrier Bearing Diameter (in): | 3.250 in. |
| Pinion Support Included: | No |
| Pinion Support Bolt Quantity: | 10 |
| Standard Pinion Location: | Yes |
| Hardware Included: | Yes |
| Ring Gear Load Bolt: | No |
| Quantity: | Sold individually. |
| Notes: | Fits all 9" Ford Diffs. Can use standard and Aftermarket pinion Supports of 5 or 10 bolt design.Clearance for Ratio's above 5.14 Required. |
Description
Warranty Information
12-Month Limited Worldwide Warranty
