Speedmaster®

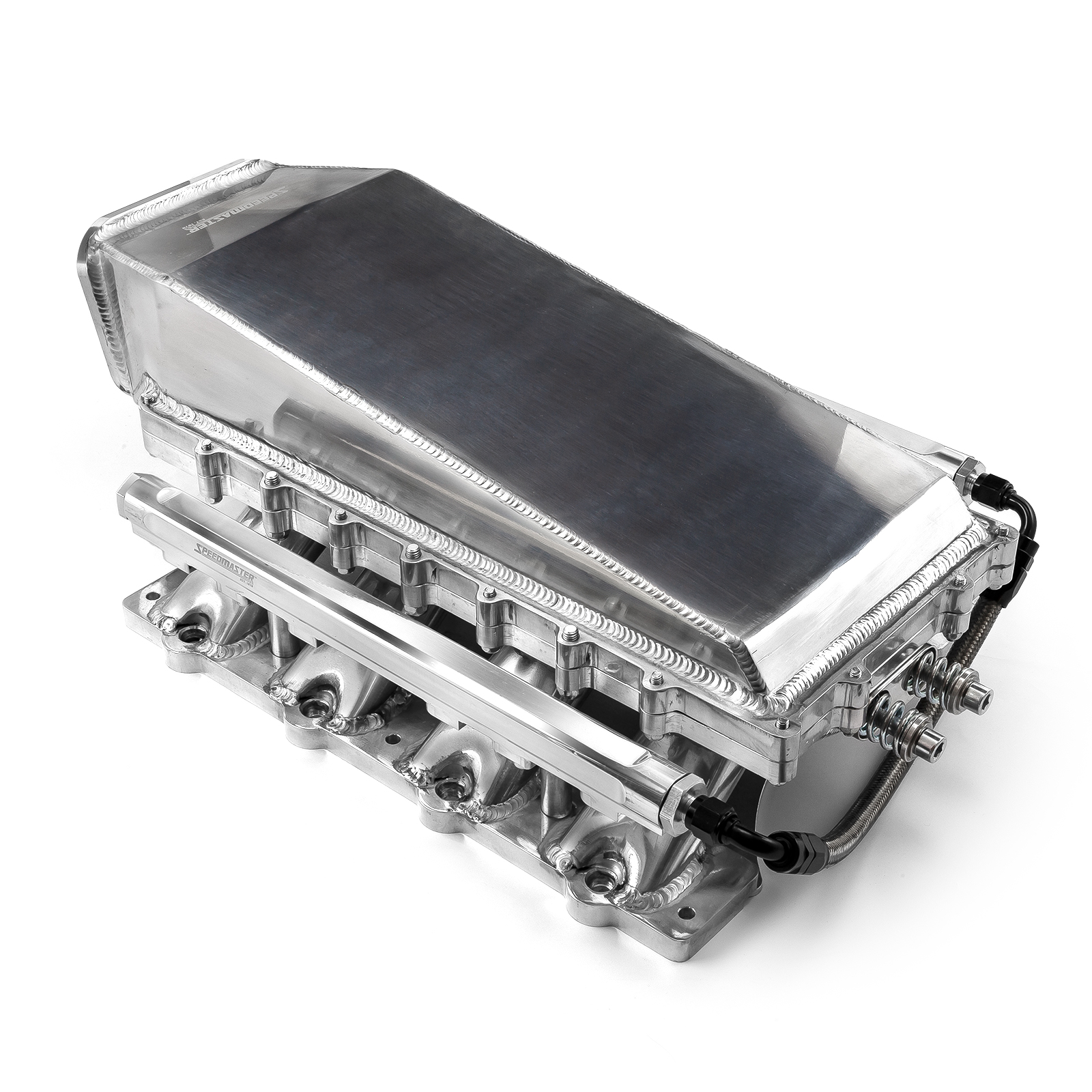

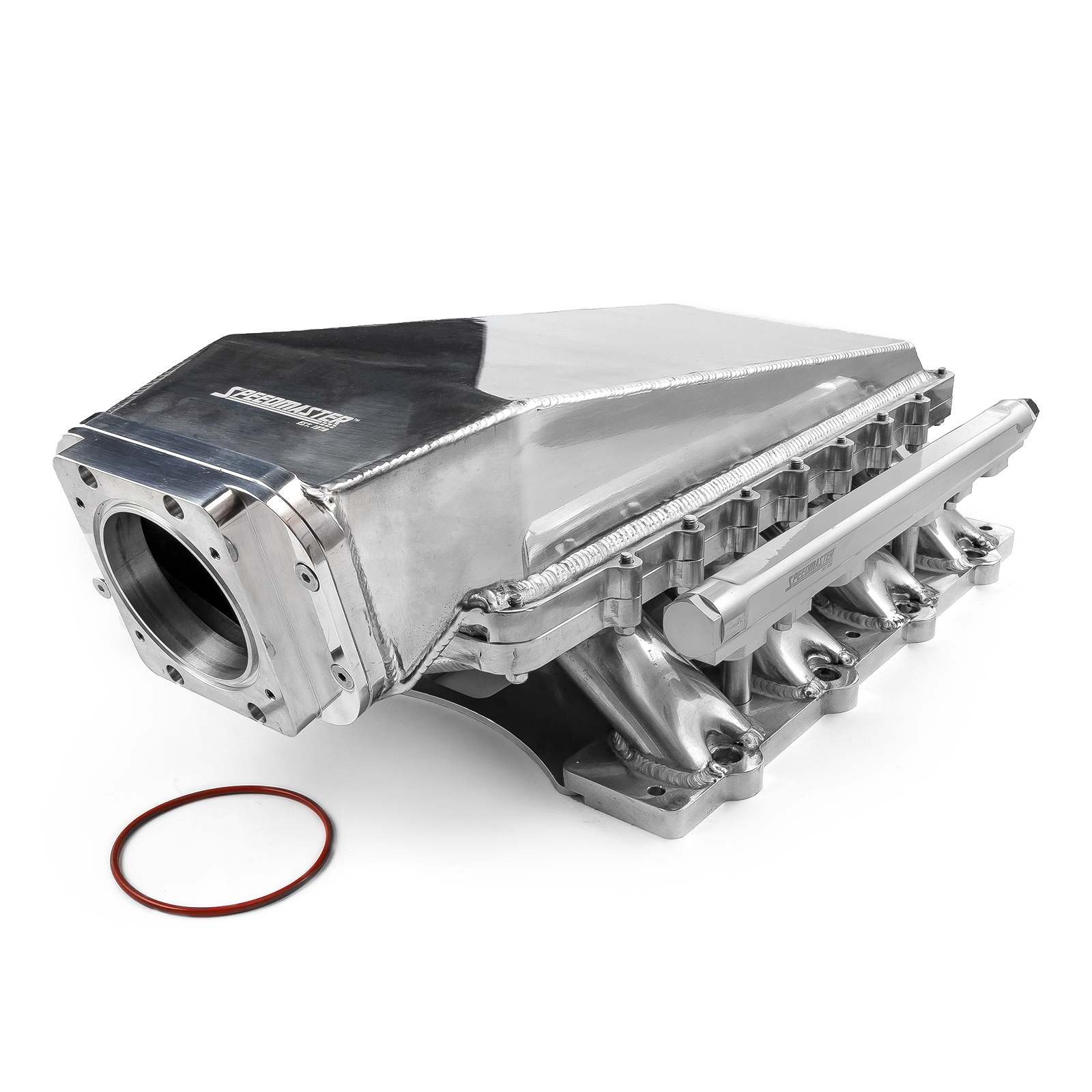

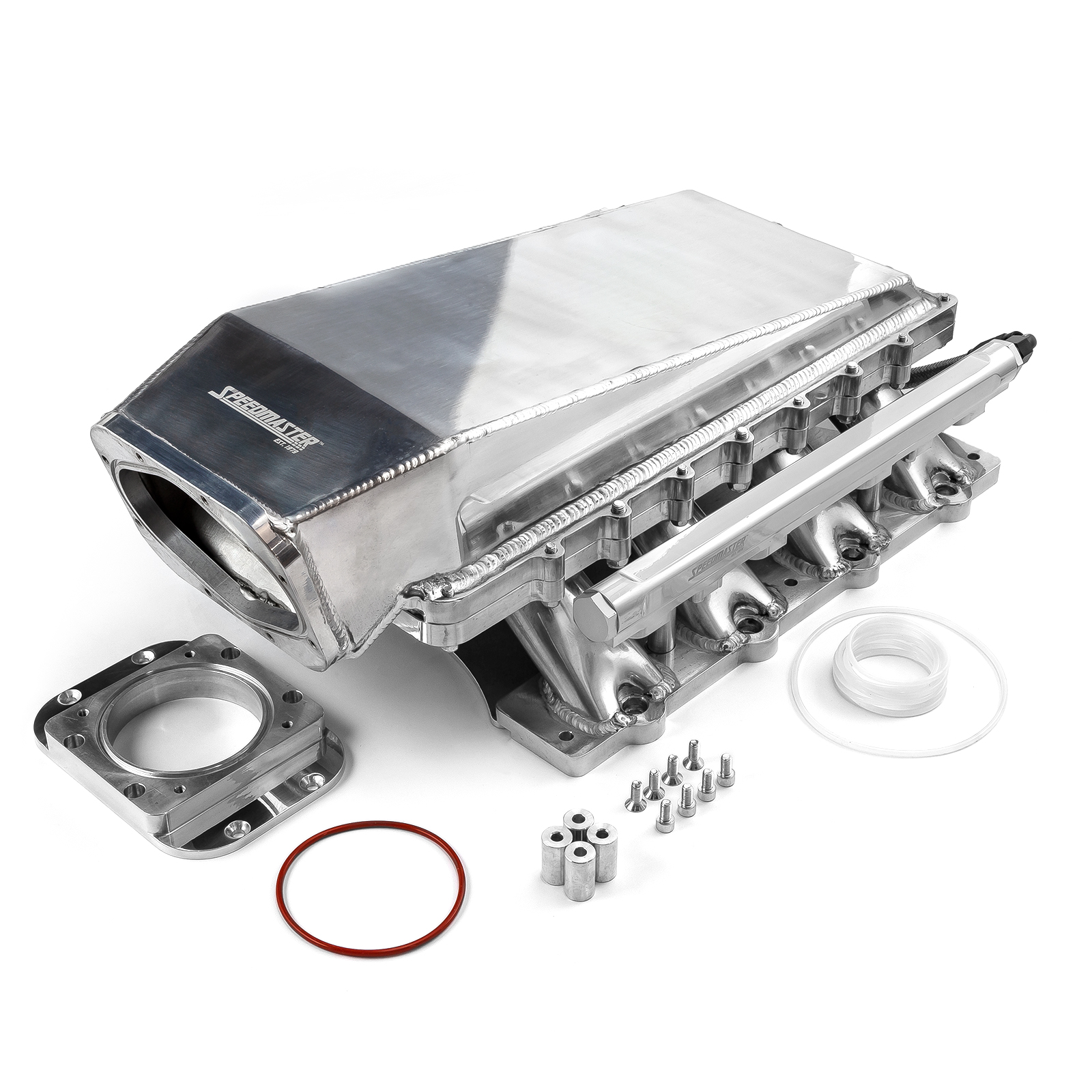

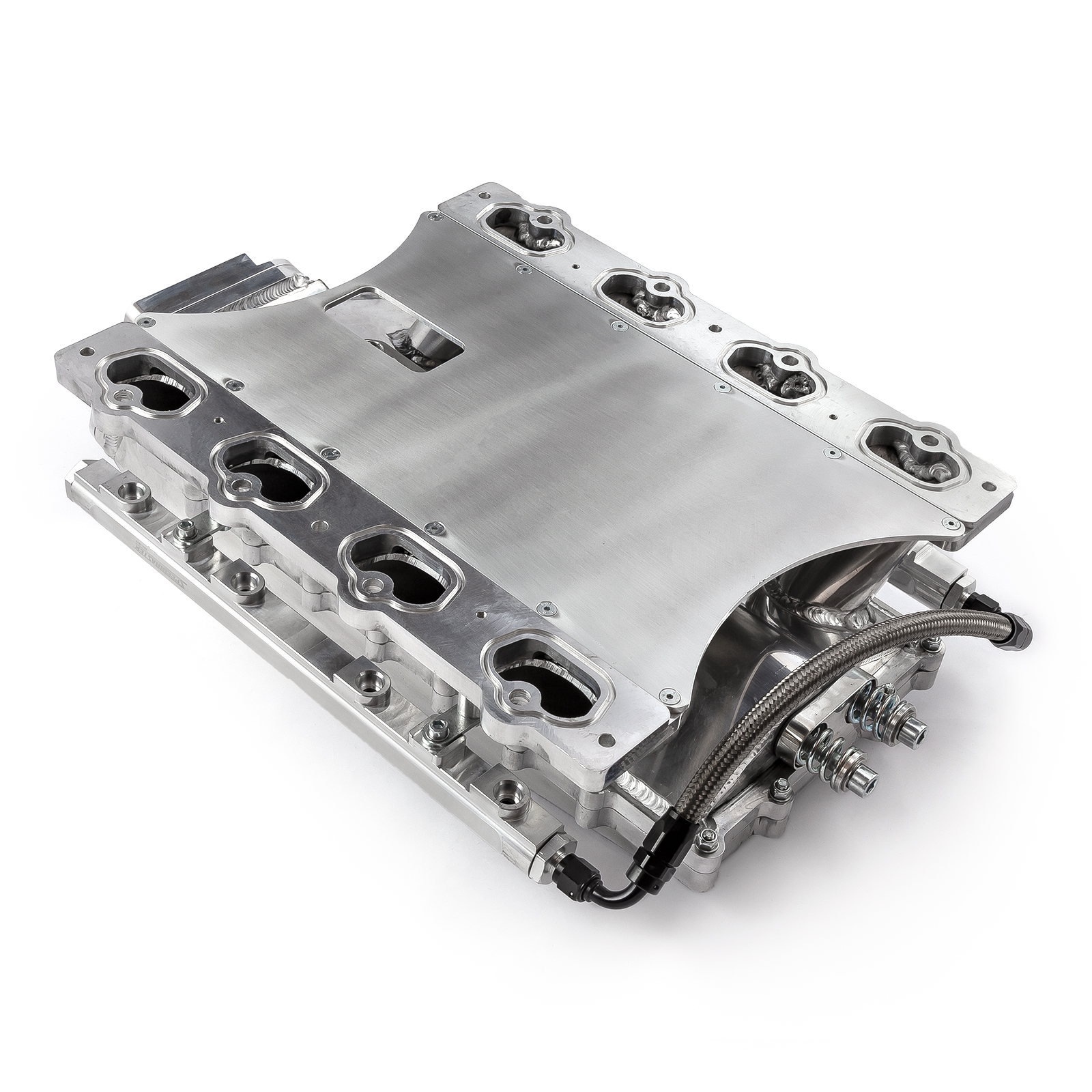

Ford 5.0L Coyote 2pc Fabricated Low Ram Air 98mm 4 Bolt EFI Intake Manifold Polished
Product Information
Overview
The Ford Modular Ram Air Intake Manifold was designed for high-performance applications where induction system height is not limited. Couple this Hi-Ram intake with the high flowing Ford Coyote style cylinder heads has outstanding potential for naturally aspirated and forced induction applications. The runner length and the tapered cross-section were designed to perform well for a wide range of engine configurations.
Specs
| Brand: | Speedmaster |
| Part Number: | 1-148-055 |
| Part Type: | Intake Manifold, Fuel Injected |
| Product Line: | Fabricated |
| Engine Block Style: | Ford 5.0L Coyote |
| Injection Style: | Multi-port |
| Basic Operating RPM Range: | Idle-7,000 |
| Intake Section Included: | Complete |
| Intake Front Height (in.): | 8.00 in. |
| Intake Rear Height (in.): | 6.00 in. |
| EGR: | No |
| Injectors Included: | No |
| Fuel Rails Included: | Yes |
| Aftermarket Fuel Rail Required: | N/A |
| Throttle Body Included: | No |
| Throttle Body Bore Diameter: | 98mm |
| Supplemental Bosses Cast-In: | No |
| Supplemental Bosses Machined: | Yes |
| Runners Included: | Yes |
| Runners Removable: | No |
| Base Material: | Aluminum |
| Base Finish: | Polished |
| Quantity: | Sold Individually |
| Notes: |
Warranty Information
12-Month Limited Worldwide Warranty
