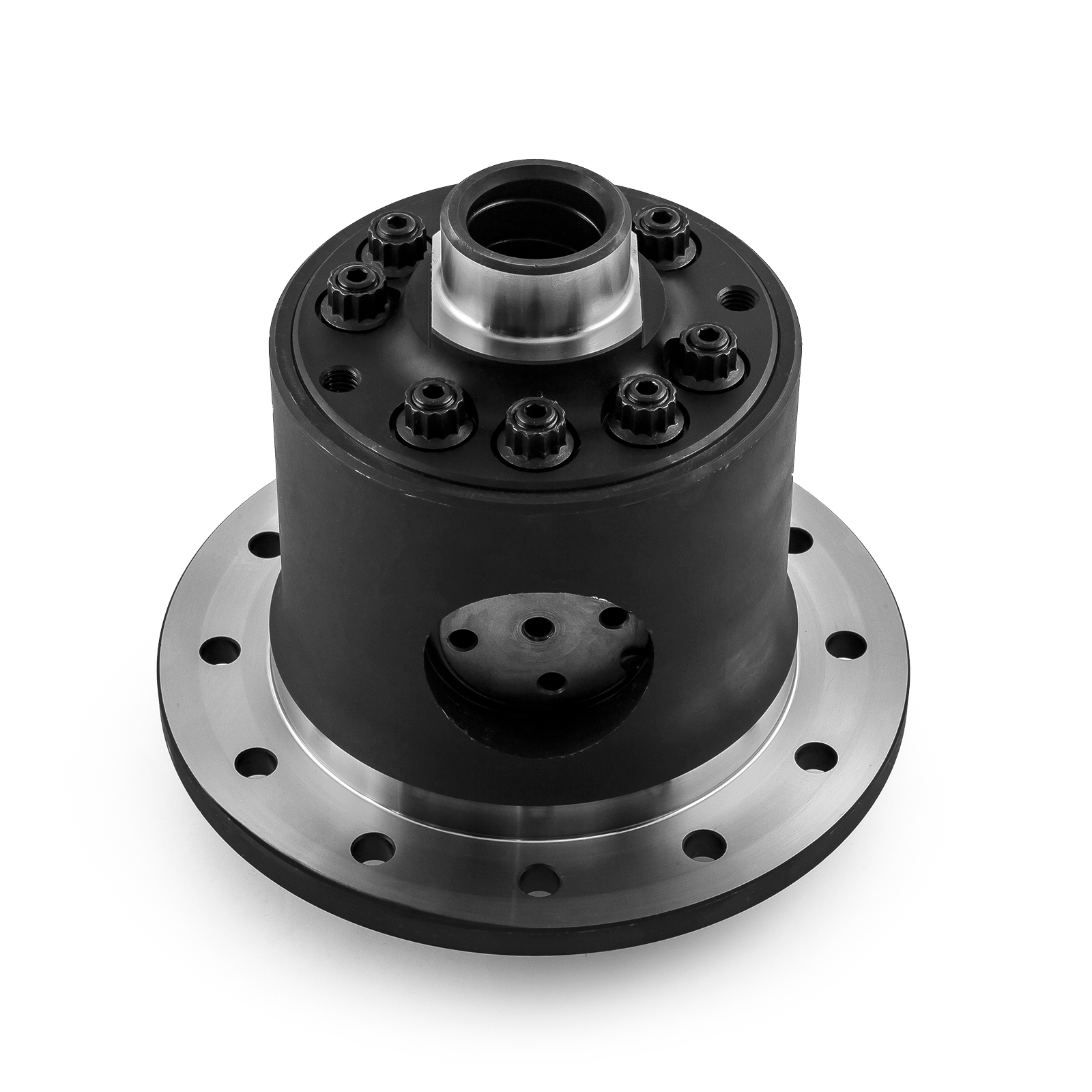

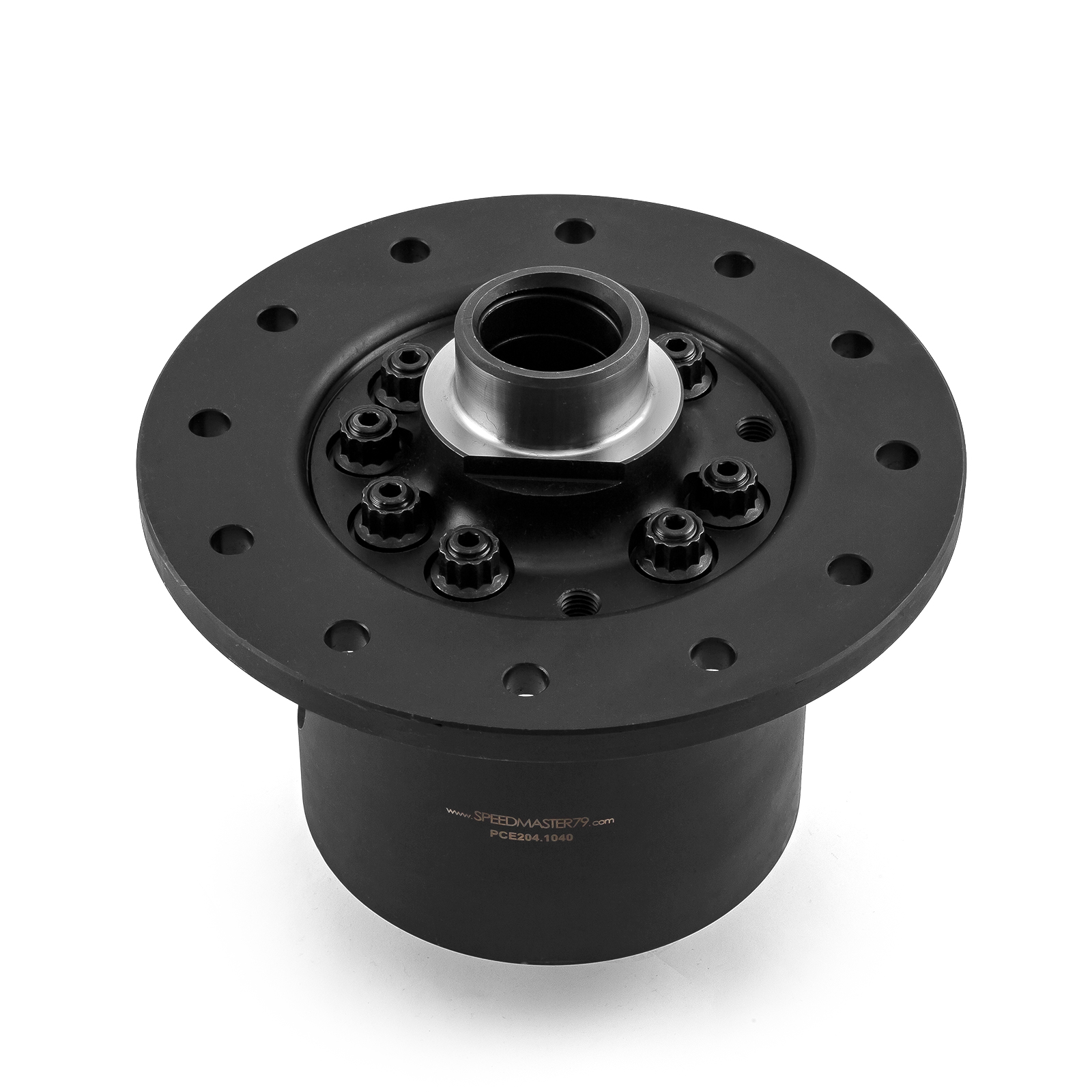

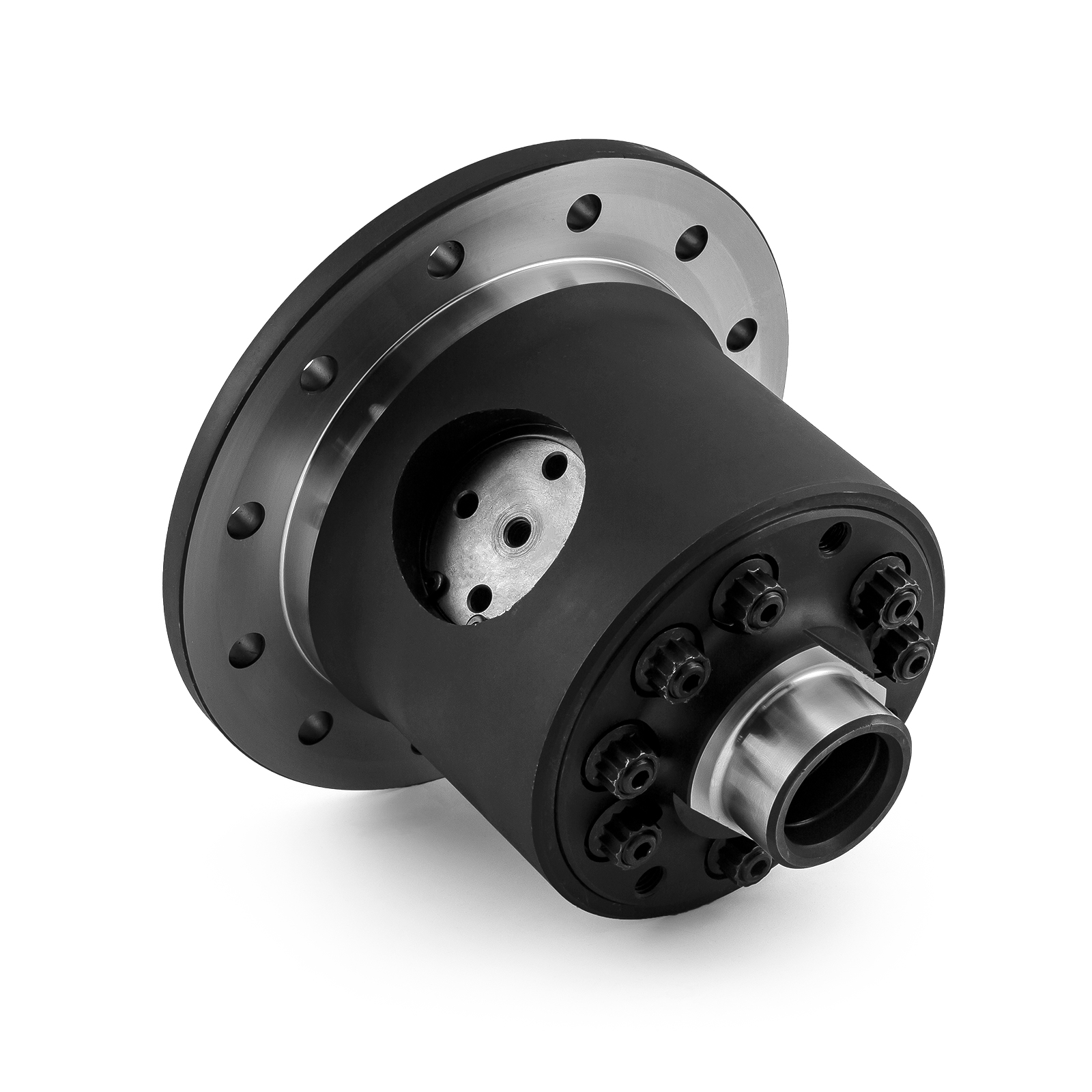

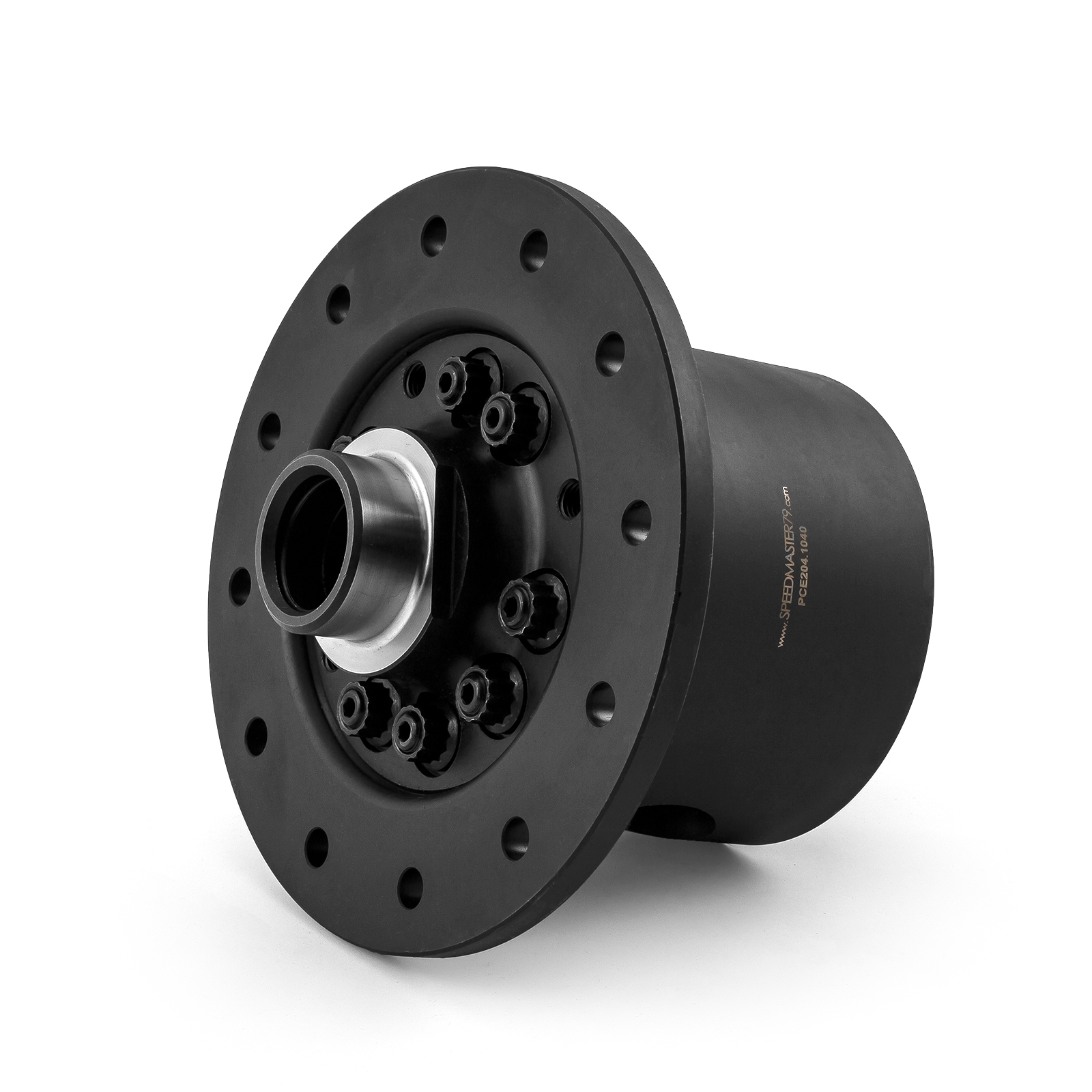

GM 8.875" 12 Bolt 12P Car 30 Spline C-Clip LSD Limited Slip Differential

No Reviews yet
MPN: PCE204.1040 UPC: 840136567073
Available Extended Warranty Eligible
US $483.00 US $805.00
You Save US $322.00 (40%)Single Points Earn 483 Points Info (outlined)

In Stock - Ships within 24 hrs

Available: 119


The TorqueWorm is a torque biasing 6 pinion gear type limited-slip unit. This is a preloaded unit allowing for a faster-reacting unit. The use of 6 pinion gears means the stress on gears is spread over a greater surface area, reducing the load on all internal components. The internal components are made from EN36 Material as used in racing. The outer cases made from 8620 Chrome-Nickel-Moly steel and the case hardened for long life and improved strength.


Part Number:PCE204.1040
Part Type:Differential Carriers
Aftermarket Carrier Style:Limited slip
Cover Bolts:12
Axle Shaft Spline Quantity:30
Manufacturer of Axle:GM / Speedmaster
Carrier Material:Steel
Quantity:Sold individually.



The GM 8.875" (often rounded to 8.9") 12 Bolt axle is available in passenger car (GM 12P) and truck (GM 12T) rear axle configurations and features an 8.875" ring gear and 30 spline semi floating axle shafts. While both versions of the axle have similar specifications on paper, they do have unique differential carrier housings and most parts, including ring and pinion gears are not interchangeable. Because both axles are commonly referred to as GM 12 Bolt axles, it is important to know which version you have before ordering your parts.

The easiest way to tell them apart is that the passenger car version has a perfectly round differential cover while the truck version has an irregular shape.
