Speedmaster®

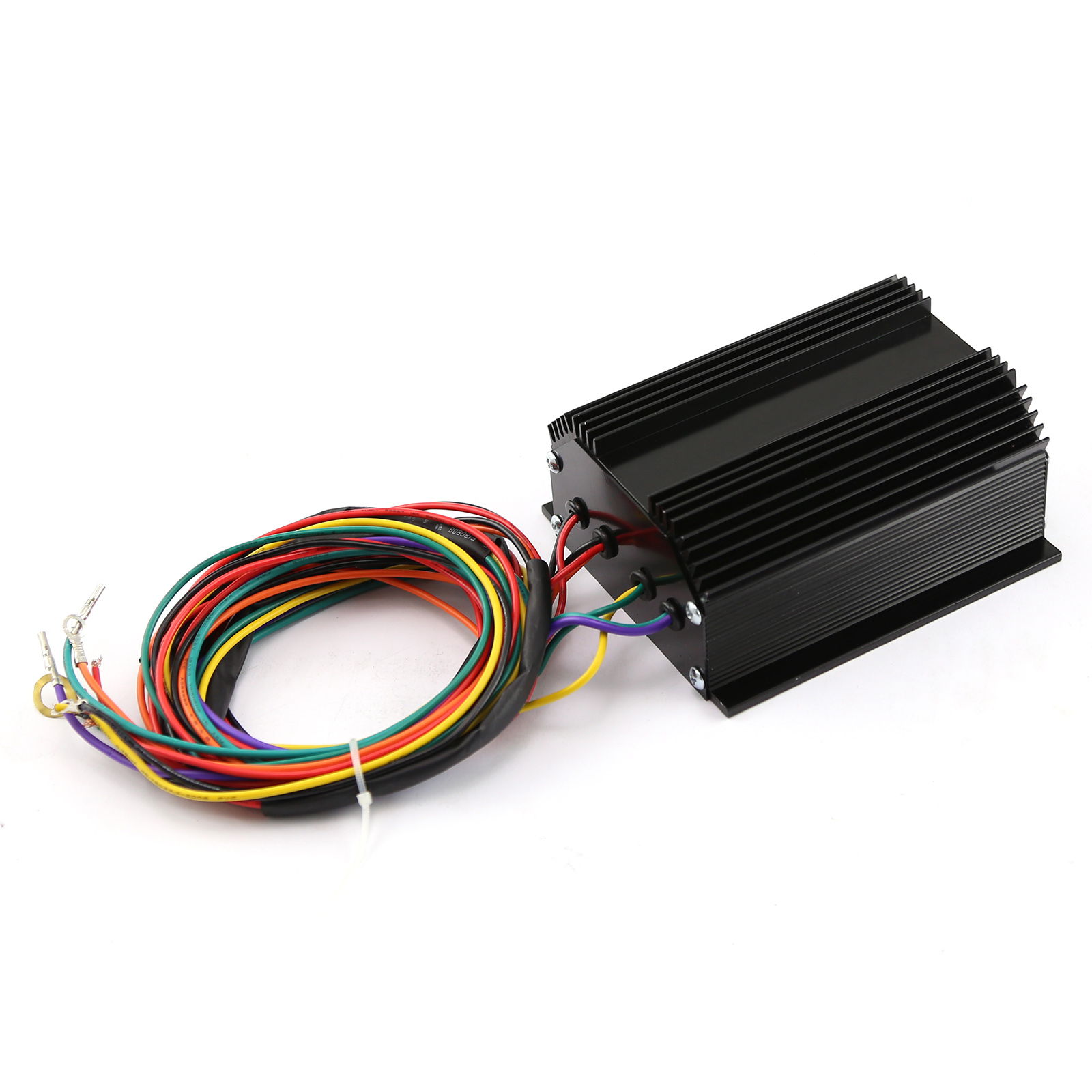

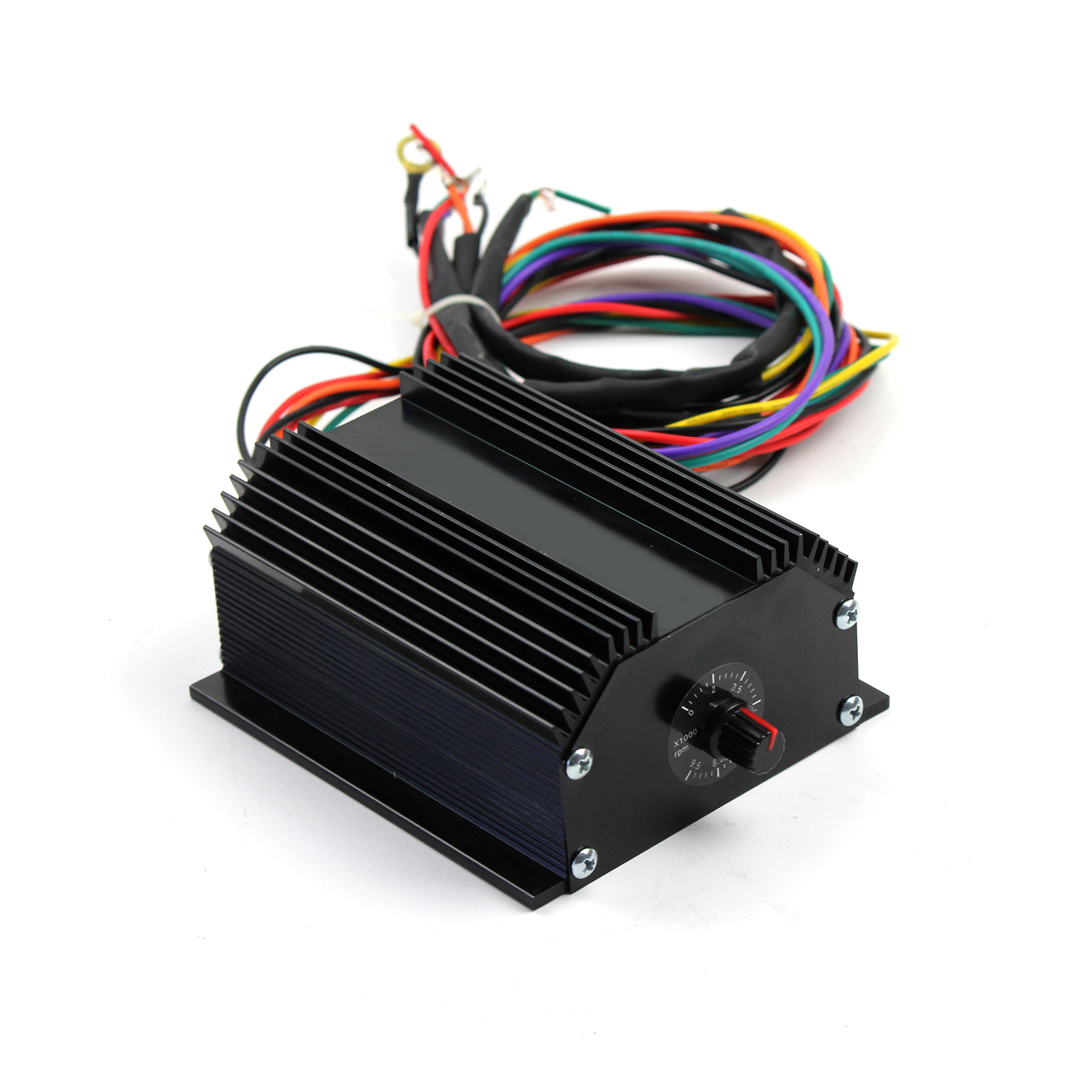

Multiple Spark CDI Ignition Box w/ Rev Lim Black Finned Top (No Chips Needed)
Product Information
Specs
| Brand: | Speedmaster |
| Part Number: | PCE380.1015 |
| Part Type: | Ignition Box |
| Ignition Box Output: | Capacitive discharge |
| Circuitry: | Analog |
| Rev Limiter: | Yes |
| Timing Retard: | None |
| Data Acquisition: | No |
| CD Voltage Output to Coil: | 500 V |
| Current Draw: | 1 amp at 1,000 rpm |
| Spark Output (millijoules): | 115 Millijoules |
| Minimum Operating Voltage: | 9 V |
| Maximum Operating Voltage: | 16 V |
| Ignition Box Color: | Black |
| Coil Included: | No |
| Quantity: | Sold Individually |
| Notes: | Single stage rev limiter with dial. No Chips Required. |
Attachments
Description
The entire line of Speedmaster Ignitions is the most popular aftermarket ignition in the world due to our raceproven performance on and off the track. The increased voltage that the 6AL unit puts across the plug gap will improve the driveability and performance of everyday drivers to Saturday night racers! The 6AL Ignition can be installed on 4, 6 or 8-cylinder engines equipped with a 12 volt, negative ground electrical system and a distributor. They can be triggered by electronic magnetic pickups or any aftermarket magnetic pickup distributors.
