Speedmaster®

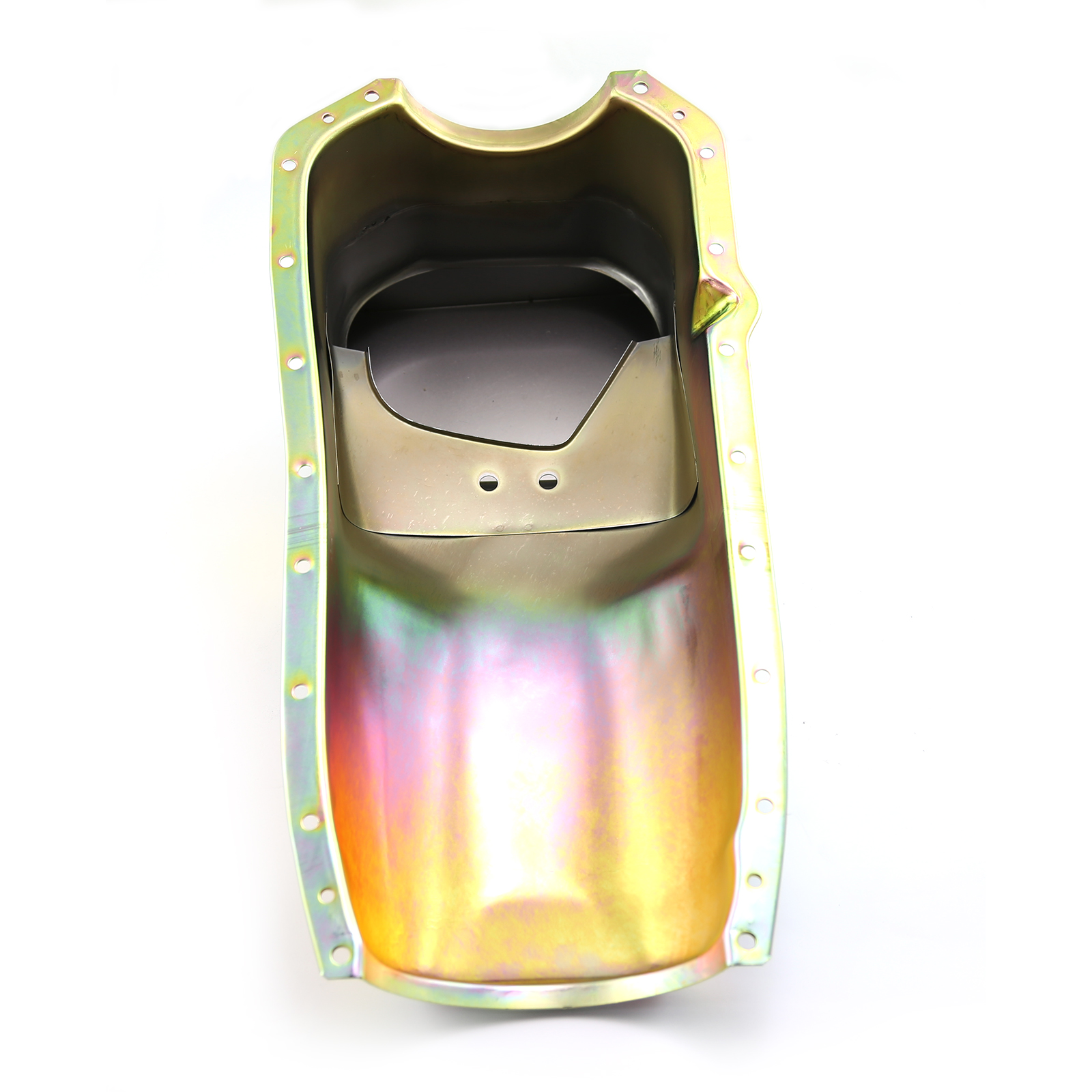

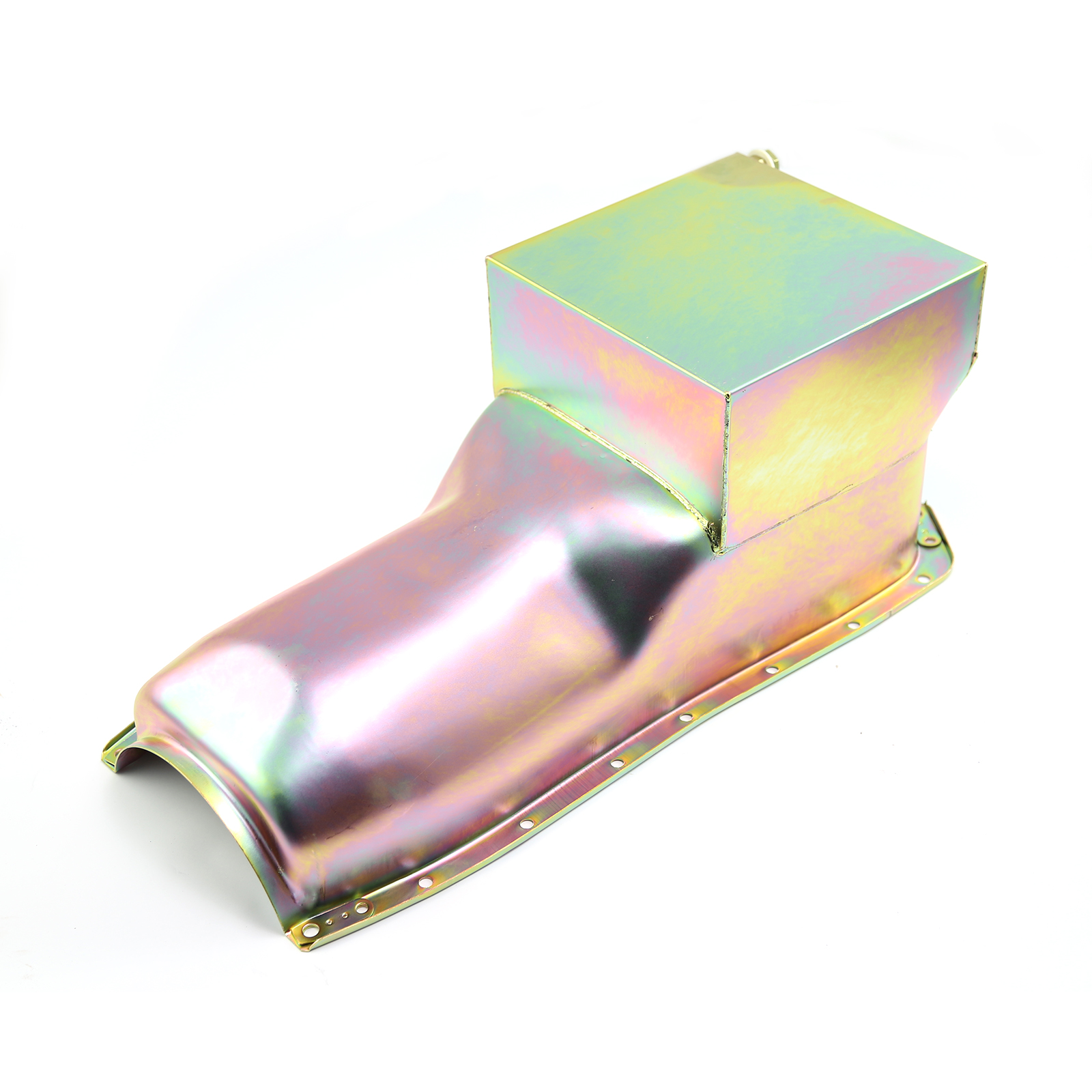

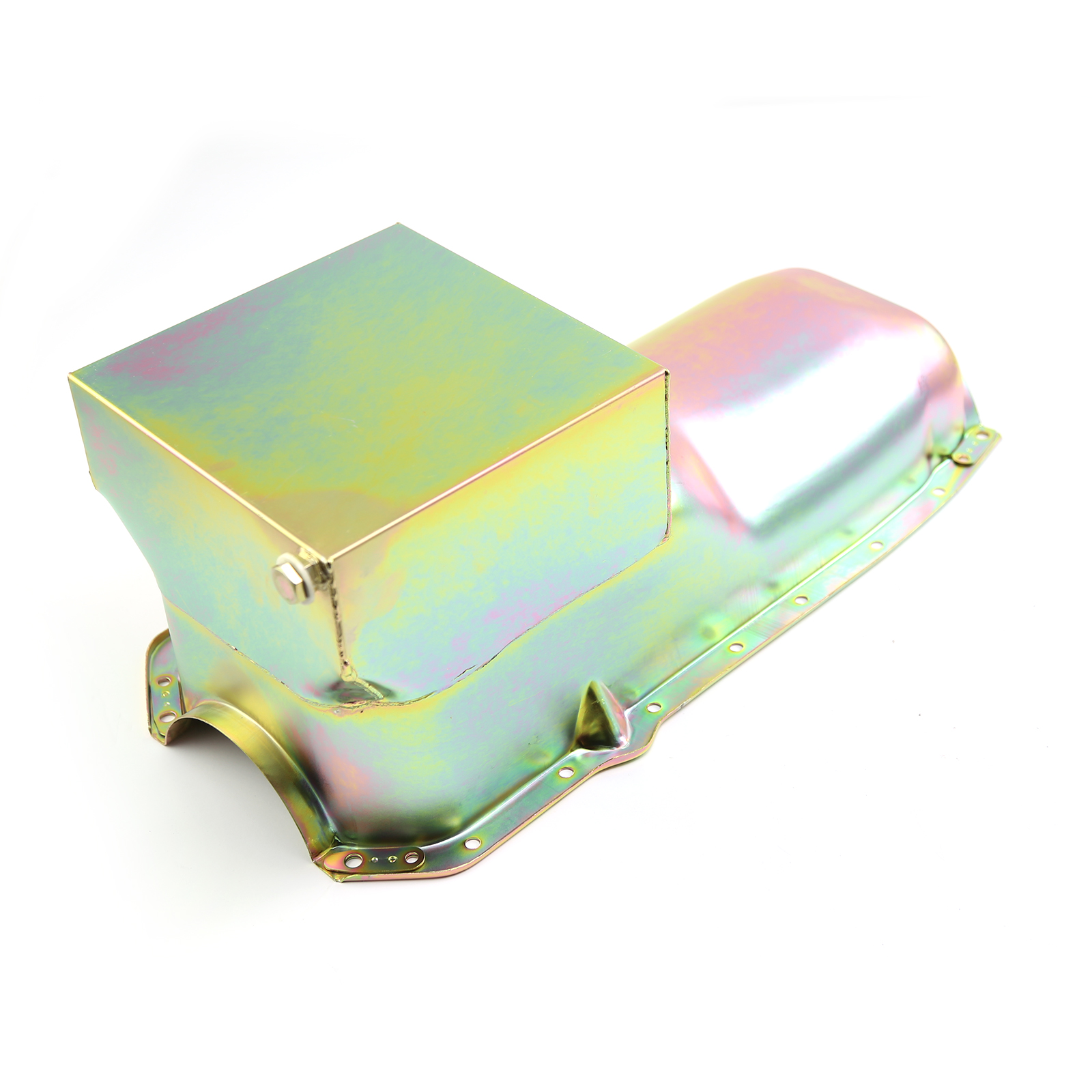

Oldsmobile V8 400 403 425 455 Drag Road Race Wet Sump 8Qt. Oil Pan
Promo
Product Information
Overview
The oil pan serves as the reservoir for the engine's oil. It is designed to hold the amount of oil that is needed to lubricate the engine when it is running, plus a reserve.The oil pan helps to cool the oil thru its contact with the outside air. Dress up your oil system with a oil pan from PCE.
Specs
| Brand: | Speedmaster |
| Part Number: | PCE300.1015.01 |
| Part Type: | Oil Pans, Individual |
| Rear Main Seal Style: | 2-piece |
| Dipstick Location: | US Passenger side AU Driver Side |
| Sump Location: | Rear |
| Stroker Clearanced: | Yes |
| Maximum Stroke with OE Rod: | 4.500 in. |
| Sump Style: | Wet |
| Oil Pan Capacity: | 7 quarts |
| Oil Pan Depth (in): | 8.250 in. |
| Oil Pan Material: | Steel |
| Oil Pan Finish: | Zinc iridited |
| Baffled: | Yes |
| Dipstick Provision: | Yes |
| Windage Tray Included: | No |
| Pickup Included: | No |
| Crank Scraper Included: | No |
| Gaskets Included: | No |
| Hardware Included: | No |
| Quantity: | Sold individually |
| Notes: | System capacity is 7 quarts, which is oil pan capacity plus filter. Pan mounted dipstick. |
Warranty Information
12-Month Limited Worldwide Warranty
