Speedmaster®

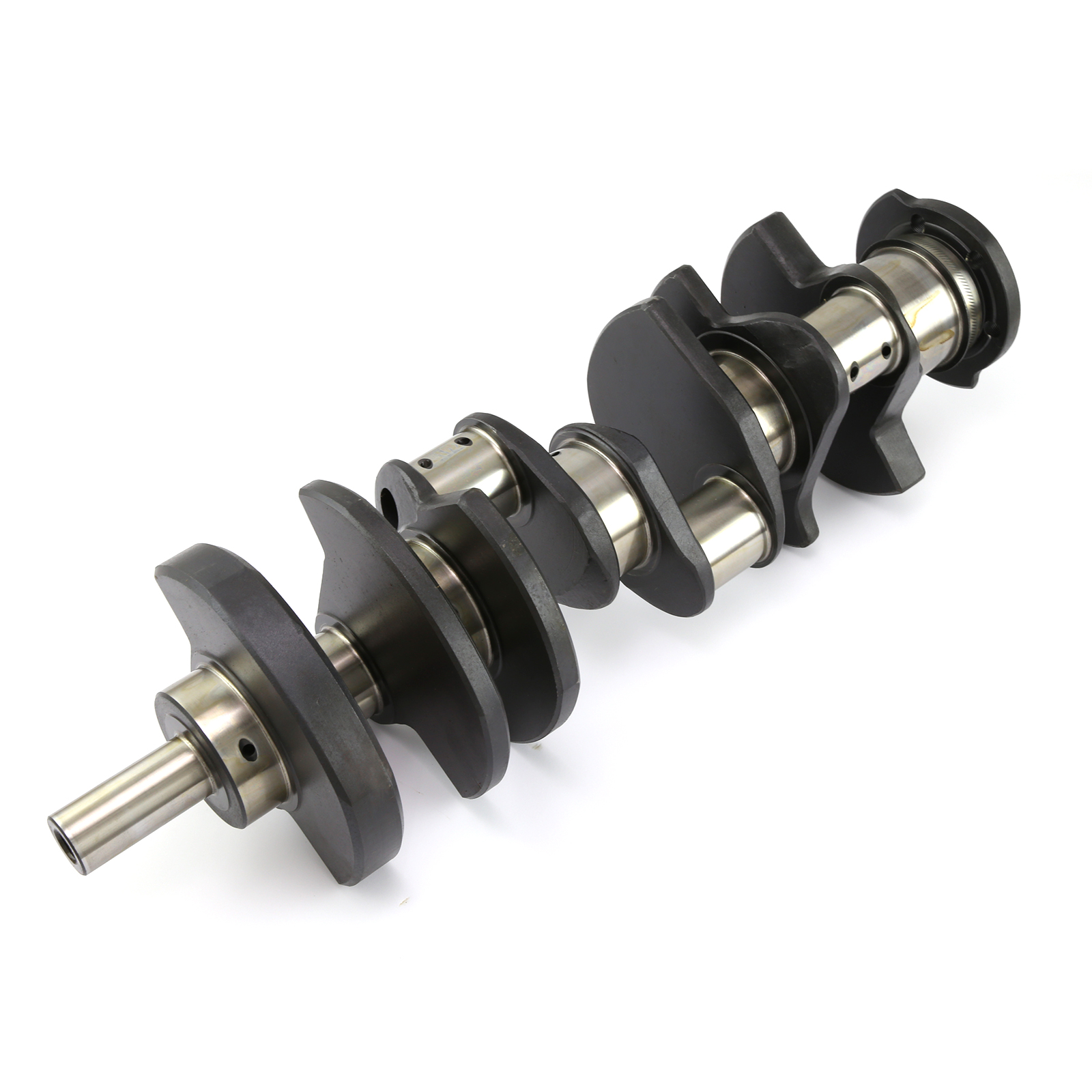

Pontiac 455 4340 Forged Steel Crankshaft ST-4.25 M-3.25 RJ-2.200 RMS-2Pc Ext
Promo
Product Information
Overview
These Speedmaster crankshafts are made from the same strong aircraft-quality forging as standard-weight cranks, but have profiled counterweights for less weight. Speedmaster lightweight crankshafts are perfect for engines wanting quicker rpm. These crankshafts feature profiled aero-wing counterweights and have straight shot and chamfered oil holes. Speedmaster crankshafts are nitride-hardened, with large radii on all journals for superior wear resistance, and use lightening holes in all rod throws.
Specs
| Brand: | Speedmaster |
| Part Number: | PCE276.1140 |
| Part Type: | Crankshaft |
| Product Line: | 4340 Forged Steel |
| Rear Main Seal Style: | 2-piece |
| Engine Stroke (in): | 4.250 in. |
| Crankshaft Material: | Forged 4340 Steel |
| Engine Balance: | External |
| Lightened: | Yes |
| Requires Narrow Bearings: | See notes below |
| Rod Bearings Included: | No |
| Main Bearings Included: | No |
| Rod Journal Diameter (in): | 2.250 in. |
| Main Journal Diameter (in): | 3.250 in. |
| Minimun Rod Length (in): | 6.700 in. |
| Balancer Bolt Thread Size: | Standard |
| Crankshaft Snout Style: | Standard |
| Quantity: | Sold individually. |
| Notes: | Check the bearing to crank radius clearance. Rod bearings may need to be chamfered or alternatively use narrow rod bearings. |
| Tool: | Stroker Combinations |
Warranty Information
12-Month Limited Worldwide Warranty
