Speedmaster®

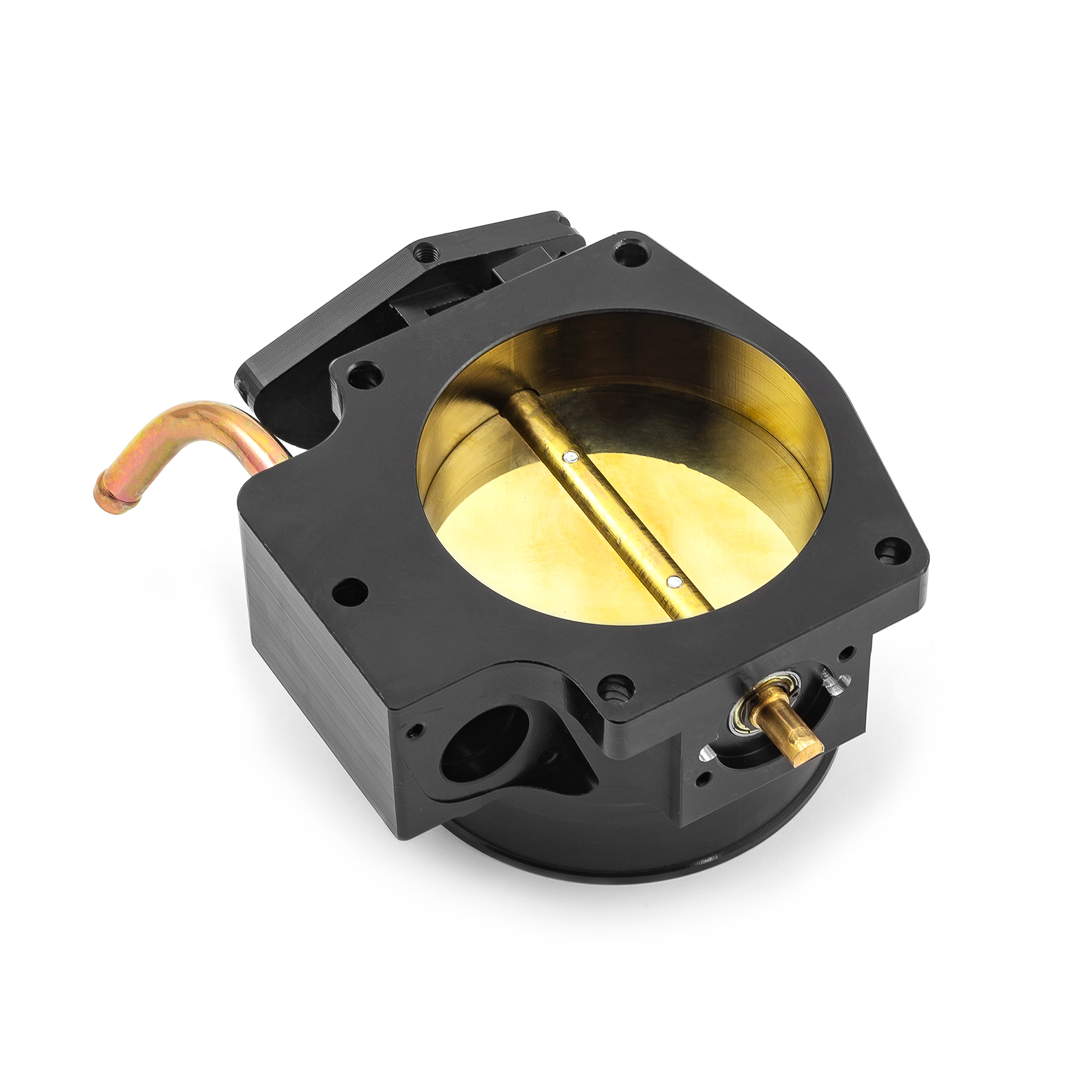

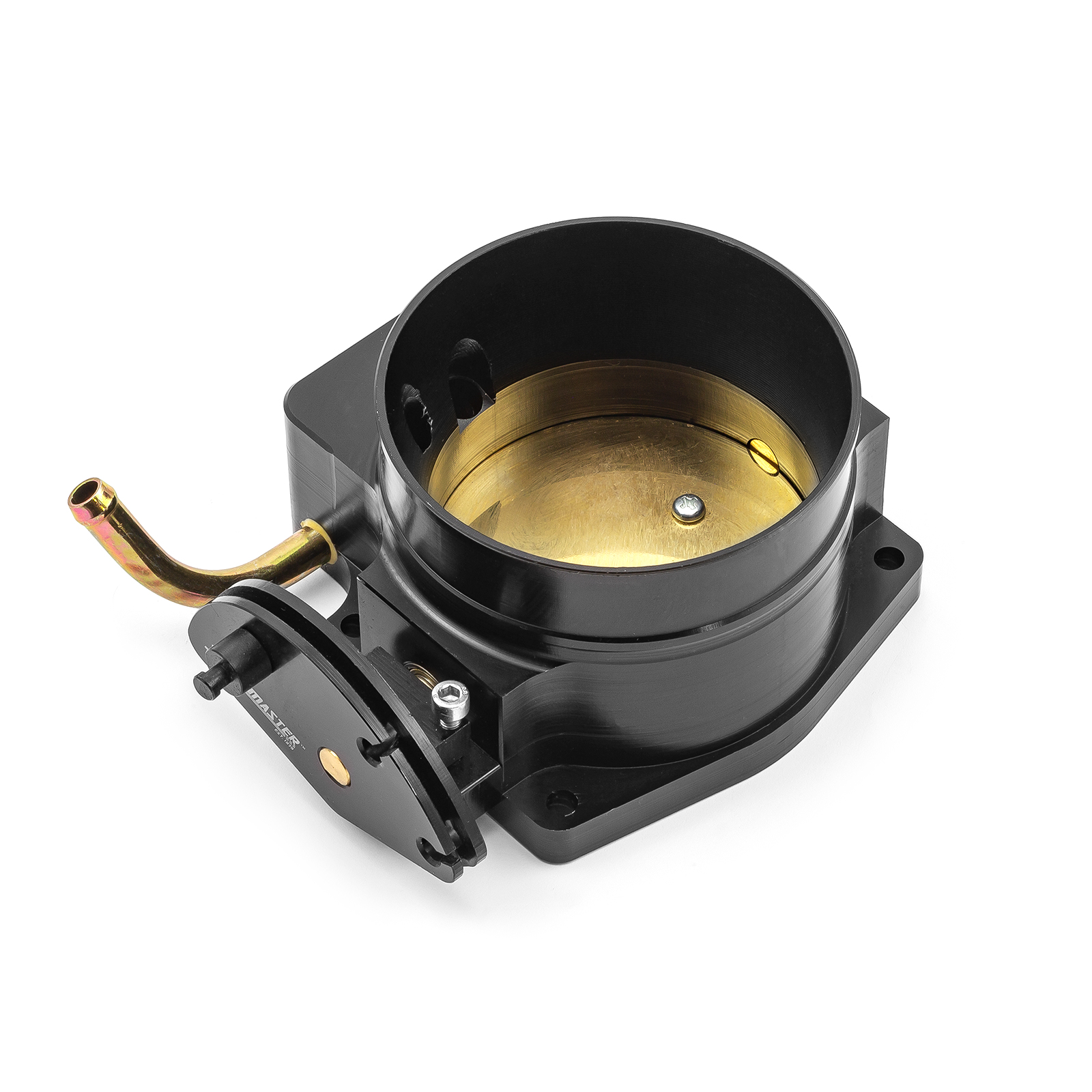

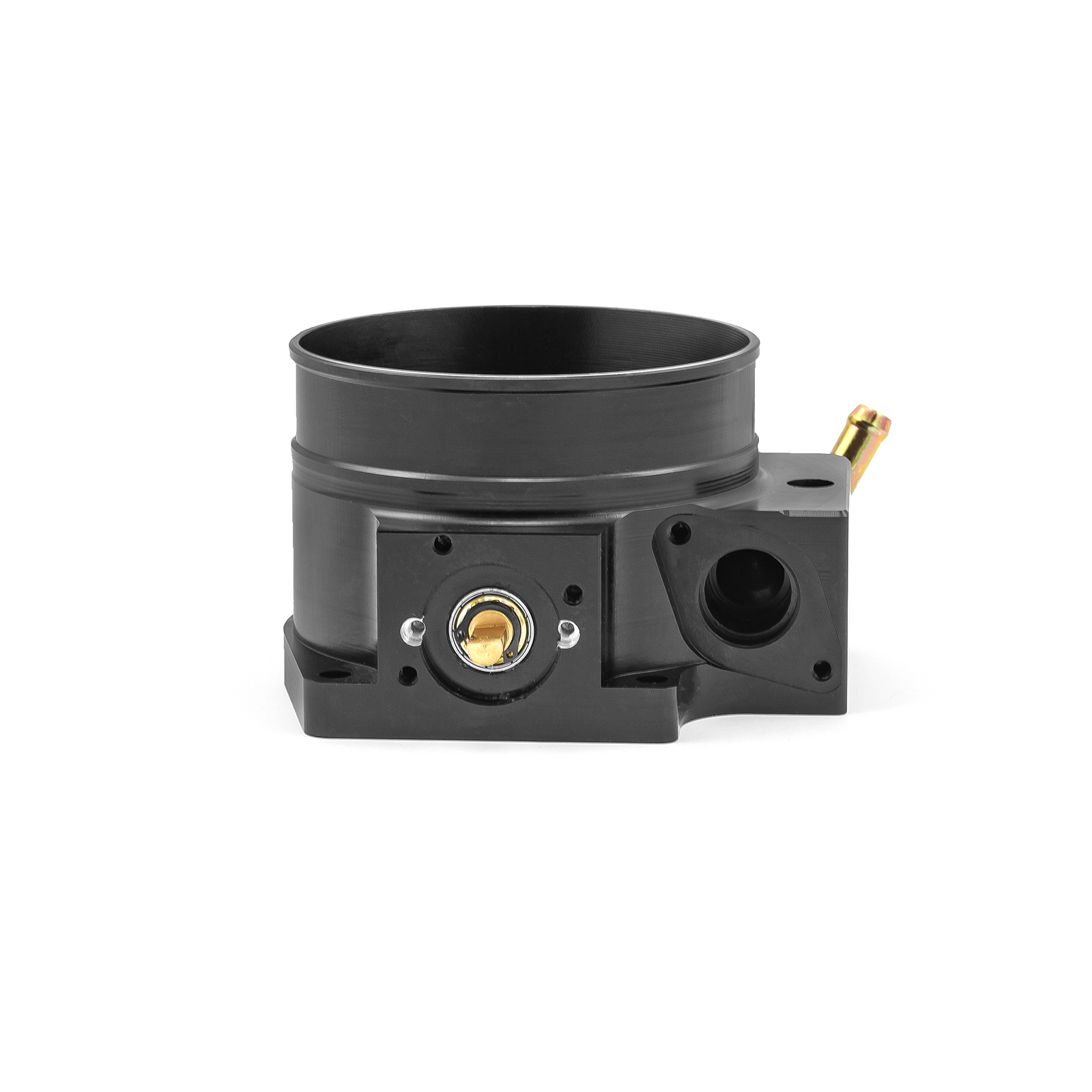

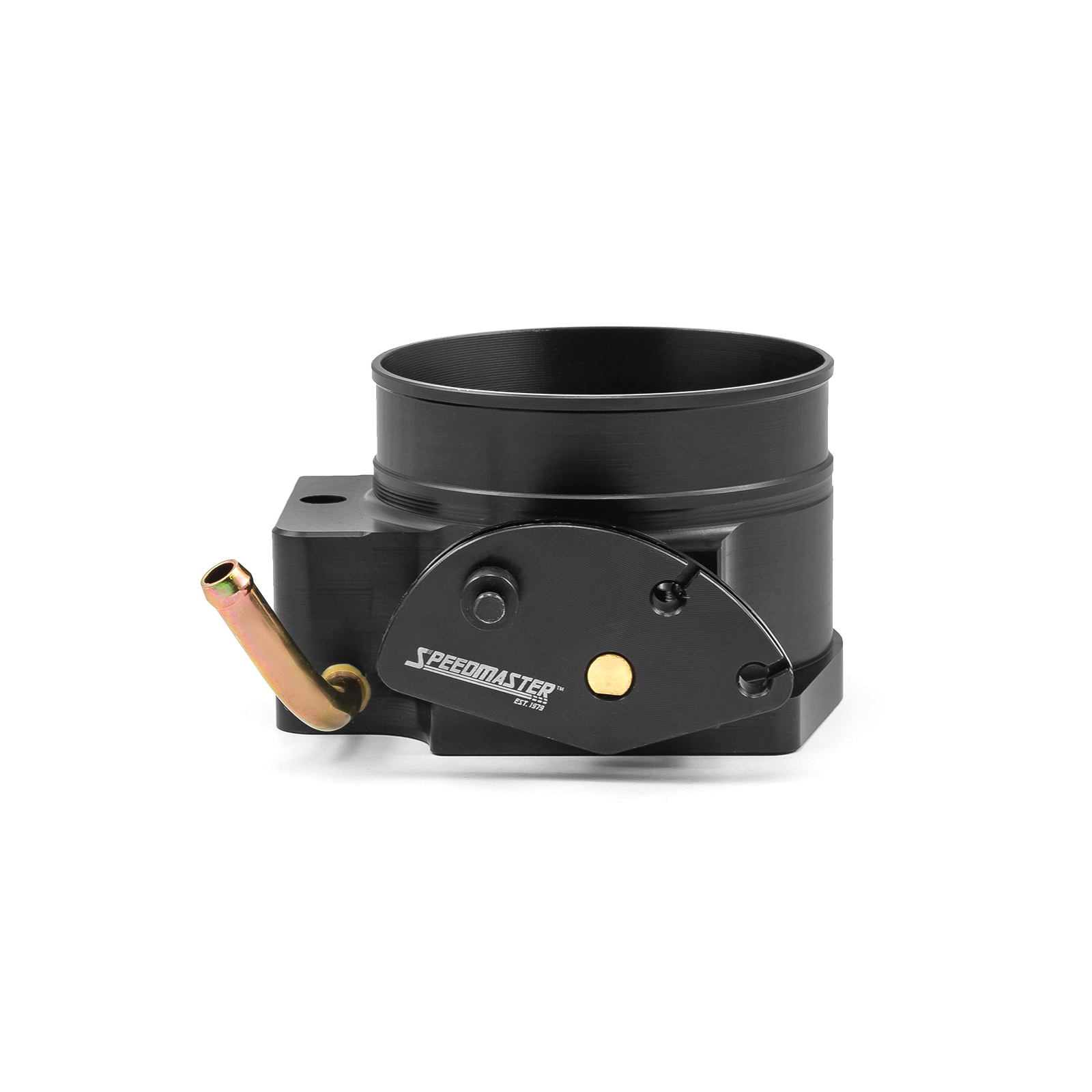

90 mm LS2 4 Bolt High Flow Throttle Body Black

No Reviews yet
MPN: PCE138.1004 UPC: 840136506430
Available Extended Warranty Eligible
US $179.30

In Stock - Ships within 24 hrs

Available: 57

Specs

Brand:Speedmaster
Part Number:PCE138.1004
Part Type:Throttle Bodies
Throttle Body Style:Multi-port injection, MPI
Venturi Quantity:1
Venturi Diameter (mm):90.00mm
TPS Sensor Included:No
IAC Motor Included:No
Gaskets Included:No
Hardware Included:No
Injectors Included:No
Throttle Body Material:Billet aluminum
Throttle Body Finish:Black anodized
Quantity:Sold individually.
Notes:Will also fit FAST intake manifolds. Not designed for drive-by-wire applications. Fits model with a throttle cable only.

Attachments

Description

The Speedmaster throttle body begins as a billet of 6061- T6 aluminum for superior quality and is introduced to a state-of-the-art CNC machine. This body has a much larger diameter then your existing throttle body, measuring 92mm. The quality of these throttle bodies are better than others available today. The body is alloy machined finish, looks beautiful when you pop the bonnet. These can be used on std or aftermarket plenum manifolds, that have a 4bolt pattern. The butterfly is fully adjustable, allow for perfect idle positioning. For the LS2 guys, be done with your flyby wire, and go back to the old school cable, dont let your computer decide how fast you go!!! Original LS1 Throttle position sensor and Idle Air Control can be used. By simply getting a tune, and exhaust the power gains are massive.

Installation Notes
For all users of LS1 or LS2 engines using the LS2 or FAST LSX Manifold and require the use of a throttle cable.

Features
Sealed throttle shaft roller bearings
Stamped throttle linkage arm
Fits LS2 and FAST LSX manifolds
Throttle cable bracket included
Will not work on drive by wire applications

The bolt hole measurements are as follows:
Horizontal = 105mm
Vertical = 70mm

Sensor Recommendations:

MAP: OEM (Attaches to manifold)
TPS: PCE366.1009

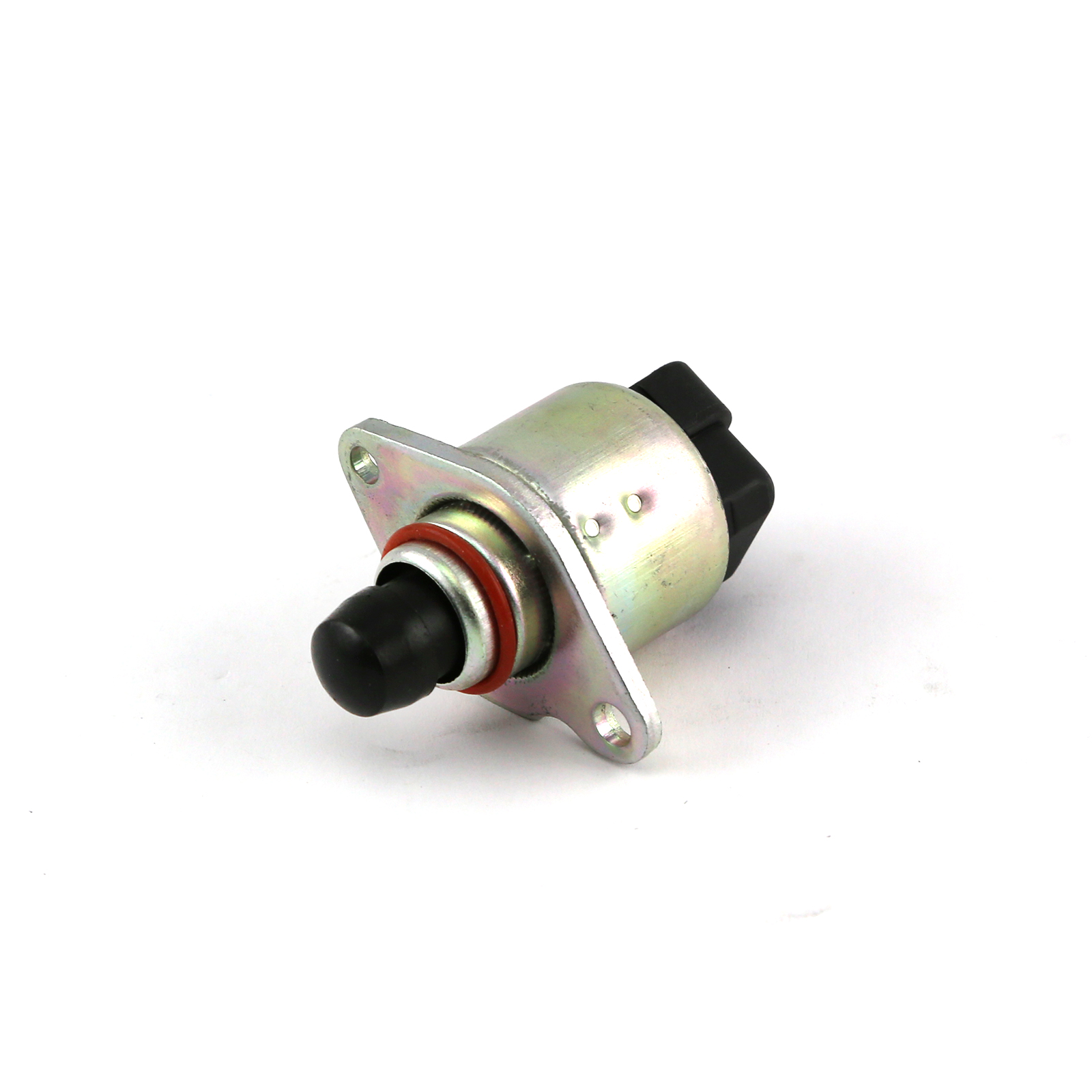

IAC: PCE108.1001

Please note: high performance parts are not direct replacement parts for OEM parts, and may not fit your application as original OEM parts, and may require slight modifications depending on the intended purpose of some applications.

Brand Information

In 1979, the company was founded with Pete's Performance, which was a small speed workshop. It began by building engines for customers as a hobby, and it has now grown to include selling, assembling, manufacturing and racing high performance engine parts. Over the years, the company has grown into a worldwide high performance powerhouse. Growing from a one-man bricks-and-mortar business; to now a supply chain in which entails more than 400+ people all across the world. Today, Pete's Performance has evolved into the internationally known Speedmaster: which has distribution centres and offices is Sydney, Los Angeles and Shanghai.

Prop 65 Warning

This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
