Speedmaster®
Chevy GM LS1 LS2 LS3 LS6 Aluminum Complete Serpentine Belt Drive System Kit
Promo
Product Information
Overview
The Speedmaster high mount serpentine kit for Chevy LS engines. 6 rib serpentine pulley designed to increase grip, reduce stretching and prevent the belt from slipping.
Specs
| Brand: | Speedmaster |
| Part Number: | PCE415.1052 |
| Part Type: | Accessory Drive System |
| Product Line: | Complete Accessory Drive System |
| Pulley Style: | Serpentine |
| Pulley Mount: | High Mounted |
| Pulley Set Style: | High Water Flow Ratio |
| Pulley Material: | Billet Aluminum |
| Pulley Finish: | Clear Anodized |
| Crankshaft Pulley Included: | Yes |
| Crankshaft Pulley Grooves: | 6 Groove Serpentine |
| Crankshaft Nose Cover Included: | No |
| Water Pump Pulley Included: | Yes |
| Water Pump Pulley Grooves: | 6 Groove Serpentine |
| Water Pump Nose Cone Included: | No |
| Power Steering Pulley Included: | Yes |
| Power Steering Pulley Attachment: | Press In |
| Power Steering Brackets Included: | Yes |
| Alternator Pulley Included: | Yes |
| Alternator Pulley Grooves: | 6 Groove serpentine |
| Alternator Fan Included: | Yes |
| Alternator Nose Cover Included: | No |
| Alternator Brackets Included: | Yes |
| Air Conditioning Pulley Included: | No |
| Air Conditioning Cover Included: | Yes |
| Air Conditioning Bracket Included: | Yes |
| Idler/Tensioner Included: | Yes |
| Idler Cover Included: | Yes |
| Idler Brackets Included: | No |
| Hardware Included: | Yes |
| Bracket Finish: | Polished |
| Bracket Material: | Billet Aluminum |
| Water Pump Included: | Yes |
| Water Pump Rotation: | Reverse |
| Water Pump Finish: | Black |
| Harmonic Balancer Bolt Included: | No |
| Quantity: | Sold as a kit. |

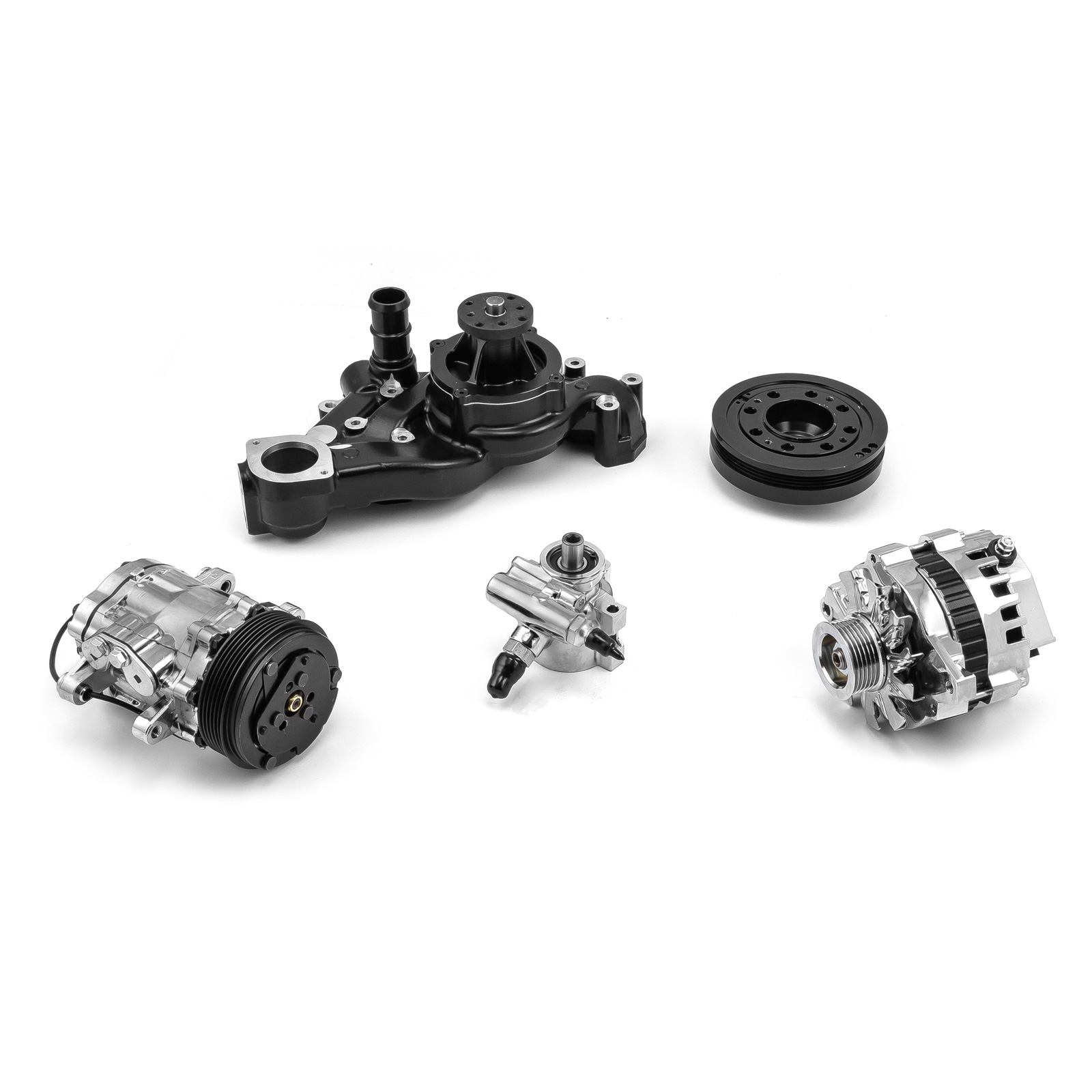

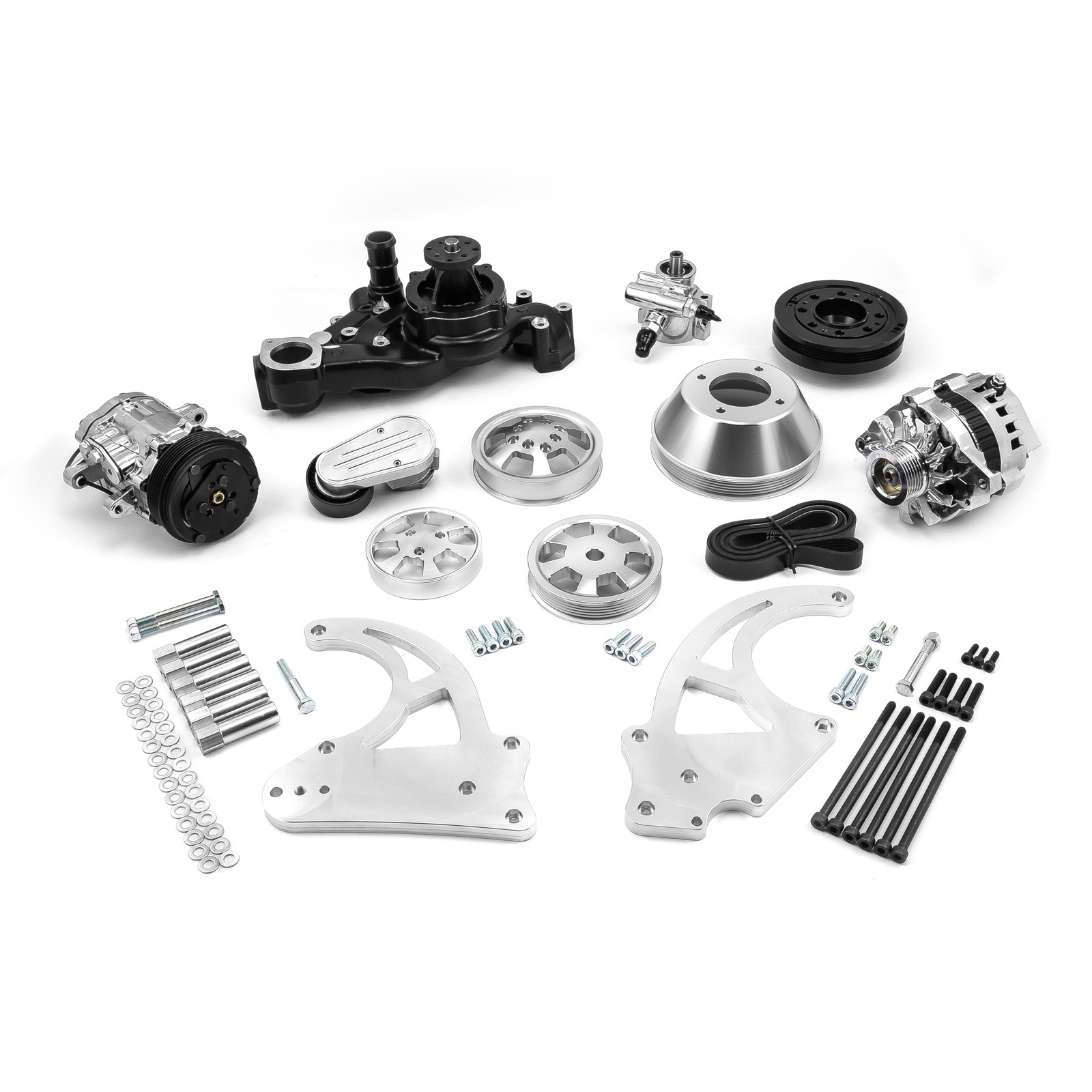

| Notes: | This kit includes everything shown on the photo (Water Pump, Alternator, Power Steering Pump, Air Conditioning Compressors, and Harmonic Balancer). |
Attachments
Description

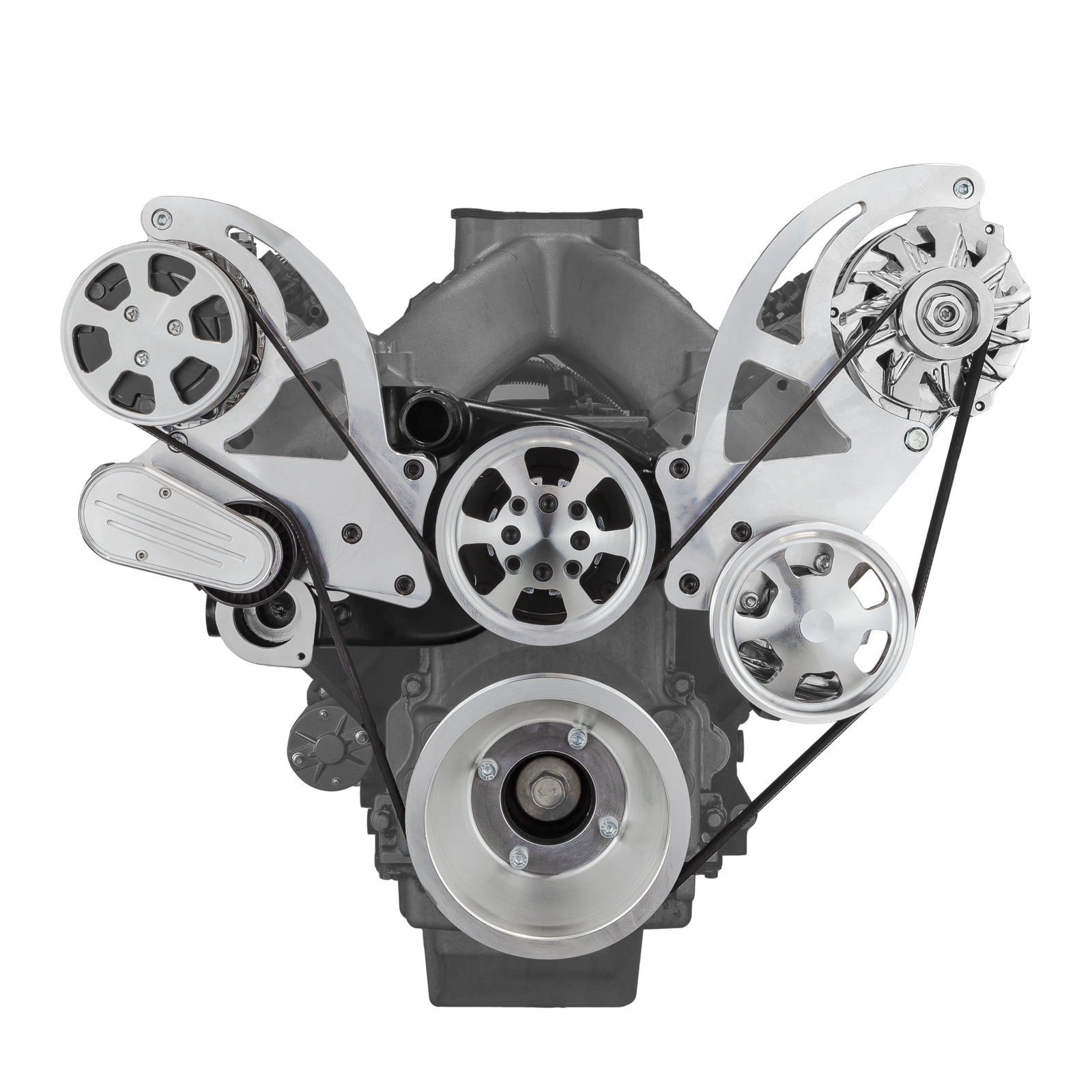

The LS high mount serpentine kit comes with a spring loaded tensioner, equipped with a polish cover, it ensures proper tension during hard acceleration and deceleration. The kit mounts the GM Type II power steering pump low on driver side and puts a Sanden AC Compressor up on the passenger side(US). Also, it places the alternator on the driver side (US) above the power steering pump. When using a power steering pump with reservoir, use a 6.75 inch balancer to avoid interference with the power steering box
Warranty Information
12-Month Limited Worldwide Warranty
Prop 65 Warning
This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
