Speedmaster®

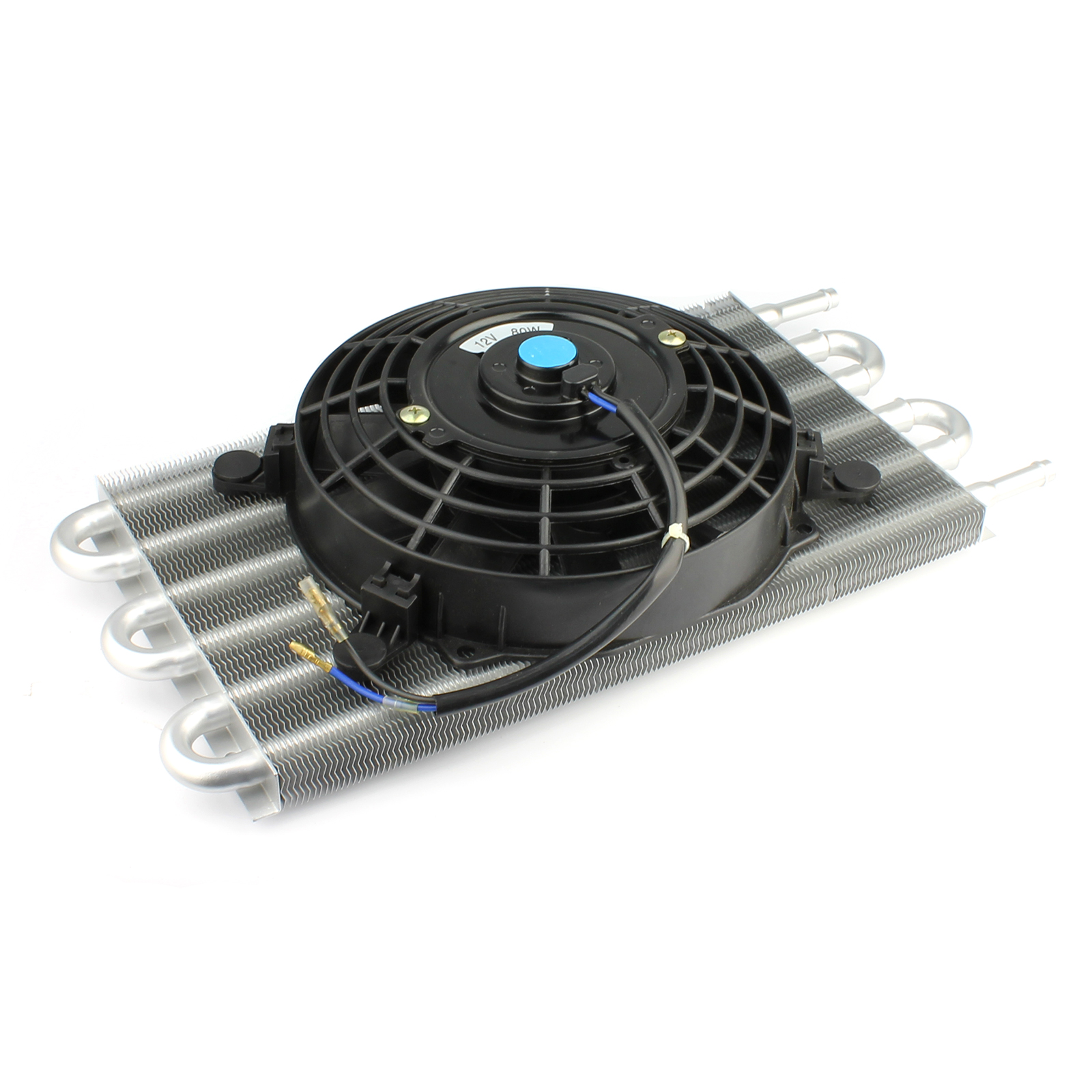

Flat Transmission Oil Cooler 15.5" x 7.5" & Electric Thermo Fan Kit
Product Information
Specs
| Brand: | Speedmaster |
| Part Number: | PCE186.1024 |
| Part Type: | Fluid Cooler |
| Cooler Construction: | Tube and fin |
| Overall Height (in): | 7.500 in. |
| Overall Width (in): | 15.500 in. |
| Overall Thickness (in): | 0.750 in. |
| Cooler Material: | Aluminum |
| Cooler Finish: | Natural |
| Inlet Size: | 3/8 in. |
| Inlet Attachment: | Hose barb |
| Outlet Size: | 3/8 in. |
| Outlet Attachment: | Hose barb |
| Number of Cooling Rows: | 6 |
| Core Height (in): | 7.500 in. |
| Core Width (in): | 12.750 in. |
| Core Thickness (in): | 0.750 in. |
| Quantity: | Sold as a kit. |
Description
Speedmaster high performance reversible electric cooling fans are ideal for OEM or high performance applications. Configured as a puller from the factory, it mounts on the inside and pulls the air through the radiator. Blades and polarity of the wiring can be reversed and it becomes a pusher mounted pushing air through the radiator. These fans will keep your engine cooler at lower driving speeds. Speedmaster reversible fans ride on dual ball bearings instead of bushings, which means higher efficiency and less heat. They also free up more usable horsepower to the rear wheels, and increases fuel economy.
