Speedmaster®

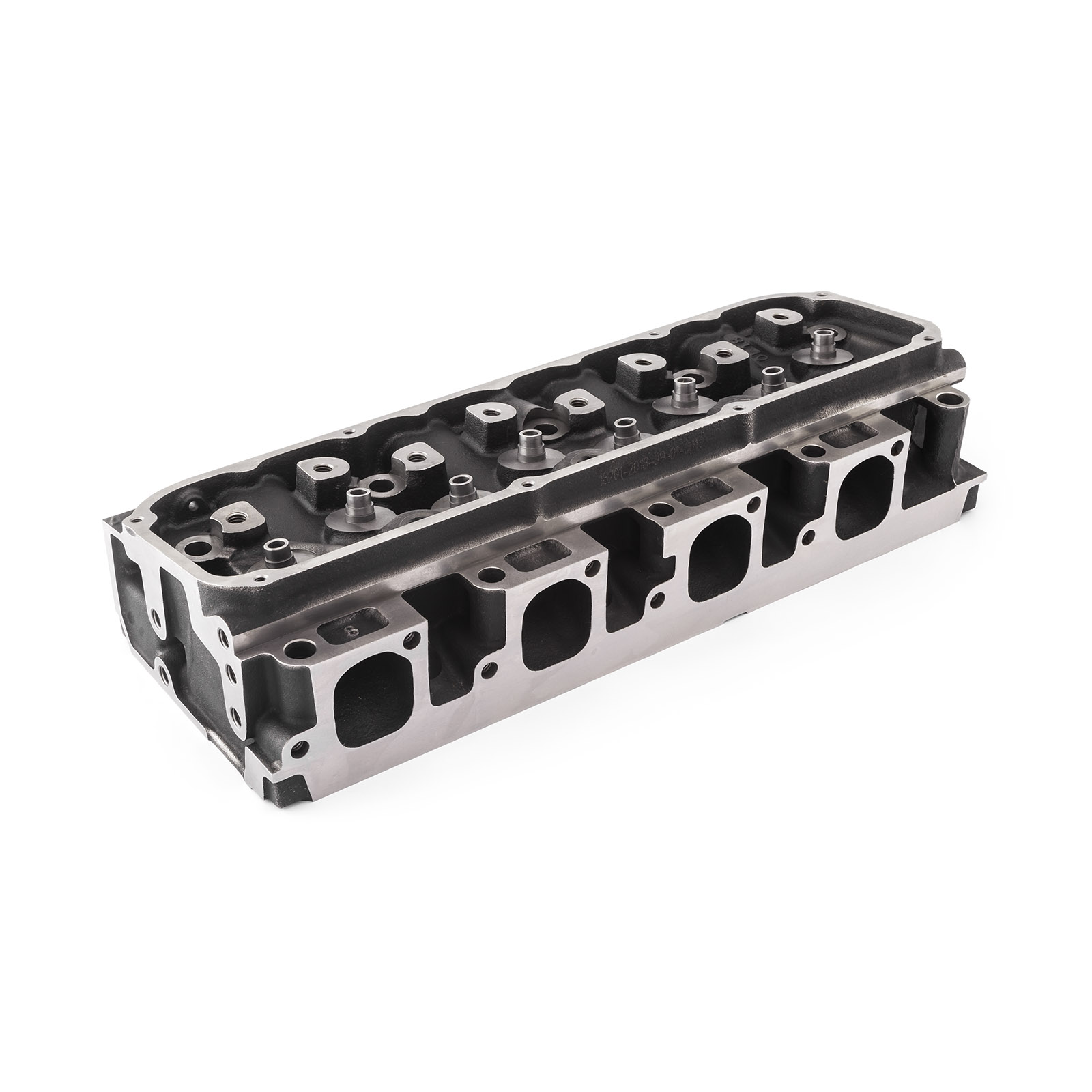

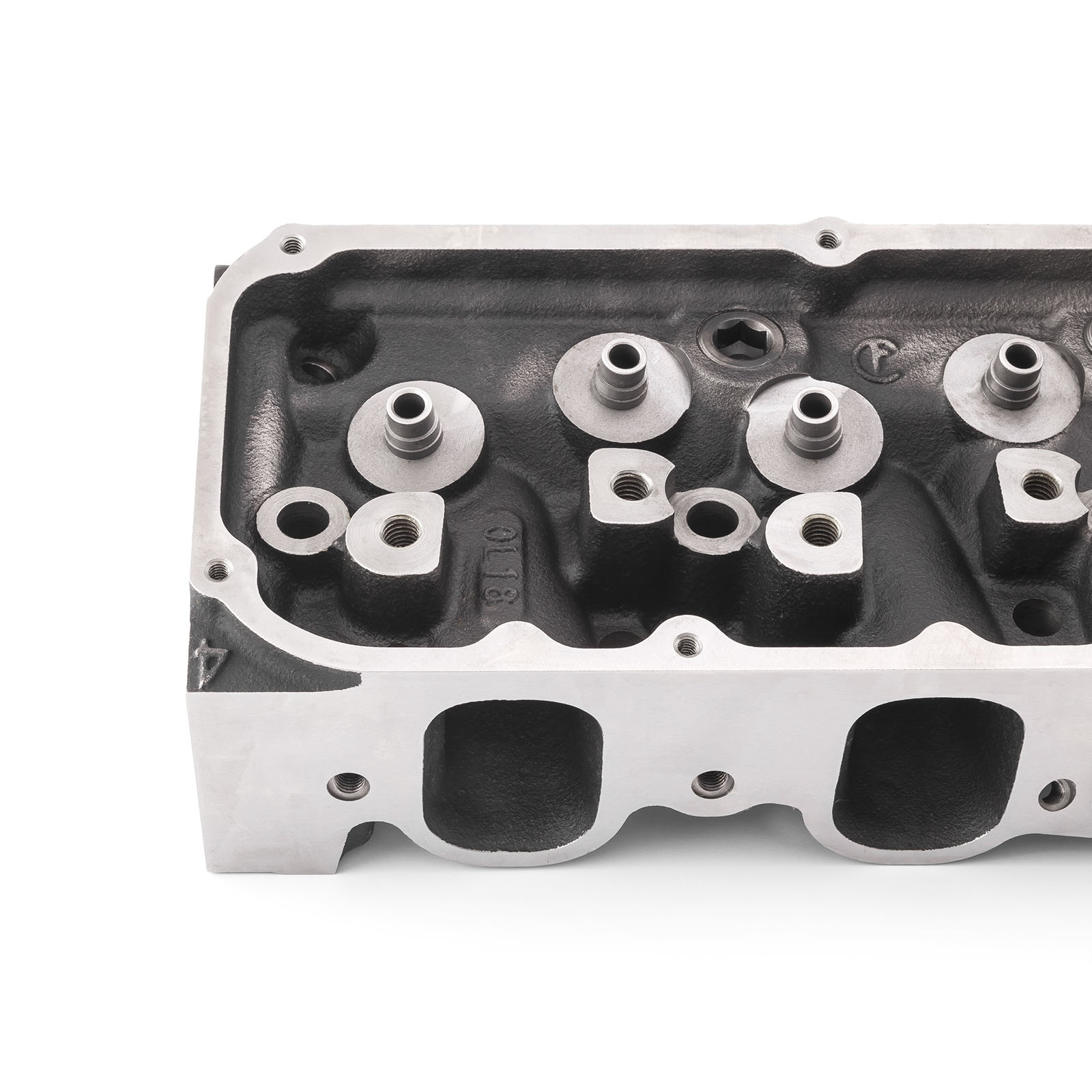

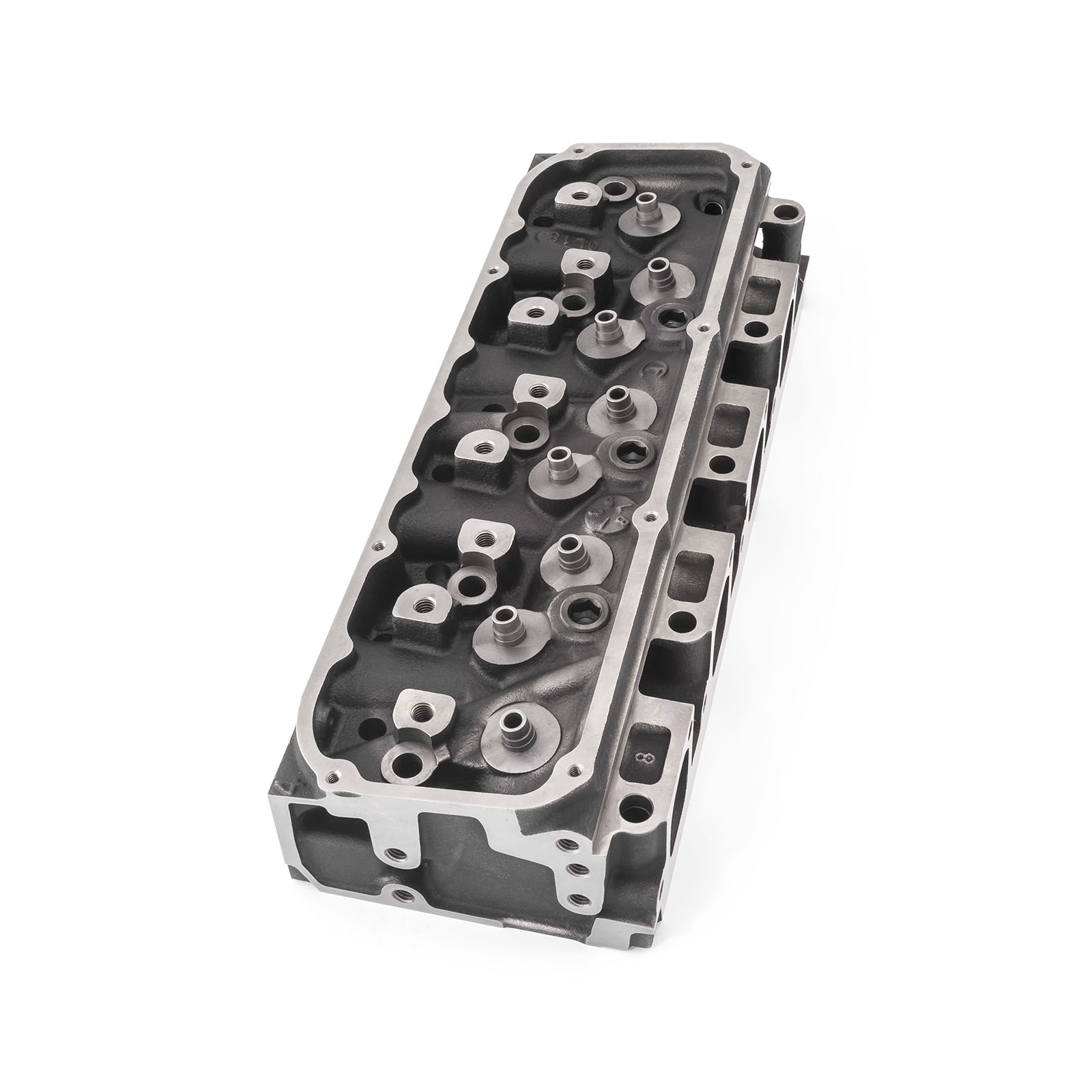

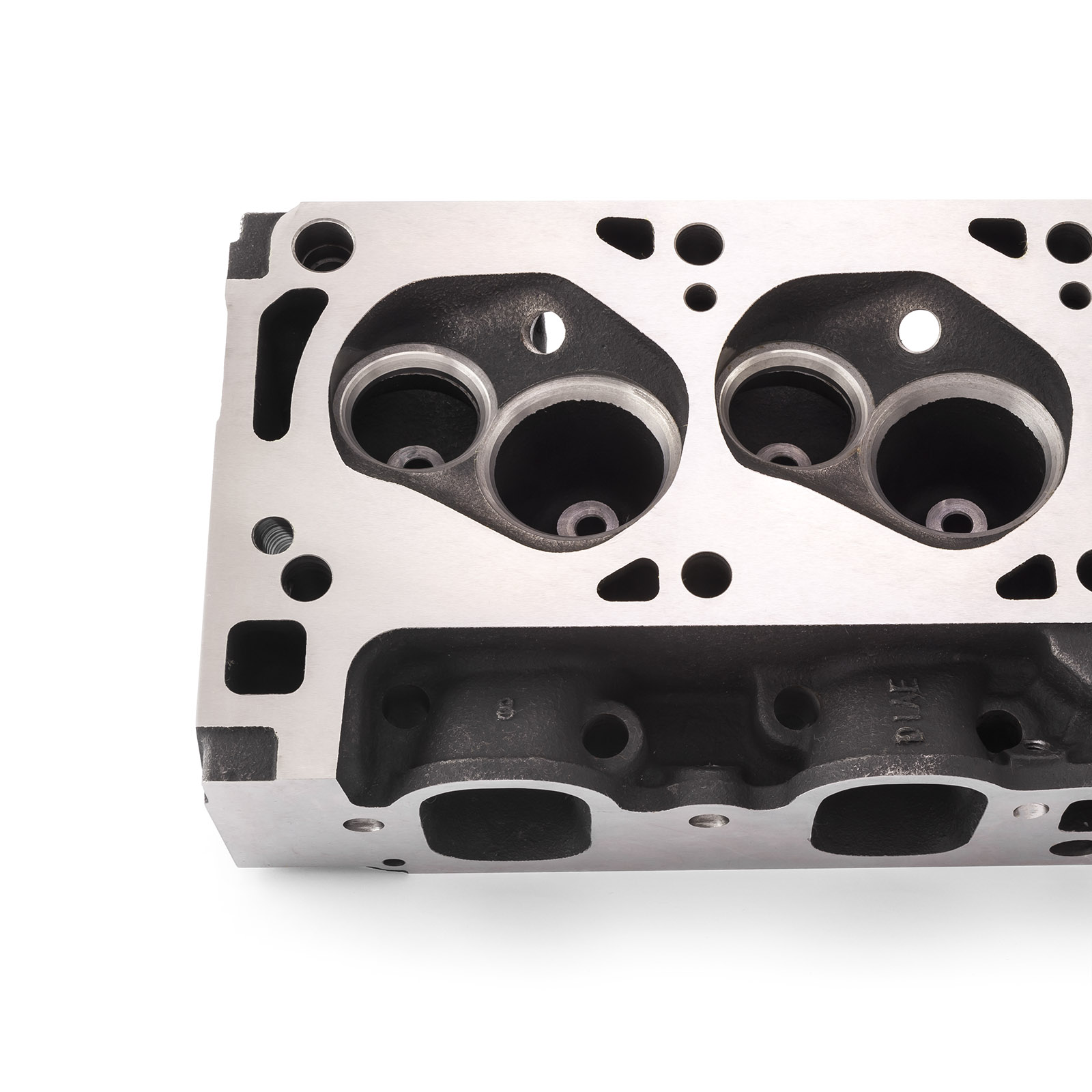

Ford 351 Cleveland 4V 254cc 64cc Cast Iron Bare Cylinder Head
Promo
Product Information
Overview
Performance Cast Iron cylinder heads are designed to be a direct replacement for your worn or cracked heads. These are new castings, modeled off OE castings for factory fit and finish. Some applications feature a thicker deck to solve common warping or cracking issues. Instead of spending the time and money refurbishing your existing heads, use Speedmaster cast iron cylinder heads.
Specs
| Brand: | Speedmaster |
| Part Number: | PCE281.1103 |
| Part Type: | Cylinder Head [Bare] |
| Cylinder Head Style: | Bare |
| Cylinder Head Material: | Cast Iron |
| Cylinder Head Finish: | Natural |
| Combustion Chamber Volume (cc): | 64 cc |
| CNC-Machined Combustion Chamber: | No |
| Intake Runner Volume (cc): | 254 cc |
| Exhaust Runner Volume (cc): | n/a |
| CNC-Machined Intake Runner: | No |
| CNC-Machined Exhaust Runner: | No |
| Intake Port Shape: | 351c Standard |
| Intake Port Location: | Standard |
| Exhaust Port Shape: | 351c Standard |
| Exhaust Port Location: | Standard |
| Spark Plug Style: | Standard |
| Comp. Valve Job: | No |
| Intake Valves Included: | No |
| Intake Valve Diameter (in): | 2.190 in. |
| Intake Valve Overall Length (in): | 5.24 in |
| Exhaust Valves Included: | No |
| Exhaust Valve Diameter (in): | 1.710 in. |
| Exhaust Valve Overall Length (in): | 5.042 in. |
| Valve Springs Included: | No |
| Damper Spring Included: | No |
| Retainers Included: | No |
| Locks Included: | No |
| Valve Stem Seals Included: | No |
| Valve Stem Diameter (in): | 11/32 in. |
| Rocker Arm Studs Included: | No |
| Rocker Arms Included: | No |
| Rocker Arm Nuts Included: | No |
| Guideplates Included: | No |
| Valve Cover Mounting Style: | Perimeter Bolt |
| Accessory Bolt Holes Drilled: | Yes |
| Intake Valve Angle: | Standard |
| Exhaust Valve Angle: | Standard |
| Valve Guides Included: | Yes |
| Valve Guide Material: | Steel |
| Valve Seats Machined: | Yes |
| Valve Seat Machine Style: | 3-angle |
| Valve Seat Material: | Ductile iron |
| Steam Holes Drilled: | N/A |
| Oiling Style: | Through pushrod |
| Machined for O-Ring: | No |
| Heat Crossover: | No |
| Quantity: | Sold individually. |
Warranty Information
12-Month Limited Worldwide Warranty
