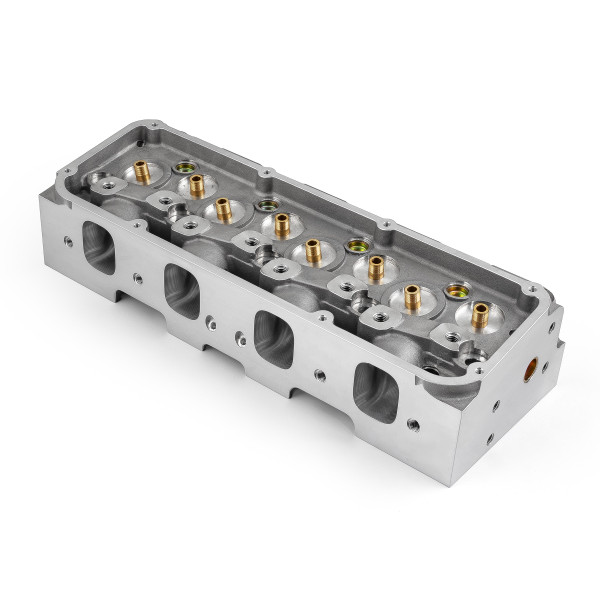

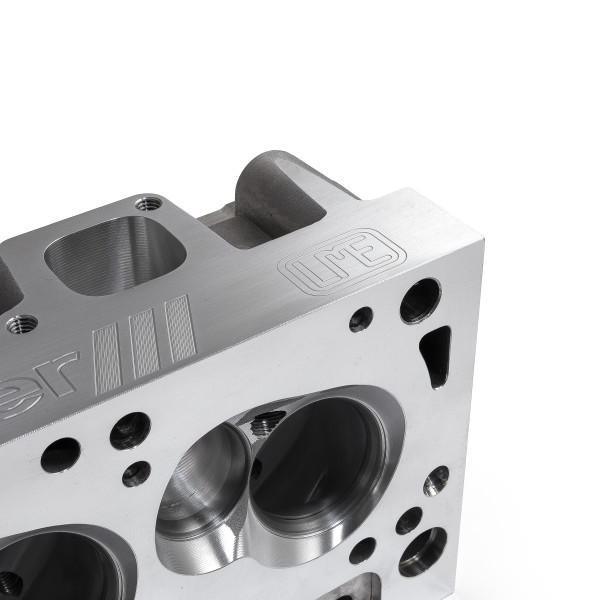

Ford 302 351C Cleveland LME-Engineered Full CNC Aluminum Bare Cylinder Head

The Speedmaster Ford Cleveland 3v heads are a perfect upgrade for both 2 and 4 barrel engines. We have re-designed the intake ports by raising the floor to help cut down on the massive cross-section that hampers OEM 4 barrel heads. Not only do you get more performance out of the box than OEM heads, our heads are significantly lighter since they are made of "Gravity Die Cast" aluminum. As another benefit, you can run higher compression with aluminum heads before the onset of power robbing detonation. There is absolutely no reason to rebuild a set of OEM castings when you can buy a lighter, higher flowing and more detonation resistant cylinder head for less money from us! To top it all off, we offer CNC ported Cleveland heads for people looking for even more performance.

INTAKE / EXHAUST GASKETS
Due to the unique raised port of the Speedmaster 3v head, the only intake gaskets readily available are Speedmaster PCE349.1001 which measure 1.73(W) x 2.140(T) with the floor of the port 1.220" up from the deck of the head.

The exhaust side of the head uses standard 4v exhaust gaskets. You can use Speedmaster PCE355.1010 or Fel-Pro 1416 header gaskets which measure 1.89" (W) x 2.19" (T).

HEAD GASKETS
The Speedmaster PCE281.1703, PCE281.1714, PCE281.1724 and PCE281.1726 cylinder heads use the following head gaskets for use with 351C block:

Speedmaster PCE348.1005 (MLS 4.055" gasket bore)
Fel-Pro 1013 (Composite 4.100" gasket bore)

Both gaskets are .040" thickness when compressed.

HEAD BOLTS / STUDS
The Speedmaster Cleveland 3v heads require specific head studs that are longer than standard.

Use Speedmaster PCE279.1014.
These studs should only be finger tightened into the block. Torque the nuts to 65lbs. using high pressure moly lube, in increments of 15lbs.

SPARKPLUGS
Our Ford Cleveland cylinder heads require the use of a 14mm. thread 5/8" hex, .750" reach spark plugs. Below you will find a list of some plugs that fit and work with our heads:

NGK - BCPR6ES, R5671A-7, R5671A-8
Autolite - 3923, 3924, AR3933, AR3934
Champion - RC12YC, RC10YC4, RC9YC3

Remember that you need a COLDER plug when you make more power, ie. N2O, Turbo and supercharging.

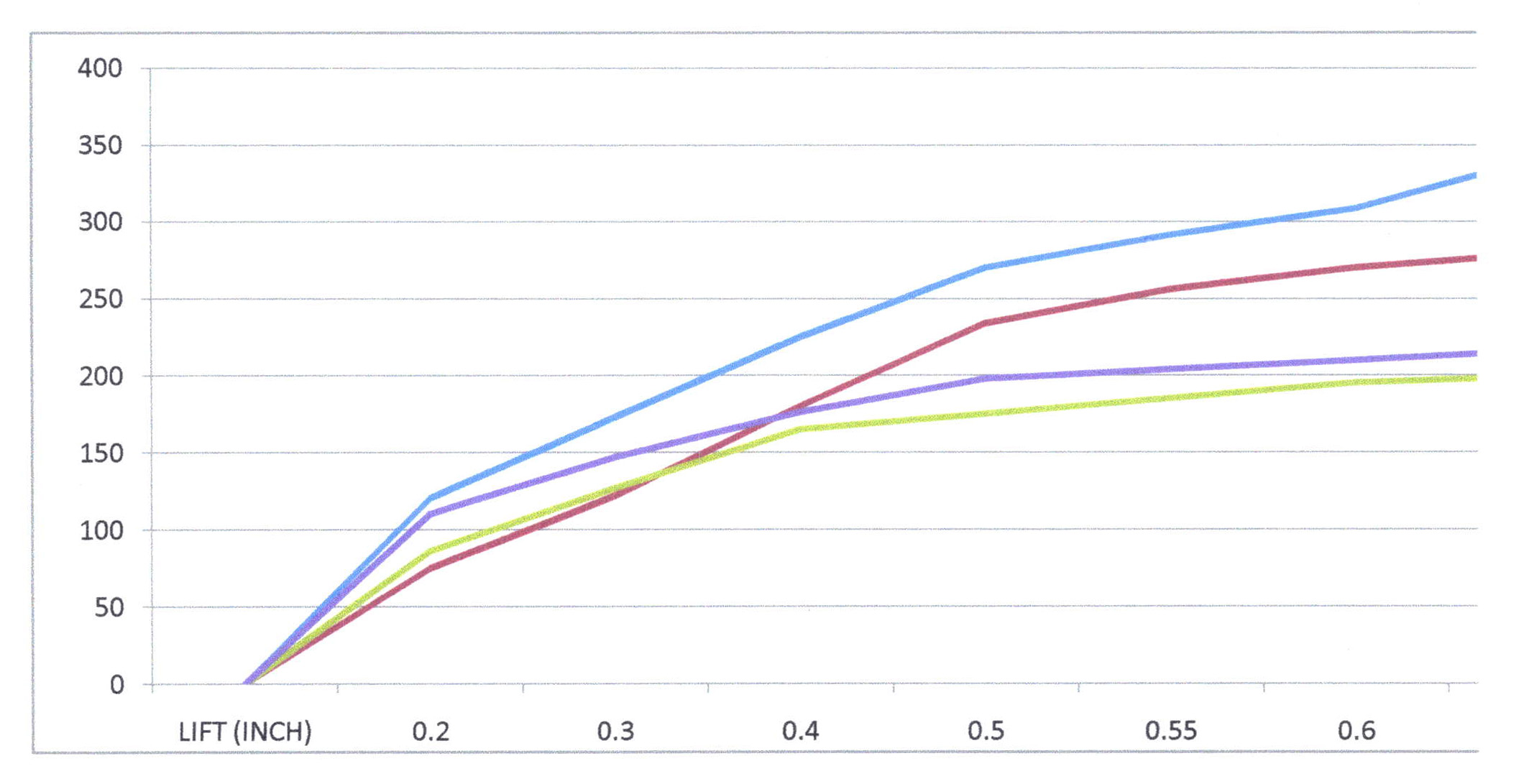

Air Flow Data:

All tests were done on a SuperFlow SF-1020 at 28 inches of water column. **The flow numbers for many of our other heads were measured on an SF-600, which are generally much higher.**
