Speedmaster®

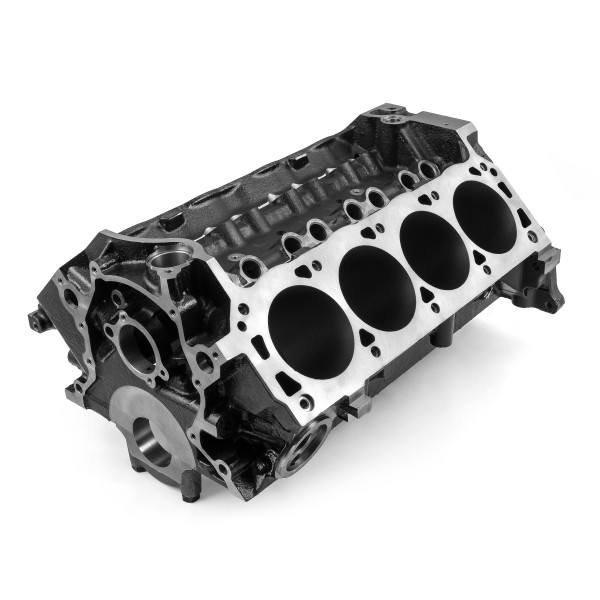

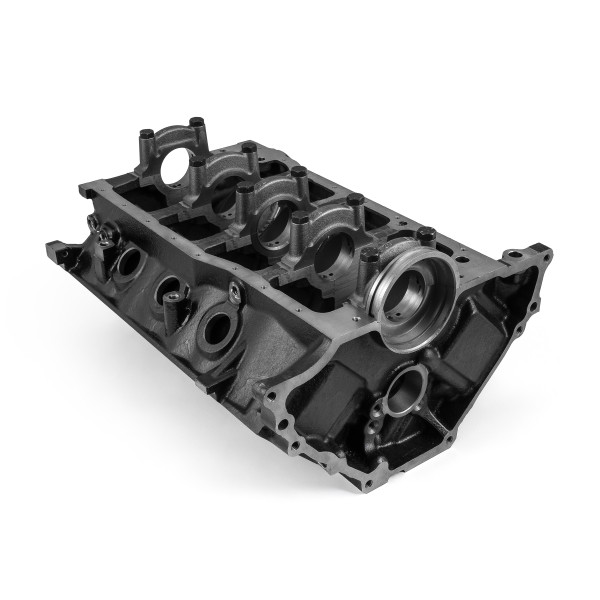

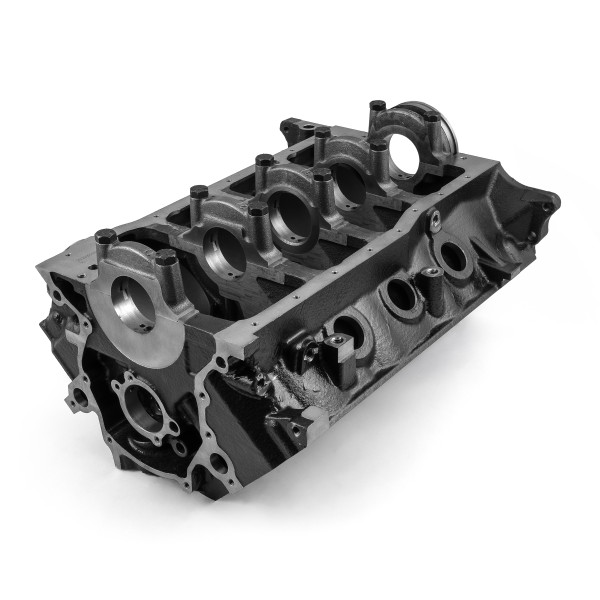

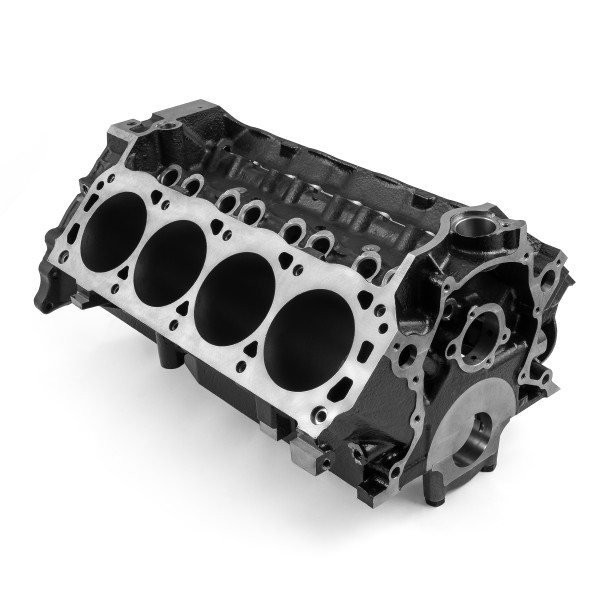

Ford 302W Windsor B-4.000 M-302W DH-8.211 2-Bolt Billet Main Iron Engine Block
Product Information
Specs
| Brand: | Speedmaster |
| Part Number: | 1-286-016-01 |
| Part Type: | Engines, Bare Block |
| Cylinder Bore Diameter: | 4.000 in. |
| Bore & Stroke: | 4.040 in. x 3.400 in. Max Recommended |
| Cam Journal OD: | Standard SBF |
| Cam Plug: | 2.250 in. Dia. Cup Plug |
| Cylinder Wall Thickness: | 0.250 in. min @ 4.185 in. Bore |
| Deck Height: | 8.211 in. |
| Deck Thickness: | 0.675 in. Min |
| Fuel Pump: | Standard Mechanical Provision |
| Fuel Pump Pushrod: | Standard Length |
| Freeze Plugs: | Standard 1.500" Press In Cup Plugs |
| Lifter Bores: | Standard SBF .874" |
| Main Bearing Size: | 2.248 in. (Standard 302W) |
| Main Bearing Bore: | Standard 302W |
| Main Cap Bolts: | 7/16" |
| Main Caps: | Cast Steel |
| Main Cap Register: | Deep Stepped Register (No Need for Dowels) |
| Oil Pump Shaft: | Standard SBF 302W |
| Oil Filter: | Standard SBF 302W |
| Oil Pan: | Standard SBF 302W |
| Rear Main Seal: | Standard 1pc. |
| Serial No. Location: | Oil Pan Rail Bellhousing Side |
| Starter: | Standard |
| Stud Holes, Head: | STD 7/16" with blind holes |
| Timing Chain/Gears: | Standard SBF 302W |
| Timing Cover: | Standard |
| Weight: | 208 Lbs |
| Quantity: | Sold Individually. |
| Notes: | Check hood clearance before installing. |
Description
This cast‑iron Ford small‑block is designed to maintain a factory‑style appearance while working with standard small‑block Ford 302W components. It provides a solid foundation for a wide range of builds, from everyday street use to more performance‑oriented combinations. The block features thick cylinder walls and a sturdy deck surface, along with a durable casting intended to support reliable operation. Cast‑steel main caps and reinforced areas of the block contribute to overall stability and long‑term durability.
Features Include: Thick cylinder walls and deck surfaces, cast‑steel main caps, provisions for standard SBF components, and cooling passages designed for consistent temperature control.
