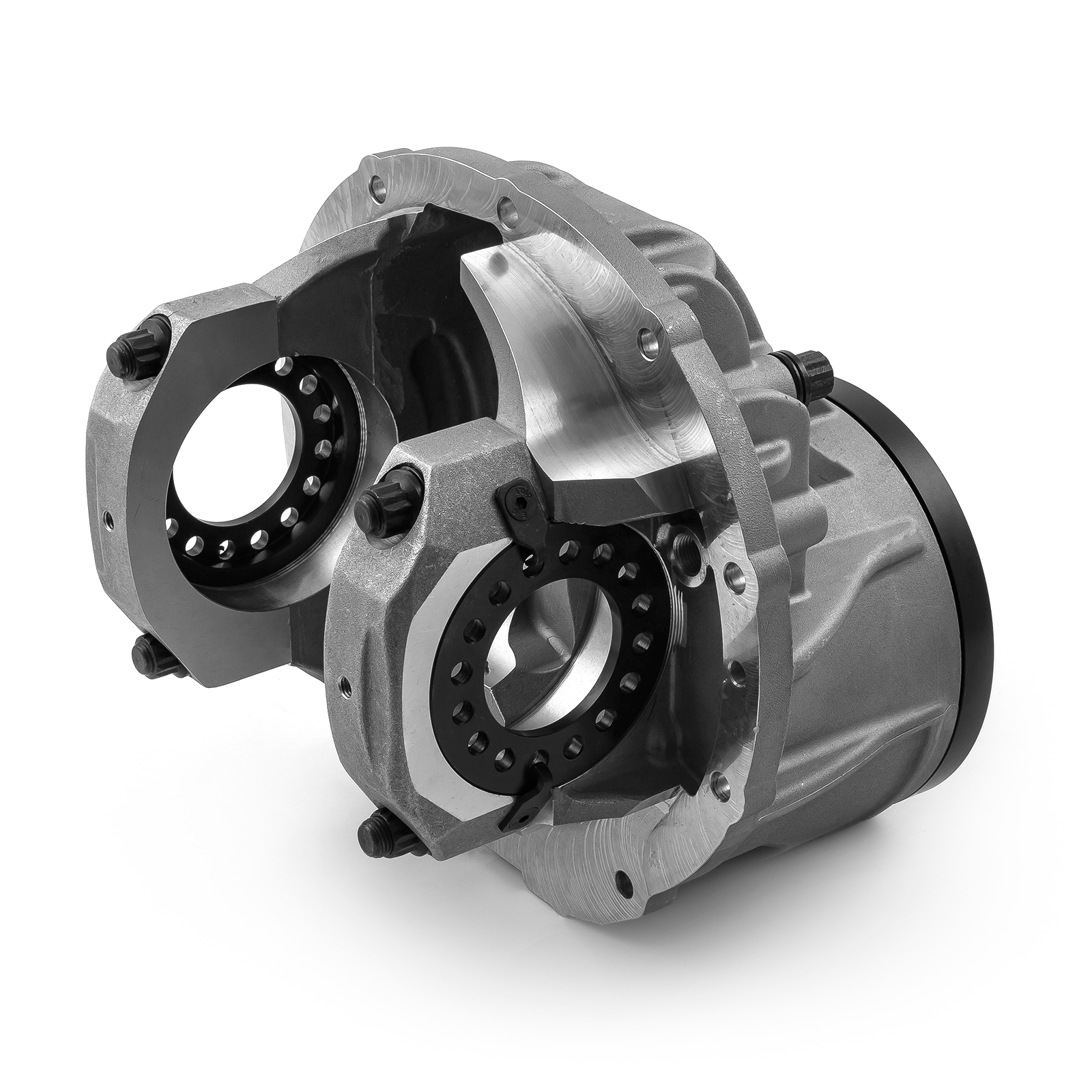

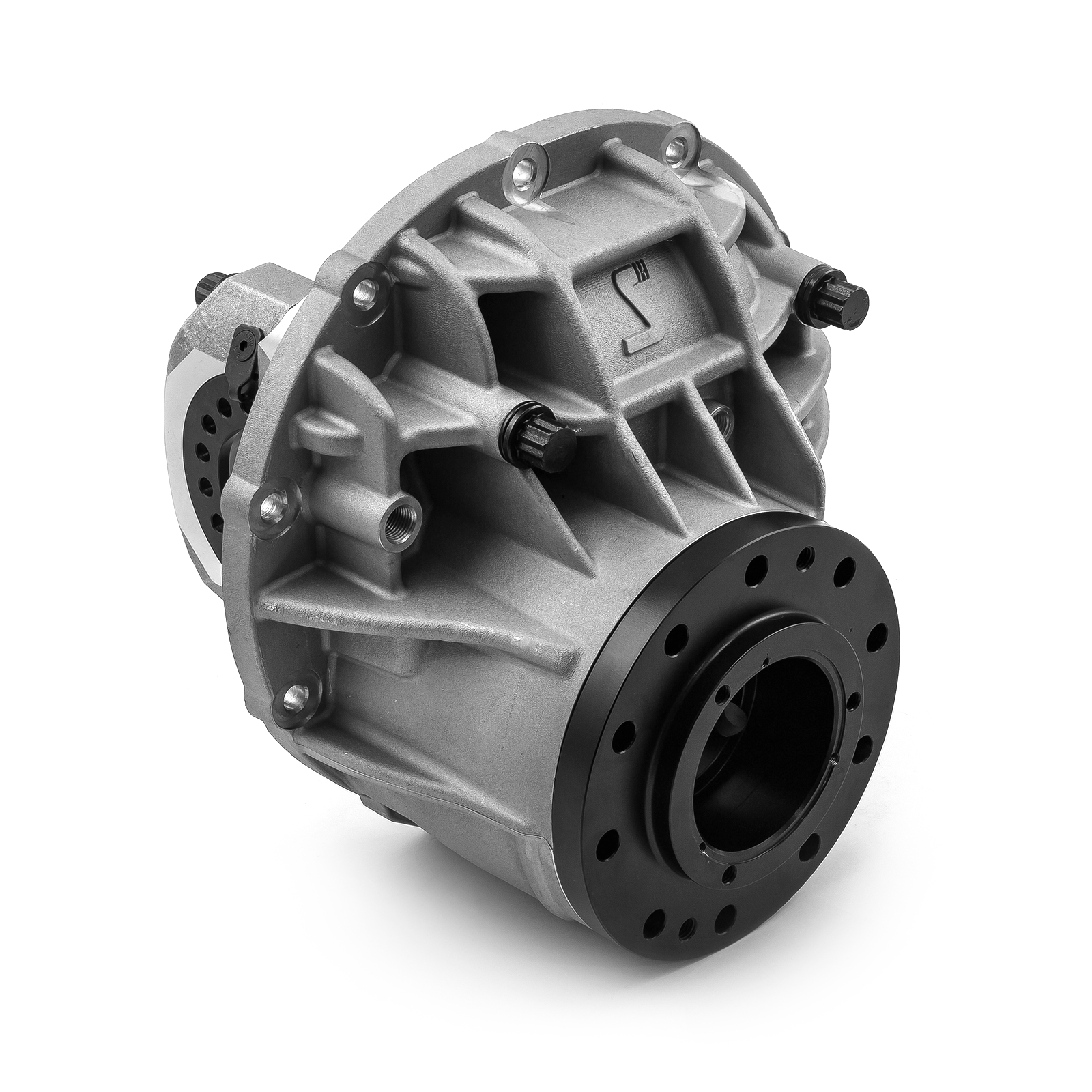

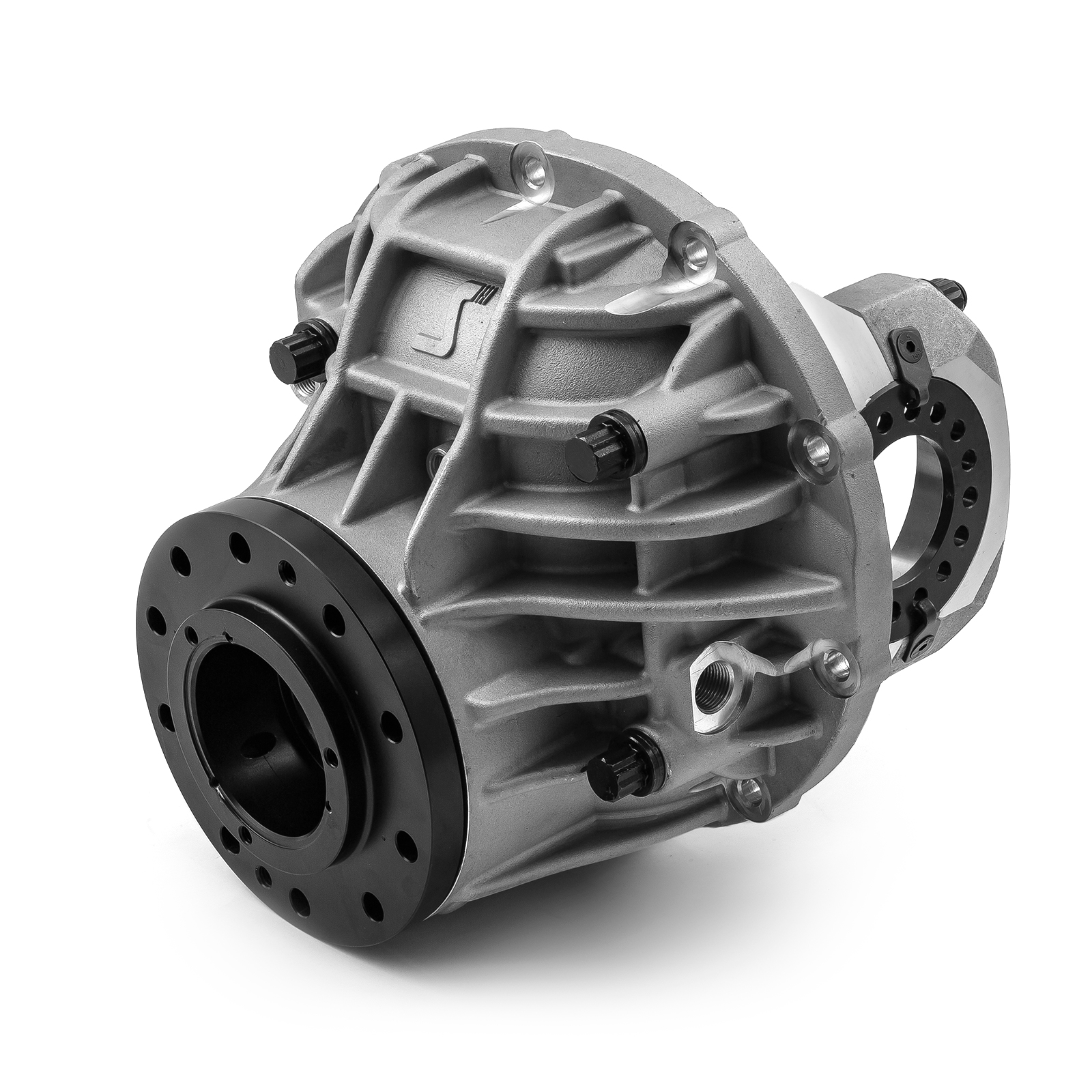

Ford 9" 4.00" Long Nose Aluminum Case Drop Out w/ Pinion Support

Speedmaster® 1-214-005-02 Ford 9" 4.00" Long Nose Aluminum Case Drop Out w/ Pinion Support
Speedmaster® 1-214-005-02 Ford 9" 4.00" Long Nose Aluminum Case Drop Out w/ Pinion Support
Speedmaster® 1-214-005-02 Ford 9" 4.00" Long Nose Aluminum Case Drop Out w/ Pinion Support
Speedmaster® 1-214-005-02 Ford 9" 4.00" Long Nose Aluminum Case Drop Out w/ Pinion Support
US $637.80
Single Points Earn 638 Points
Free Shipping— Lower 48 States

30-Day Money-Back Guarantee

10M+ Items Shipped Worldwide

MPN 1-214-005-02 UPC840136562160

Product Information

Overview

Speedmaster Aluminum Dropouts are in improvement from the past. Current technology has made aluminum products stronger and more durable. Our aluminum cases are made from 201-T6 aluminum, our bearing caps are from one-piece billet, with a through bolt design and extra material is added to the bearing caps. This results in 50% less deflection that can occur with other units on the market.

Specs

Brand:Speedmaster
Part Number:1-214-005-02
Part Type:Third Member Case Only
Case Style:Ford 9"
Case Material:Aluminum
Main Caps Included:Yes
Main Cap Material:7075-T6 Forged Aluminum
Main Cap Retention Style:Thru Bolt 9/16
Carrier Bearing Diameter (in):4.000 in.
Pinion Support Bolt Quantity:10
Standard Pinion Location:Extended 0.750 in.

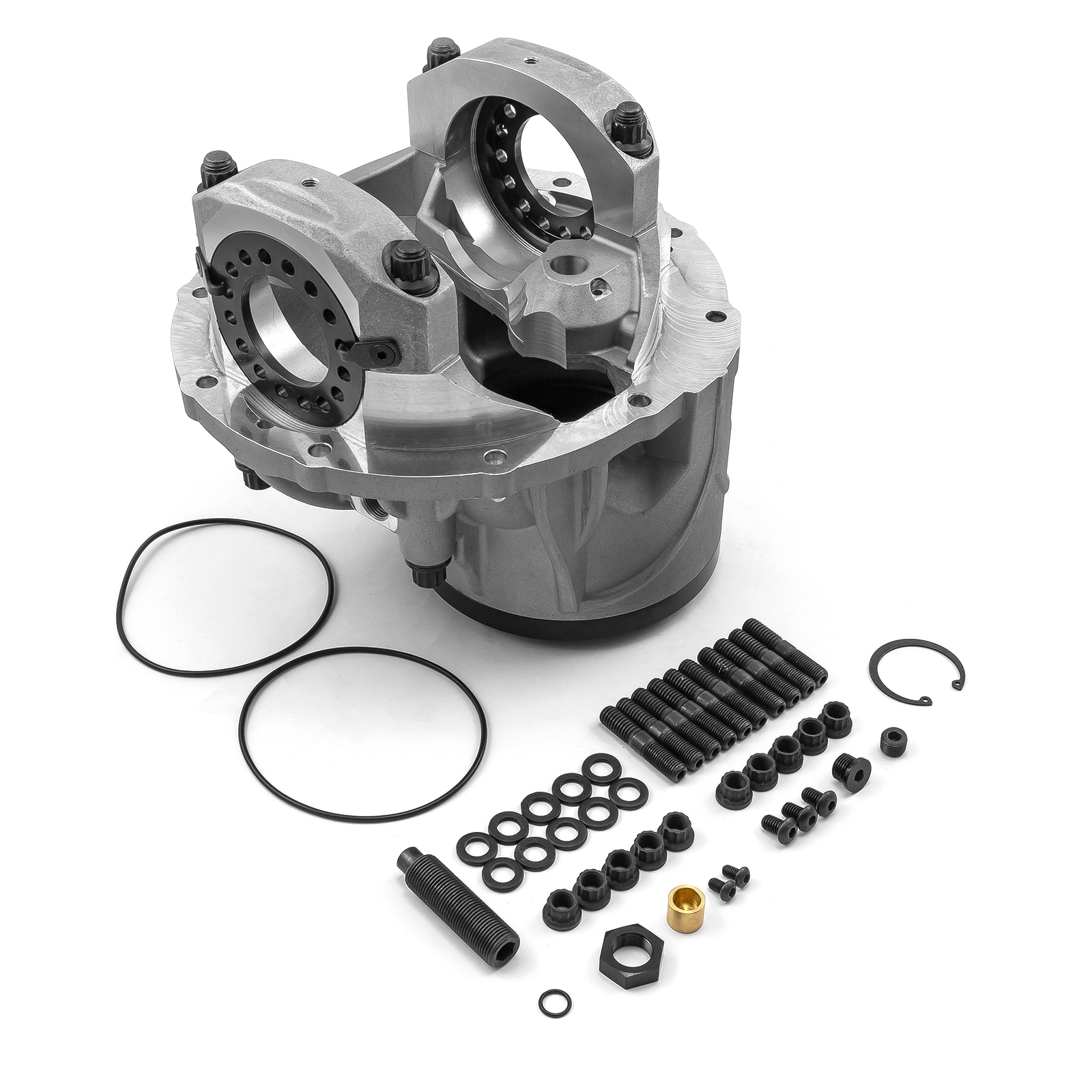

Hardware Included:Yes
Ring Gear Load Bolt:Yes
Quantity:Sold individually.
Notes:Fits all 9" Ford Diffs.
The nose of this unit is extended by 0.750" to reduce pinion deflection. Will work with all standard 9" ring and pinions.

Description

Carrier Bearings:
PCE203.1006 (Ford 9" Carrier Bearing w/ 2.75" Journal to suit 4.00" Case)
PCE203.1007 (Ford 9" Carrier Bearing w/ 2.25" Journal to suit 4.00" Case)
PCE203.1008 (Ford 9" Carrier Bearing w/ 2.00" Journal to suit 4.00" Case)

Pinion Bearings:
PCE207.1008 (Pinion Bearing Industry Std Ref: 2788 / 2729)
PCE207.1009 (Pinion Bearing Industry Std Ref: HM804846 / HM804810)

Pilot Bearing:
PCE468.1001 (Pilot Bearing Industry Std Ref: R1535Tav)

Warranty Information

12-Month Limited Worldwide Warranty
