Speedmaster®

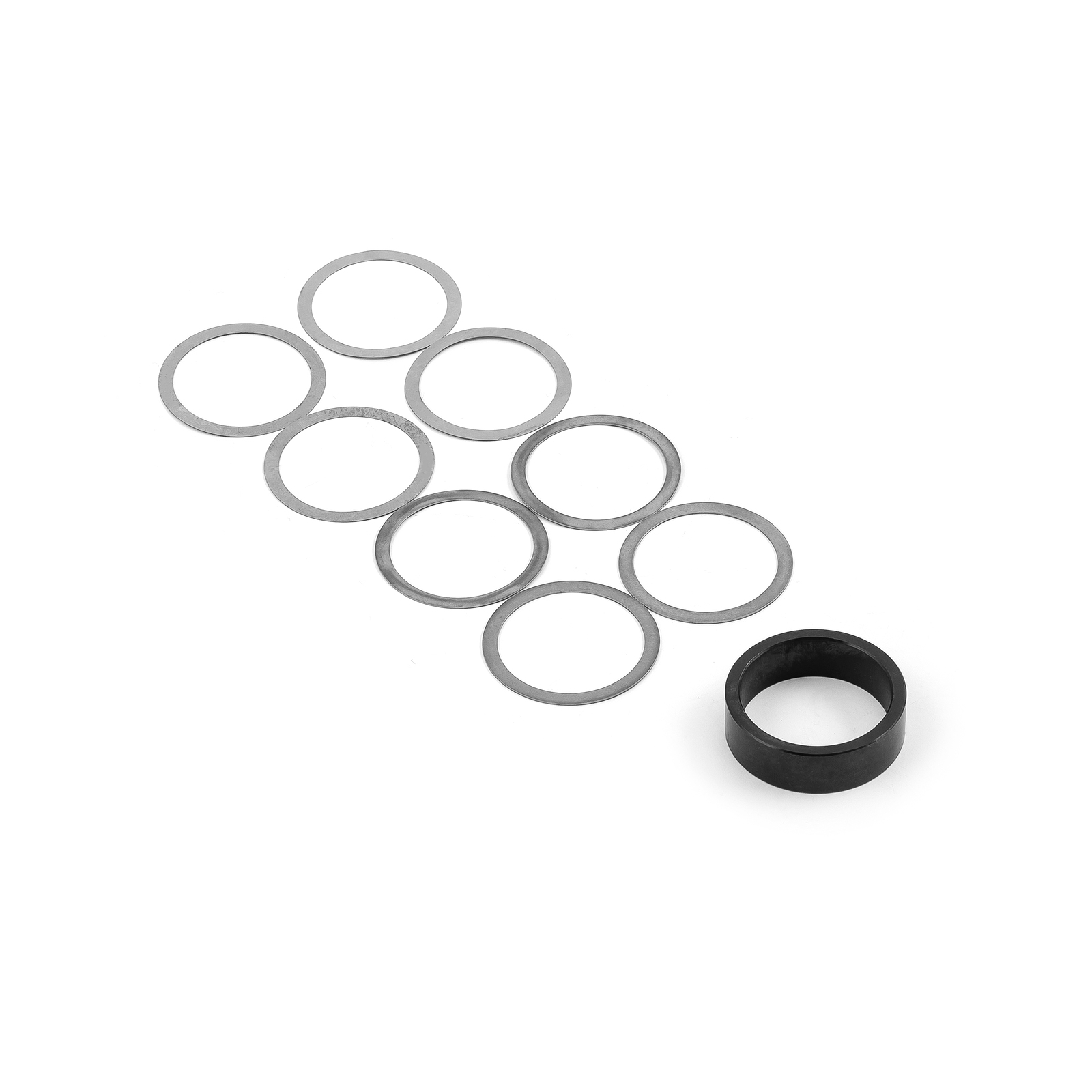

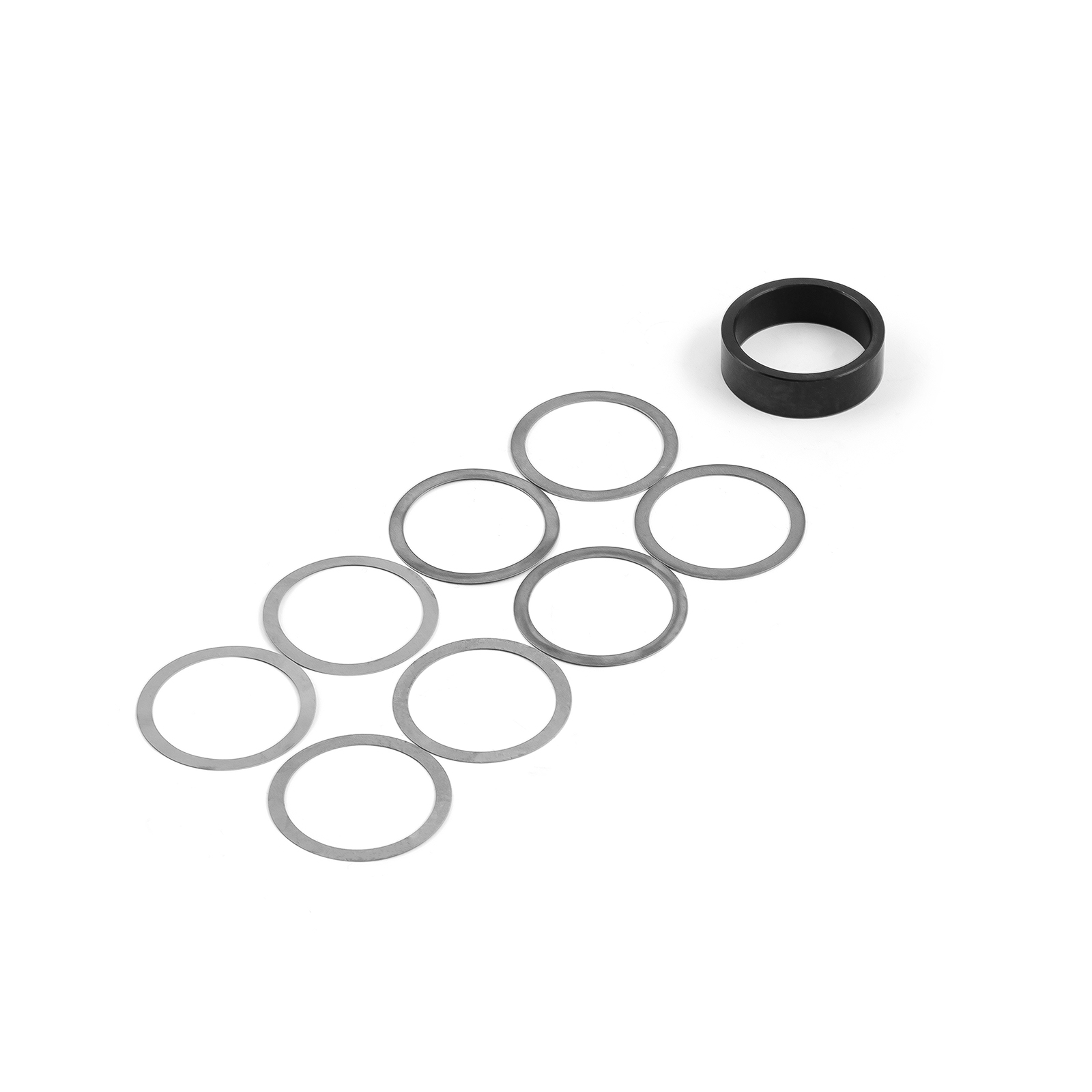

Ford 9" Standard 28 Spline Ring and Pinion Preload Shim Kit
Product Information
Overview
The Speedmaster 9" solid pinion bearing spacer kit is designed to retain the pinion depth settings for greater strength and reliability. Spacer can be reused if disassembly of the carrier is required.
Specs
| Brand: | Speedmaster |
| Part Number: | PCE206.1015 |
| Part Type: | Differential Pinion Bearing Spacers and Sleeve |

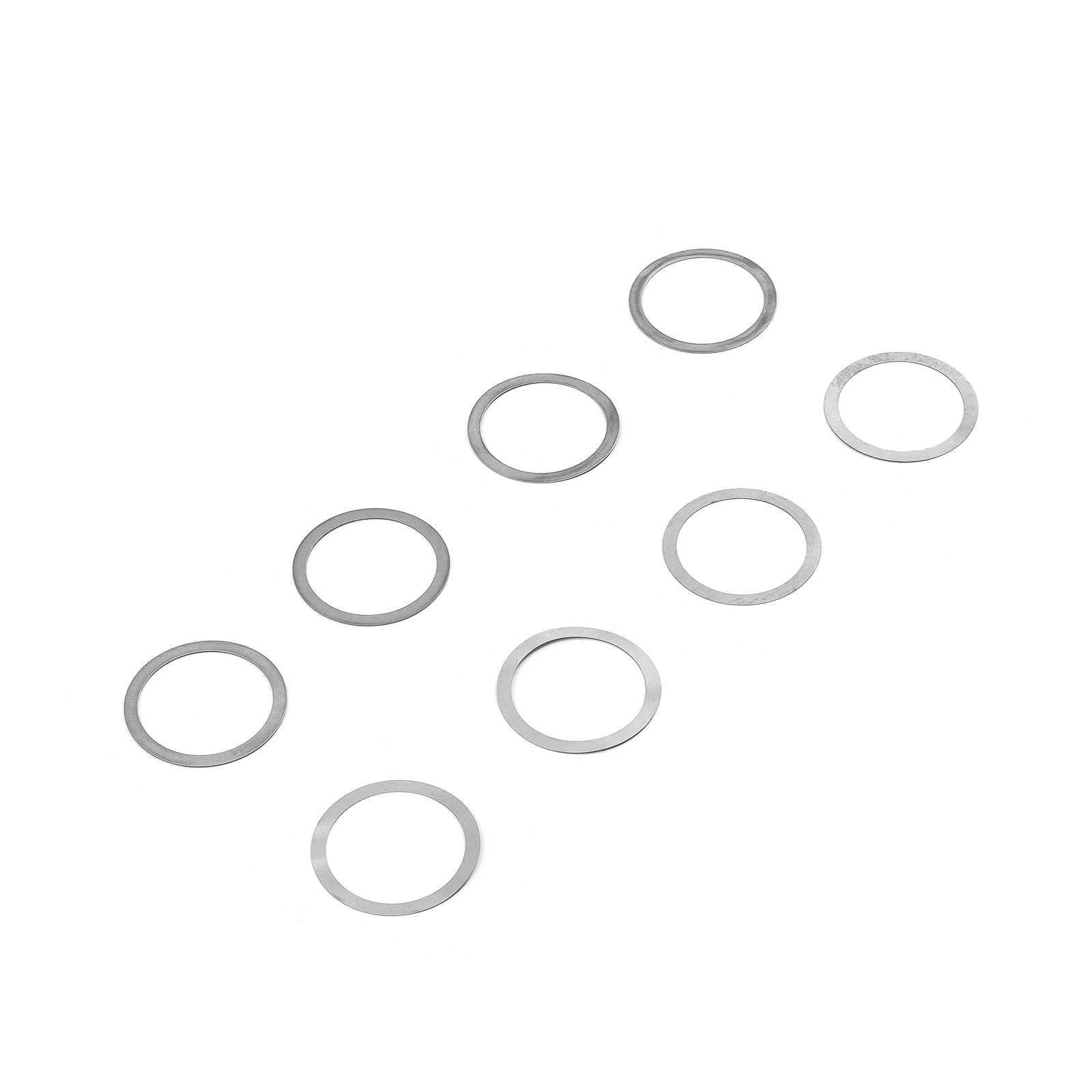

| Preload Spacer Shim Thickness (in.): | 0.004 in. |
| Preload Spacer Shim Thickness (in.): | 0.005 in. |
| Preload Spacer Shim Thickness (in.): | 0.010 in. |
| Preload Spacer Shim Thickness (in.): | 0.020 in. |

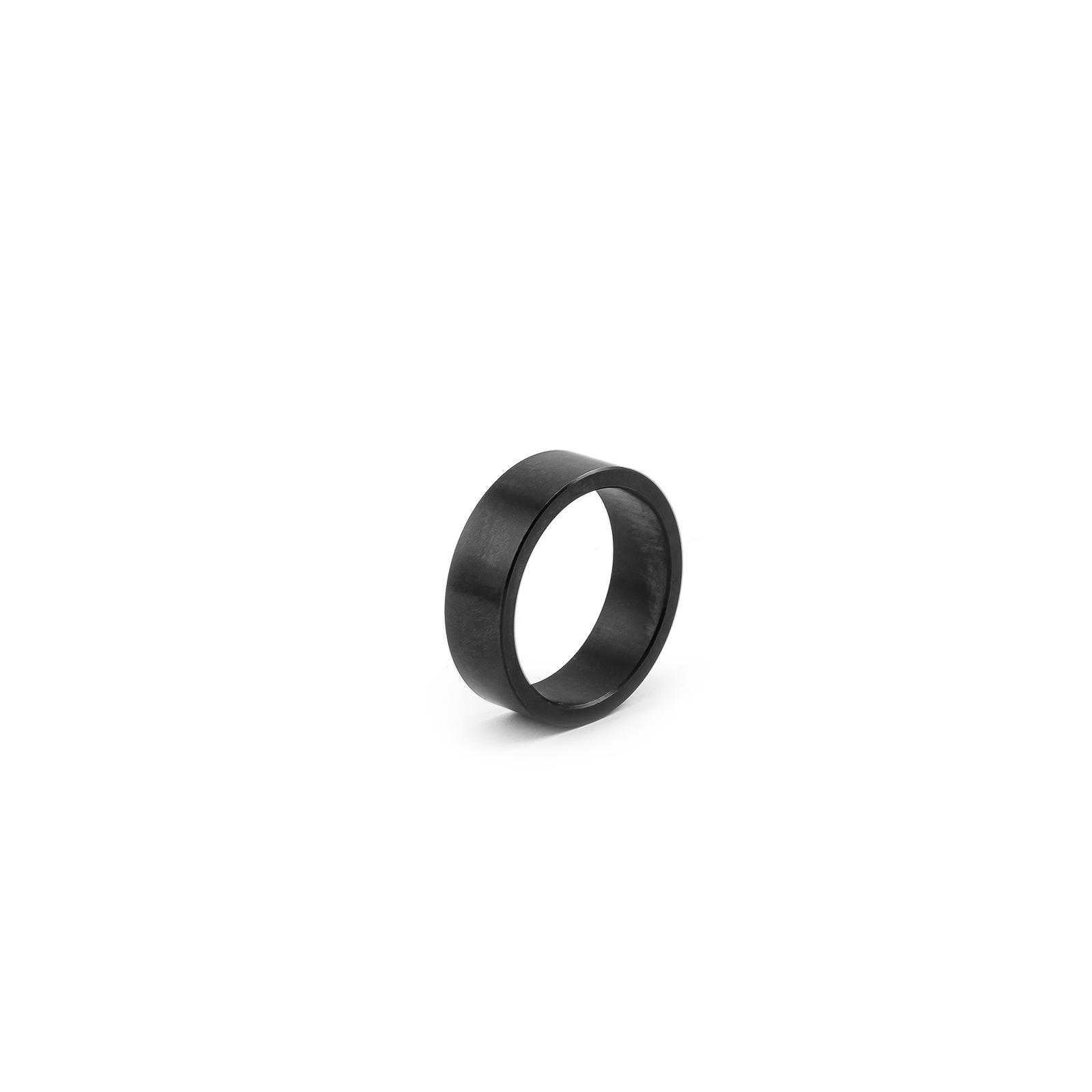

| Solis Preload Spacer Thickness (in.): | 0.4790 in. |
| Shim Inner Diameter (in.): | 1.321 in. |
| Shim Outer Diameter (in.): | 1.600 in. |
| Spacer Inner Diameter (in.): | 1.3195 in. |
| Spacer Outer Diameter (in.): | 1.5850 in |
| Shims Included: | Yes |
| Preload Spacer Included: | Yes |
| Quantity: | Sold as a kit. |
| Notes: | Each shim size comes with two quantities in the kit. |
