Speedmaster®

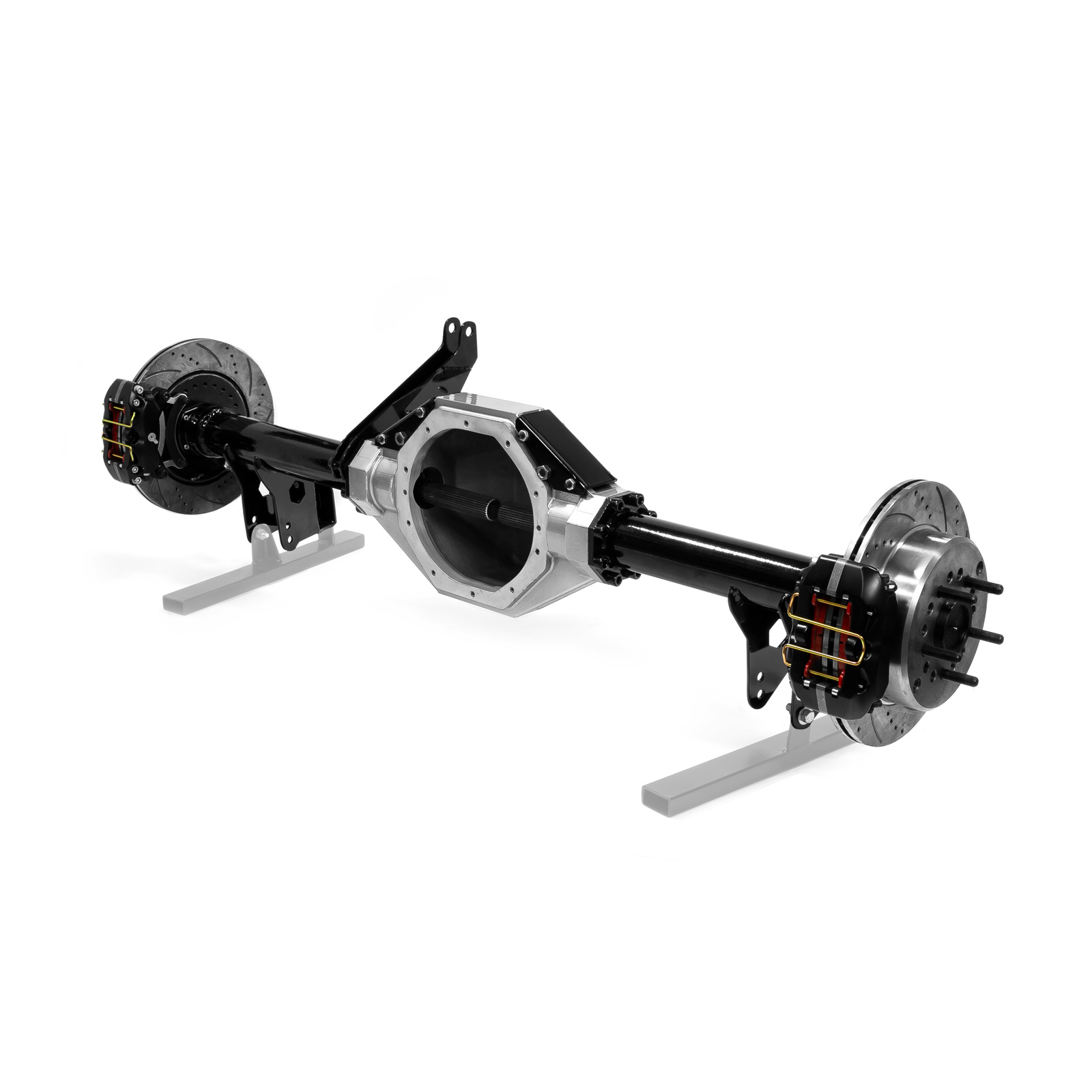

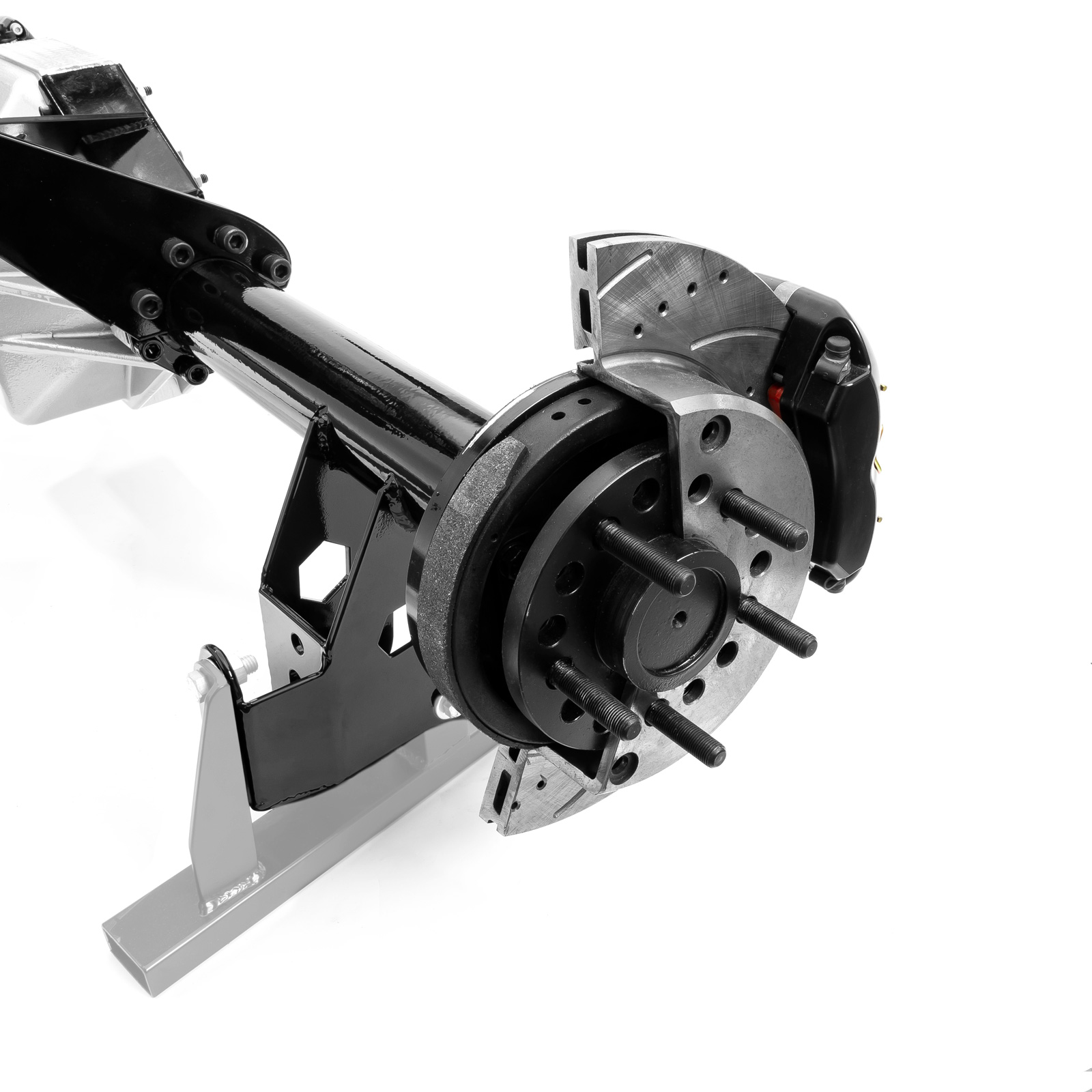

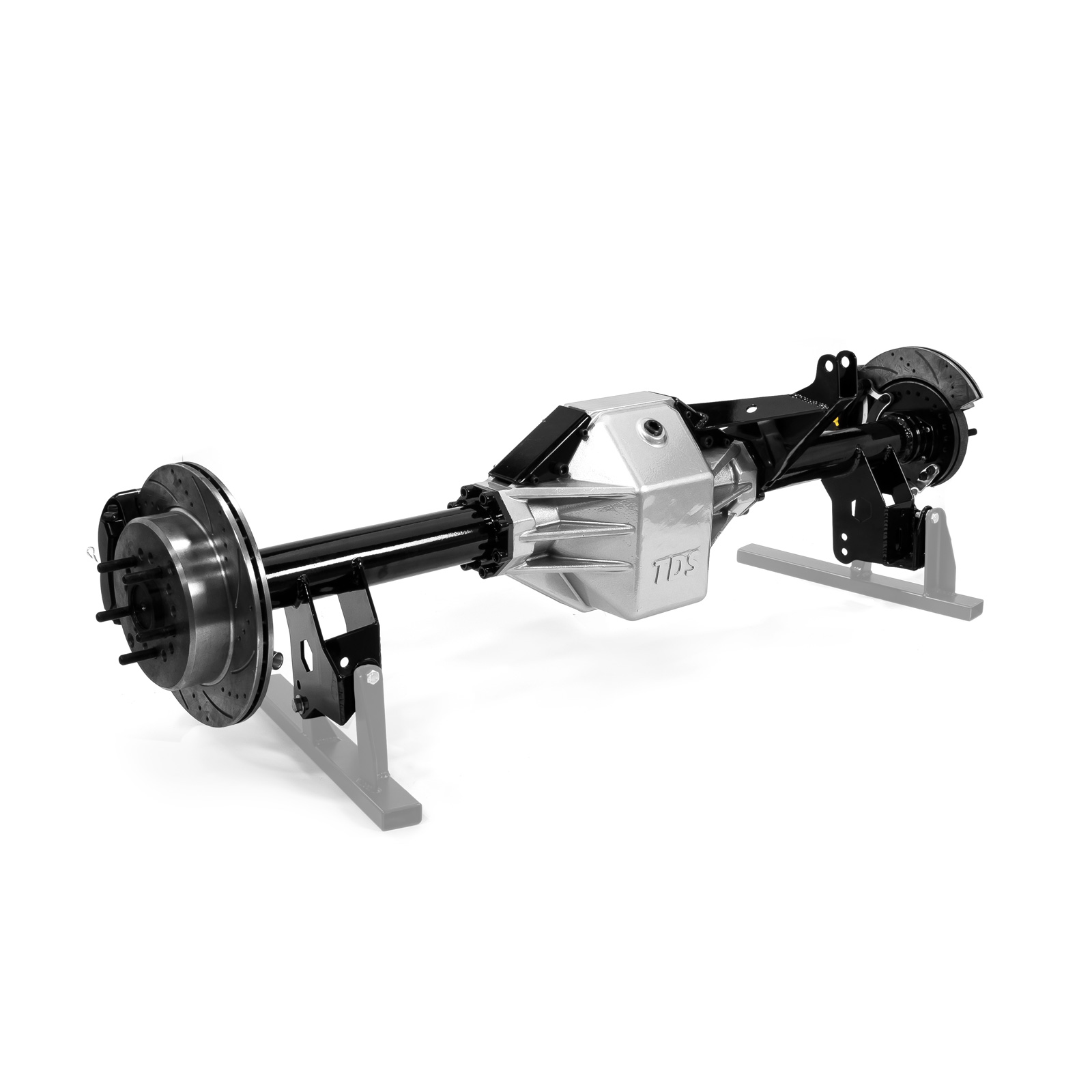

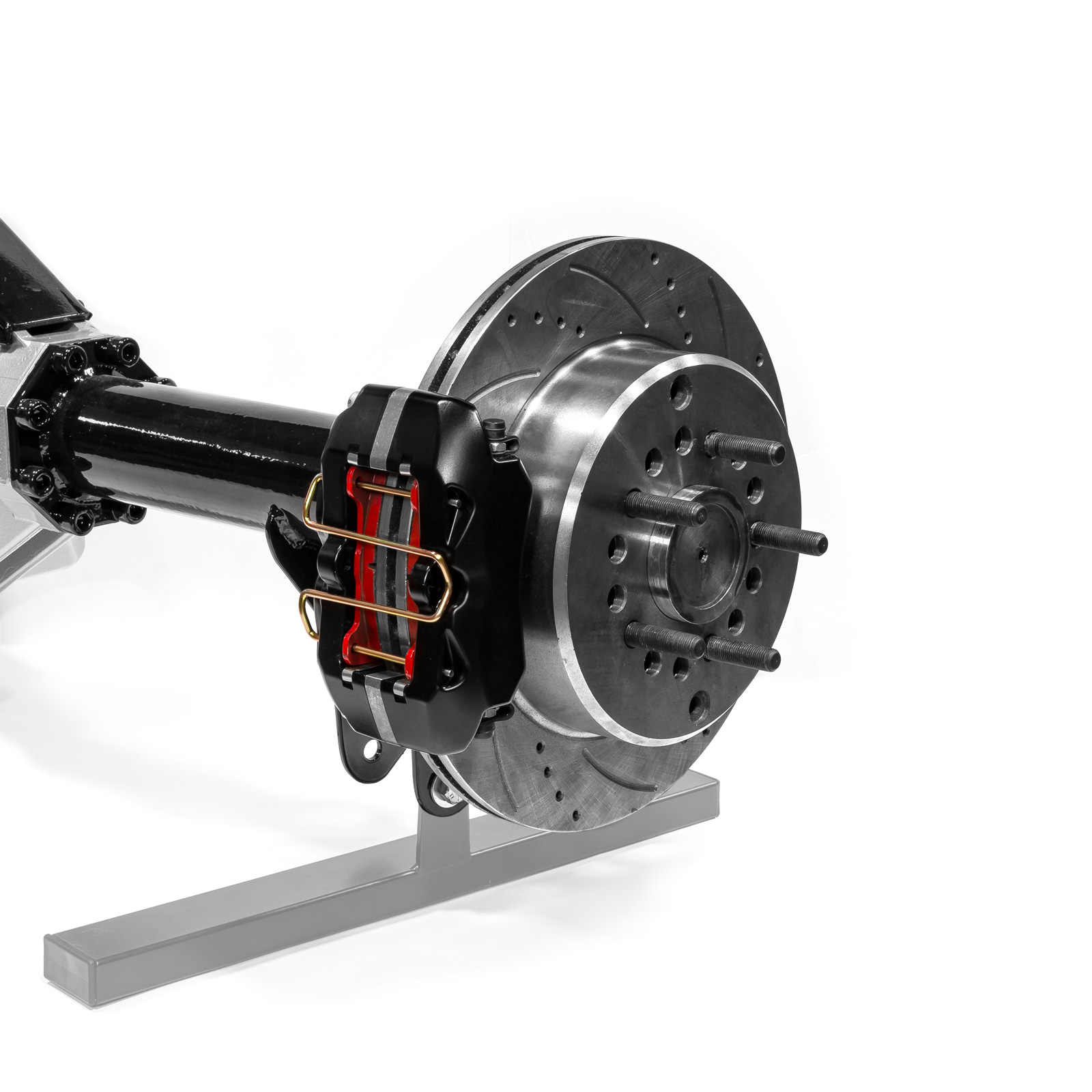

Complete Bolt In Rear End Assembly W/ 12" Rear Brake Kit -Factory Five Mk4 Cobra
Product Information
Overview
Speedmaster rear-end assemblies are the ultimate solution. As the horsepower in your performance vehicle goes up so does the strength of the read end housing. Our rear-ends have a reputation for being tough to handle the abuse of Circle Track, Off-Road and Drag Racing applications. Built for performance, these housings tubes are manufactured with .188 in. wall DOM steel. Designed to bolt onto our aluminum center sections and used with our various housing end applications.
Specs
| Brand: | Speedmaster |
| Part Number: | PCE196.2024 |
| Part Type: | Axle Assembly |
| Rear Rotor Style: | Drilled and Slotted |
| Rear Rotor Construction: | Vented |
| Caliper Piston Quantity: | 4 |
| Rear Caliper Material: | Billet Aluminum |
| Parking Brake Provision: | Yes |
| Parking Brake Style: | Mechanical |
| Master Cylinder Included: | No |
| Brake Lines Included: | No |
| Rotor Dimensions: | 12.19 Diameter (2.749 Center Hub) |
| Wheel Stud Spacing: | 5" x 4" & 5" X 5" |
| Rotor Thickness: | .810 |
| Axle Housing Type: | Fabricated |
| Axle Housing Material: | Aluminium |
| Axle Tubes Cut to Fit: | Yes |
| Axle Tube Diameter (in): | 3.000 in. |
| Axle Housing Flanges Included: | No |
| Drain Plug Included: | Yes |
| Filler Plug Included: | Yes |
| Breather Bung Included: | No |
| Spring Perches Included: | No |
| Carrier Studs Included: | No |
| Differential Cover Included: | No |
| Axle Tube Diameter (in): | 3.00 in. |
| Axle Tube Length (in): | 24.5 in. (each) |
| Axle Tube Material: | Steel |
| Axle Housing Flanges Included: | Yes |
| Inner Axle Splines: | 31 |
| Axle Type: | Flanged |
| Axle Material: | 4140 steel |
| Axle 1 Length (in): | 30.000 in. |
| Axle 2 Length (in): | 34.000 in.. |
| Wheel Stud Type: | Press-in |
| Wheel Stud Pattern: | 4.500 in. | 4.750 in. | 120mm |
| Spool Included: | No |
| Wheel Studs Included: | No |
| Bearings Included: | No |
| Seals Included: | No |
| Quantity: | Sold as a Kit |
| Notes: | These kit does NOT come assembled. |
Warranty Information
12-Month Limited Worldwide Warranty
