Speedmaster®

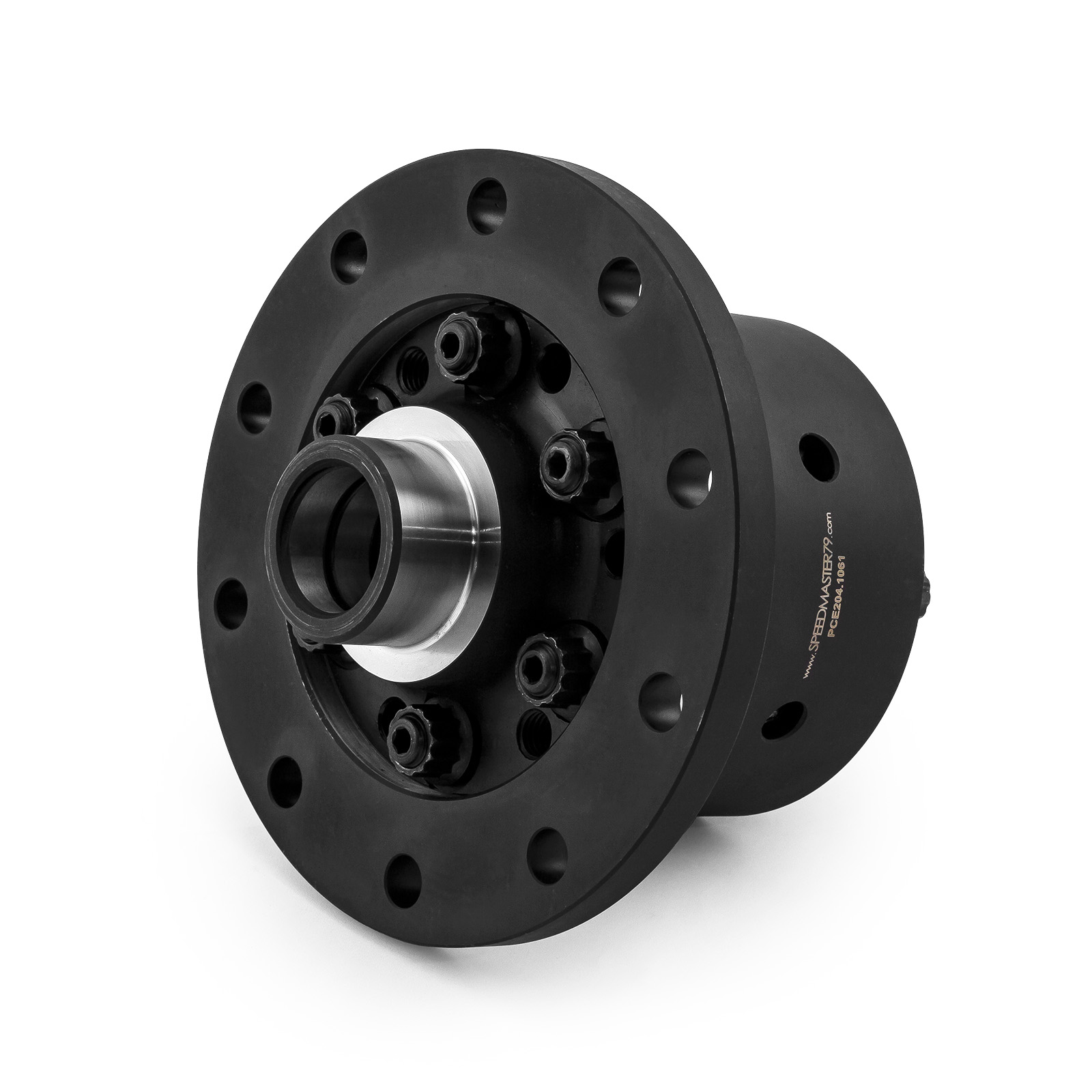

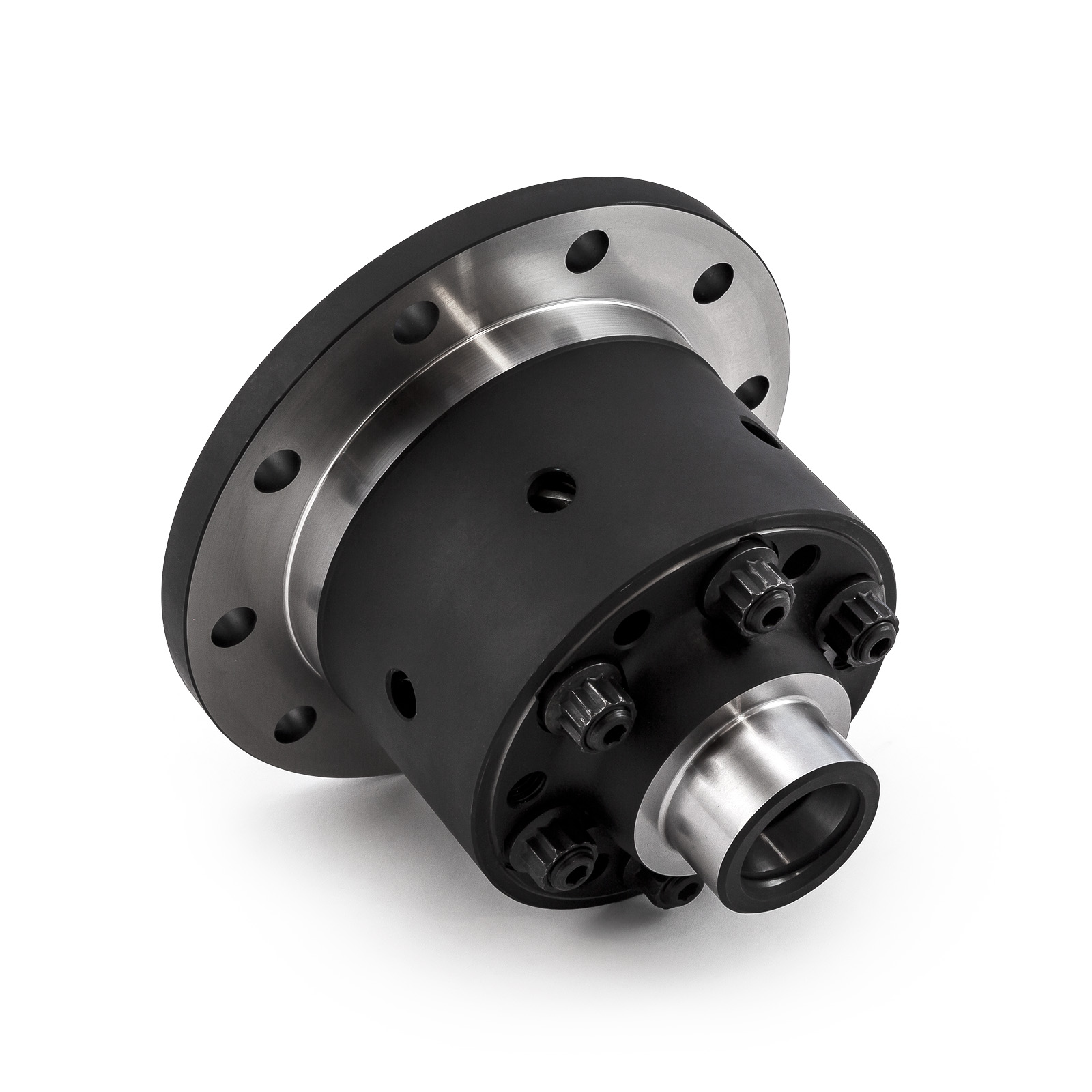

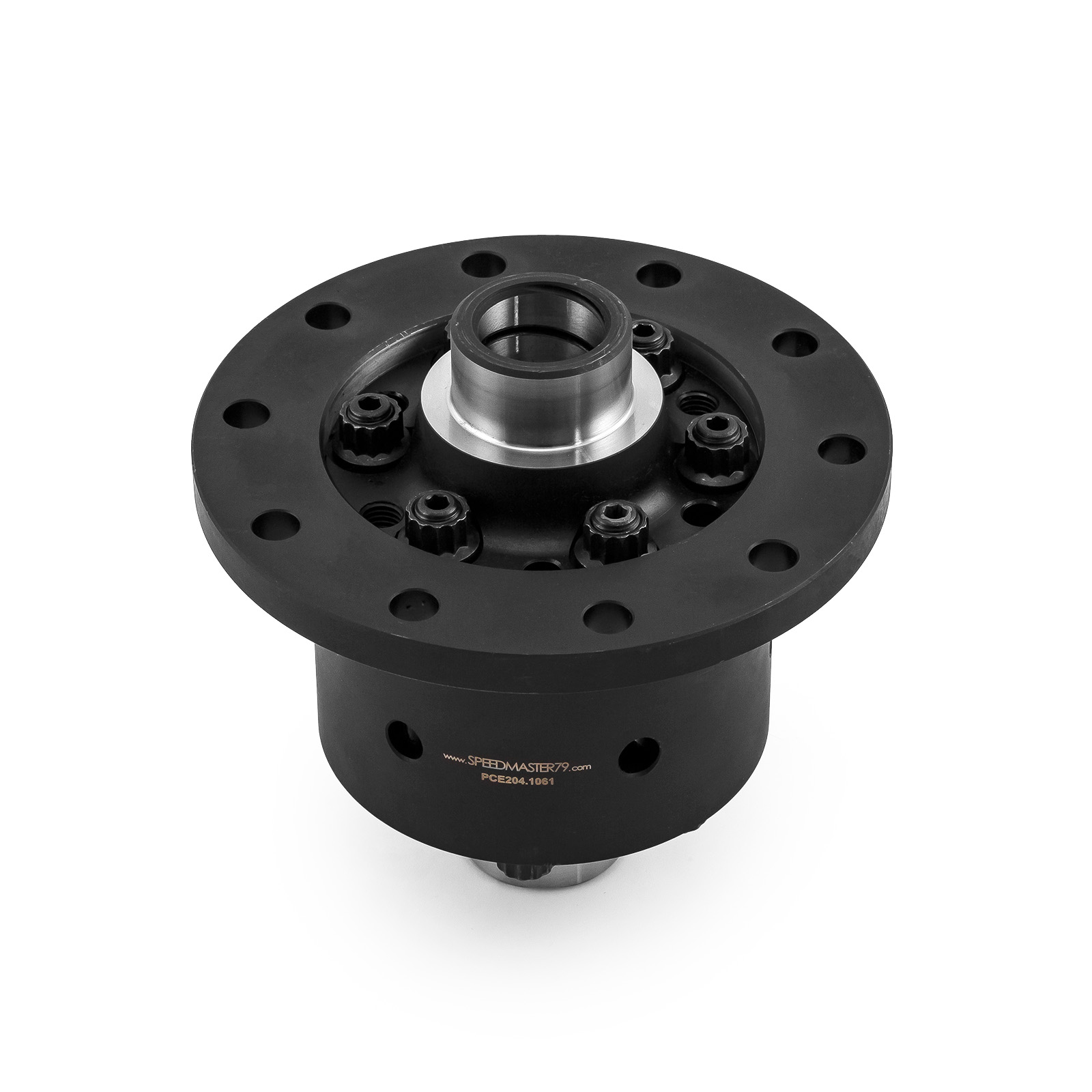

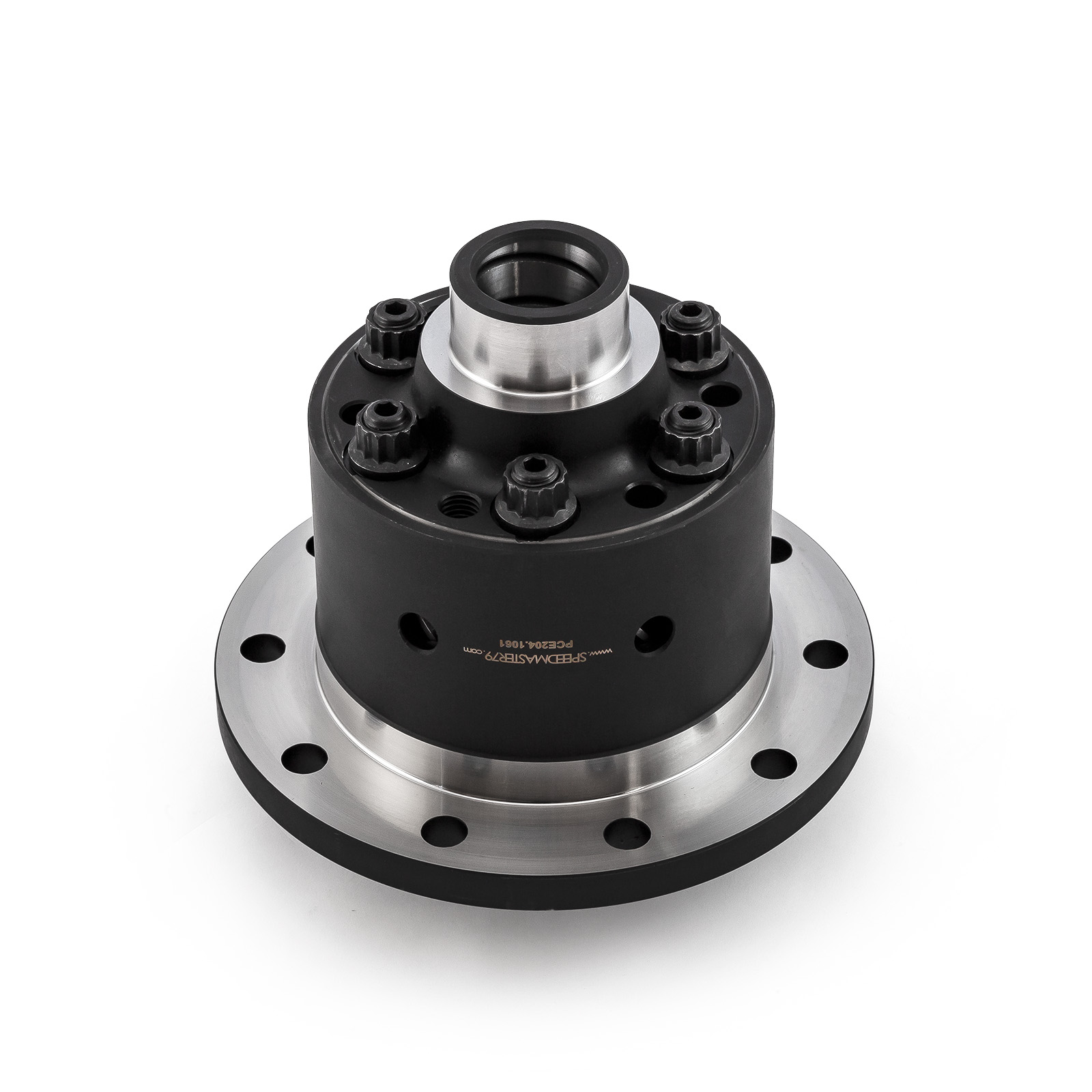

Mazda MX5 Mk1 Mk2 NC Miata 94-05 TorqueWorm Helical Gear Limited Slip Carrier LSD
Overview
The TorqueWorm is a torque bias, 6 pinion gear, limited slip unit. This is a preloaded unit allowing for a faster reacting unit. Unlike our competitors that only use 3 or 4 pinion gears, the use of 6 pinion gears means the stress on gears is spread over a greater surface area, reducing the load on all internal components. The internal components are made from EN36 material as used in racing. The outer case is made from 8620 Chrome-Nickel-Moly steel and the case hardened for long life.
Specs
| Brand: | Speedmaster |
| Part Number: | PCE204.1061 |
| Part Type: | Differential Carrier |
| Aftermarket Carrier Style: | Limited Slip |
| Carrier Bearing Journal Diameter (in.): | 1.580 in. |
| Carrier Bearing Journal Width (in.): | 0.800 in. |
| Overall Width (in.): | 6.000 in. |
| Cover Bolts: | 10 |
| Axle Shaft Spline Quantity: | 26 |
| Manufacture of Axle: | Speedmaster TDS |
| Carrier Material: | Steel |
| Quantity: | Sold Individually |
| Notes: | Designed for NC Miata applications. |
Description
Mazda MX5 Eunos Roadster MK1 MK2 1.8 Miata 94-05
SUITS:
MX5 Mk1 1.8 1994 - 1998
MX5 Mk2 1.8 1998 - 2005
TorqueWorm LSD Features:
How do TorqueWorm Helical Gear LSDs Work?
Torque biassing TorqueWorm helical LSDs distribute torque between the wheels, loading more torque towards the wheel with the best traction, improving performance and driveability; particularly in low-grip situations.
The friction distribution within the LSD is managed by the helical gearing.
When torque is applied to a helical gear system, it generates a force that pushes the gear into the differential body, resulting in friction.
Increases in torque cause an increase in thrust force that is directly proportional to the amount of torque. This enables the TorqueWorm LSD to deal with significant traction imbalance even under high power conditions, such as when exiting a powered up corner.
However, at low torque levels, the LSD can differentiate quietly and smoothly, making the differential ideal for normal road driving.
The popular parallel axis helical geared configuration used by the TorqueWorm LSD is optimized for even load distribution.
They have a torque bias of 5:1, which means that if one wheel loses traction, the wheel with the most grip can receive five times as much torque as the slipping wheel.
However, five times zero is still zero, so all of these helical LSDs work best when both wheels are 'planted' and some traction on the slipping wheel is still available. In practice, this is rarely a problem because there is always some 'drag' on the slipping wheel, but some experienced drivers use left-foot braking to partially lock the spinning wheel.
SUITS:
MX5 Mk1 1.8 1994 - 1998
MX5 Mk2 1.8 1998 - 2005
TorqueWorm LSD Features:
- Equal rotational speed to both wheels
- Torque distributed according to traction
- Minimal service requirements - no clutches
- Quick reaction compared to viscous LSDs
- Gentle and progressive engagement, low noise
- Easily controlled power take-off and drifting
- Gears manufactured from EN36 Case-hardening steel
- Body manufactured from 8620 Chrome-Nickel-Moly steel
- Direct replacement into stock differential
How do TorqueWorm Helical Gear LSDs Work?
Torque biassing TorqueWorm helical LSDs distribute torque between the wheels, loading more torque towards the wheel with the best traction, improving performance and driveability; particularly in low-grip situations.
The friction distribution within the LSD is managed by the helical gearing.
When torque is applied to a helical gear system, it generates a force that pushes the gear into the differential body, resulting in friction.
Increases in torque cause an increase in thrust force that is directly proportional to the amount of torque. This enables the TorqueWorm LSD to deal with significant traction imbalance even under high power conditions, such as when exiting a powered up corner.
However, at low torque levels, the LSD can differentiate quietly and smoothly, making the differential ideal for normal road driving.
The popular parallel axis helical geared configuration used by the TorqueWorm LSD is optimized for even load distribution.
They have a torque bias of 5:1, which means that if one wheel loses traction, the wheel with the most grip can receive five times as much torque as the slipping wheel.
However, five times zero is still zero, so all of these helical LSDs work best when both wheels are 'planted' and some traction on the slipping wheel is still available. In practice, this is rarely a problem because there is always some 'drag' on the slipping wheel, but some experienced drivers use left-foot braking to partially lock the spinning wheel.
