Speedmaster®

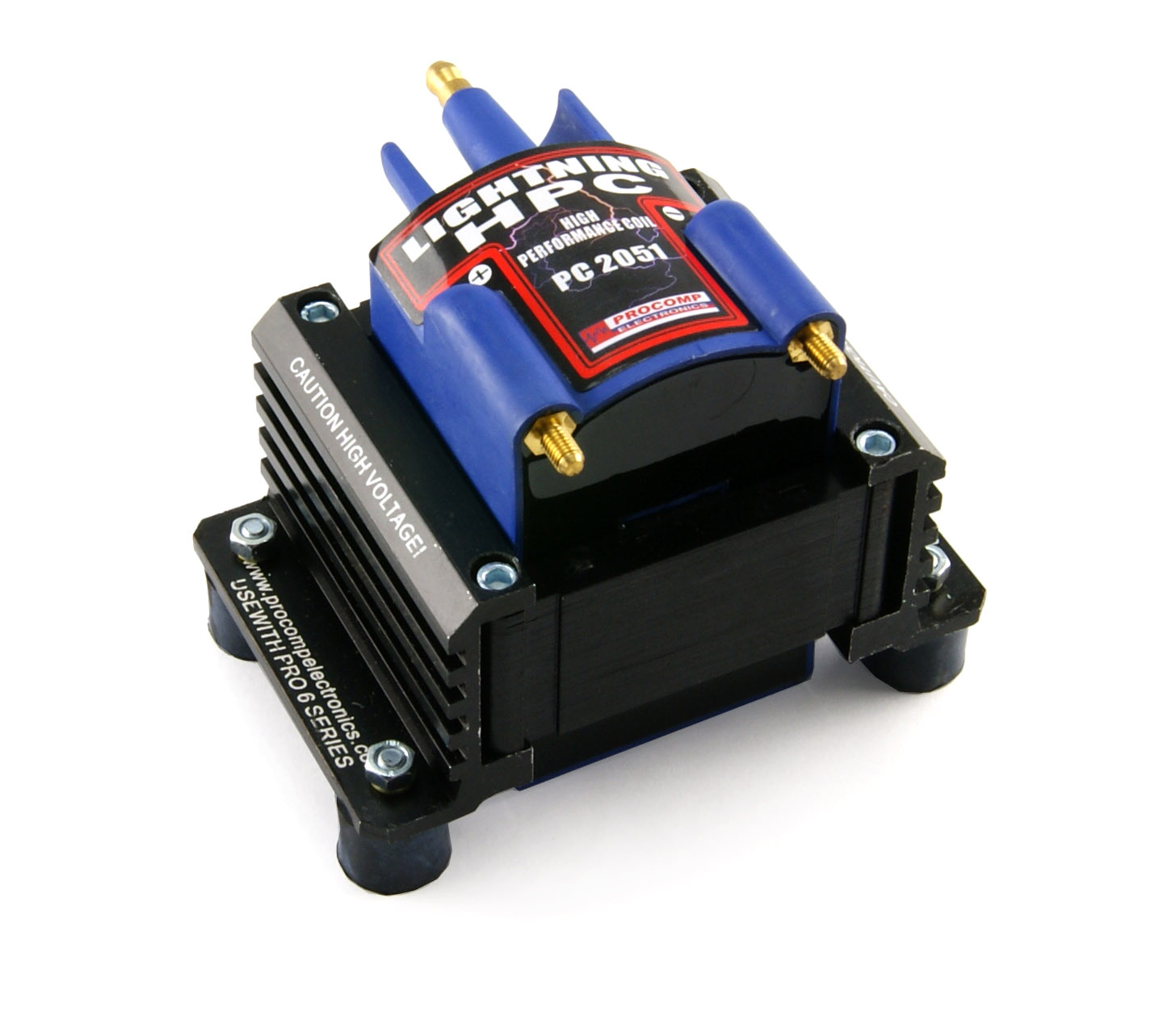

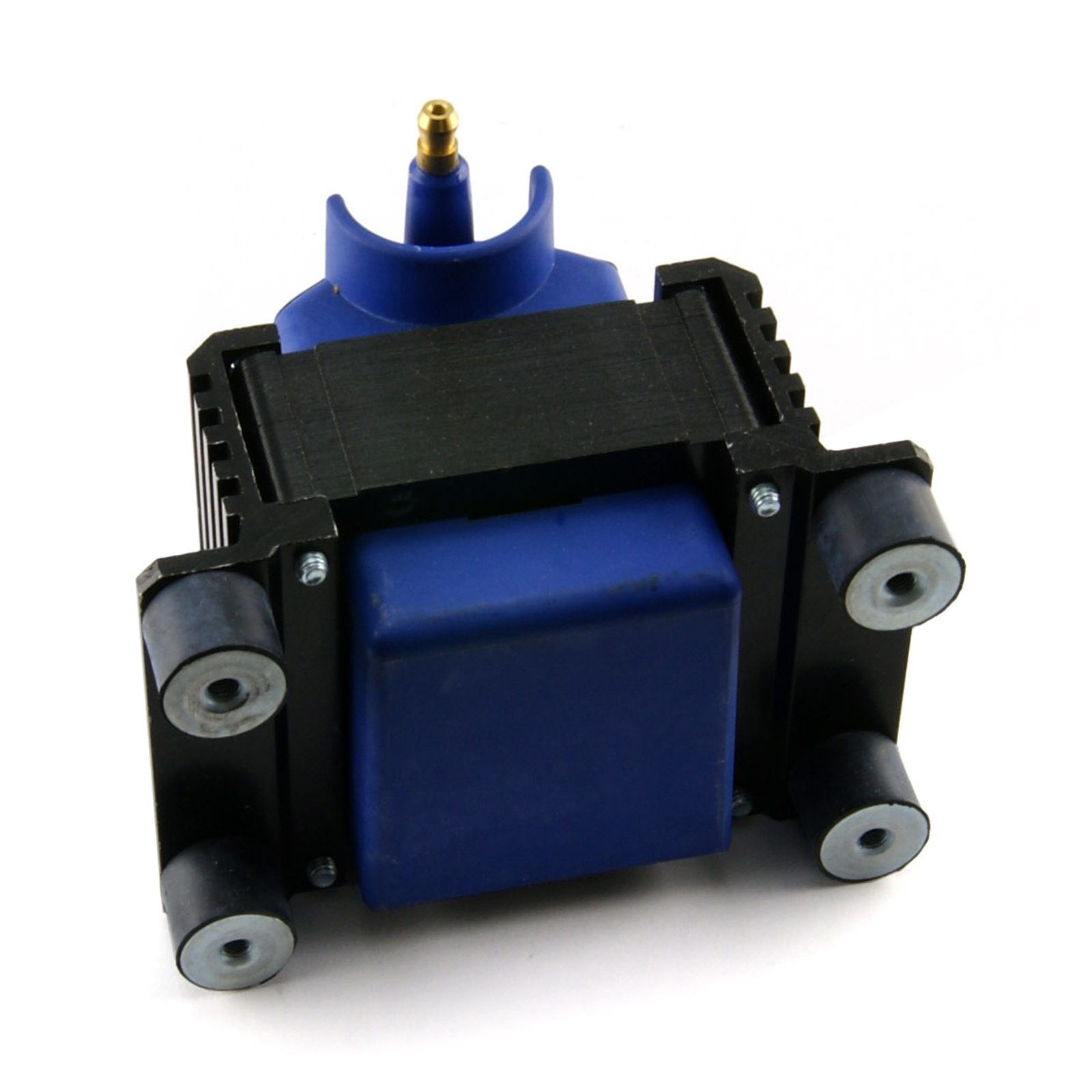

Universal HPC/HCV Race 12V High Output External Male E-Core Ignition Coil - Blue
Clearance
Product Information
Overview
Speedmaster HPC ignition coils are designed for high-rpm, long-duration applications. Windings are encased in a durable epoxy and secured with extruded brackets. They also feature a spark plug style terminal and a threaded brass primary stud. They are supplied with rubber shock mounts to help them resist coil vibration.
Specs
| Brand: | Speedmaster |
| Part Number: | PCE382.1006 |
| Part Type: | Ignition Coil |
| Coil Wire Attachment: | Male/HEI |
| Coil Style: | E-core |
| Primary Resistance: | 0.020 ohms |
| Coil Internal Construction: | Epoxy |
| Coil Color: | Blue |
| Maximum Voltage: | 42,000 V |
| Turns Ratio: | 100:1 |
| Secondary Resistance: | 1.38K ohms |
| Inductance: | 7.0 mH |
| Peak Current: | 300 mA |
| Spark Duration: | 200 uS |
| Mounting Bracket Included: | Yes |
| Coil Wire Included: | No |
| Ballast Resistor Included: | No |
| Coil Shape: | Square |
| Quantity: | Sold individually. |
Warranty Information
12-Month Limited Worldwide Warranty
Prop 65 Warning
This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
