Speedmaster®

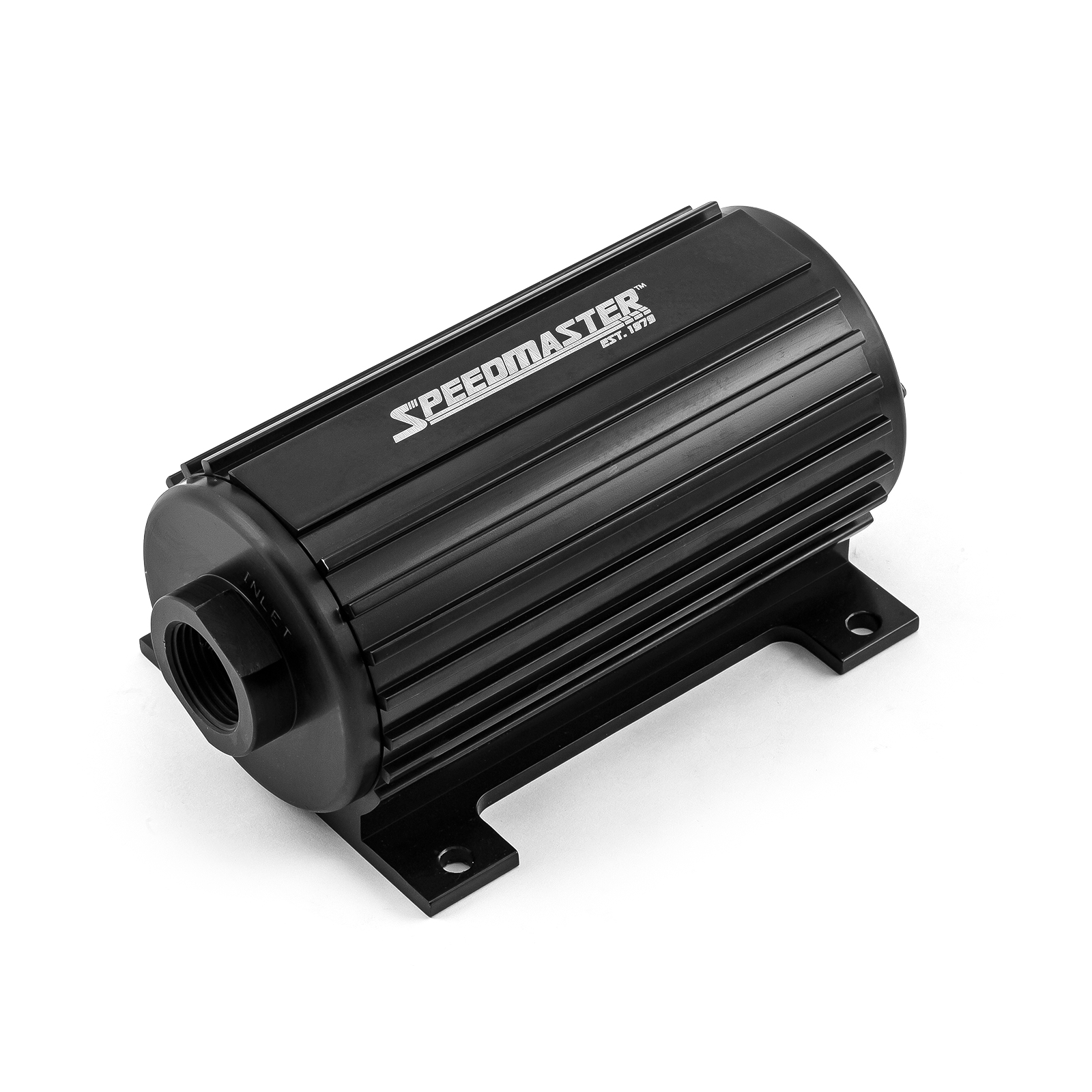

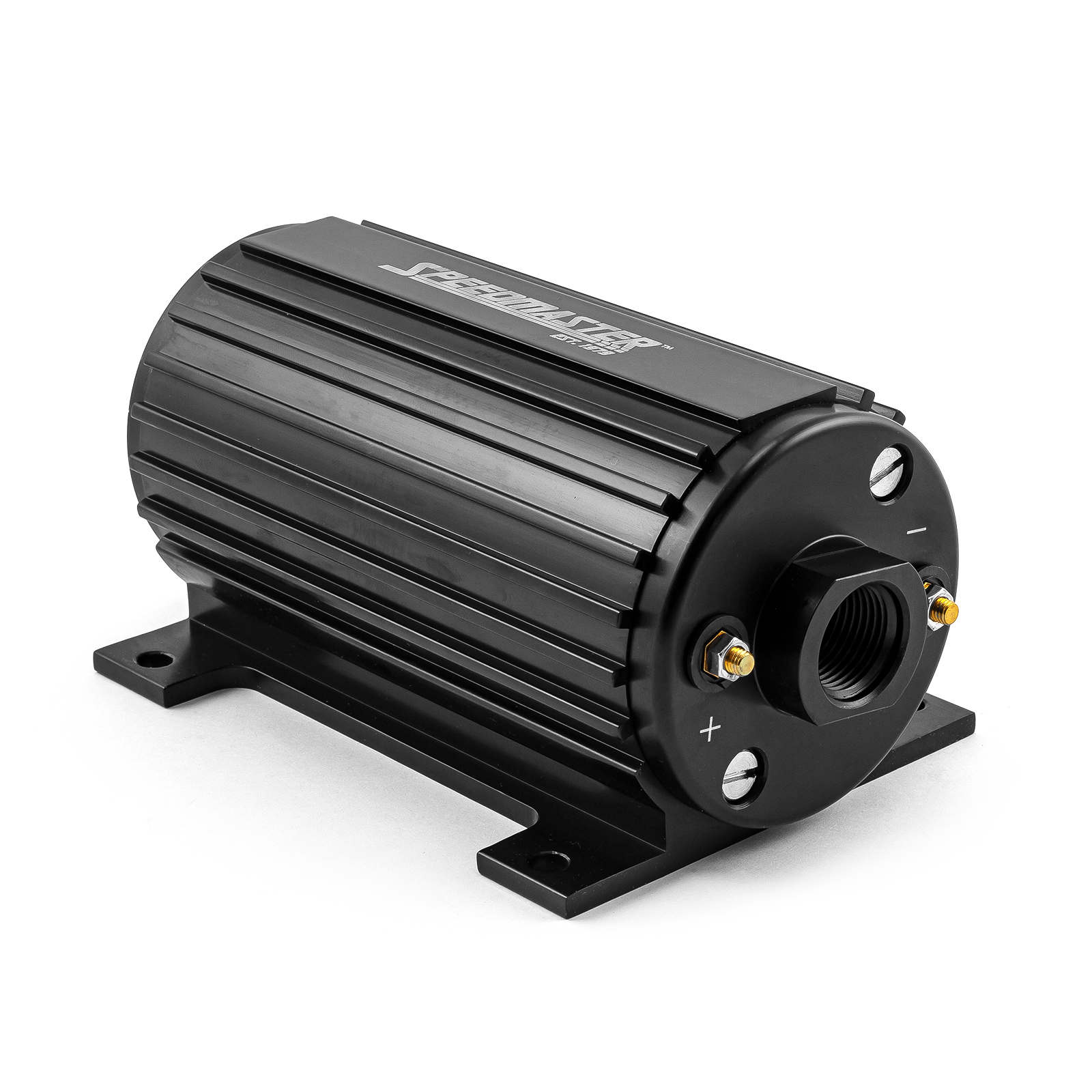

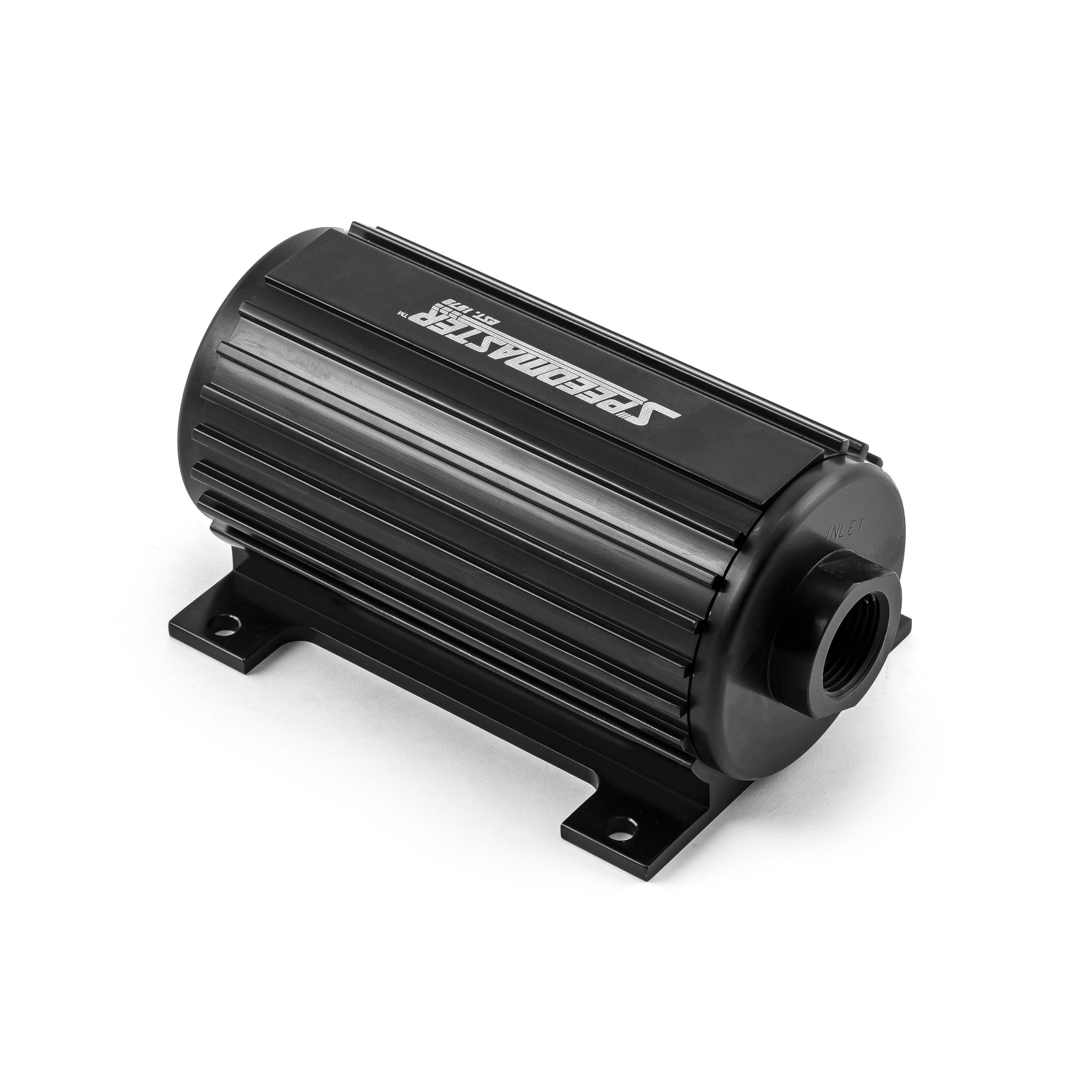

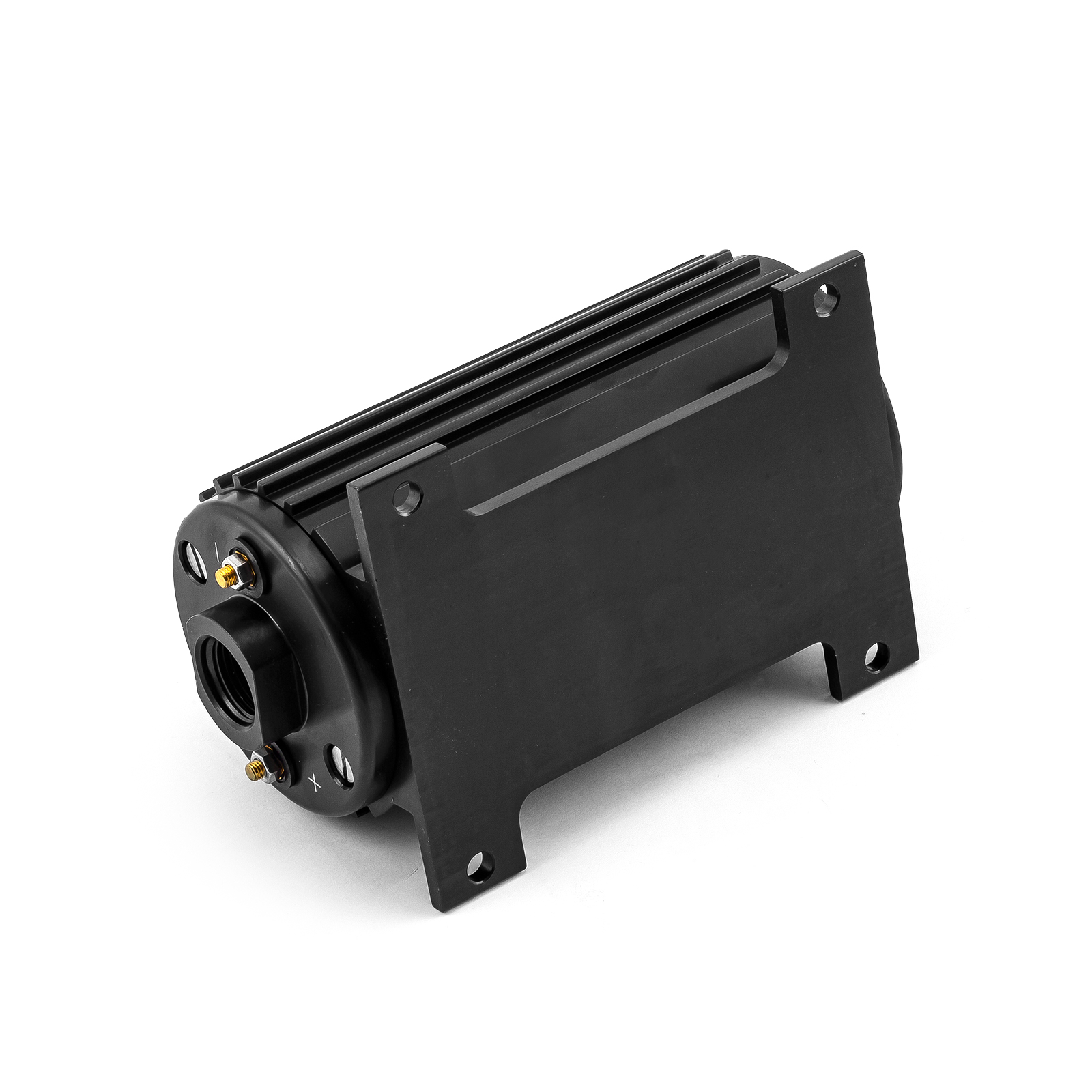

Inline Universal Electric Fuel Pump 700 - 1600 HP [Black]
![Speedmaster® PCE145.1040 Inline Universal Electric Fuel Pump 700 - 1600 HP [Black]](https://product-arena.s3.us-west-1.amazonaws.com/ProcompElectronics/PCE145%20-%20Fuel%20Pumps%2C%20Electric%20External/PCE145.1040/PCE145.1040.jpg?resizeid=225&resizeh=50&resizew=50)
![Speedmaster® PCE145.1040 Inline Universal Electric Fuel Pump 700 - 1600 HP [Black]](https://product-arena.s3.us-west-1.amazonaws.com/ProcompElectronics/PCE145%20-%20Fuel%20Pumps%2C%20Electric%20External/PCE145.1040/PCE145.1040_A.jpg?resizeid=225&resizeh=50&resizew=50)
![Speedmaster® PCE145.1040 Inline Universal Electric Fuel Pump 700 - 1600 HP [Black]](https://product-arena.s3.us-west-1.amazonaws.com/ProcompElectronics/PCE145%20-%20Fuel%20Pumps%2C%20Electric%20External/PCE145.1040/PCE145.1040_B.jpg?resizeid=225&resizeh=50&resizew=50)
![Speedmaster® PCE145.1040 Inline Universal Electric Fuel Pump 700 - 1600 HP [Black]](https://product-arena.s3.us-west-1.amazonaws.com/ProcompElectronics/PCE145%20-%20Fuel%20Pumps%2C%20Electric%20External/PCE145.1040/PCE145.1040_C.jpg?resizeid=225&resizeh=50&resizew=50)
Product Information
Overview
Feed your beast with these EFI fuel pumps. Beautiful, compact, durable, and reliable, these fuel pumps will fuel the fire whether it's naturally aspirated, nitrous enhanced, blown, or turbocharged.
Specs
| Brand: | Speedmaster |
| Part Number: | PCE145.1040 |
| Part Type: | Fuel Pump, Electric External |
| Free Flow Rate: | 800 lbs./hr. |
| Maximum Pressure (psi): | 65 psi |
| Inlet Quantity: | One |
| Inlet Attachment: | Female threads |
| Inlet Size: | -12 AN O-ring |
| Outlet Quantity: | One |
| Outlet Attachment: | Female threads |
| Outlet Size: | -10 AN O-ring |
| Quantity: | Sold individually. |
| Notes: | Flow over 800 lbs./hr. at 45 psi. Fully submersible for custom, in-tank placement. |
Description
These pumps are for fuel-injected applications with base pressure settings between 30 and 65 psi.
Supported Naturally Aspirated Engines:1600HP
Supported On Forced Induction Engines:1100HP
Warranty Information
12-Month Limited Worldwide Warranty
Prop 65 Warning
This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
