Speedmaster®

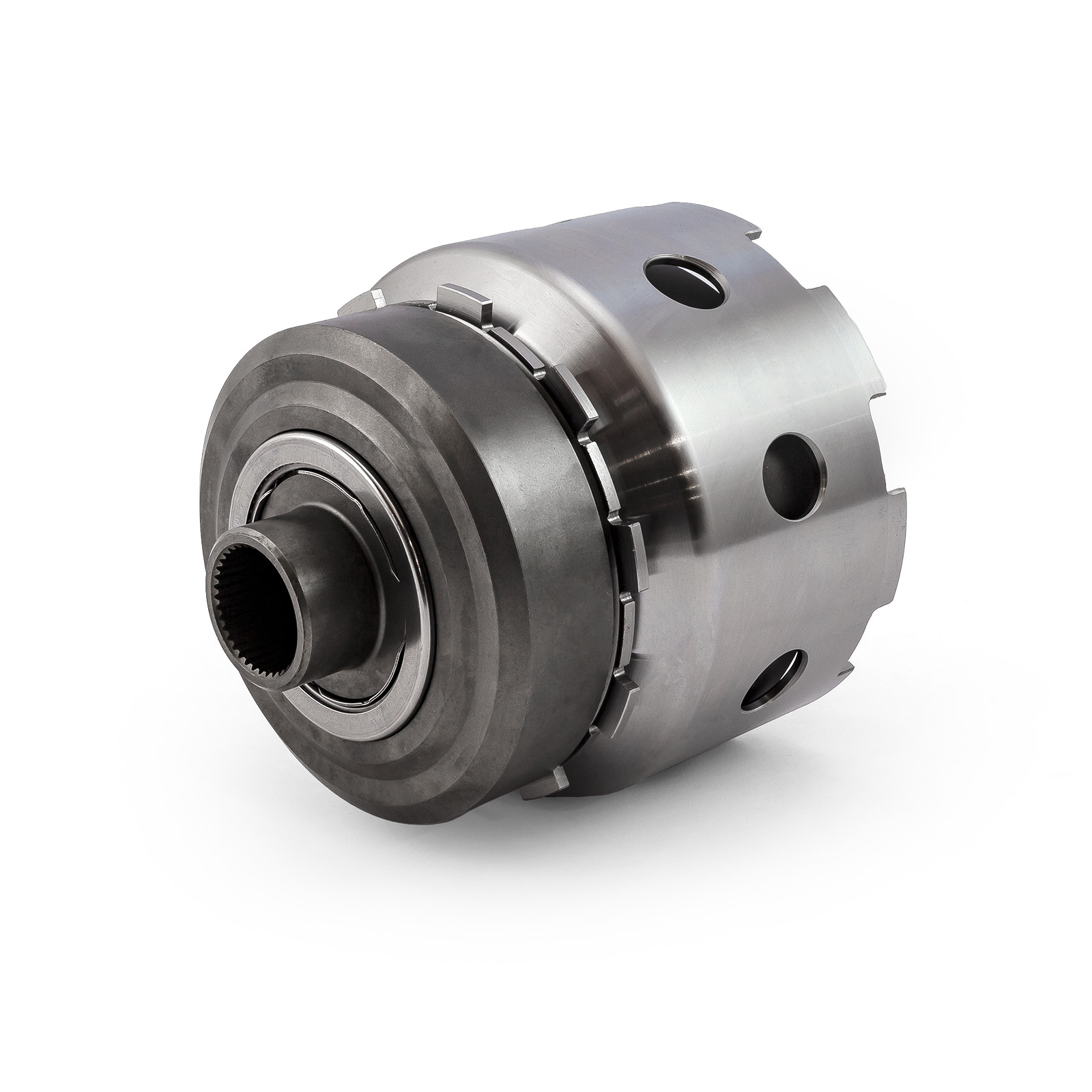

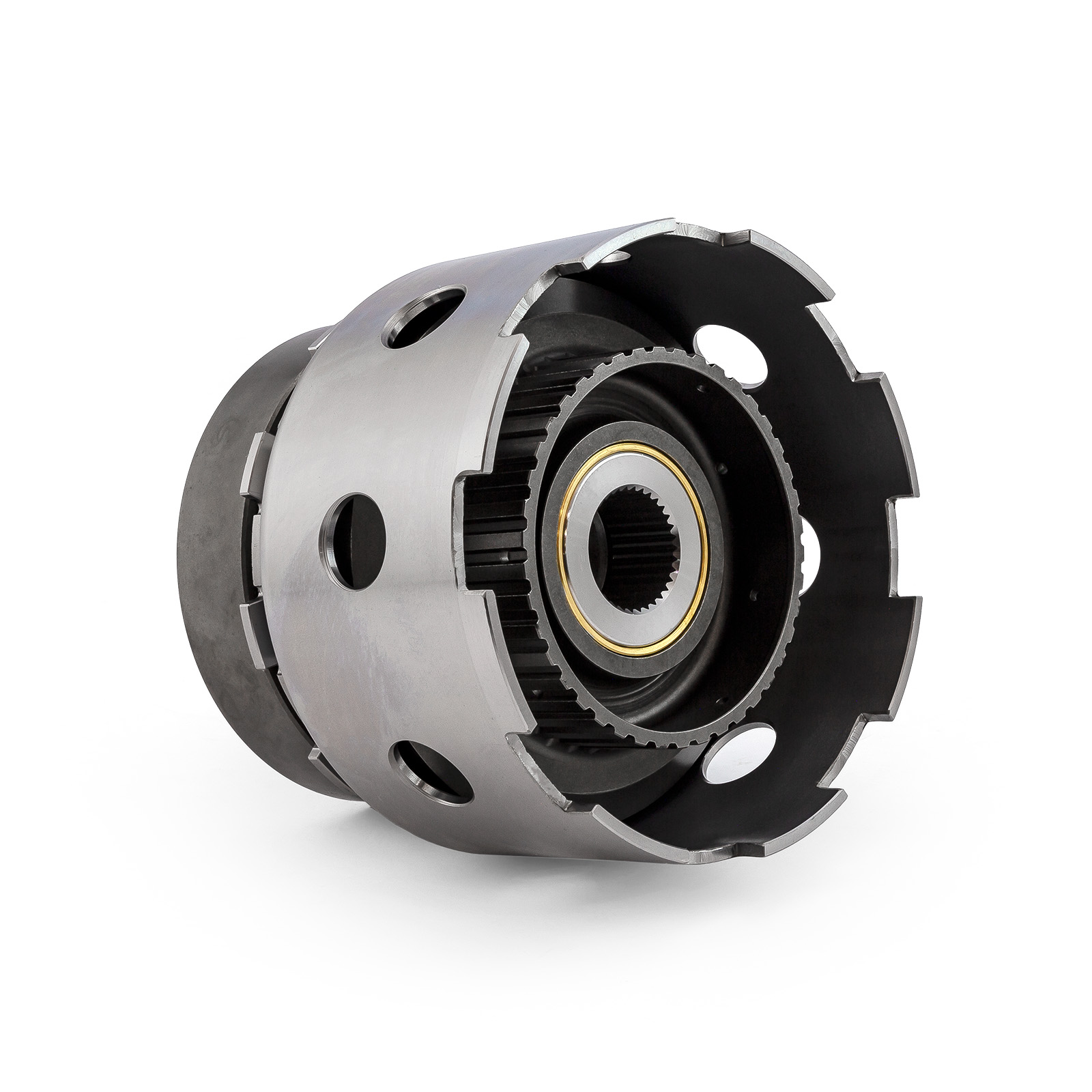

Ford C4 Transmission Performance Complete Planetary Gear Set
Product Information
Overview

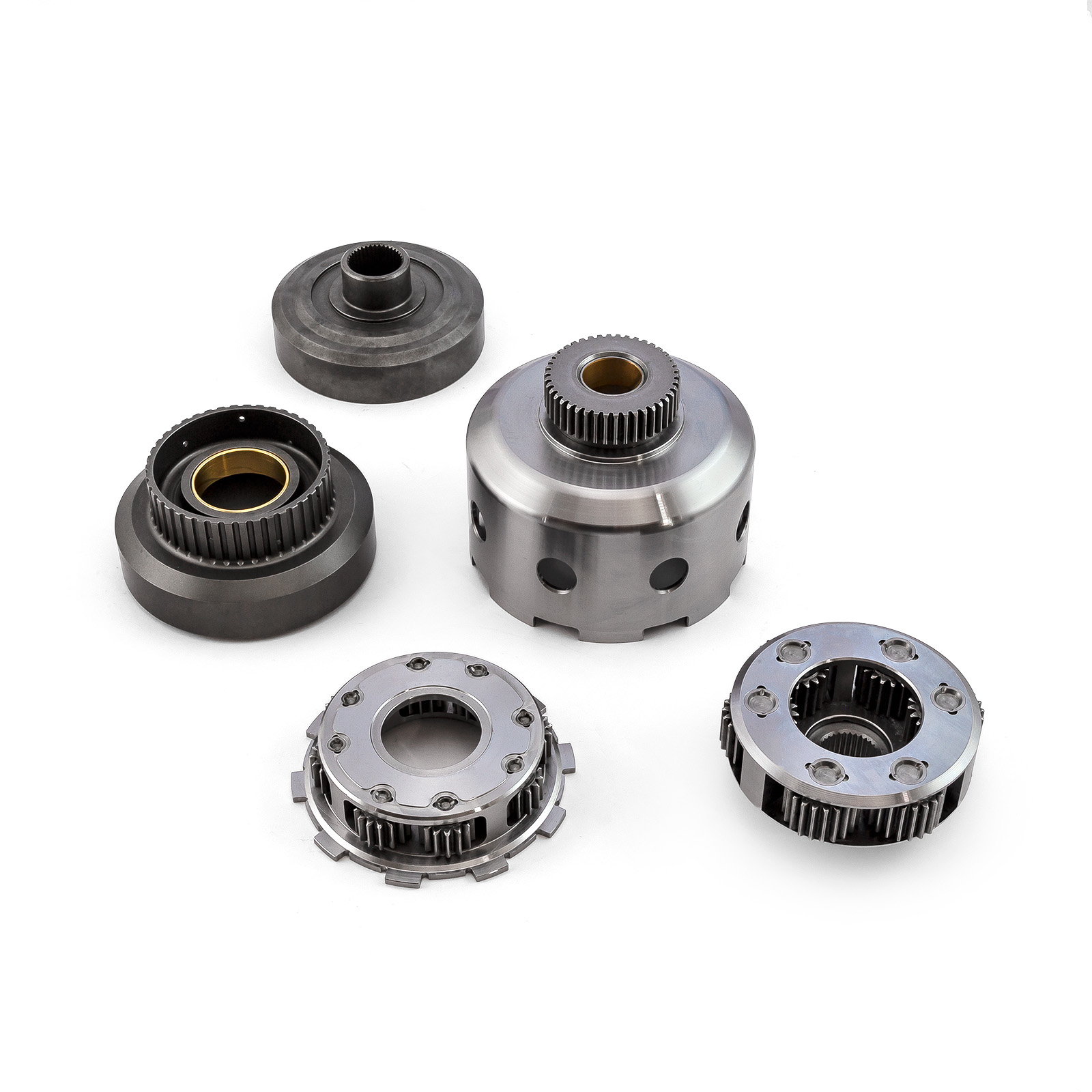

Speedmaster planetary gears are cut with a straight tooth instead of the helical cut tooth. This offers strength and no thrusting while torque is applied. The 8-pinion rear planetary carrier is made from 4340 steel. The 6-pinion front planetary is constructed from investment cast steel.
Specs
| Brand: | Speedmaster |
| Part Number: | PCE550.1009 |
| Part Type: | Automatic Transmission Gear |
| Gear Set Type: | Planetary |
| Gear Set Material: | 4340 Steel |
| Gear Type: | Straight Cut |
| Front Planetary Gear Spline: | 34 |
| Front Planetary Gear Ratio: | 2.18 |
| Front Planetary Pinion Gear Quantity: | 6 |
| Rear Carrier Spline Count: | 37 |
| Rear Planetary Gear Ratio: | 1.67 |
| Rear Planetary Pinion Gear Quantity: | 8 |
| Thrust Bearings Included: | Yes |
| Quantity: | Sold as a kit. |

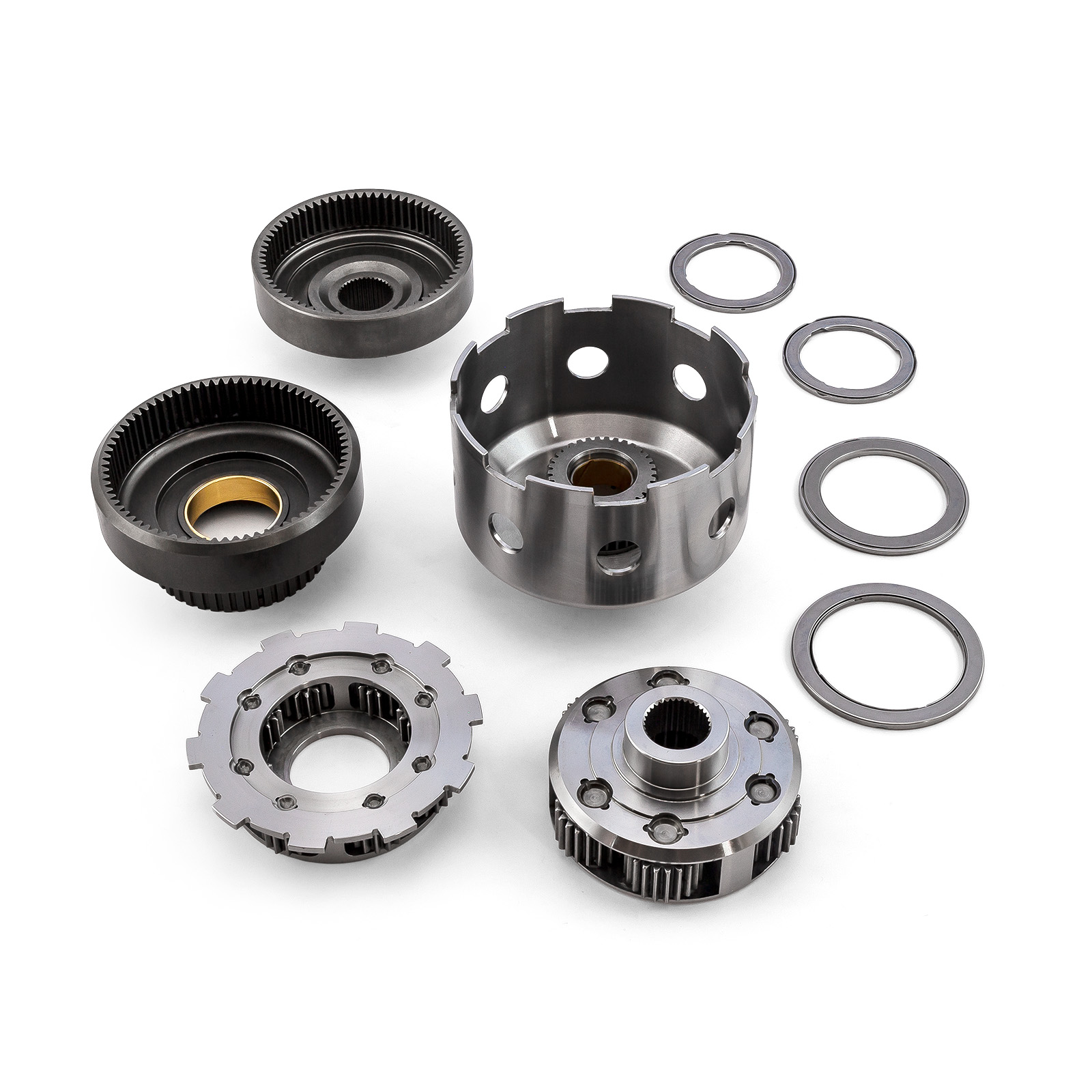

| Notes: | Includes lightened driving shell with sun gear installed. |
