Speedmaster®

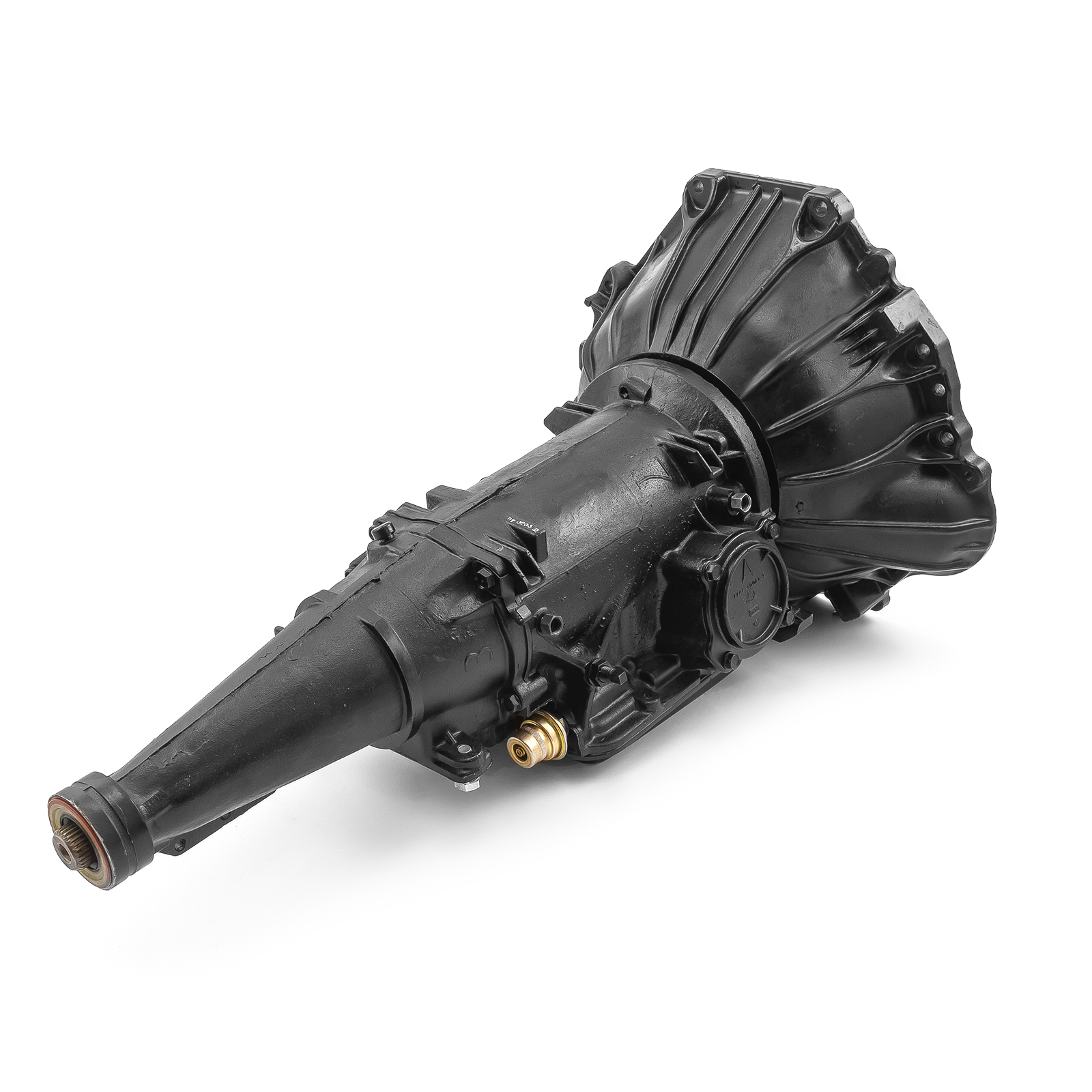

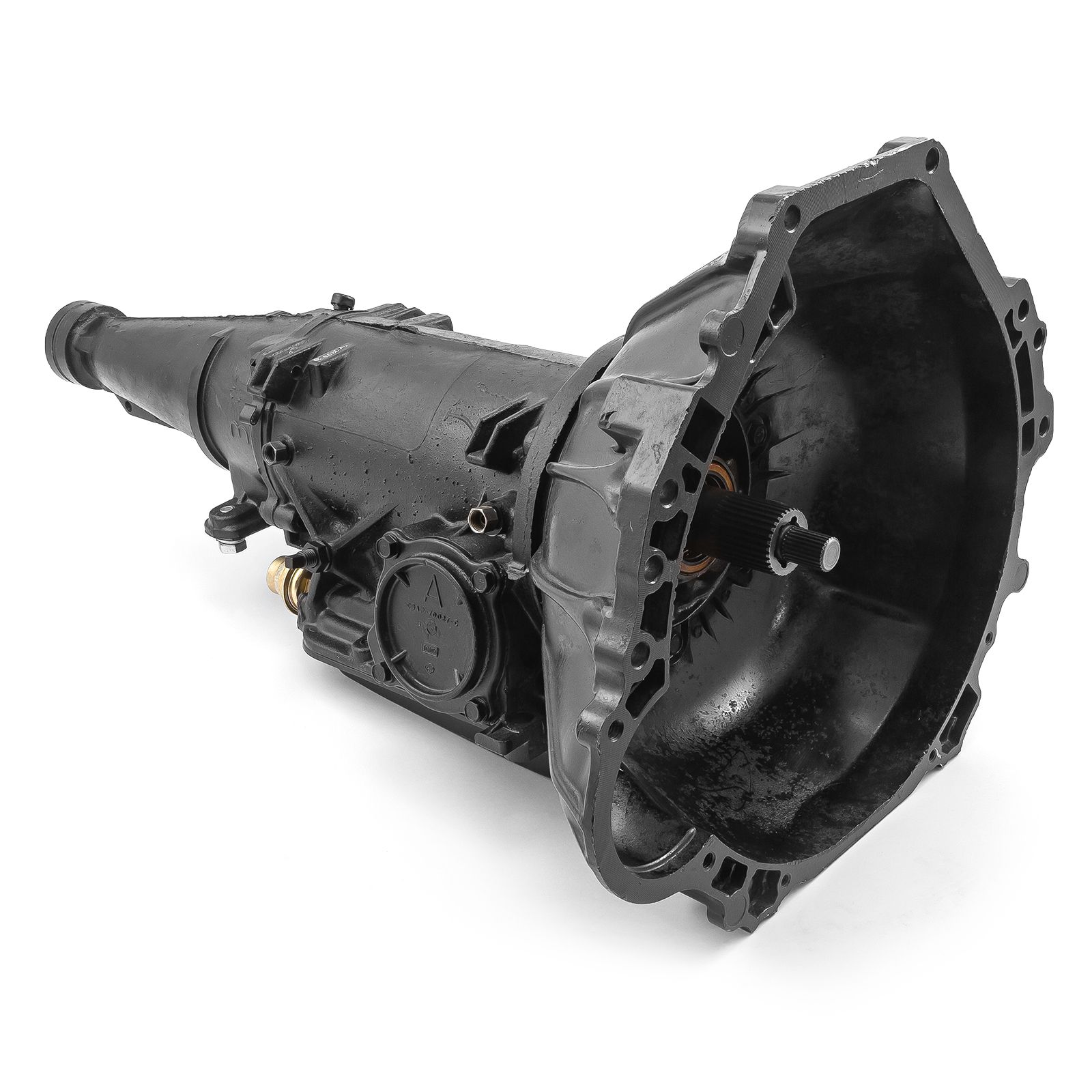

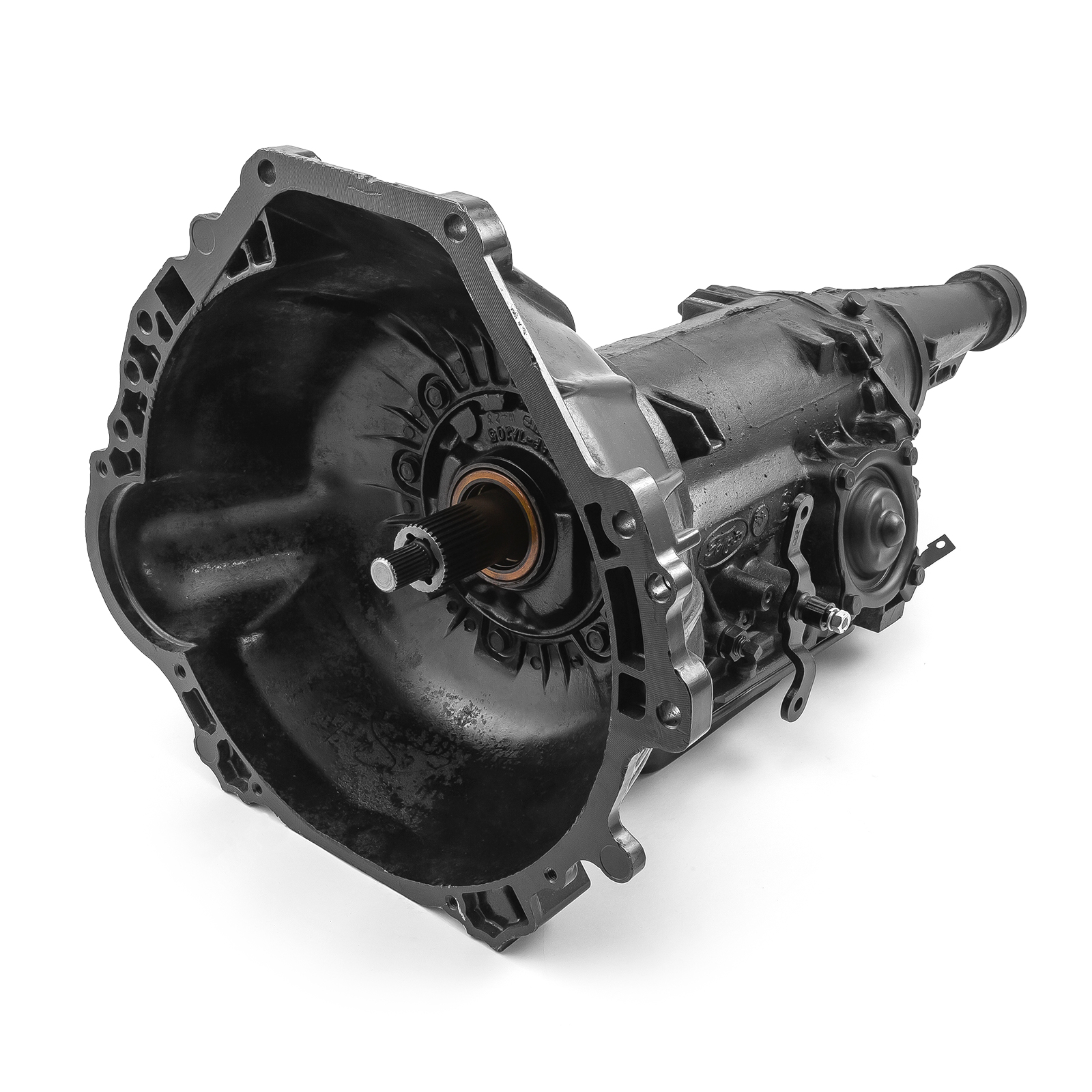

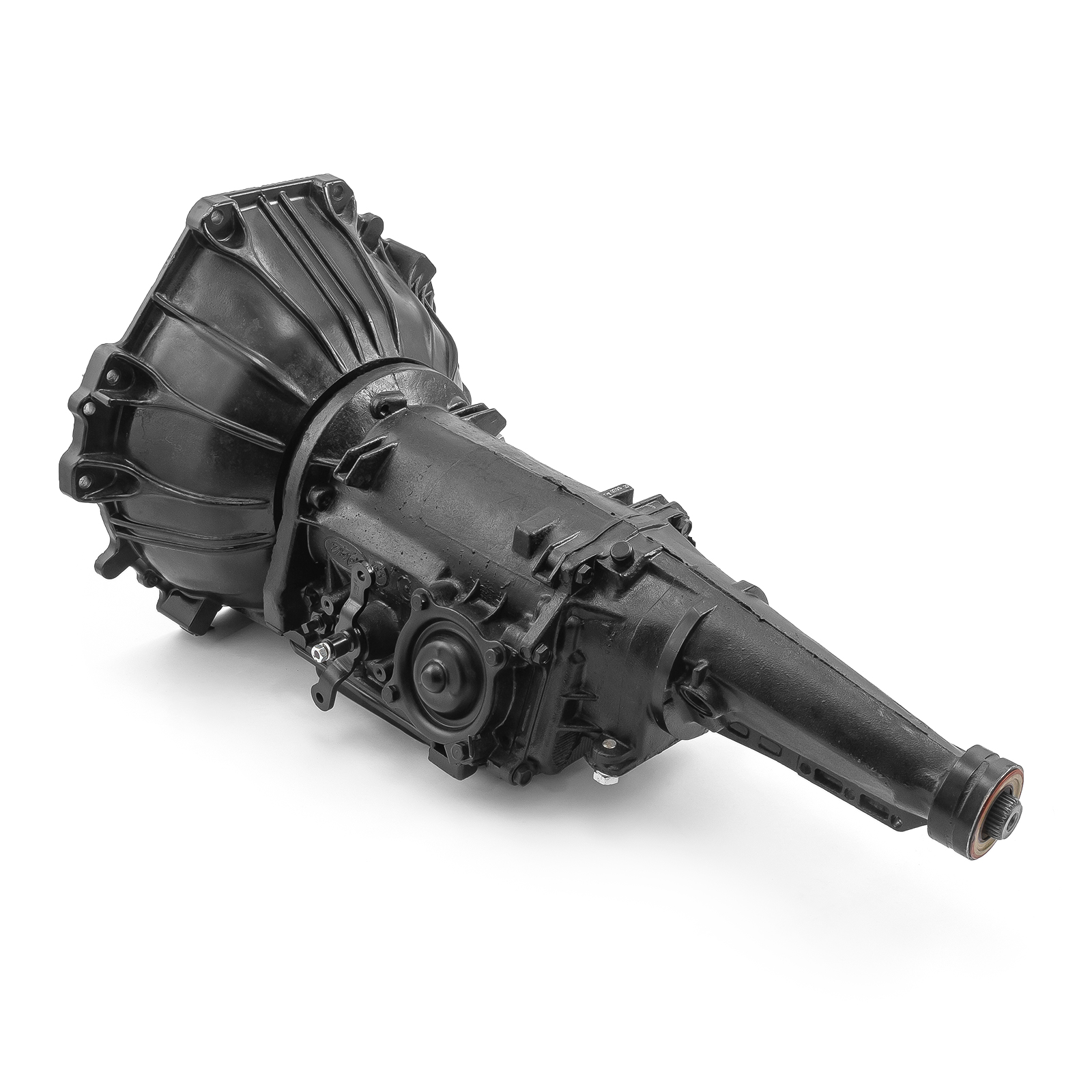

Ford SB C4 1964-1980 26 Spline Performance Rebuilt Automatic Transmission
Overview
Specs
| Brand: | Speedmaster |
| Part Number: | PCE432.1031 |
| Part Type: | Automatic Transmission |
| Number of Gears: | Three |
| Valve Body Style: | Automatic/Manual |
| Transmission Advertised Horsepower Rating: | 500 HP |
| Torque Converter Included: | No |
| Trans-Brake Included: | No |
| Lock Up Compatible: | No |
| Transmission Pan Style: | Stock |
| Transmission Pan Material: | Aluminum |
| Transmission Pan Finish: | Natural |
| Tailshaft Length: | 13.000 in. |
| Input Spline Quantity: | 26 |
| Input Shaft Material: | Hardened Steel |
| Input Shaft Style: | C4 |
| First Gear Ratio: | 2.46 |
| Lockup: | No |
| Transmission Case Style: | OEM |
| Transmission Case Material: | Aluminum |
| Transmission Case Finish: | Painted Black |
| Transmission Shield Built In: | No |
| Flexplate Shield Built In: | No |
| Fluid Fill Location: | Case Fill |
| Dipstick Included: | No |
| Safety Rating: | N/A |
| Quantity: | Sold individually |
| Notes: | Assembled and Dyno Tested in the USA. |
Description
This transmission is a complete ready to run unit (less the converter) for performance street and mild strip use.
The transmission provides firm shifts and features a standard shift pattern, the finest transmissions available for street and strip use.
The bare case is pressure washed and passages are cleaned using compressed air, while the valve body and its parts that are to be reused are thoroughly cleaned and inspected for cracks, pin holes or wear.
All worn or potentially weak components are replaced to ensure longevity and dyno tested to ensure 100% operation.
The valve body surfaces are checked, while the valves are checked for drag to ensure correct smooth operation.
All gaskets and external seals will be new and will include the cooler line fittings.
It uses a mechanical type speedometer connection.
Suitable for use behind engines producing up to 450lb. ft of torque.
First Gear Ratio 2.46-1 Output spline count - 28.
