Speedmaster®

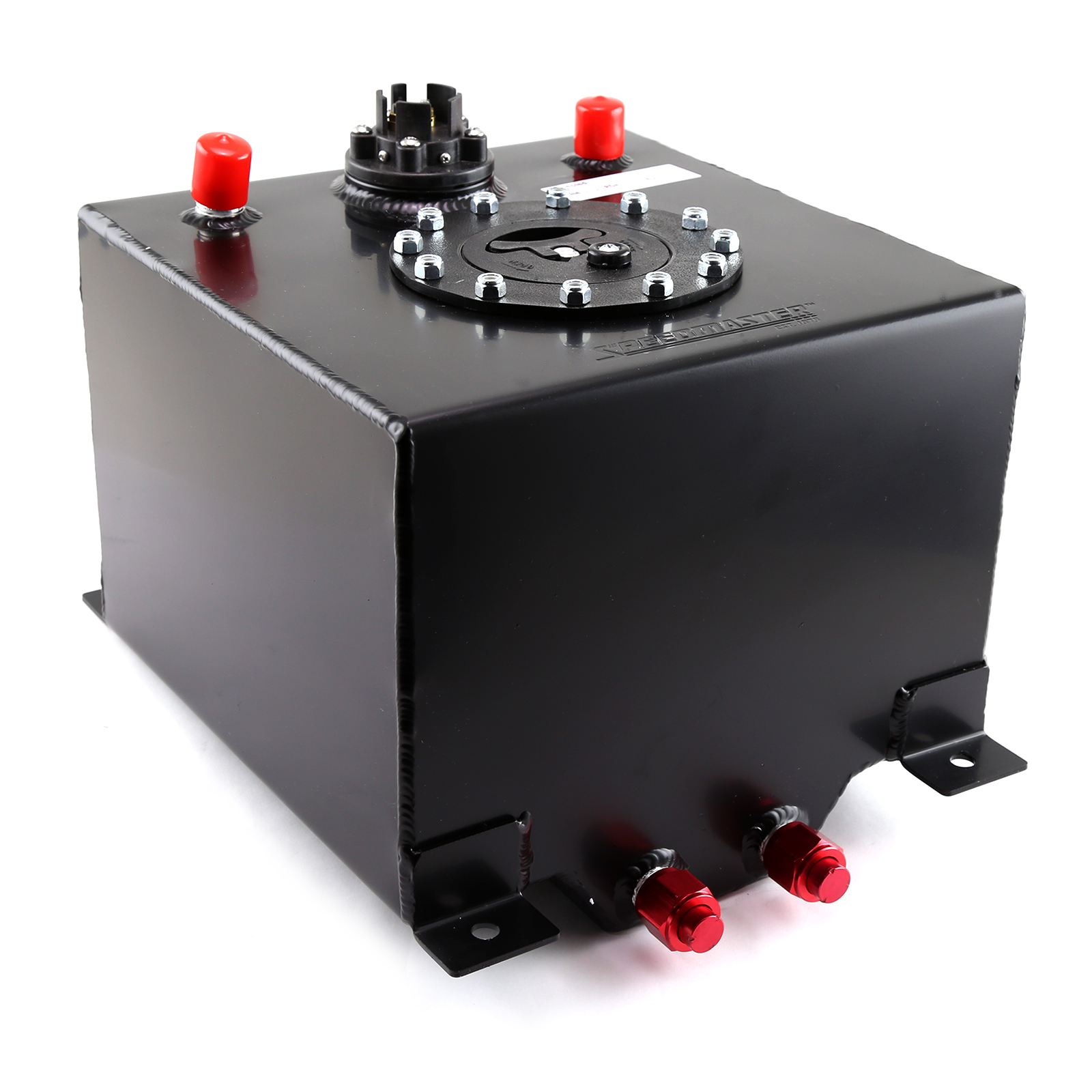

5 Gallon / 20 Litre Black Aluminum Fuel Cell w/Sending Unit
Overview

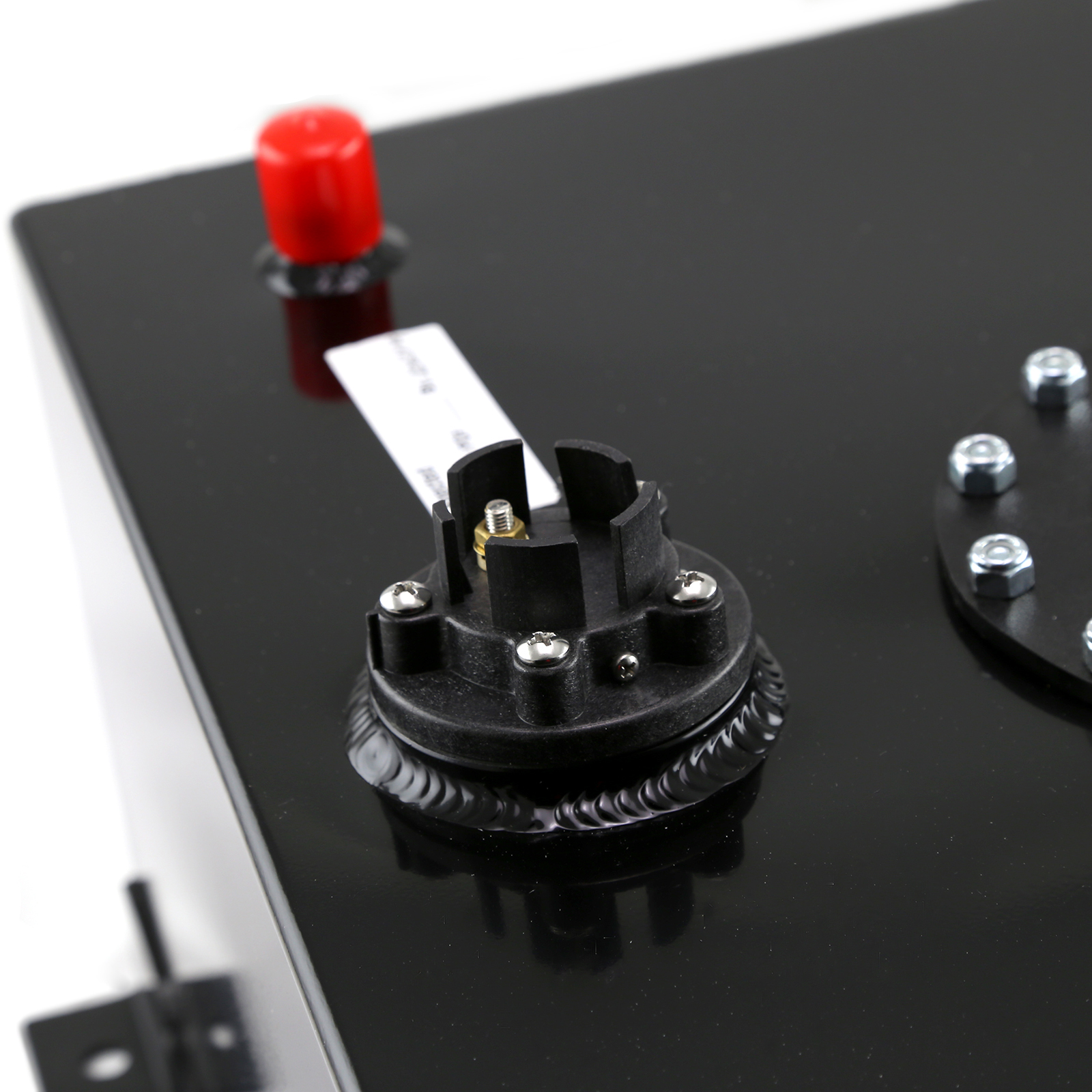

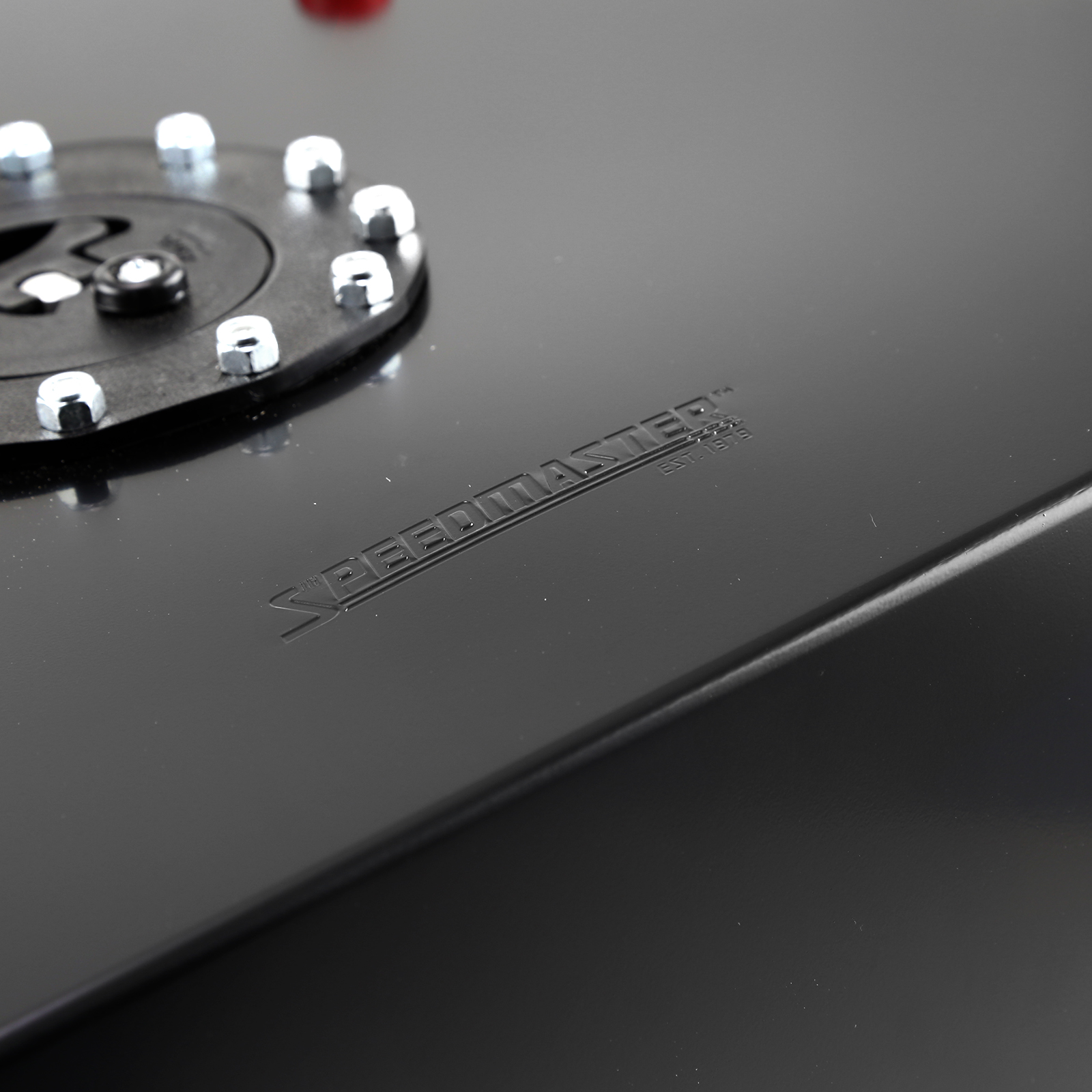

Made from 5051 aircraft aluminum alloy, our Speedmaster aluminum fuel cells offer superior strength in a lightweight package. The cells have foam in the base to prevent fuel aeration, and have TIG-welded seams. Other features include a flush mount, aircraft-style cap and -10 AN pickup, vent, and return line fittings. Plus, all our models include a 0-90 ohm built-in fuel level sending unit.
Specs
| Brand: | Speedmaster |
| Part Number: | 1-130-004 |
| Part Type: | Fuel Cell |
| Capacity: | 5 gallons (20 litre) |
| Fuel Cell Color: | Black |
| Fuel Cell Material: | Aluminum |
| Foam: | Yes |
| Sending Unit Included: | Yes |
| Sender Ohm Range: | 0 ohms empty, 90 ohms full |
| Length (in): | 12.000 in. |
| Width (in): | 12.000 in. |
| Height (in): | 9.000 in. |
| Outlet Fitting Quantity: | Two |

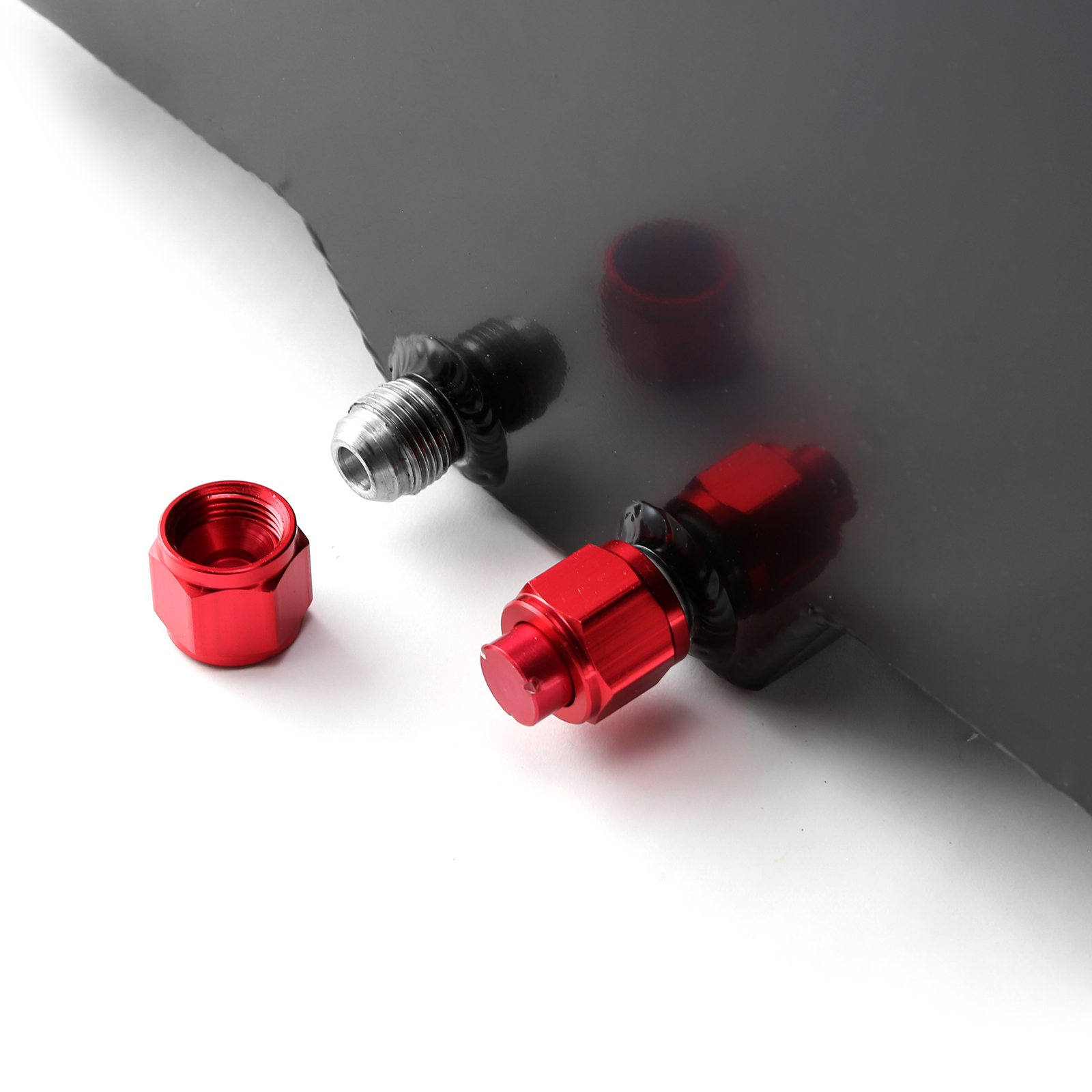

| Outlet Fitting Size: | -10 AN |
| Vent Fitting Size: | -10 AN |
| Return Fitting Size: | -10 AN |
| Sump: | Yes |
| Sump Depth (in): | 2 in. |
| Quantity: | Sold individually. |
| Notes: | Fuel cell is manufactured from 0.100 in. thick aluminum. |
