Speedmaster®

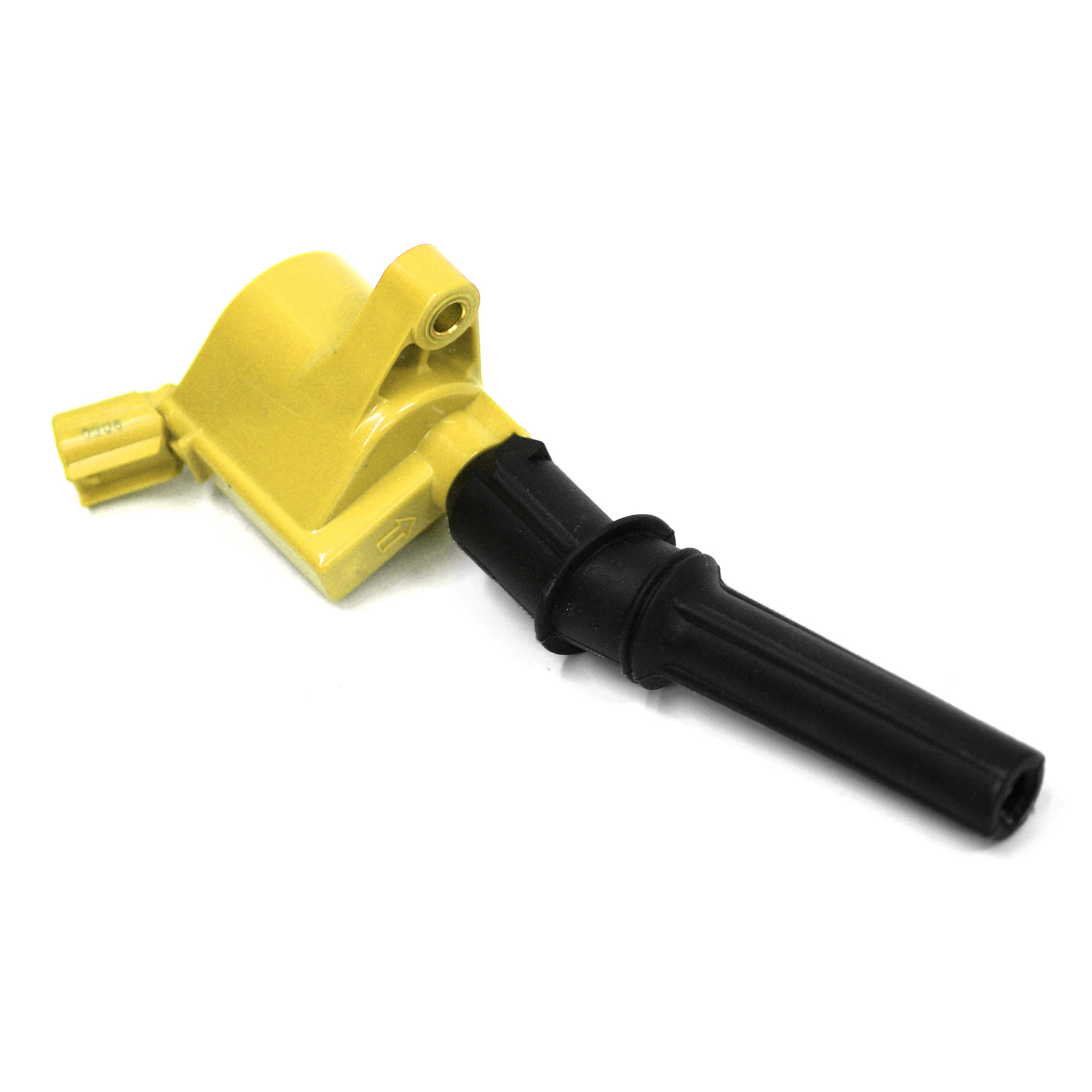

FORD 4.6 5.4L Coil-on-Plug Ignition Coil - Yellow (Indv)
Product Information
Specs
| Brand: | Speedmaster |
| Part Number: | PCE382.1031.01 |
| Part Type: | Ignition Coil |
| Coil Wire Attachment: | Female/Socket |
| Coil Style: | Coil pack |
| Primary Resistance: | 0.660 ohms |
| Coil Internal Construction: | Epoxy |
| Coil Color: | Yellow |
| Maximum Voltage: | 60,000 V |
| Turns Ratio: | 61:1 |
| Secondary Resistance: | 6.1K ohms |
| Mounting Bracket Included: | No |
| Coil Wire Included: | No |
| Ballast Resistor Included: | No |
| Coil Shape: | Round |
| Quantity: | Sold individually. |
| Notes: | Fits 2-valve engines only. |
Description
Speedmaster Coils are engineered for a faster rise time and a longer spark duration. They produce higher spark energy for increased performance. These coils feature advanced bobbin technology, highly specialized silicone magnetic steel cores, along with optimized winding, resistance and turns ratios to deliver 10-15% more energy than the OEM coils. Specialized high temperature epoxy resists shock and vibration, while increasing thermal conductivity. These are direct plug replacements for OEM coils. They feature bodies and / or secondary towers and feature brass secondary contacts (except direct fire coil on plug applications).
