Speedmaster®

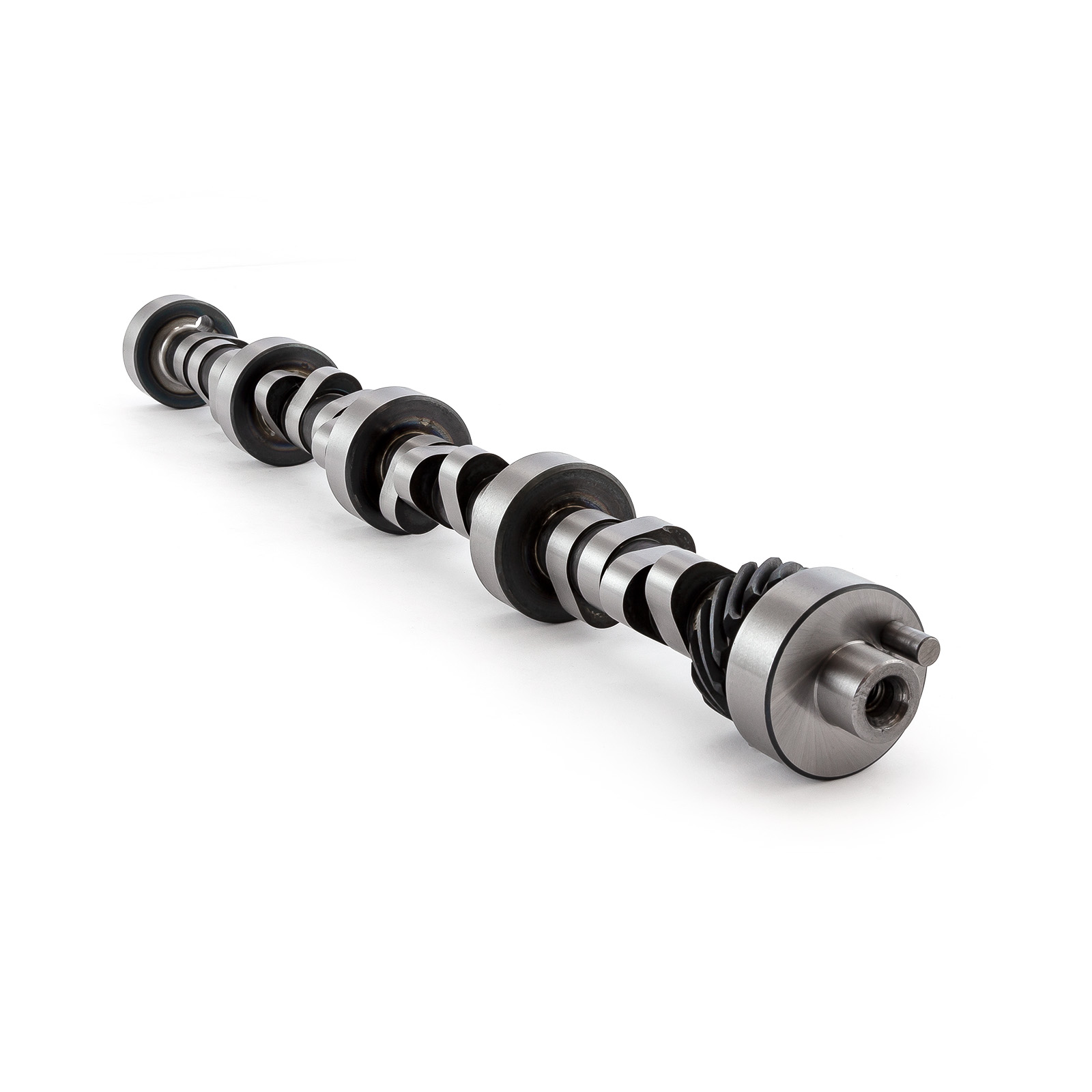

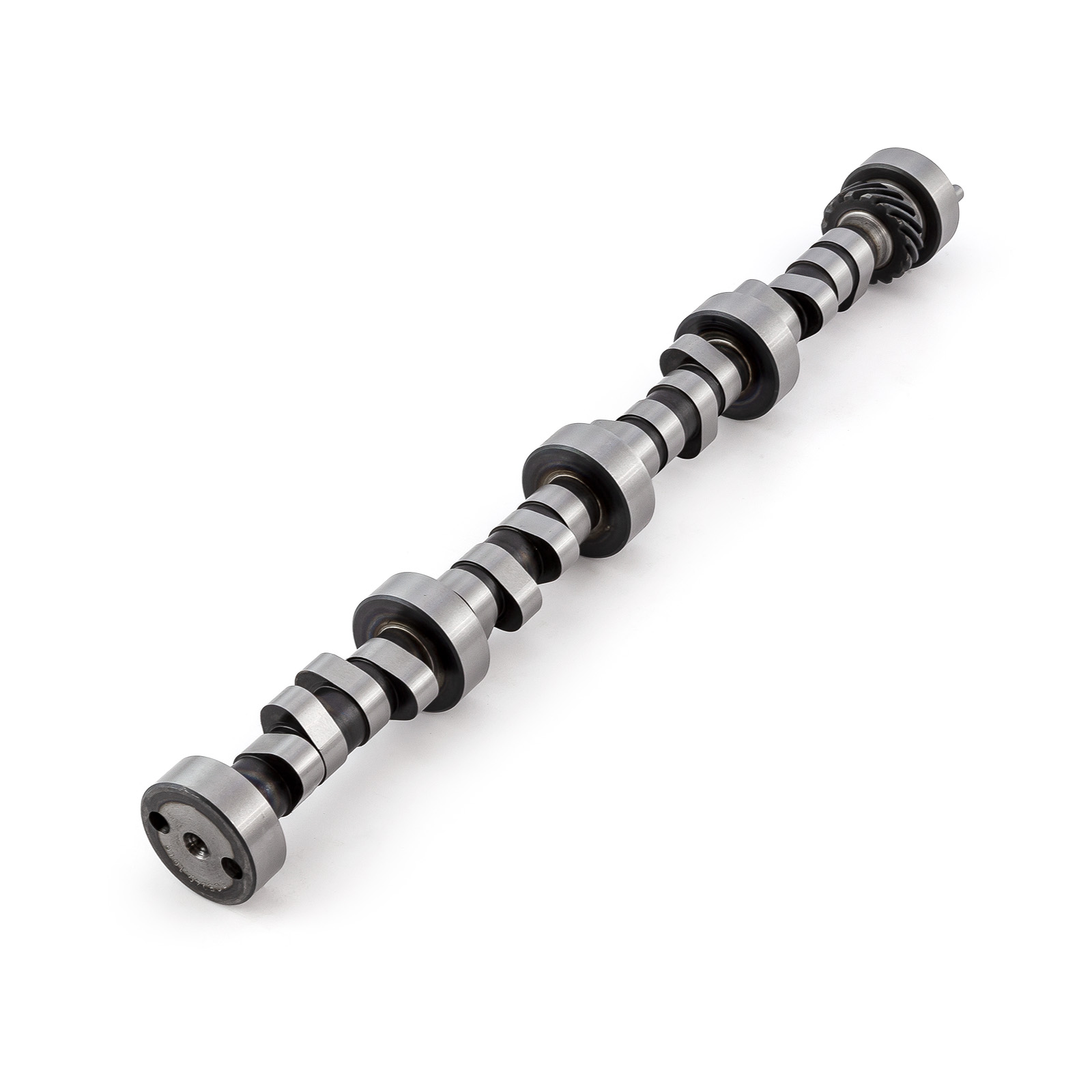

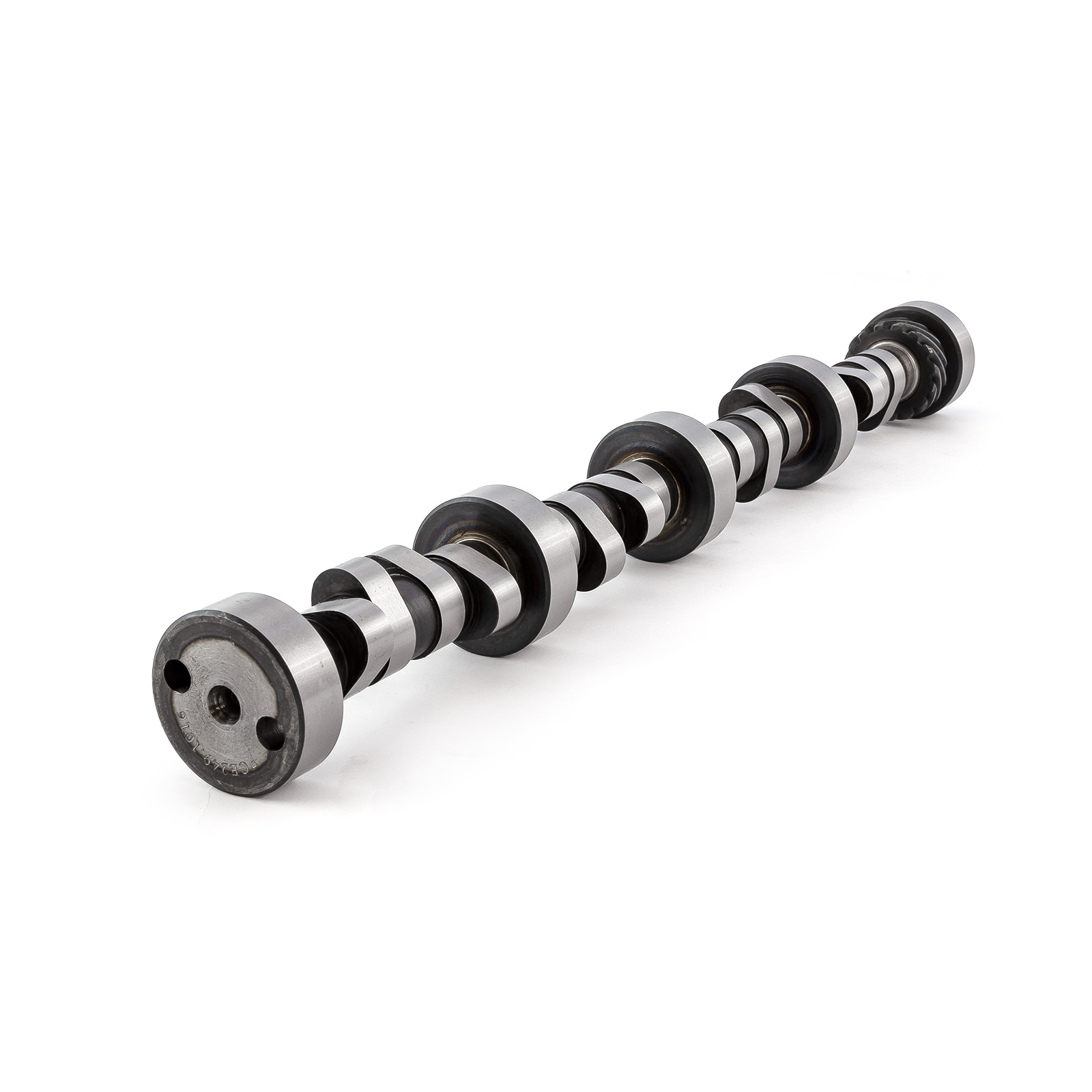

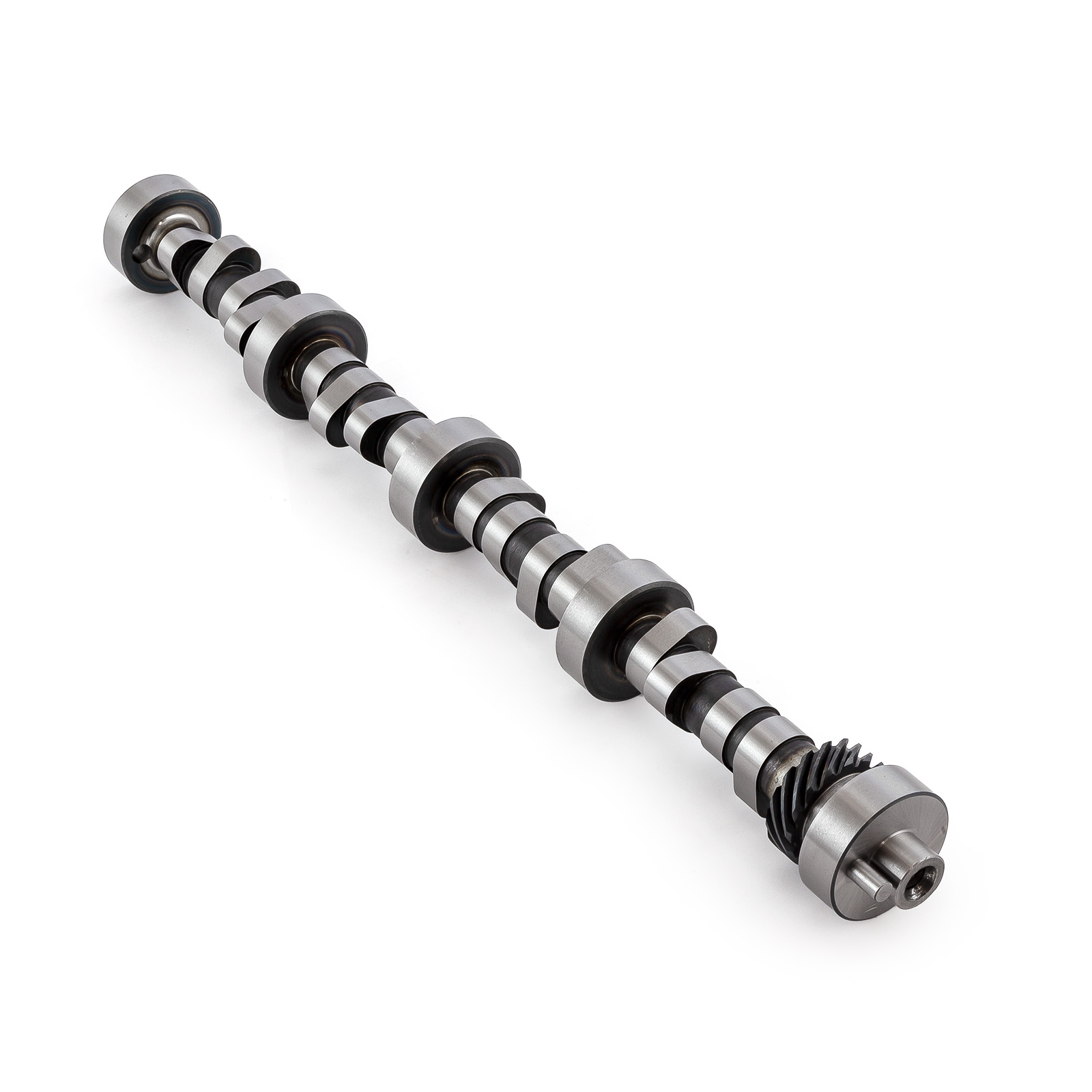

Ford SB 289 302 351 Windsor Hydraulic Roller Camshaft 218 Int. 224 Exh. Duration
Promo
Product Information
Overview
Speedmaster camshafts are built to take advantage of the latest cam technology, to provide maximum performance. Whether your use is off-roading, towing, or street performance, there is a Speedmaster cam available for you. By using an aggressive lobe profile, these cams provide better throttle response and more top-end horsepower than equivalent cams from other manufacturers, while delivering increased engine vacuum.
Specs
| Brand: | Speedmaster |
| Part Number: | PCE249.1016 |
| Part Type: | Camshaft |
| Cam Style: | Hydraulic roller, Retro-fit |
| Basic Operating RPM Range: | 1,500-5,500 |
| Intake Duration at 050 inch Lift: | 218 |
| Exhaust Duration at 050 inch Lift: | 224 |
| Duration at 050 inch Lift: | 218 int./224 exh. |
| Advertised Intake Duration: | 270 |
| Advertised Exhaust Duration: | 276 |
| Advertised Duration: | 270 int./276 exh. |
| Intake Valve Lift with Factory Rocker Arm Ratio: | 0.513 in. |
| Exhaust Valve Lift with Factory Rocker Arm Ratio: | 0.513 in. |
| Valve Lift with Factory Rocker Arm Ratio: | 0.513 int./0.513 exh. |
| Lobe Separation (degrees): | 110 |
| Computer-Controlled Compatible: | No |
| Valve Springs Required: | Yes |
| Quantity: | Sold individually. |
| Notes: | Must use 351W Firing Order: 1 - 3 - 7 - 2 - 6 - 5 - 4 - 8 |
